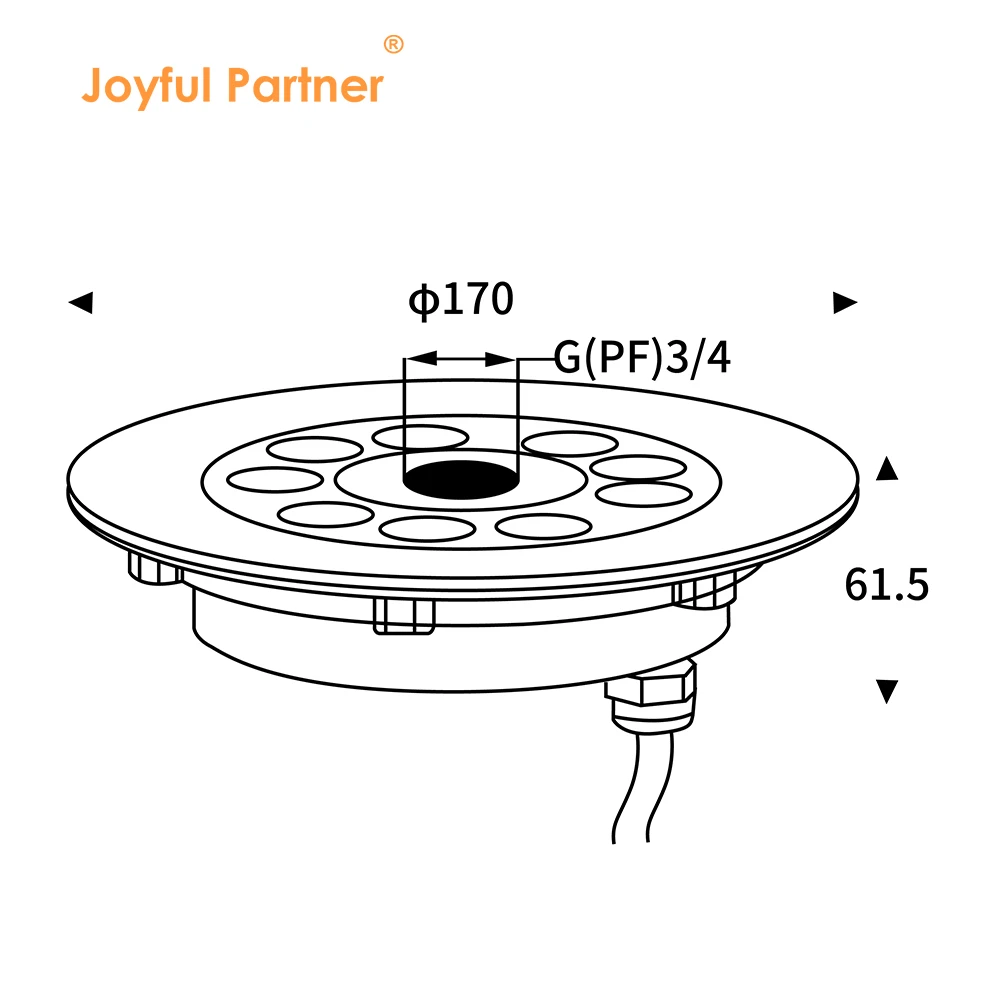

JP9409X（Ø 170mm）
Waterproof Rating: IP68
Material: Hard chromeplated molding shaped 304# or 316L# Stainless Steel
Model: 9409X / 9409XB Series
Certification: IP68, RoHS, CE

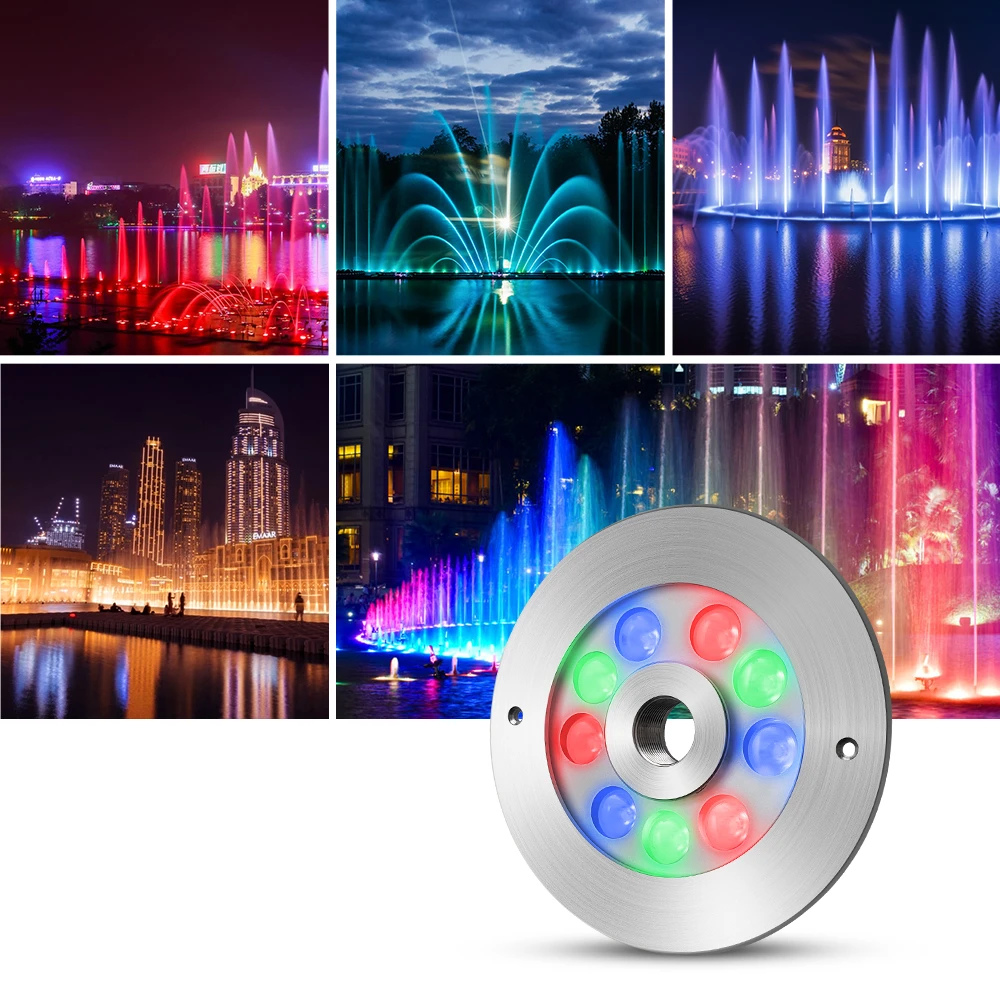

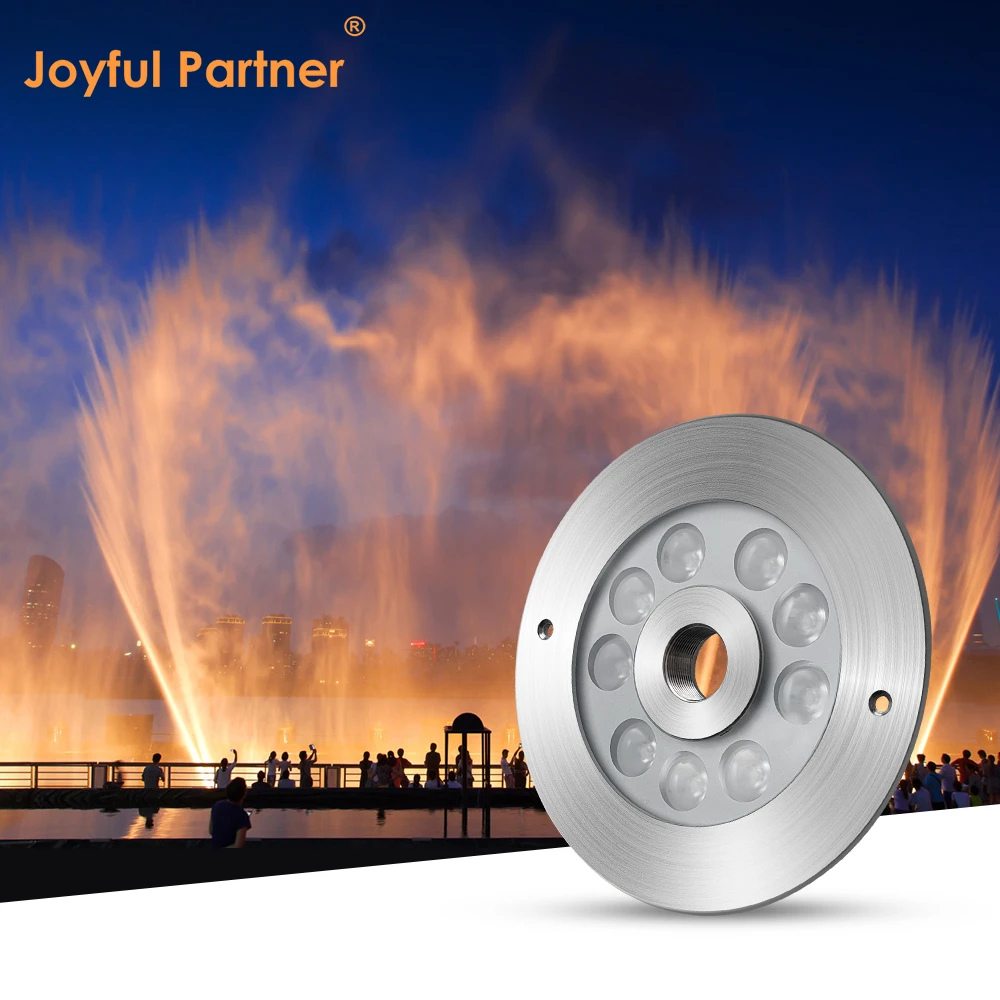

Professional central ejective fountain light specifically engineered for dry jet and musical water feature installations.
Features a robust molding shaped 304# or 316L# stainless steel construction for maximum corrosion resistance in submerged environments.
Equipped with a high-strength 10mm tempered glass and IK09 impact rating to withstand heavy pedestrian traffic and water pressure.
Integrated with high-performance CREE and OSRAM LEDs delivering brilliant and energy-efficient illumination for landmark plazas.

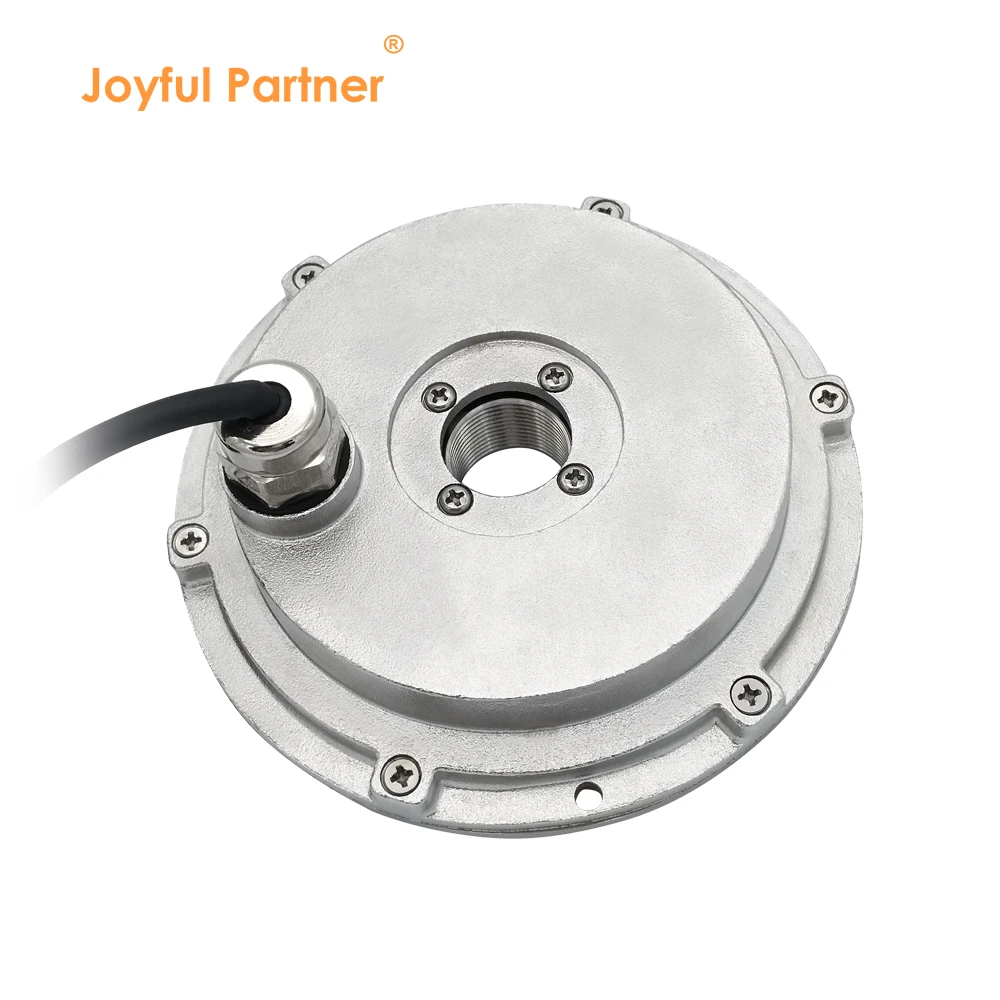

Designed with a specialized central hole [G(PF)3/4] for seamless integration with water nozzles and fountain pumps.
Reliable IP68 submersible protection ensured by precision-tooled silicone seals and PG11 nickel-coated copper cable glands.
Model Specification Table
|
Item No. |
Light source |
Lens beam angle(°) |
Consumption(watt) |
Input Voltage(V) |
Ik rate |
|
94091 / 94091B |
9x1W LED |
8°/15°/25°/30°/45°/60° |
9.4 |
DC12V/DC24V |
09 |
|
94092 / 94092B |
9x2W LED |
8°/15°/25°/30°/45°/60° |
19.2 |
DC12V/DC24V |
09 |
|
94093 / 94093B |
9x1W RGB LED |
8°/15°/25°/30°/45°/60° |
9.0 |
DC12V/DC24V |
09 |
|
94094 / 94094B |
9x2W RGB LED |
8°/15°/25°/30°/45°/60° |
17.4 |
DC12V/DC24V |
09 |
|
94096 / 94096B |
9x3W RGB3in1 LED |
8°/15°/25°/30°/45°/60° |
26.1 |
DC12V/DC24V |
09 |
Material Specifications Table
|
Item |
Description |
|
Front cover & Housing |
Hard chromeplated molding shaped 304# or 316L# Stainless Steel |
|
Glass |
Tempered glass T=10mm |
|
Lens |
Optical lens, efficiency≥85% |
|
Cable gland |
IP68 PG11 nickel coated copper |
|
LED |
High power CREE & OSRAM LED |
|
PCB |
Excellent heat conductivity aluminum, coefficient of heat conductivity≥2.0w/mk |
|
Driver |
Constant current output. Single color LED=3-circuit output. RGB LED=3-circuit output. RGB 3in1 LED=6-circuit output |
|
Application environment |
Temperature of water between -20℃ ~ 40℃ less than 1.0 meter depth |
|
Power cable |
H05RN-F 2*0.75mm² L=2m (single color) / H05RN-F 4*0.75mm² L=2m (for RGB) |

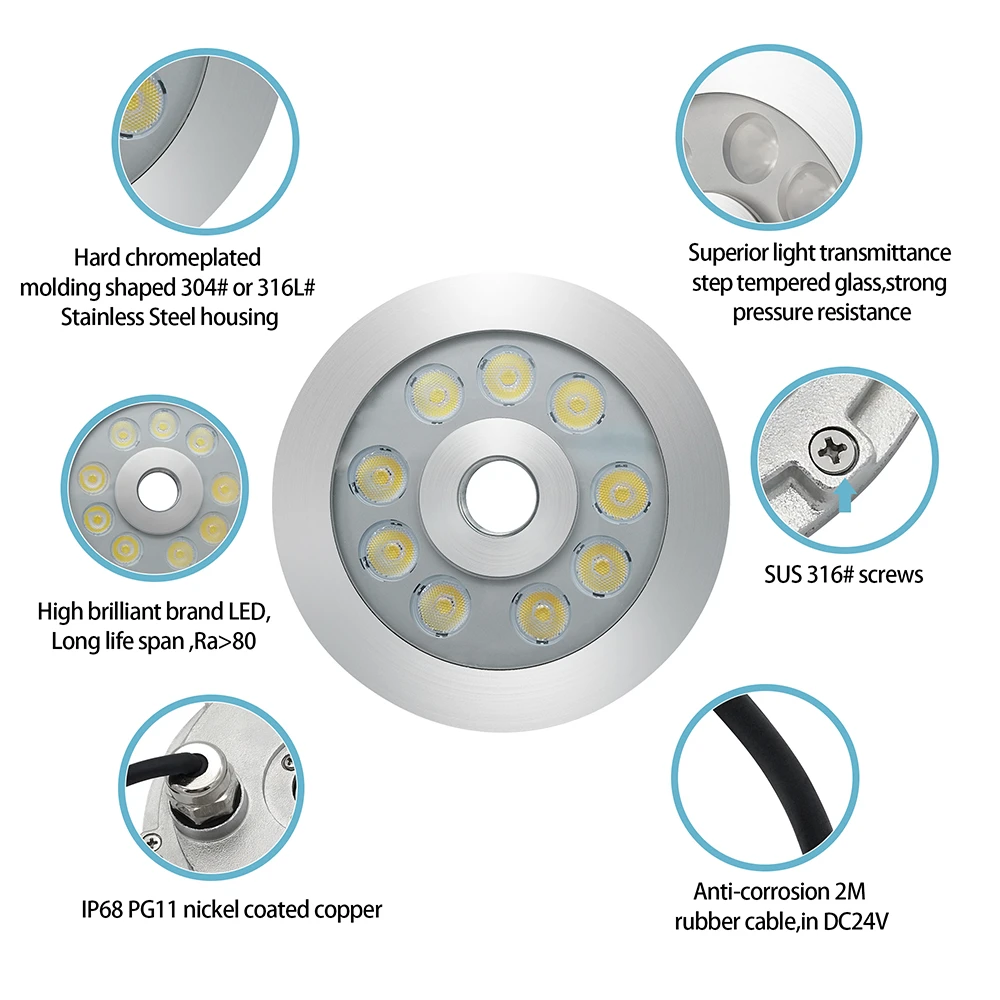

Chrome Plated 304 Or 316L Steel: a hard plated housing with tempered 10mm glass and an IP68 PG11 nickel coated gland.
With a constant current driver and OSRAM LED
