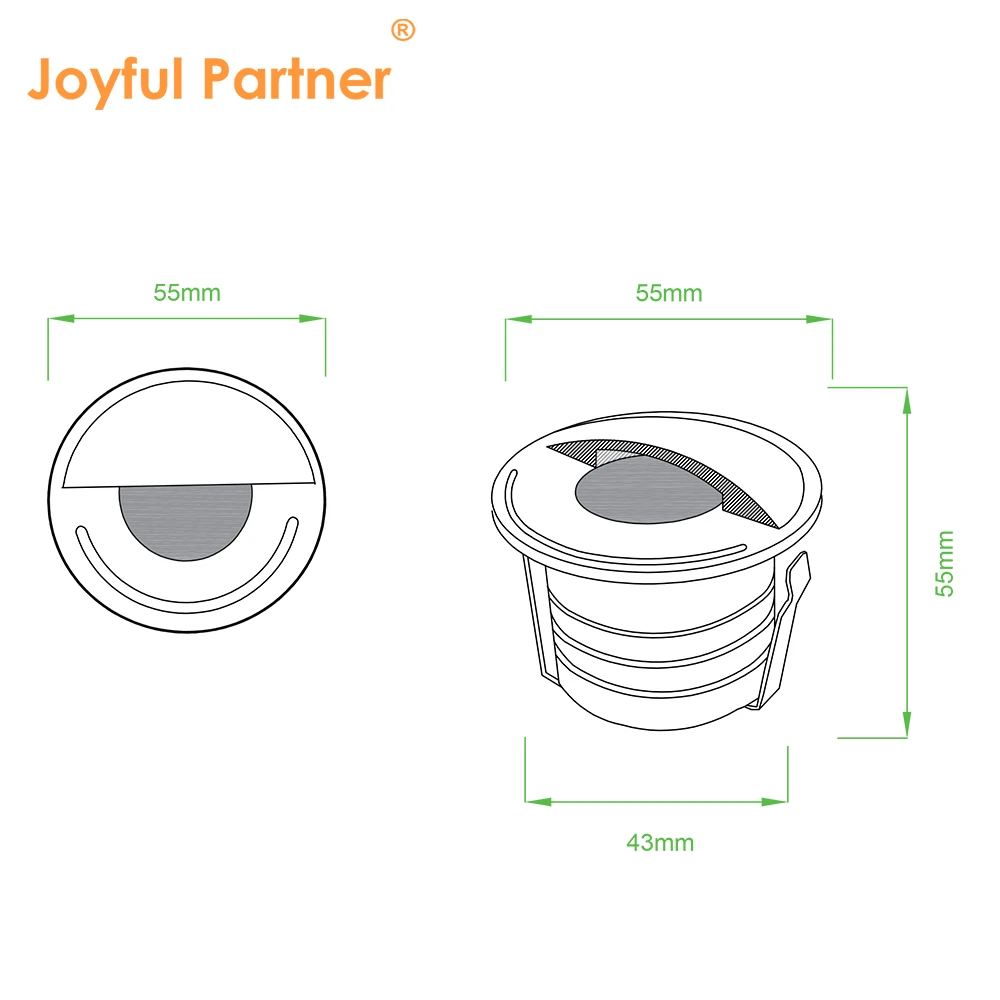

HEX8251X（Ø55mm）
Waterproof Rating: IP67
Material: SS304/SS316 face cover
Model: HEX8251X Series
Certification: IP67, RoHS, CE
Professional-grade LED underground light designed for sophisticated architectural facade and landscape path illumination.

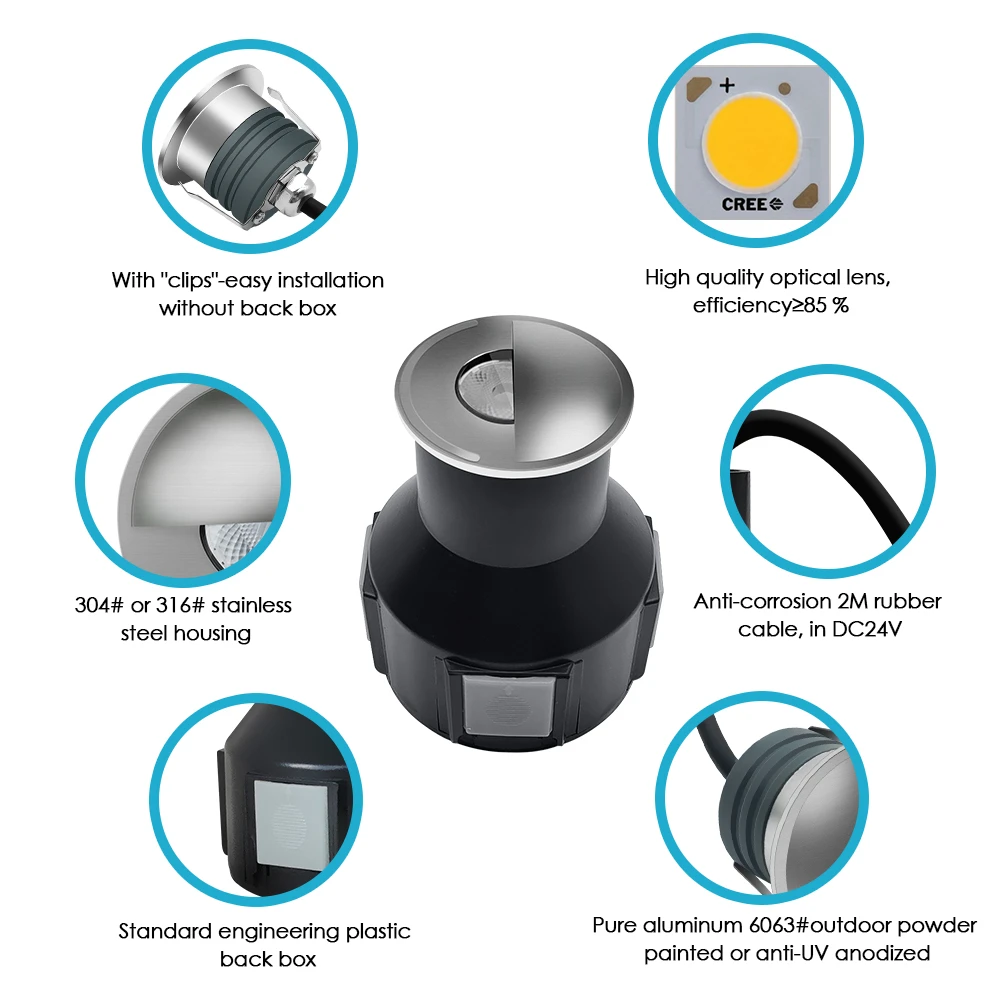

Features premium SUS316 stainless steel or aluminum trim options combined with a robust powder-coated aluminum housing.
Engineered with 7mm thick tempered step glass, providing a high pressure capacity of 1700kgs for pedestrian safety.

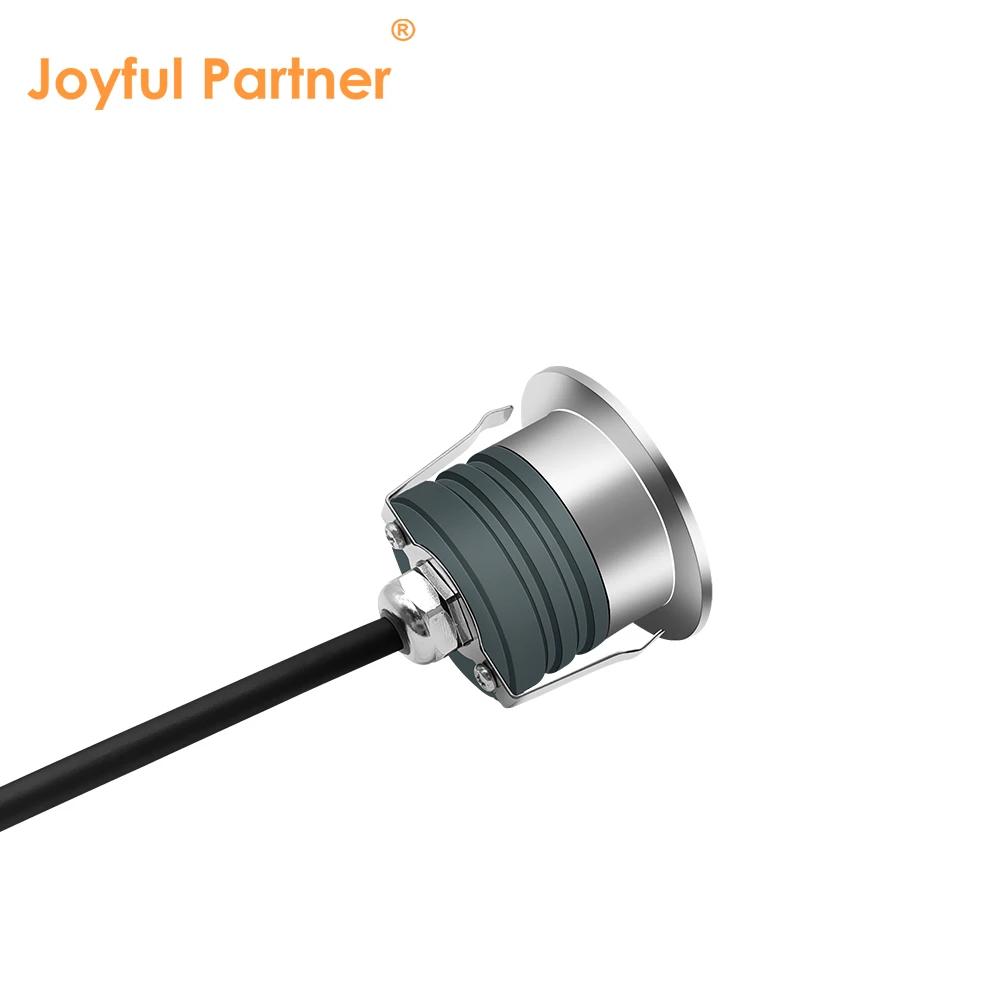

Reliable IP67 waterproof protection ensured by molding shaped silicone seals and professional-grade M12 cable glands.
Input voltage options supporting both low voltage DC12V/24V and high voltage AC100-240V project requirements.
Model Specification Table
|
Item No. |
Light source |
Lens beam angle(°) |
Consumption(watt) |
Input Voltage(V) |
Ik rate |
|
HEX82511 |
1x1W LED |
8°/15°/30°/45°/60°/Asy. |
1.2 |
DC12V/DC24V / AC100-240V |
08 |
|
HEX82512 |
1x2W LED |
8°/15°/30°/45°/60°/Asy. |
2.6 |
DC12V/DC24V / AC100-240V |
08 |
Material Specifications Table
|
Item |
Description |
|
Housing |
Outdoor dark grey powder coated aluminum, T=60-80um Adhesion of ISO class 1 / ASTM class 4B |
|
Trim |
Stainless steel or Aluminum |
|
Lens |
Optical lens, efficiency≥85% (Asymmetrical lens available) |
|
Glass |
Tempered step glass T=7mm |
|
Glass pressure capacity |
Full area = 1700kgs |
|
Gasket |
Molding shaped silicone seal |
|
Operating temperature |
-20℃~40℃ |
|
Power cable |
H05RN-F 2x0.75mm² L=0.5m (low voltage) / H05RN-F 3x0.75mm² L=0.5m (for single color/high voltage) |
|
Mounting sleeve |
ABS |
