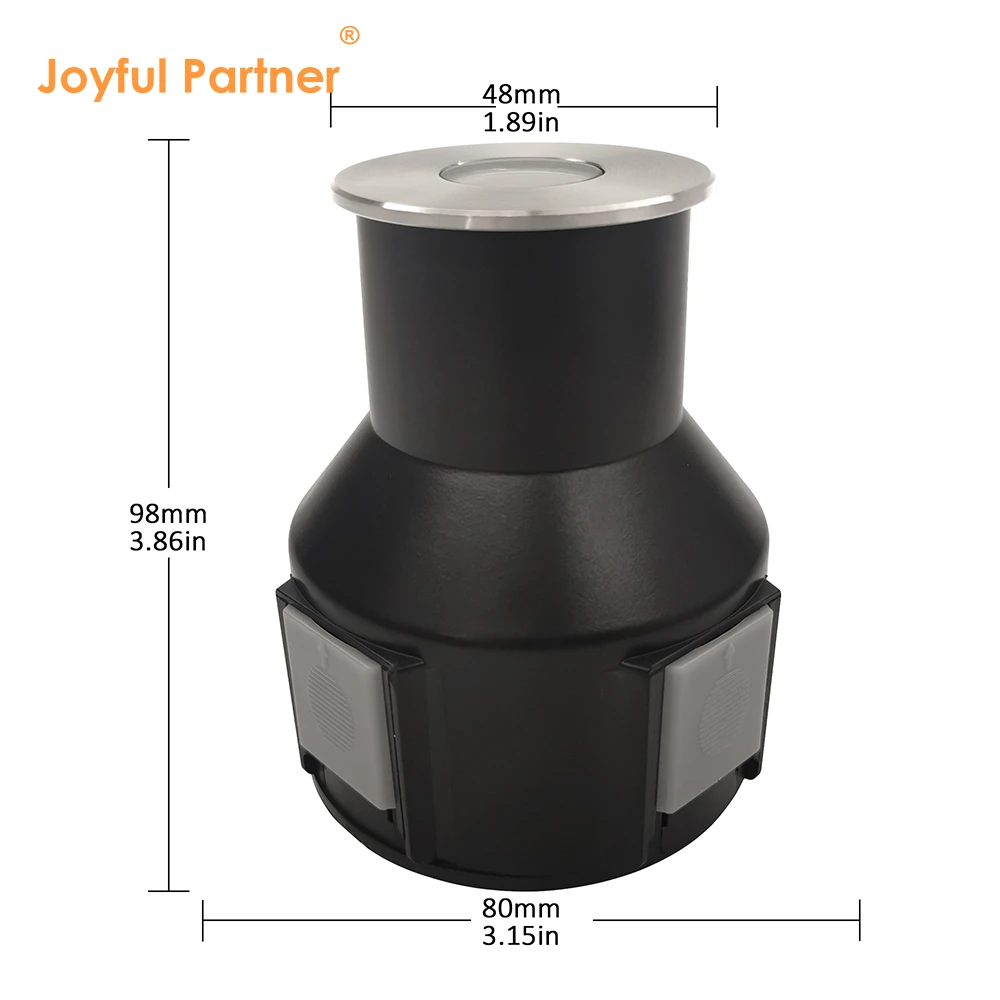

3W IP67 Recessed Round Deck Light 316 Stainless Steel Front Cover DIA55MM DC24V Inground up light
Waterproof Rating: IP67
Material: Outdoor dark gray powder coated aluminum with 304# or 316# Stainless Steel face cover
Model: 8251X Series
Certification: IP67, RoHS, CE
High-quality recessed underground light featuring a durable 304# or 316# stainless steel face cover.
Robust outdoor-grade powder-coated aluminum housing ensures long-lasting performance in various climates.
Equipped with a 7mm thick tempered step glass capable of withstanding full area pressure up to 1700kgs.
Precision optical lens with ≥85% efficiency offers beam angles from 8° to 60°, including asymmetrical options.
Reliable IP67 waterproof protection achieved through molding shaped silicone seals and integrated ABS mounting sleeves.

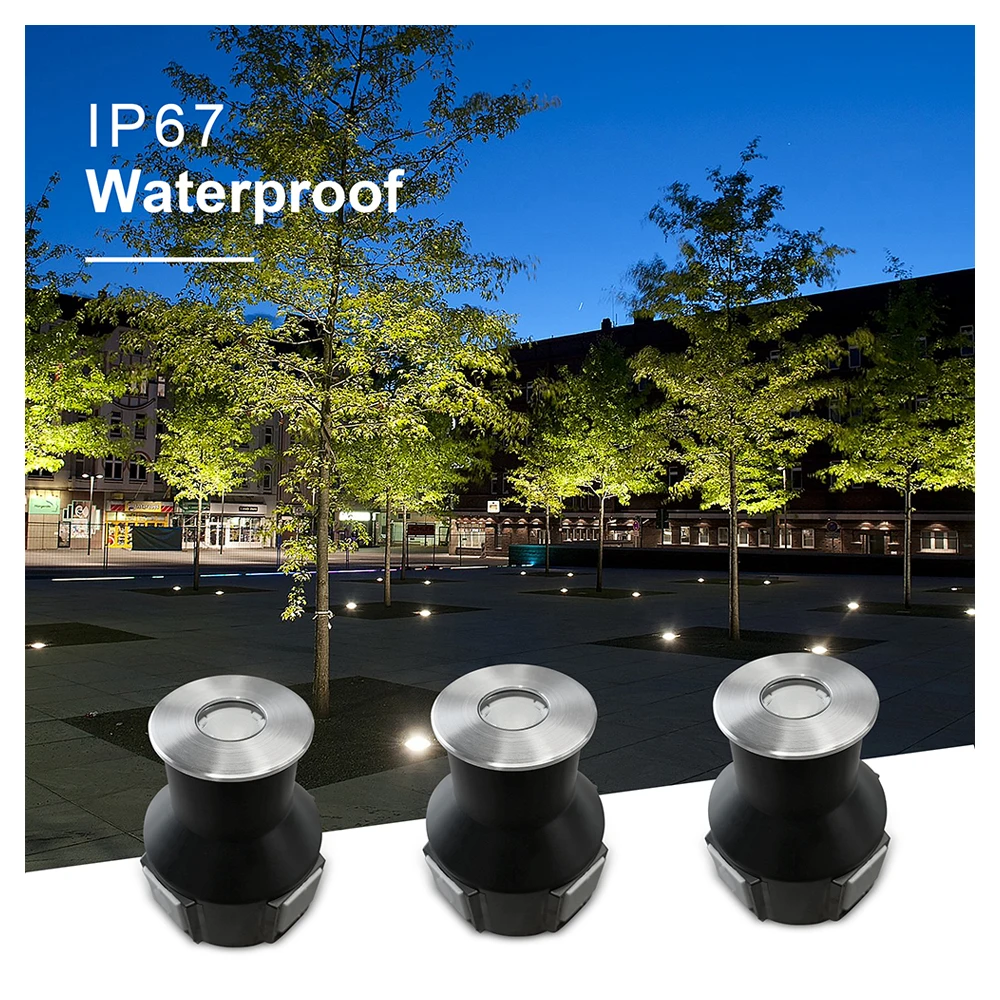

Ideal for safety and decorative illumination of garden paths, tree highlighting, and architectural facade up-lighting.
Model Specification Table
|
Item No. |
Light source |
Lens beam angle(°) |
Consumption(watt) |
Input Voltage(V) |
Ik rate |
|
82511(H)/82511S(H)/82511AS(H) |
1x1W LED |
8°/15°/30°/45°/60° |
1.2 |
DC12V/DC24V AC100-240V |
08 |
|
82512(H)/82512S(H)/82512AS(H) |
1x2W LED |
8°/15°/30°/45°/60° |
2.6 |
DC12V/DC24V AC100-240V |
08 |
|
82516/82516S/82516AS |
1x3W RGB3in1 LED |
30°/45°/60° |
3.1 |
DC12V/DC24V |
08 |
|
D82517(H)/D82517S(H) |
1x0.5W LED |
120° |
0.5 |
DC12V/DC24V AC100-240V |
08 |
|
HE8251X(H) |
1x1W/1x2W LED 1x3W RGB3in1 LED |
8°/15°/25°/30°/45°/60° |
1.2/2.6/3.1 |
DC12V/DC24V AC100-240V |
08 |

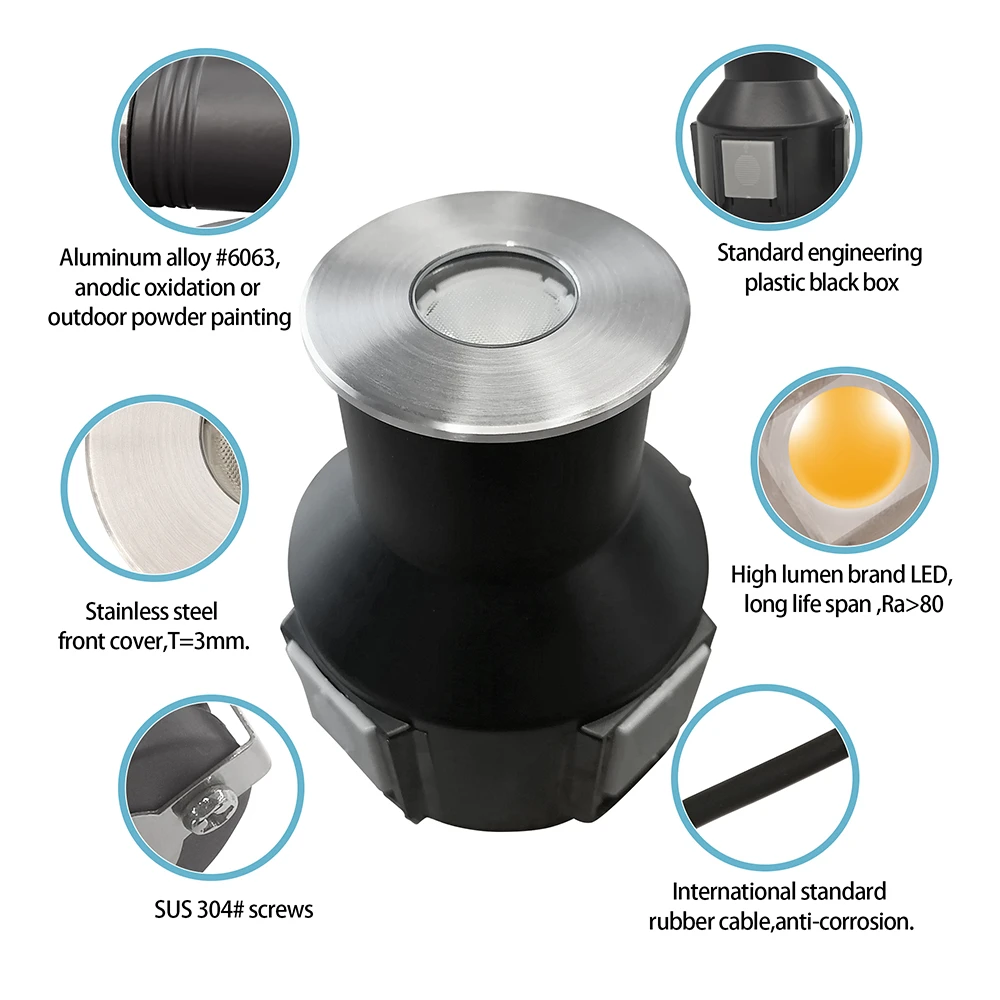

Material Specifications Table
|
Item |
Description |
|
Housing |
Outdoor dark gray powder coated aluminum T=60-80um Adhesion of ISO class 1 / ASTM class 4B |
|
Front cover |
304# or 316# Stainless Steel |
|
Lens |
Optical lens, efficiency≥85% |
|
Glass |
Tempered step glass T=7mm |
|
Glass pressure capacity |
Full area = 1700kgs |
|
Gasket |
Molding shaped silicone seal |
|
Operating temperature |
-20℃~40℃ |
|
Power cable |
H05RN-F 2x0.75mm² L=0.5m(low voltage) / H05RN-F 3x0.75mm² L=0.5m(for Single color/high voltage) / H05RN-F 4x0.75mm² L=0.5m(for RGB) |
|
Mounting sleeve |
ABS |
