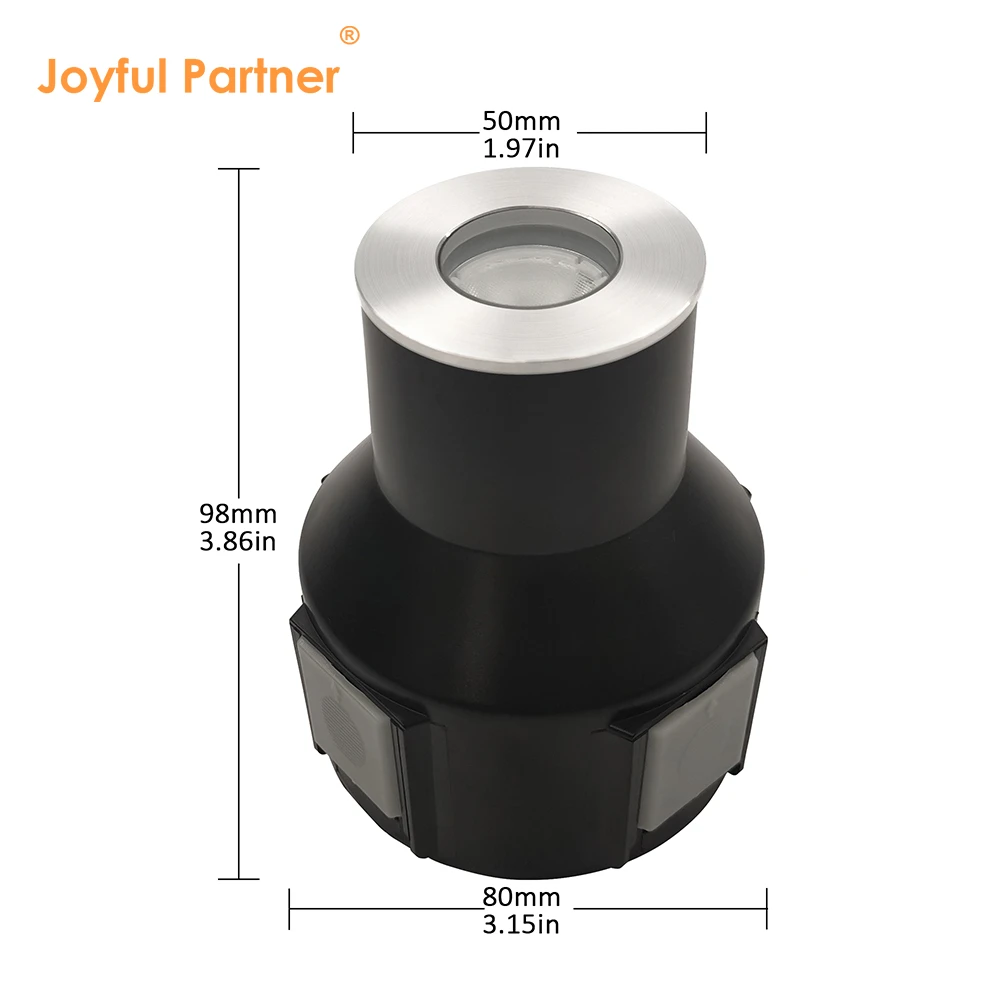

Inground Led Light Beam Angle 8 Degree DC24V 3W 3000K 50*50MM With IP67 Aluminum Body LED underground light/Inground up light
Waterproof Rating: IP67

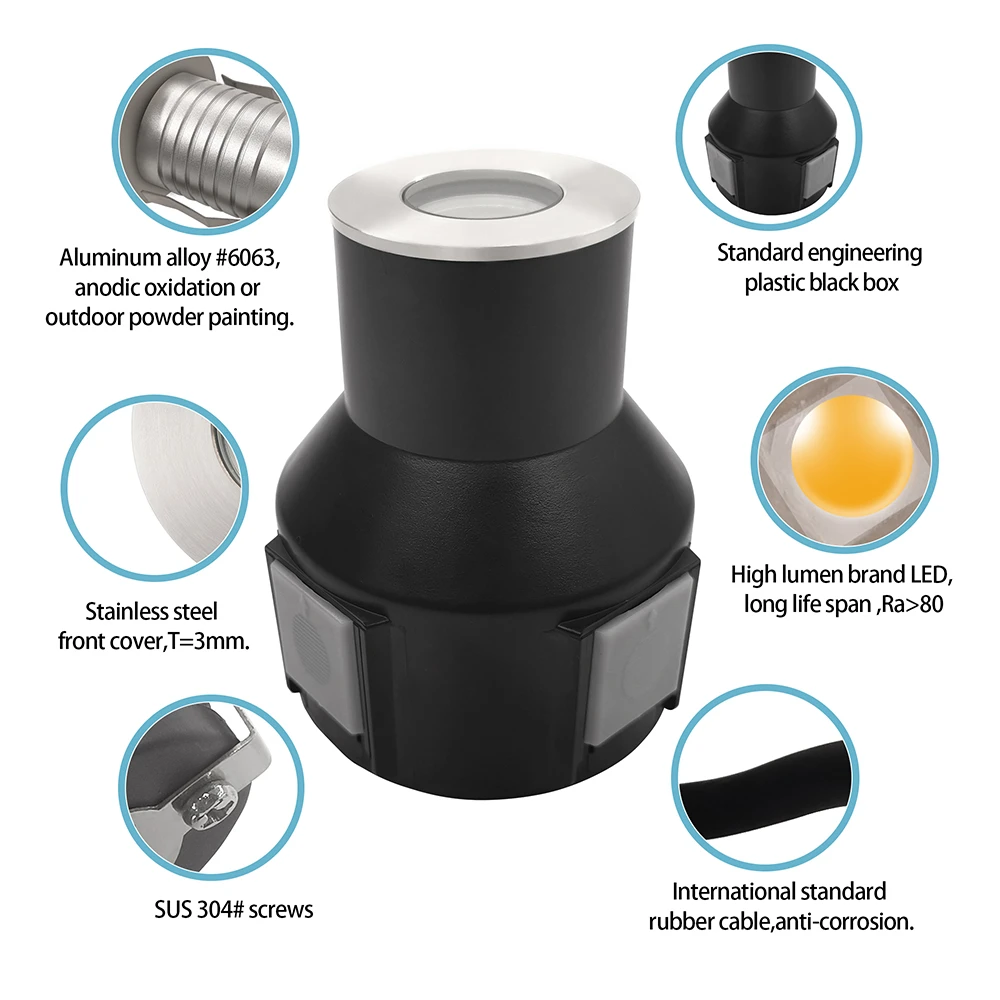

Material: Outdoor dark gray powder coated aluminum with 304# or 316# Stainless Steel face cover
Model: 8201X Series
Certification: IP67, RoHS, CE

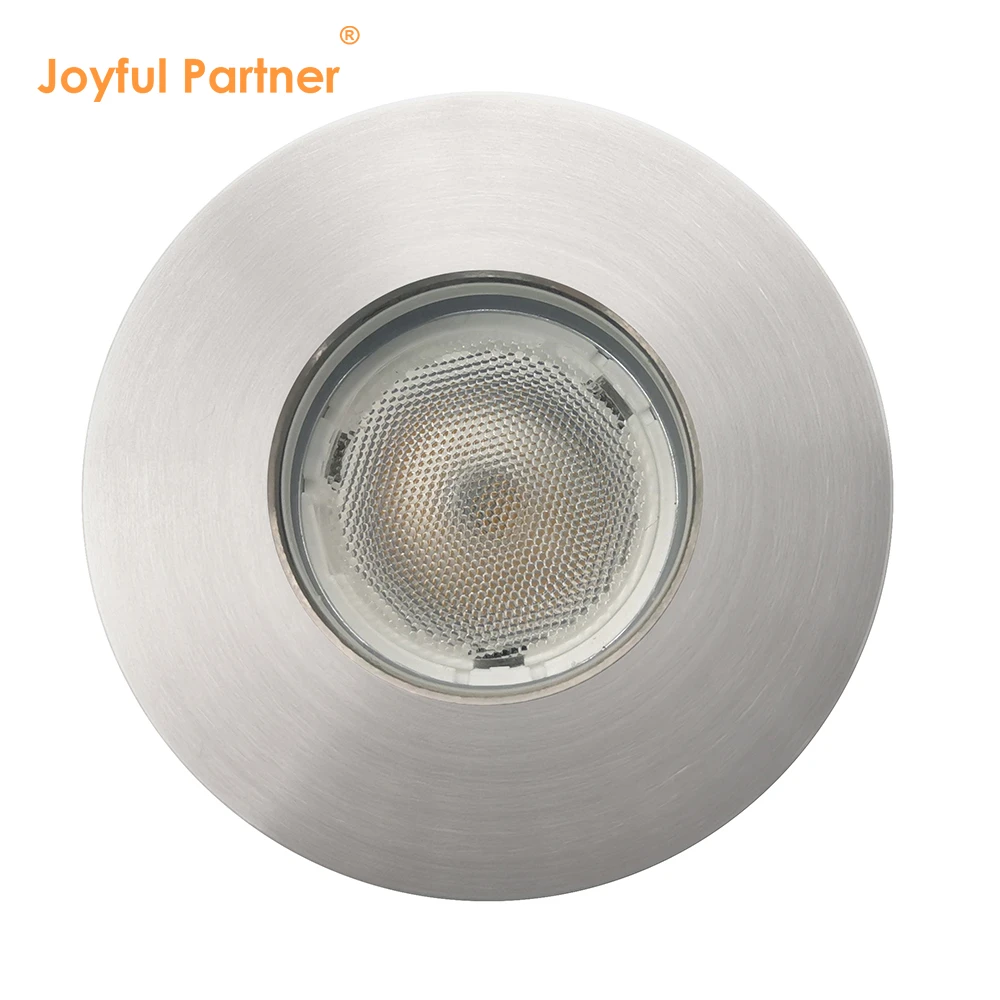

Professional-grade LED underground light featuring high-quality 304# or 316# stainless steel face covers.
Designed with a robust outdoor-grade powder-coated aluminum housing for superior durability and heat dissipation.
Equipped with a 12mm thick tempered step glass capable of withstanding full area pressure up to 1700kgs.
Advanced optical options include symmetrical and asymmetrical lenses (efficiency ≥85%) for precise beam control.
Reliable IP67 waterproof protection ensured by molding shaped silicone seals and integrated ABS mounting sleeves.
Lighting effects supported by CREE LEDs, available in single color and RGB 3in1 for landscape enhancement.
Model Specification Table
|
Item No. |
Light source |
Lens beam angle(°) |
Consumption(watt) |
Input Voltage(V) |
Ik rate |
|
82011(H)/82011S(H)/82011AS(H) |
1x1W LED |
8°/15°/30°/45°/60° |
1.2 |
DC12V/DC24V AC100-240V |
08 |
|
82012(H)/82012S(H)/82012AS(H) |
1x2W LED |
8°/15°/30°/45°/60° |
2.6 |
DC12V/DC24V AC100-240V |
08 |
|
82016(H)/82016S(H)/82016AS(H) |
1x3W RGB3in1 LED |
30°/45°/60° |
3.1 |
DC12V/DC24V |
08 |
Material Specifications Table
|
Item |
Description |
|
Housing |
Outdoor dark gray powder coated aluminum T=60-80um Adhesion of ISO class 1 / ASTM class 4B |
|
Front cover |
304# or 316# Stainless Steel |
|
Lens |
Optical lens, efficiency≥85% |
|
Glass |
Tempered step glass T=12mm |
|
Glass pressure capacity |
Full area = 1700kgs |
|
Gasket |
Molding shaped silicone seal |
|
Operating temperature |
-20℃~40℃ |
|
Power cable |
H05RN-F 2x0.75mm² L=0.5m(low voltage) / H05RN-F 3x0.75mm² L=0.5m(for Single color/high voltage) / H05RN-F 4x0.75mm² L=0.5m(for RGB) |
|
Mounting sleeve |
ABS |
