84311（Ø 68mm）
Material: SS304/SS316 face cover
Model: 8431X Series
Certification: IP67, RoHS, CE

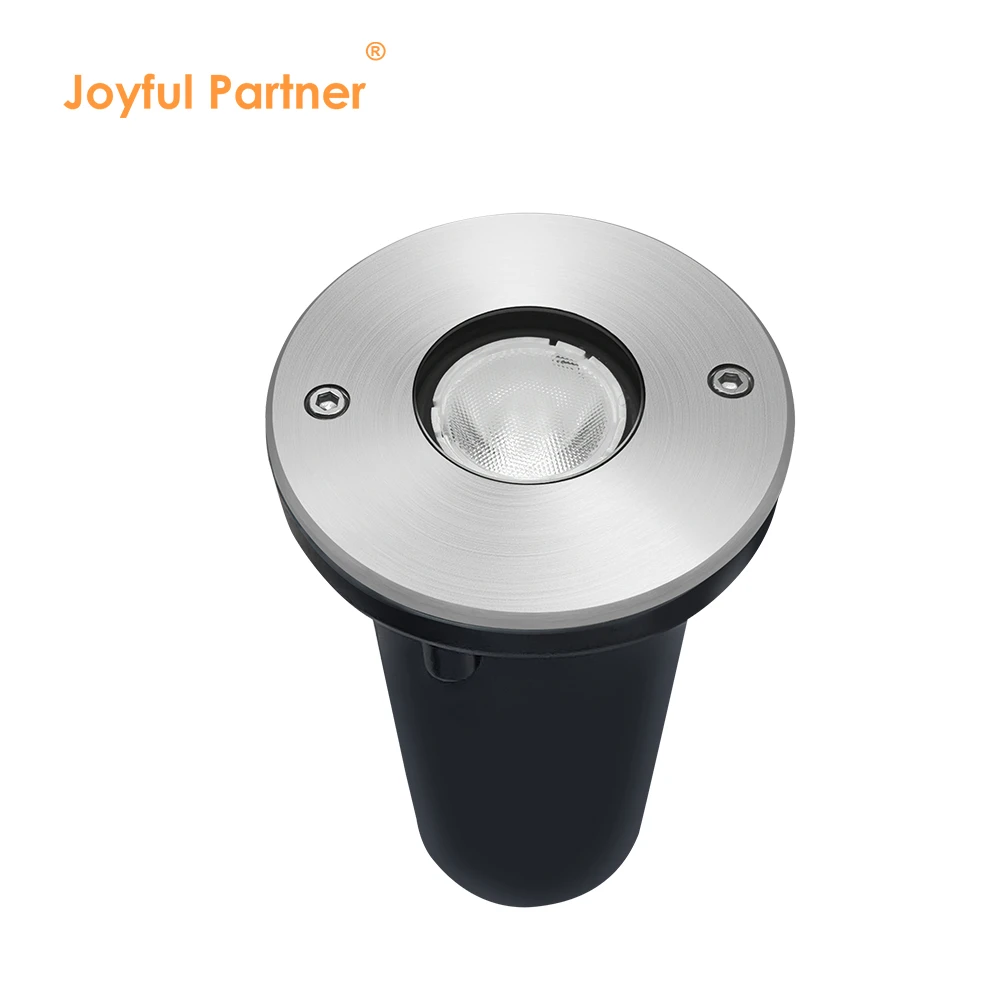

Professional-grade mini LED underground light designed for sophisticated architectural facade and landscape up-lighting.

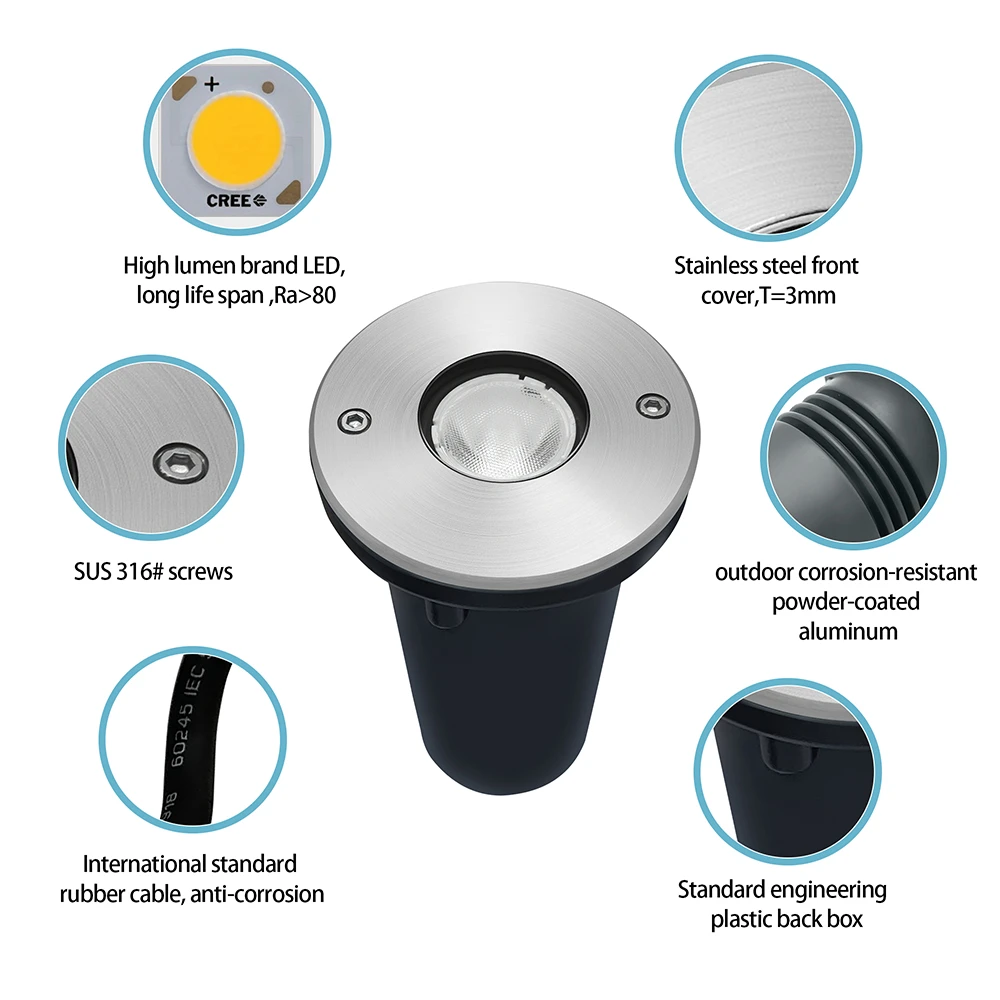

Features high-quality SUS 304# or 316# stainless steel face covers combined with a robust powder-coated aluminum housing.
Equipped with an 8mm thick tempered step glass, providing a high pressure capacity of 780kgs for pedestrian areas.
Advanced asymmetrical lens technology (18°x28° P10°) ensures uniform and targeted light grazing for vertical surfaces.

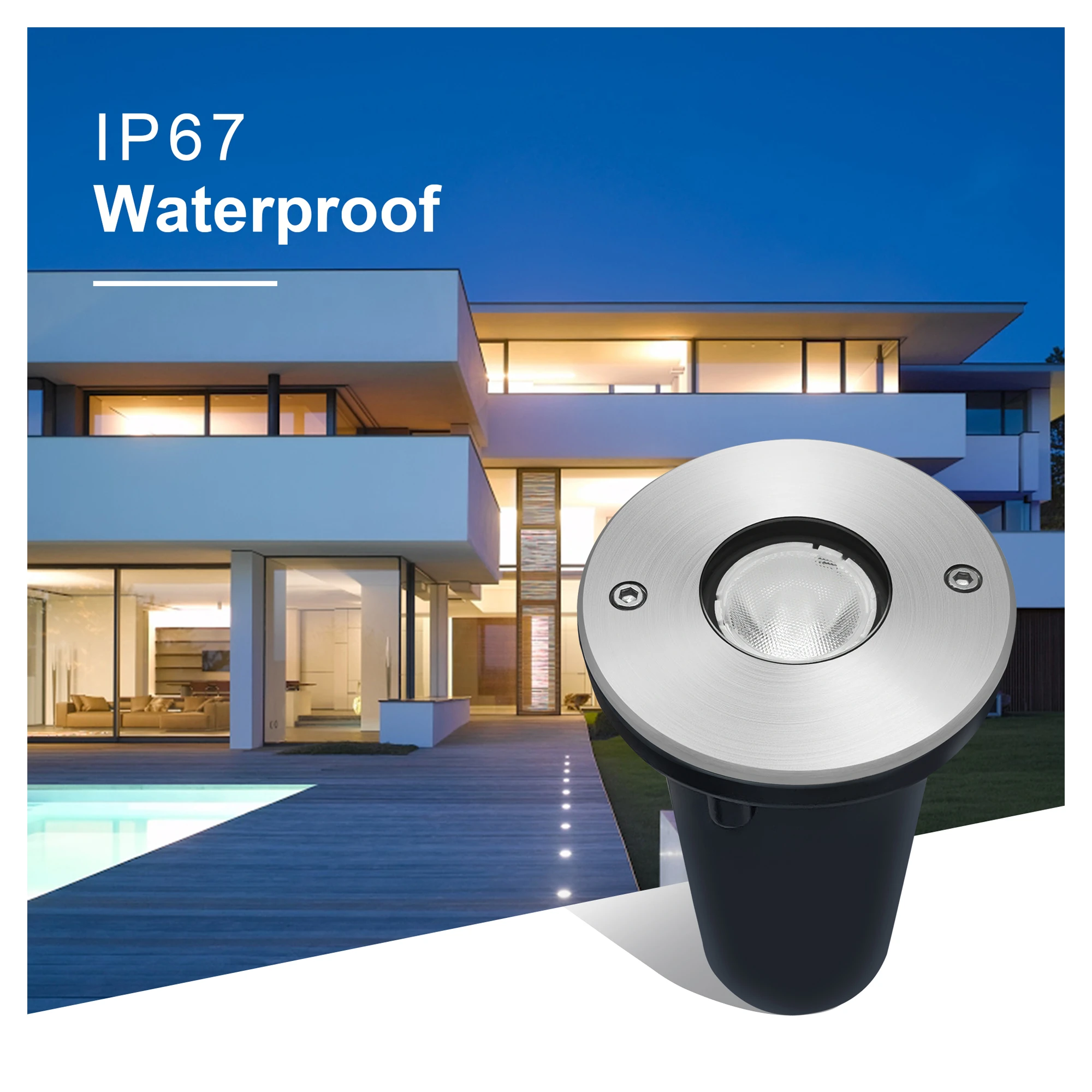

Reliable IP67 waterproof protection ensured by molding shaped silicone seals and robust ABS mounting sleeves.
Supporting high-efficiency single color, RGB 3in1, and RGBW 4in1 color control.
Model Specification Table
|
Item No. |
Light source |
Lens beam angle(°) |
Consumption(watt) |
Input Voltage(V) |
Ik rate |
|
84311(H/AS) |
1x1W LED |
8°/15°/30°/45°/60° |
1.2 |
DC12V/DC24V / AC100-240V |
08 |
|
84312(H/AS) |
1x2W LED |
8°/15°/30°/45°/60° |
2.6 |
DC12V/DC24V / AC100-240V |
08 |
|
84316(AS) |
1x3W RGB3in1 LED |
30°/45°/60° |
3.1 |
DC12V/DC24V |
08 |
|
84319 |
1x5W RGBW4in1 LED |
30°/45°/60° |
5.0 |
DC12V/DC24V |
08 |
Material Specifications Table
|
Item |
Description |
|
Housing |
Outdoor dark grey powder coated aluminum T=60-80um Adhesion of ISO class 1 / ASTM class 4B |
|
Front cover |
304# or 316# Stainless Steel |
|
Lens |
Optical lens, efficiency≥85% |
|
Glass |
Tempered step glass T=7mm |
|
Glass pressure capacity |
Full area = 1700kgs |
|
Gasket |
Molding shaped silicone seal |
|
Operating temperature |
-20℃~40℃ |
|
Power cable |
H05RN-F 2x0.75mm² L=0.5m (low voltage) / H05RN-F 3x0.75mm² L=0.5m (for single color/high voltage) / H05RN-F 4x0.75mm² L=0.5m (for RGB) |
|
Mounting sleeve(optional) |
ABS |
