8269X（Ø 162mm）
Waterproof Rating: IP67
Material: SS304/SS316 face cover
Model: C8269X Series
Certification: IP67, RoHS, CE

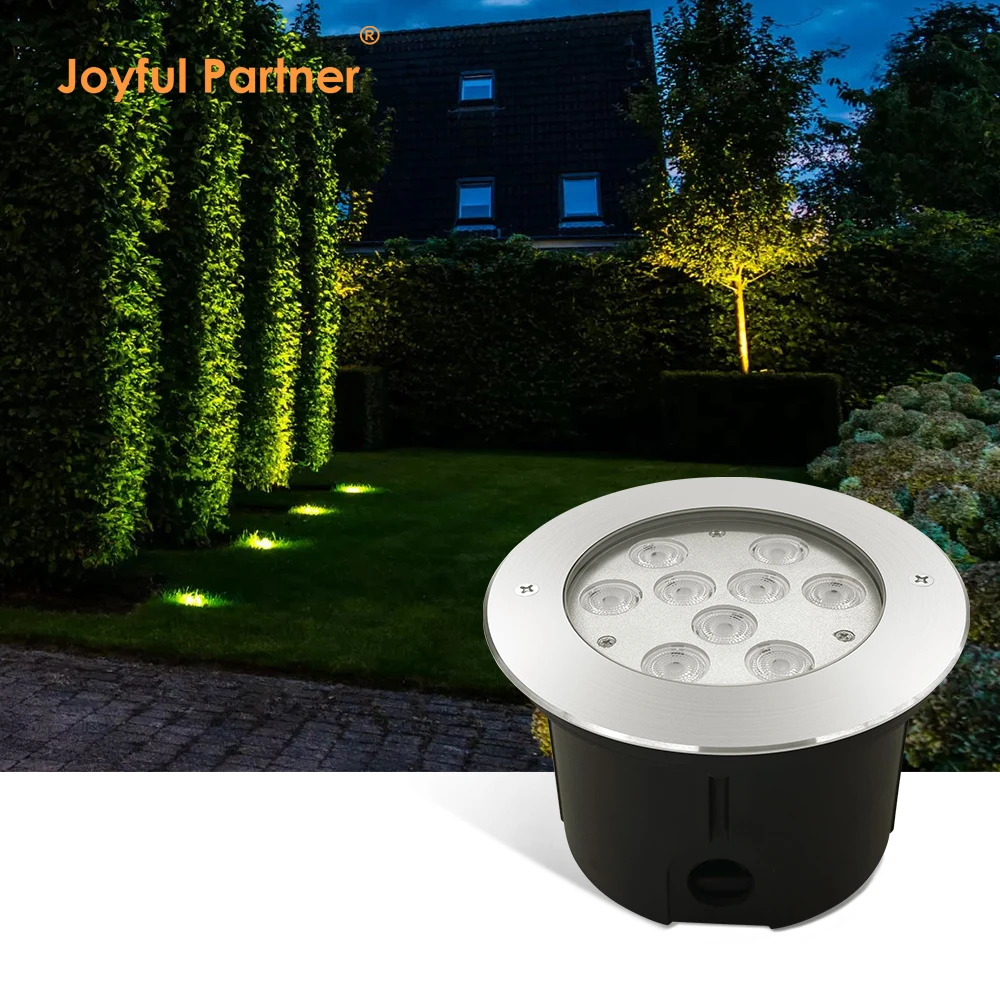

Professional high-power LED inground light designed for powerful architectural facade and large-scale landscape illumination.

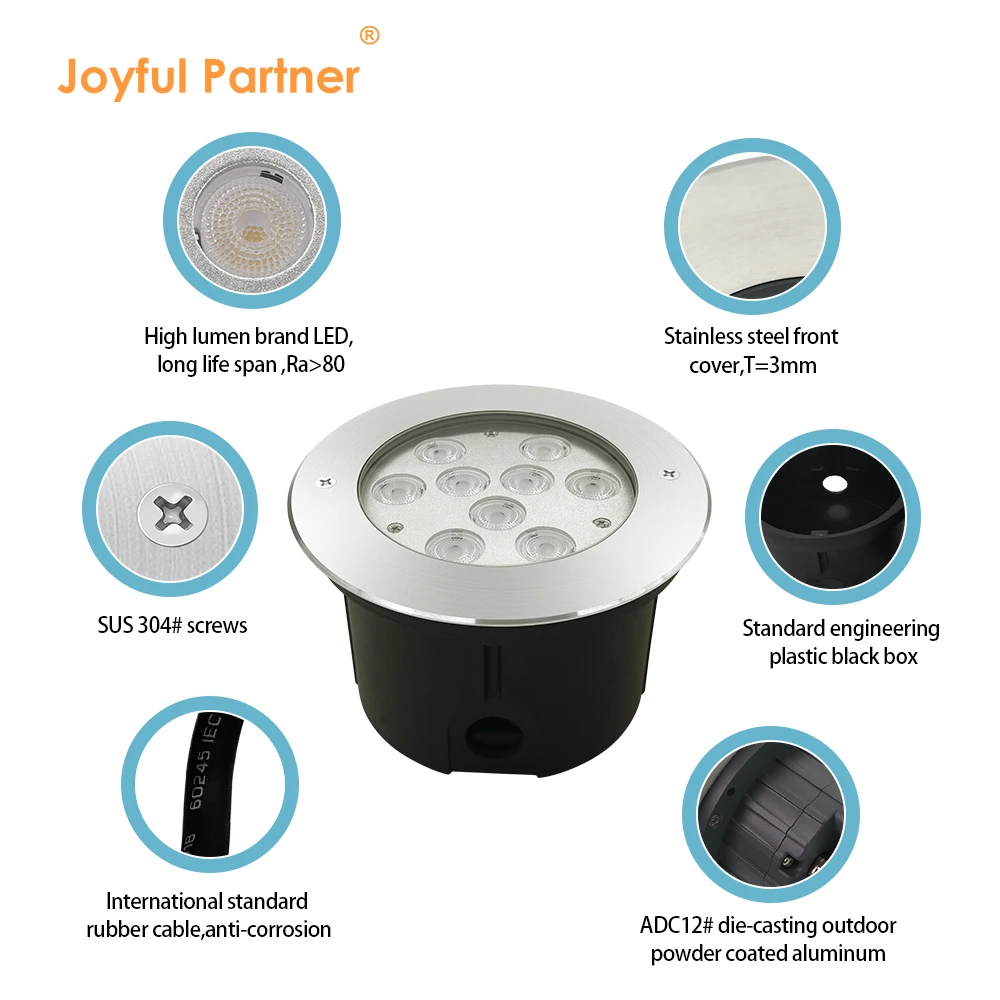

Features a premium 304 or 316 stainless steel face cover combined with a robust powder-coated aluminum housing for ultimate durability.
Equipped with 8mm thick tempered step glass, providing a massive pressure capacity of 2450kgs for public and commercial zones.
Utilizes high-efficiency optical lenses (≥85%) offering beam angles from 8° to 60° including specialized asymmetrical options.
Supports a wide range of lighting effects from high-efficiency single color to dynamic RGB 3in1 for iconic architectural projects.
Reliable outdoor performance ensured by molding shaped silicone seals and robust ABS mounting sleeves for secure recessed installation.
Model Specification Table
|
Item No. |
Light source |
Lens beam angle(°) |
Consumption(watt) |
Input Voltage(V) |
Ik rate |
|
C82691(S/H/AS) |
9x1W LED |
8°/15°/25°/30°/45°/60° |
9.5 |
DC24V/AC100-240V |
08 |
|
C82692(S/H/AS) |
9x2W LED |
8°/15°/25°/30°/45°/60° |
20.2 |
DC24V/AC100-240V |
08 |
|
C82693(S/AS) |
9x1W RGB LED |
8°/15°/25°/30°/45°/60° |
9.2 |
DC12V/DC24V |
08 |
|
C82694(S/AS) |
9x2W RGB LED |
8°/15°/25°/30°/45°/60° |
18.1 |
DC12V/DC24V |
08 |
|
C82696(S/AS) |
9x3W RGB3in1 LED |
25°/30°/45°/60° |
26.7 |
DC24V |
08 |
Material Specifications Table
|
Item |
Description |
|
Housing |
Outdoor dark grey powder coated aluminum T=60-80um Adhesion of ISO class 1 / ASTM class 4B |
|
Front cover |
304 or 316 Stainless Steel |
|
Lens |
Optical lens, efficiency≥85% |
|
Glass |
Tempered step glass T=8mm |
|
Glass pressure capacity |
Full area = 2450kgs |
|
Gasket |
Molding shaped silicone seal |
|
Operating temperature |
-20℃~40℃ |
|
Power cable |
H05RN-F 2x0.75mm² L=0.5m (low voltage) / H05RN-F 3x0.75mm² L=0.5m (for single color/high voltage) / H05RN-F 4x0.75mm² L=0.5m (for RGB) |
|

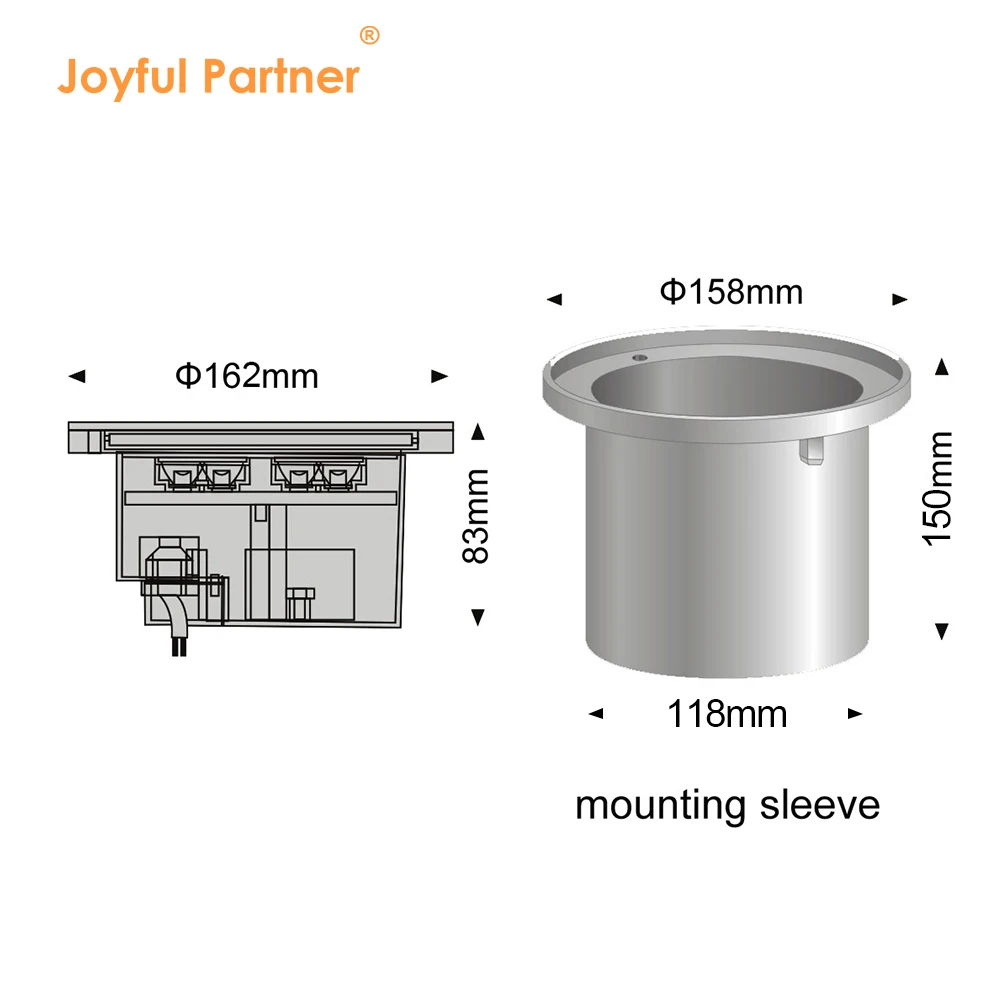

Mounting sleeve |
ABS |
