IP67 LED Recessed Inground Light & LED Up Light Stainless Steel 3W 9W CREE LED Single Color RGB for High-End Architectural Lighting LED inground light/LED up light/Asymmetrical Underground LED light
Waterproof Rating: IP67

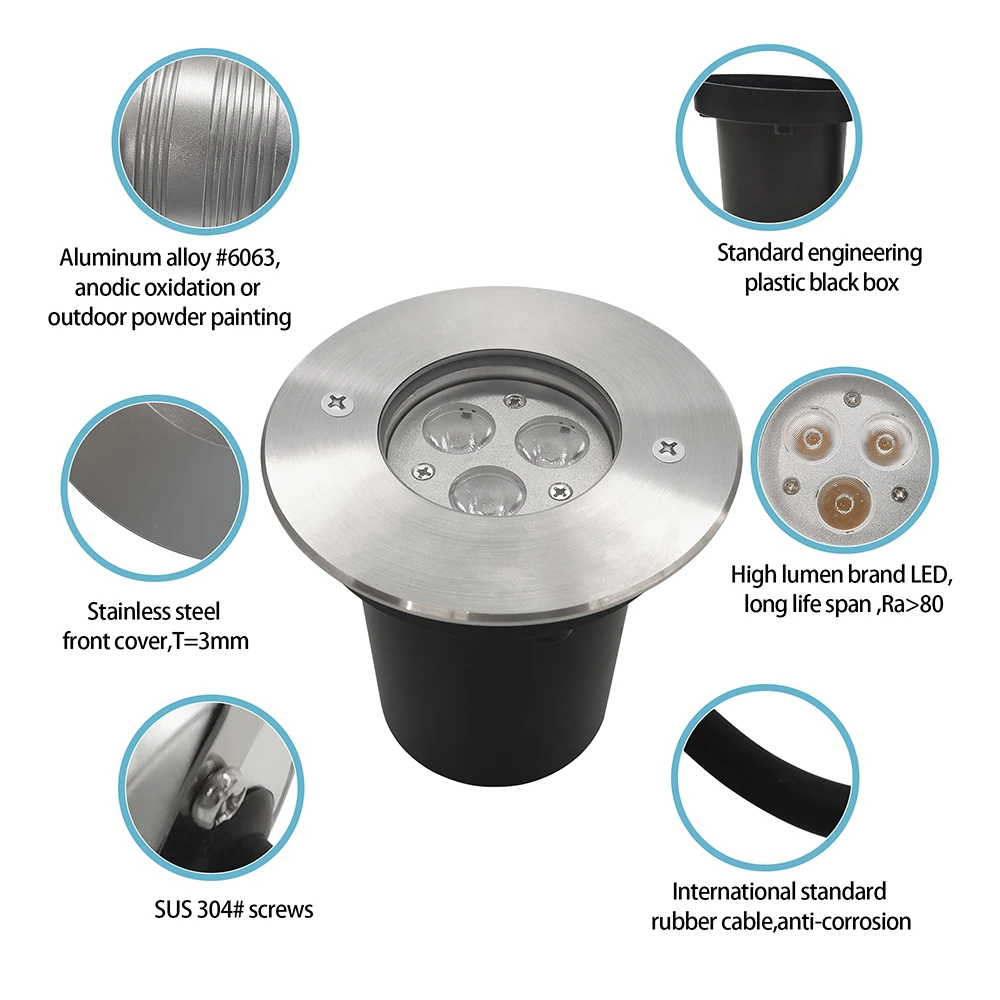

Material: 6063# silver anodized finish aluminum with 304# or 316# Stainless Steel face cover
Model: 8253X Series
Certification: IP67, RoHS, CE
Professional-grade LED inground light series designed for high-end architectural facade and landscape up-lighting.
Constructed with premium 304# or 316# stainless steel face covers and 6063# silver anodized aluminum housing for superior durability.
Features an 8mm thick tempered step glass with a high pressure capacity of 2500kgs for heavy-traffic public environments.
Advanced optical system supports both symmetrical and asymmetrical lens configurations (efficiency ≥85%) for precise light aiming.
Fully IP67 waterproof protection ensured by molding shaped silicone seals and robust ABS mounting sleeves for secure installation.
Versatile lighting options include high-power single color, RGB, and RGB 3in1 LEDs for dynamic and creative outdoor scenes.
Model Specification Table
|
Item No. |
Light source |
Lens beam angle(°) |
Consumption(watt) |
Input Voltage(V) |
Ik rate |
|
82531(S/H/AS) |
3x1W LED |
8°/15°/25°/30°/45°/60° |
3.2 |
DC12V/DC24V/AC100-240V |
08 |
|
82532(S/H/AS) |
3x2W LED |
8°/15°/25°/30°/45°/60° |
6.2 |
DC12V/DC24V/AC100-240V |
08 |
|
82533(S/AS) |
3x1W RGB LED |
8°/15°/25°/30°/45°/60° |
3.2 |
DC12V/DC24V |
08 |
|
82534(S/AS) |
3x2W RGB LED |
8°/15°/25°/30°/45°/60° |
5.8 |
DC12V/DC24V |
08 |
|
82536(S/AS) |
3x3W RGB3in1 LED |
25°/30°/45°/60° |
9.2 |
DC12V/DC24V |
08 |
Material Specifications Table
|
Item |
Description |
|
Housing |

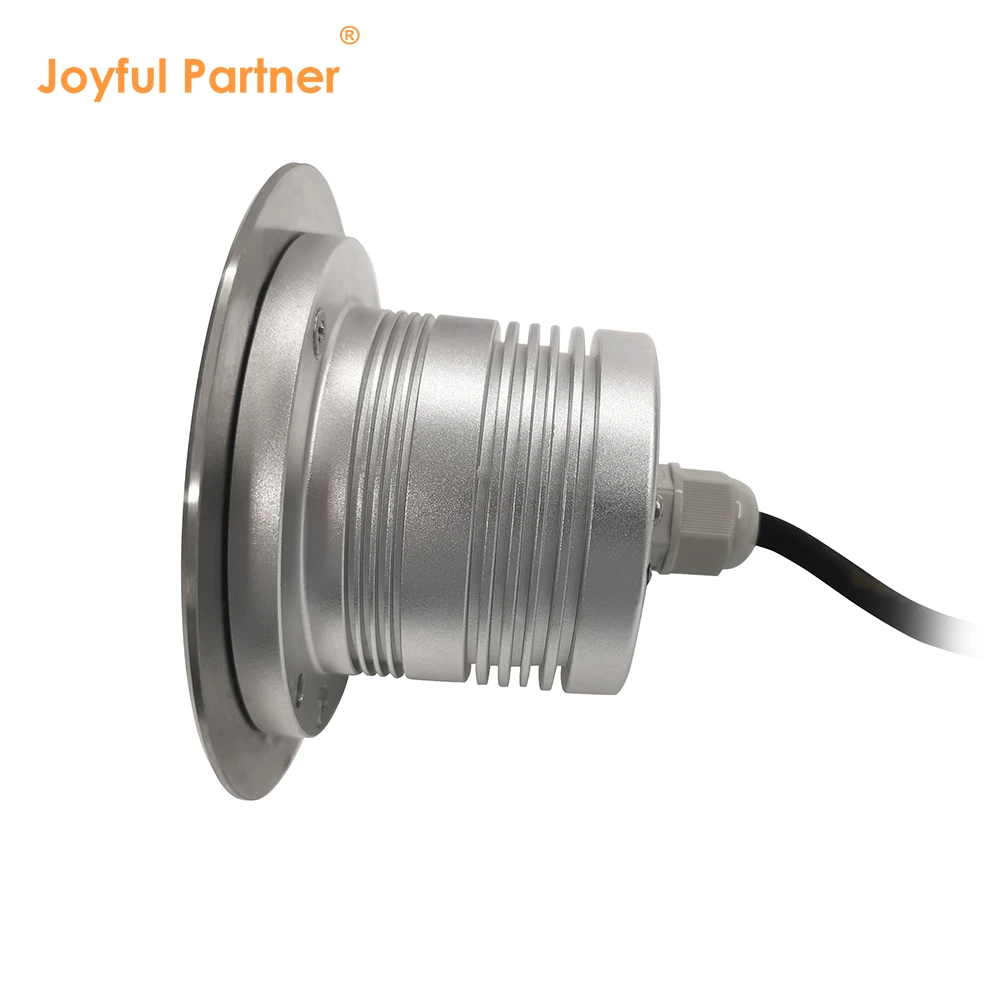

6063# silver anodized finish aluminum |
|
Front cover |
304# or 316# Stainless Steel |
|
Lens |
Optical lens, efficiency≥85% |
|
Glass |
Tempered step glass T=8mm |
|
Glass pressure capacity |
Full area = 2500kgs |
|
Gasket |
Molding shaped silicone seal |
|
Operating temperature |
-20℃~40℃ |
|
Power cable |
H05RN-F 2x0.75mm² L=0.5m(low voltage) / H05RN-F 3x0.75mm² L=0.5m(for Single color/high voltage) / H05RN-F 4x0.75mm² L=0.5m(for RGB) |
|
Mounting sleeve |
ABS |
