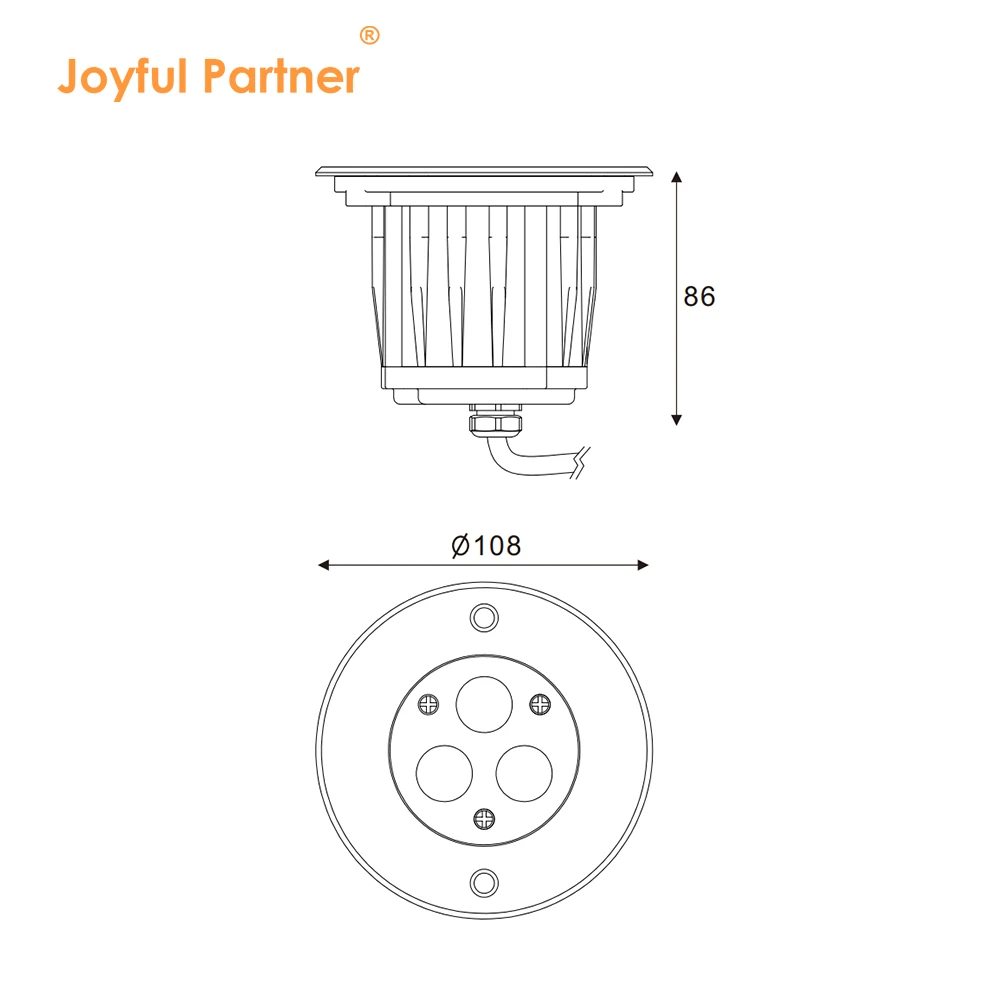

C8253X（Ø 108mm）
Waterproof Rating: IP67
Material: SS304/SS316 face cover
Model: C8253X Series
Certification: IP67, RoHS, CE

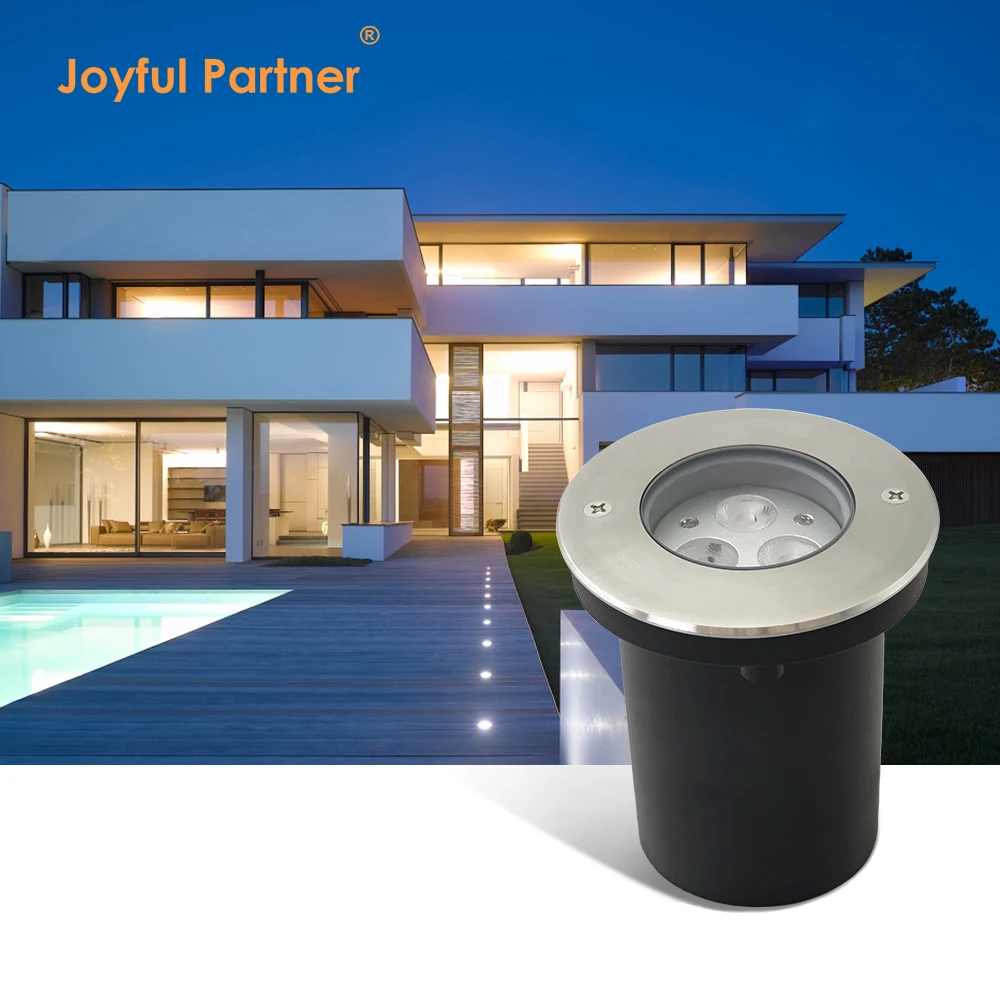

High-performance power LED inground light designed for professional architectural accentuation.

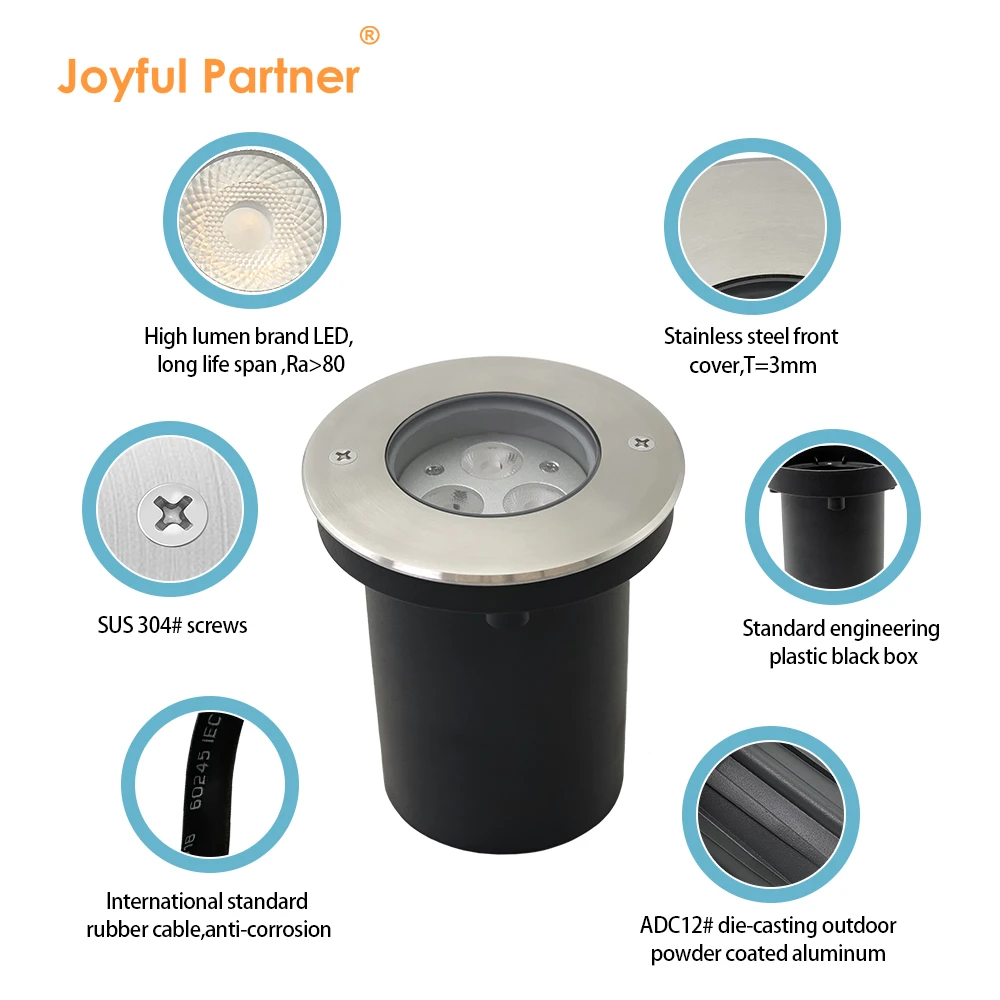

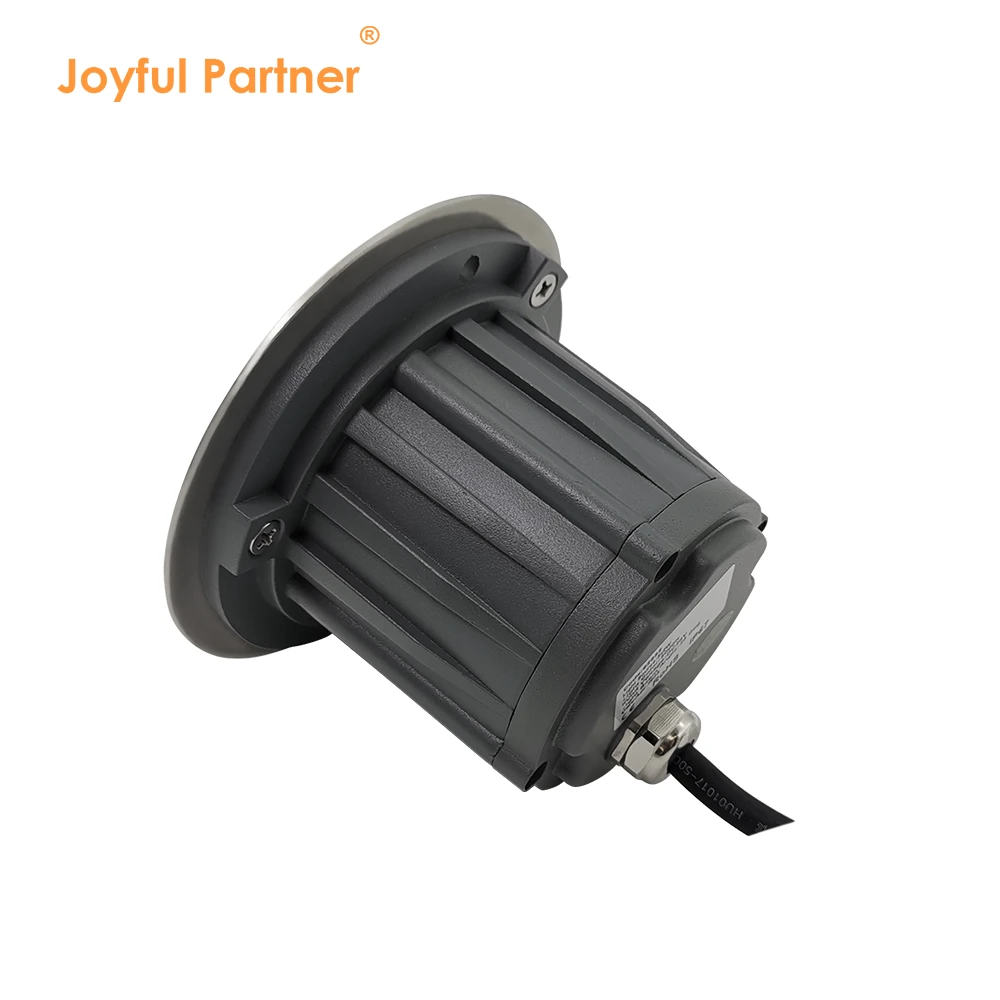

Features high-grade ADC12# die-casting aluminum housing with durable SUS 316L stainless steel trim.
Equipped with a 7mm thick tempered step glass, supporting a full-area pressure capacity of 1900kgs.
Advanced optical lens system (efficiency ≥85%) offering beam angles from 8° to 60° including asymmetrical options.
Versatile lighting configurations from 3W to 9W, supporting single color, RGB, and high-quality COB LEDs.
Reliable underground landscape lamp protection ensured by molding shaped silicone seals and robust ABS mounting sleeves.
Model Specification Table
|
Item No. |
Light source |
Lens beam angle(°) |
Consumption(watt) |
Input Voltage(V) |
Ik rate |
|
C82531(H/AS) |
3x1W LED |
8°/15°/25°/30°/45°/60° |
3.2 |
DC12V/DC24V/AC100-240V |
08 |
|
C82532(H/AS) |
3x2W LED |
8°/15°/25°/30°/45°/60° |
6.2 |
DC12V/DC24V/AC100-240V |
08 |
|
C82534 |
3x2W RGB LED |
8°/15°/25°/30°/45°/60° |
5.8 |
DC12V/DC24V |
08 |
|
C82536 |
3x3W RGB3in1 LED |
25°/30°/45°/60° |
9.2 |
DC12V/DC24V |
08 |
|
C825068COB(H) |
1x6W CREE COB |
15°/24°/38°/60° |
6.3 |
DC12V/DC24V/AC100-240V |
08 |
Material Specifications Table
|
Item |
Description |
|
Housing |
ADC12# casting aluminum with outdoor dark grey powder coating T=60-80um Adhesion of ISO class 1 / ASTM class 4B |
|
Front cover |
304 or 316 Stainless Steel |
|
Lens |
Optical lens, efficiency≥85% |
|
Glass |
Tempered step glass T=7mm |
|
Glass pressure capacity |
Full area = 1900kgs |
|
Gasket |
Molding shaped silicone seal |
|
Operating temperature |
-20℃~40℃ |
|
Power cable |
H05RN-F 2x0.75mm² L=0.5m (low voltage) / H05RN-F 3x0.75mm² L=0.5m (for single color/high voltage) / H05RN-F 4x0.75mm² L=0.5m (for RGB) |
|
Mounting sleeve |
ABS |
|
Housing color option |
Dark grey RAL7012 / Silver painting RAL9006 / Matt black RAL9005 |
