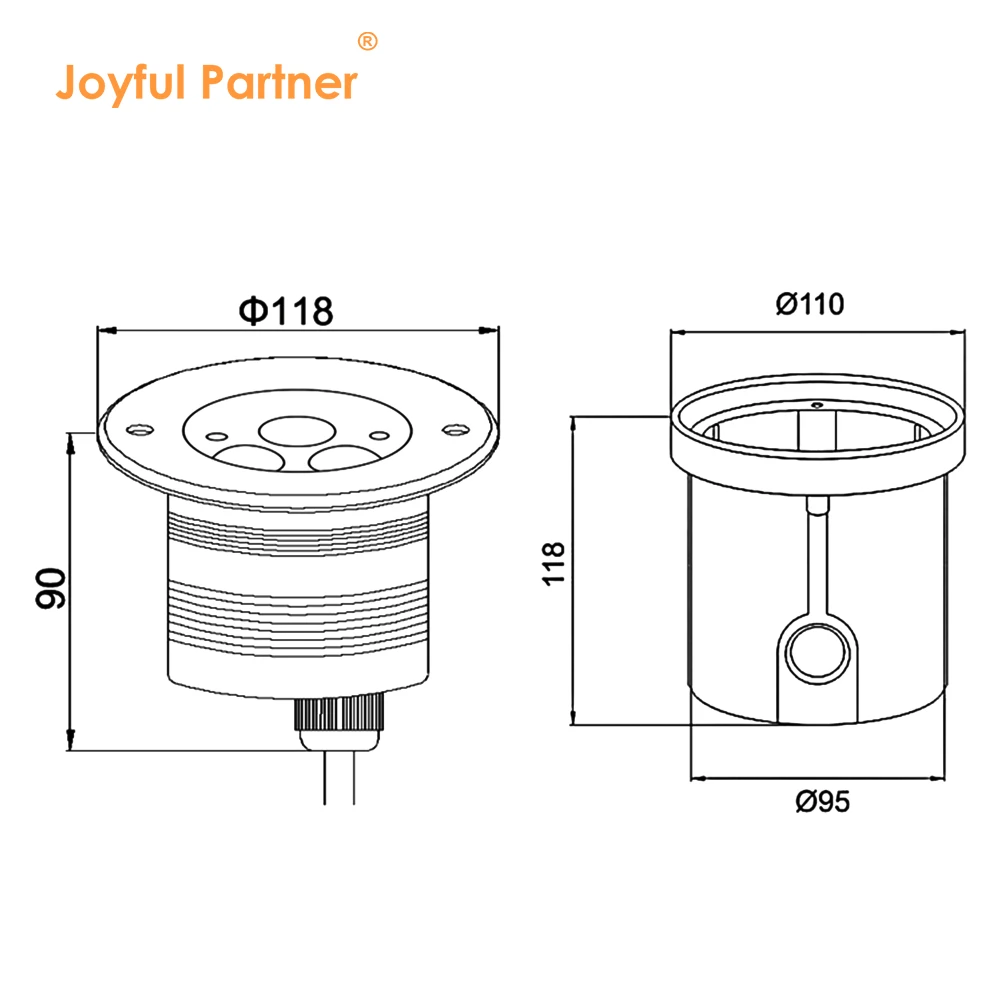

B8253X（Ø 118mm）
Waterproof Rating: IP67
Material: SS304/SS316 face cover
Model: B8253X Series
Certification: IP67, RoHS, CE
Professional-grade LED inground light designed for powerful architectural facade and high-end landscape up-lighting.

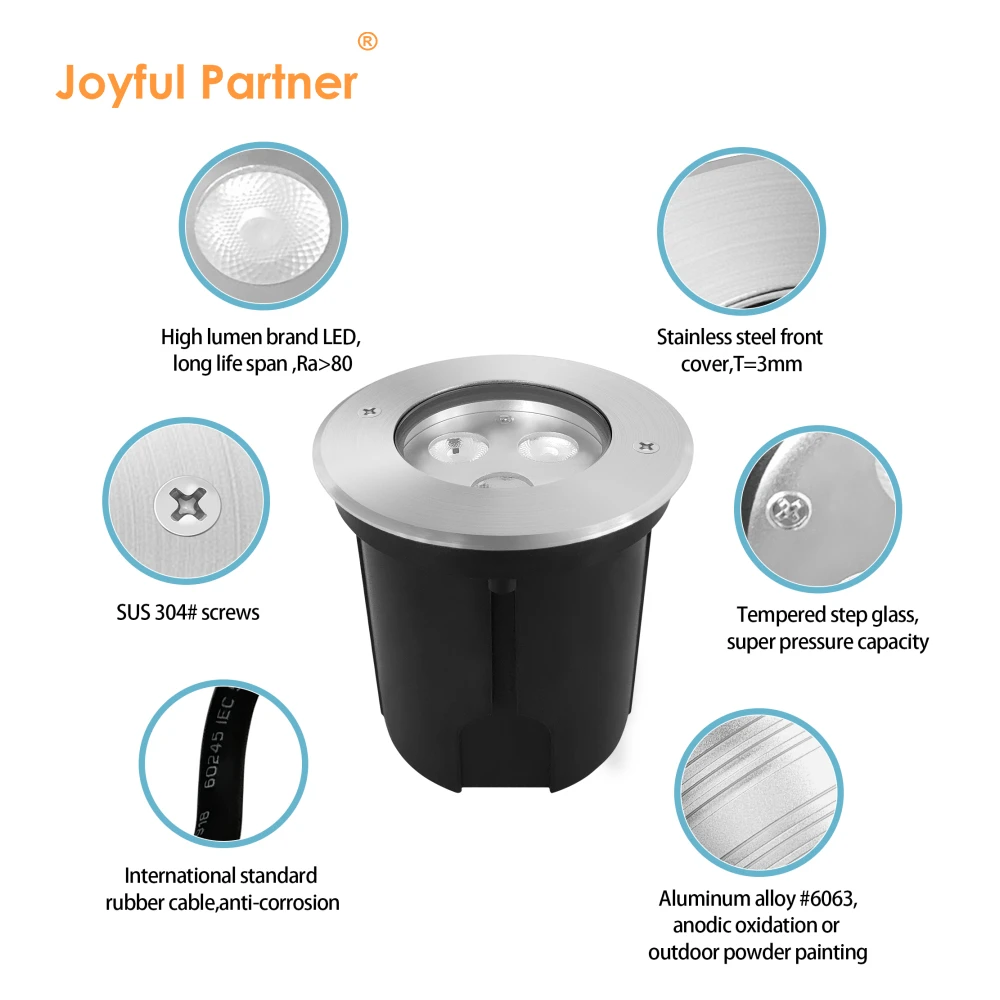

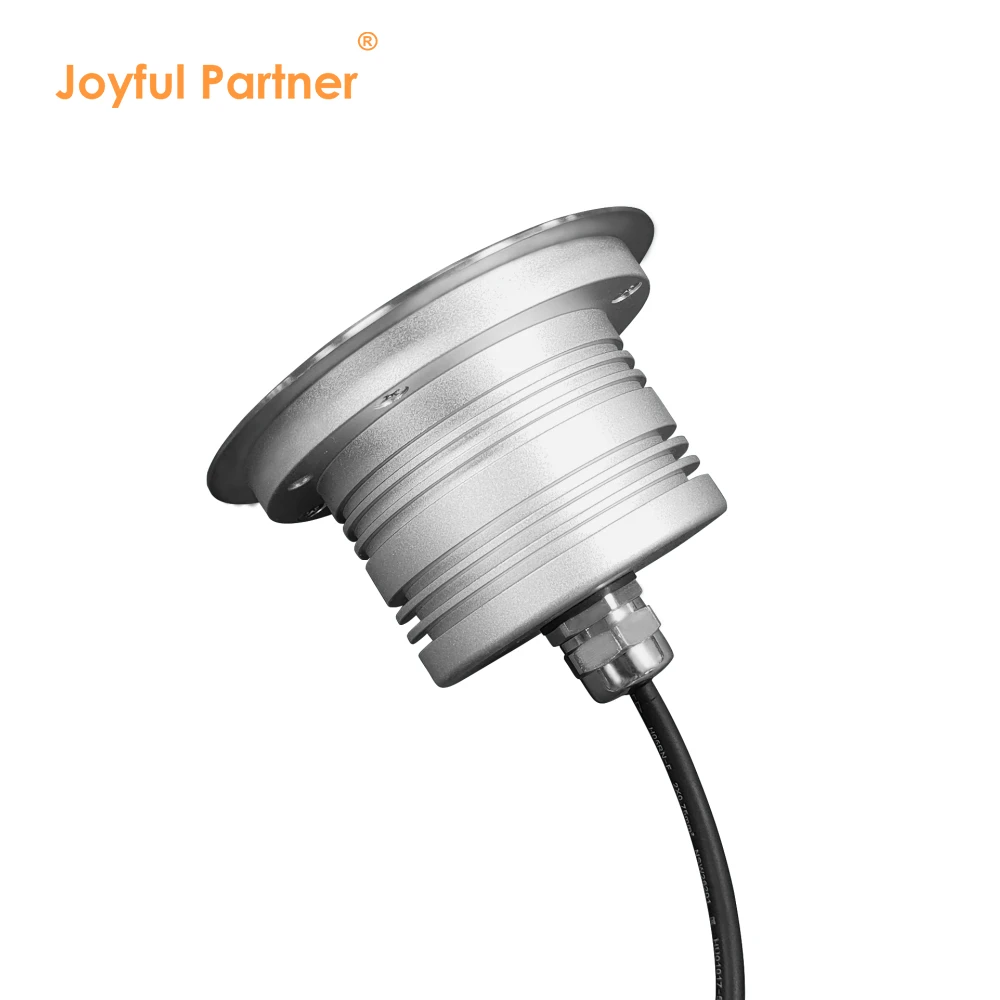

Features a premium 304 or 316 stainless steel face cover combined with a durable 6063 silver anodized aluminum housing.
Equipped with an 8mm thick tempered step glass, providing a high pressure capacity of 2500kgs for pedestrian and traffic zones.
Advanced optical lens system (efficiency ≥85%) offering both symmetrical and asymmetrical beam options for targeted light distribution.
Versatile lighting configurations up to 13.2W, supporting single color, RGB, and dynamic RGBW 4in1 color-changing effects.

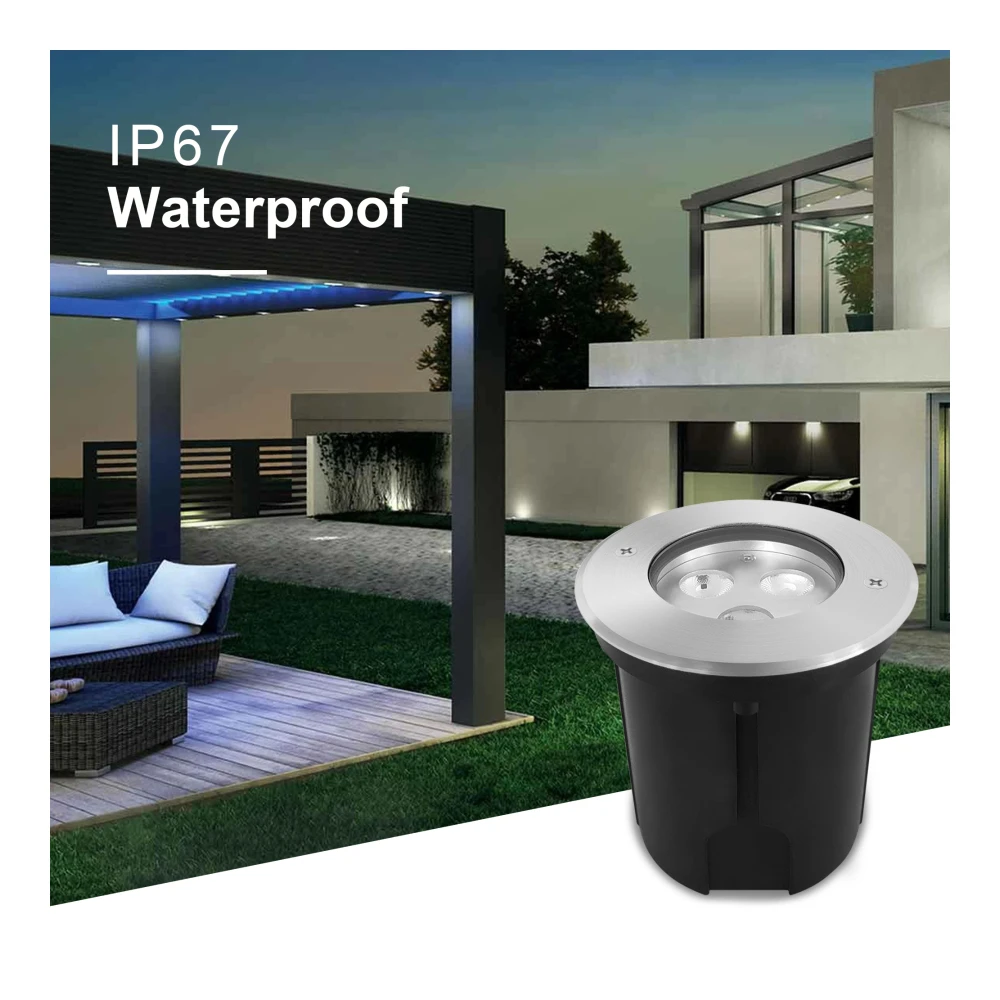

Reliable IP67 waterproof protection ensured by molding shaped silicone seals and robust ABS mounting sleeves for secure recessed burial.
Model Specification Table
|
Item No. |
Light source |
Lens beam angle(°) |
Consumption(watt) |
Input Voltage(V) |
Ik rate |
|
B82531(S/H/AS) |
3x1W LED |
8°/15°/25°/30°/45°/60° |
3.2 |
DC12V/DC24V/AC100-240V |
09 |
|
B82532(S/H/AS) |
3x2W LED |
8°/15°/25°/30°/45°/60° |
6.2 |
DC12V/DC24V/AC100-240V |
09 |
|
B82533(S/AS) |
3x1W RGB LED |
6°/15°/25°/30°/45°/60° |
3.2 |
DC12V/DC24V |
09 |
|
B82534(S/AS) |
3x2W RGB LED |
8°/15°/25°/30°/45°/60° |
5.8 |
DC12V/DC24V |
09 |
|
B82536(S/AS) |
3x3W RGB3in1 LED |
25°/30°/45°/60° |
9.2 |
DC12V/DC24V |
09 |
|
B82539(AS) |
3x4W RGBW4in1 LED |
25°/30°/45°/60° |
13.2 |
DC12V/DC24V |
09 |
Material Specifications Table
|
Item |
Description |
|
Housing |
6063 silver anodized finish aluminum |
|
Front cover |
304 or 316 Stainless Steel |
|
Lens |
Optical lens, efficiency≥85% |
|
Glass |
Tempered step glass T=8mm |
|
Glass pressure capacity |
Full area = 2500kgs |
|
Gasket |
Molding shaped silicone seal |
|
Operating temperature |
-20℃~40℃ |
|
Power cable |
H05RN-F 2x0.75mm² L=0.5m (low voltage) / H05RN-F 3x0.75mm² L=0.5m (for Single color/high voltage) / H05RN-F 4x0.75mm² L=0.5m (for RGB) |
|
Mounting sleeve |
ABS |
