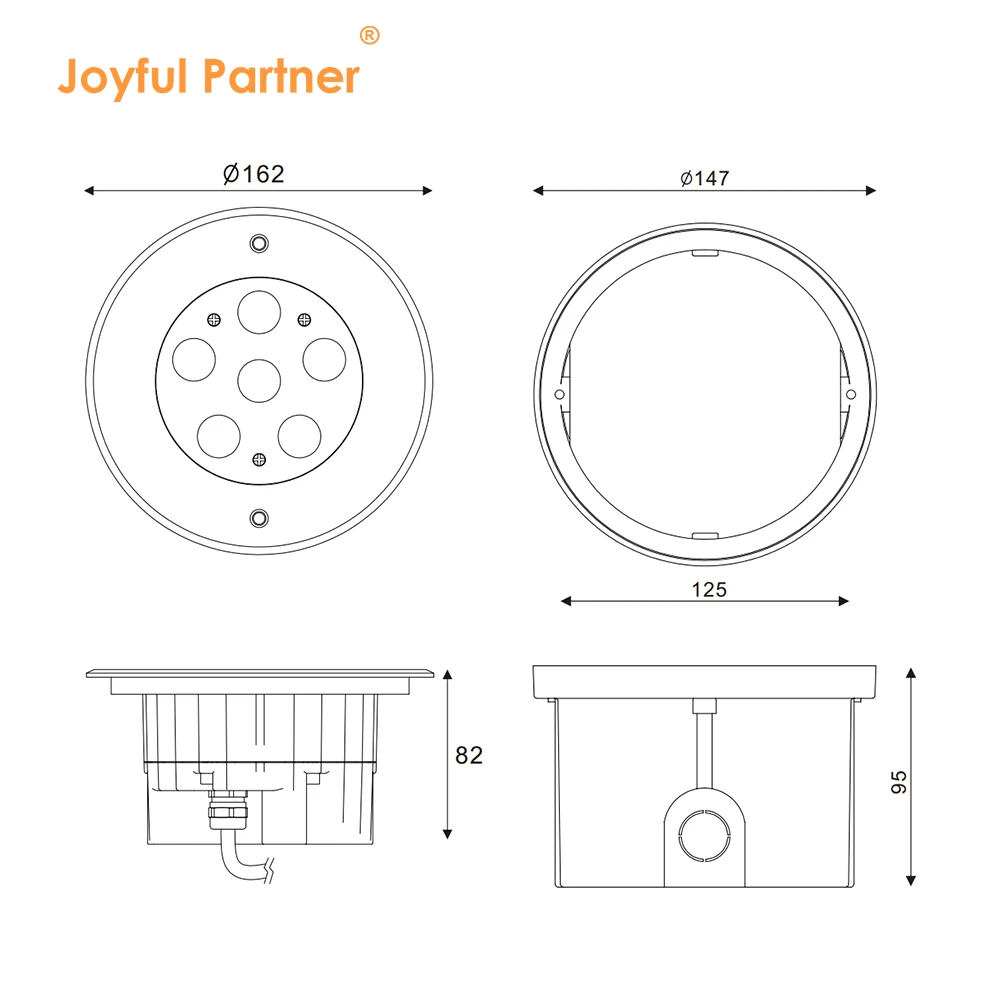

8266X（Ø 162mm）
Waterproof Rating: IP67
Material: SS304/SS316 face cover
Model: C8266X Series
Certification: IP67, RoHS, CE
Engineered for landscape walkways, this inground LED up light handles repeated rollover pressure through its 8mm stepped tempered glass top.

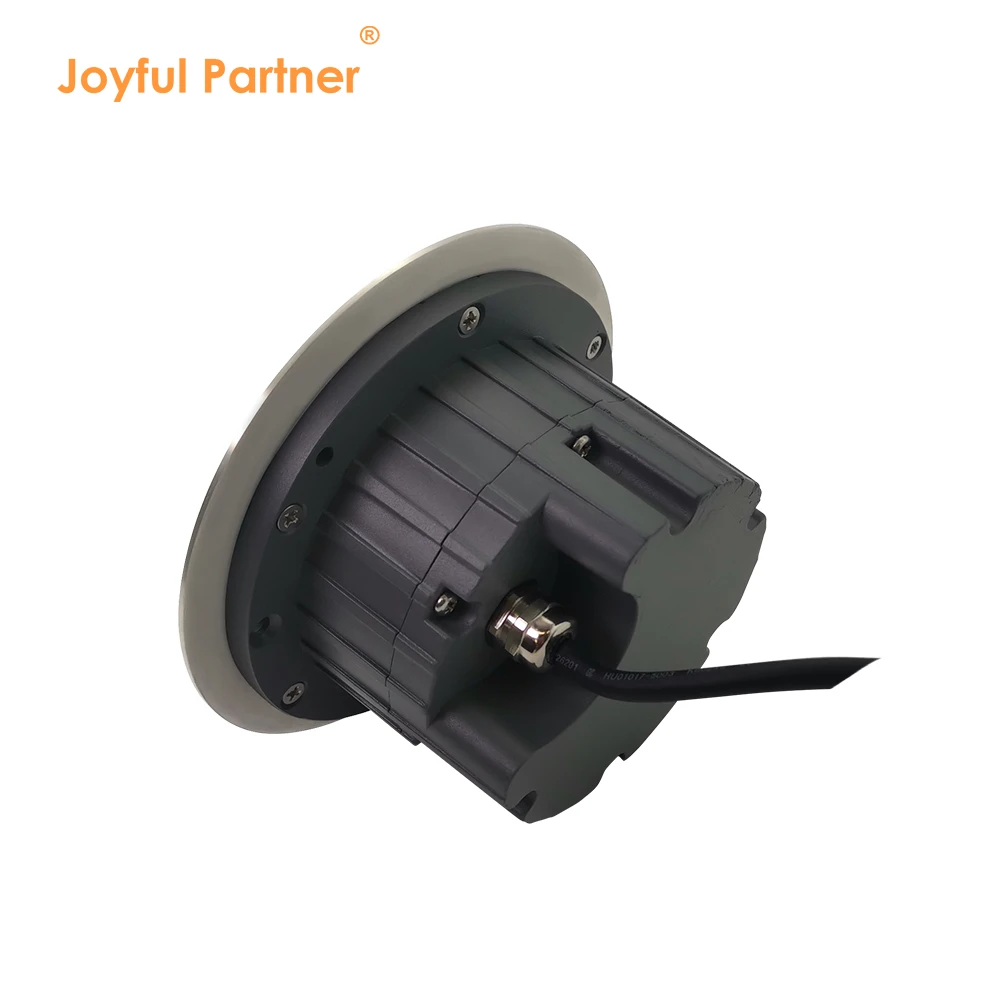

Built with a deep gray powder coated aluminum housing, this inground fixture achieves IK08 impact rating and 2450kg walkover capacity.
Offered with 304 or 316 stainless steel faceplates in circular or square profiles plus AC and DC voltage versions, this up light adapts to site needs.

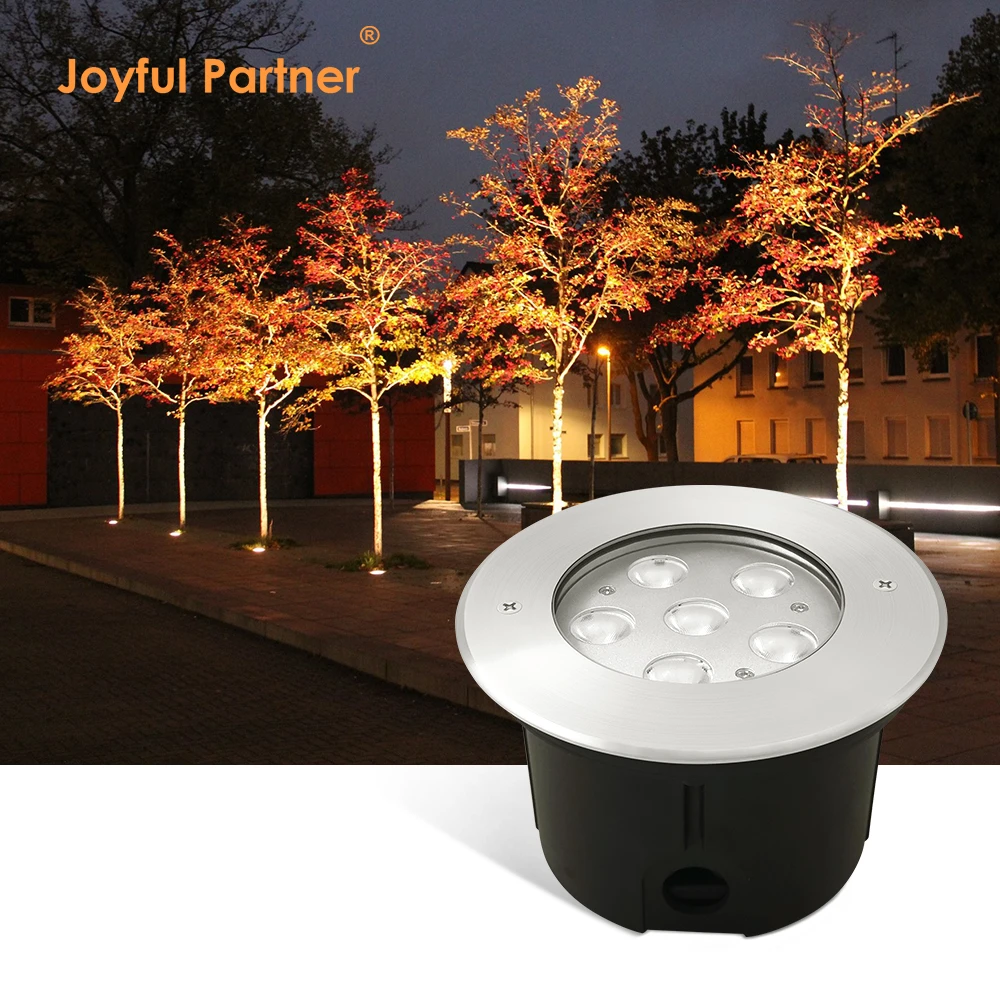

Ideal for accent uplighting of trees along walkways, this inground light offers 8 to 60 degree beam and RGB3in1 color options.
Model Specification Table
|
Item No. |
Light source |
Lens beam angle(°) |
Consumption(watt) |
Input Voltage(V) |
Ik rate |
|
C82661(S/H/AS) |
6x1W LED |
8°/15°/25°/30°/45°/60° |
6.3 |
DC24V/AC100-240V |
08 |
|
C82662(S/H/AS) |
6x2W LED |
8°/15°/25°/30°/45°/60° |
13.2 |
DC24V/AC100-240V |
08 |
|
C82663(S/AS) |
6x1W RGB LED |
8°/15°/25°/30°/45°/60° |
6.0 |
DC12V/DC24V |
08 |
|
C82664(S/AS) |
6x2W RGB LED |
8°/15°/25°/30°/45°/60° |
12.5 |
DC12V/DC24V |
08 |
|
C82666(S/AS) |
6x3W RGB3in1 LED |
25°/30°/45°/60° |
18.3 |
DC24V |
08 |

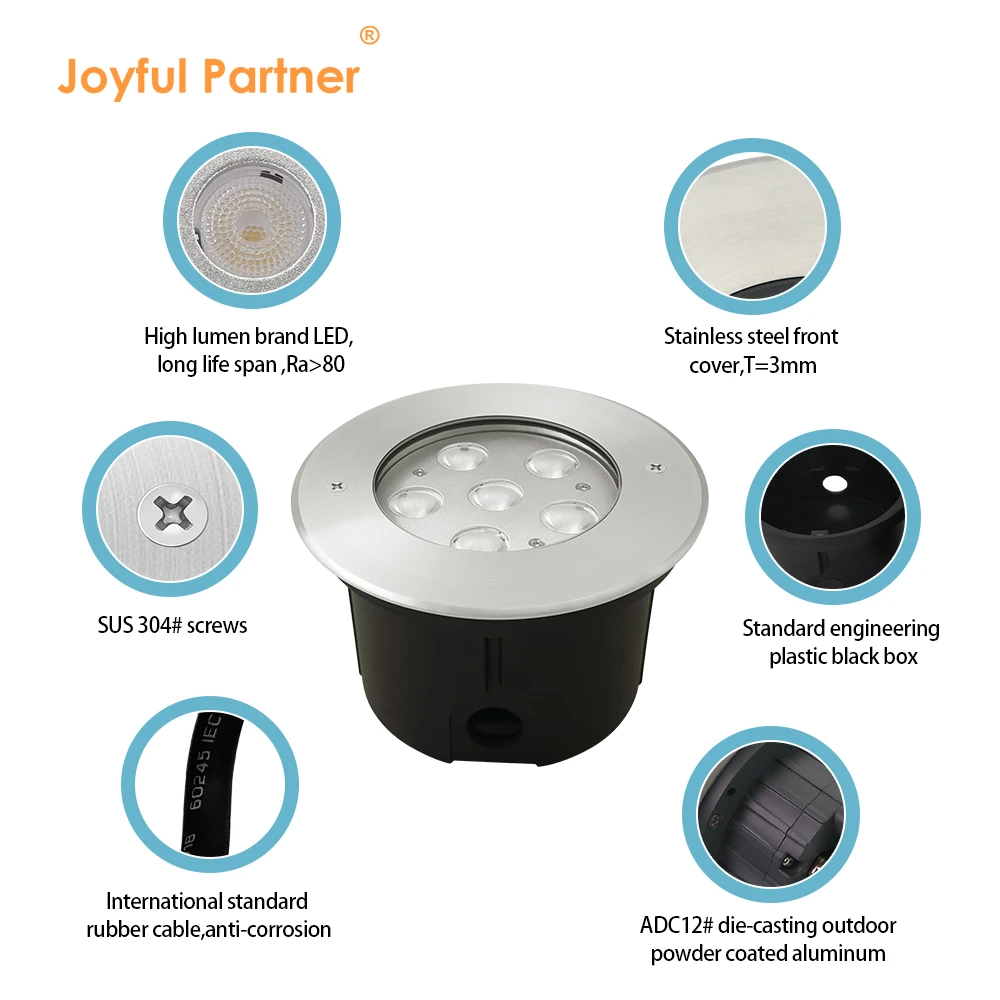

Material Specifications Table
|
Item |
Description |
|
Housing |
Outdoor dark grey powder coated aluminum T=60-80um Adhesion of ISO class 1 / ASTM class 4B |
|
Front cover |
304# or 316# Stainless Steel |
|
Lens |
Optical lens, efficiency≥85% |
|
Glass |
Tempered step glass T=8mm |
|
Glass pressure capacity |
Full area = 2450kgs |
|
Gasket |
Molding shaped silicone seal |
|
Operating temperature |
-20℃~40℃ |
|
Power cable |
H05RN-F 2x0.75mm² L=0.5m (low voltage) / H05RN-F 3x0.75mm² L=0.5m (for single color/high voltage) / H05RN-F 4x0.75mm² L=0.5m (for RGB) |
|
Mounting sleeve |
ABS |
