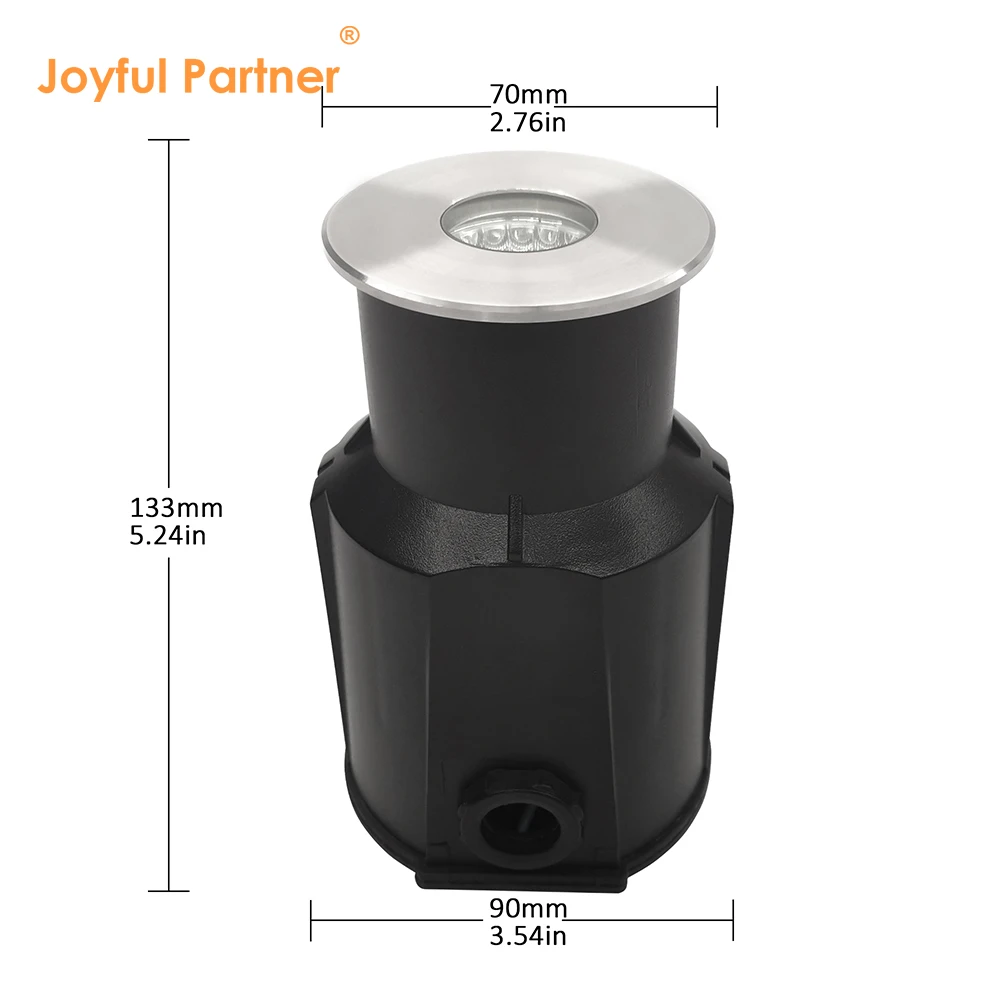

C829068（Ø 70mm）
Waterproof Rating: IP67
Material: SS304/SS316 face cover
Model: C829068 Series
Certification: IP67, RoHS, CE

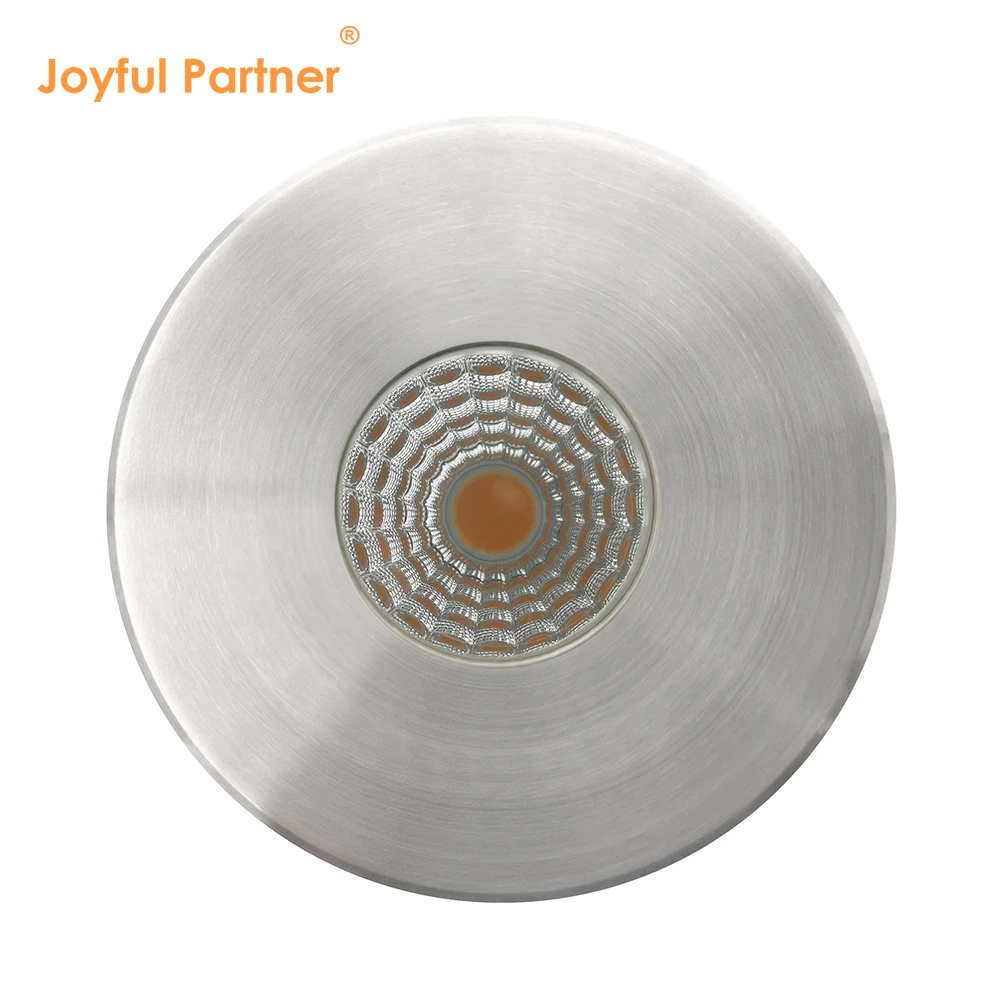

High-performance COB LED inground light designed for precise architectural and landscape accentuation.
Features high-quality CREE COB LEDs delivering a powerful and uniform light beam with high efficiency.

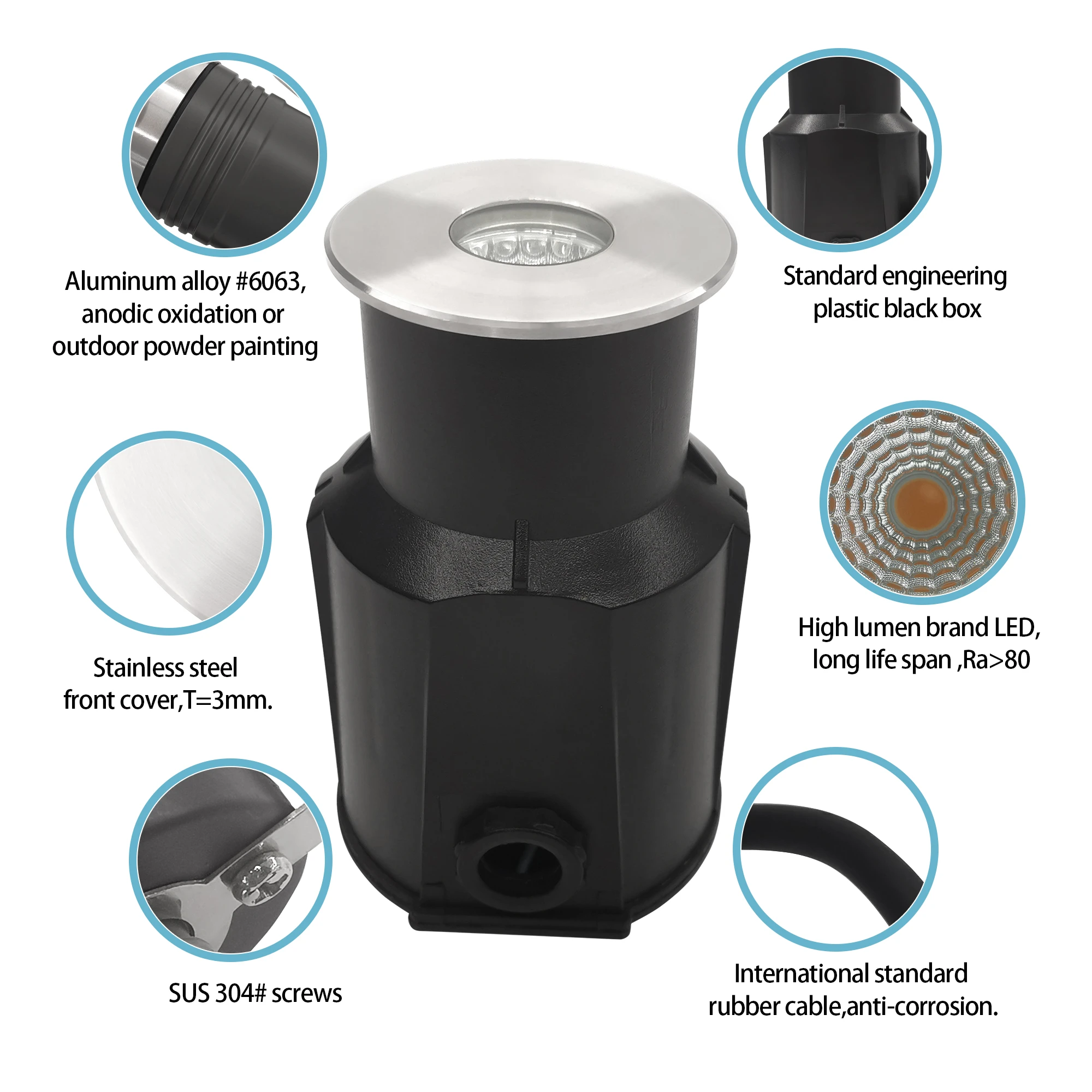

Constructed with premium 304# or 316# stainless steel front cover and robust powder-coated aluminum housing.
Equipped with 7mm thick tempered step glass, providing a full-area pressure capacity of 760kgs.
Precision optical lens system (efficiency ≥85%) offering beam angles from 15° to 60° for diverse lighting needs.
Reliable IP67 waterproof protection ensured by molding shaped silicone seals and durable ABS mounting sleeves.
Model Specification Table
|
Item No. |
Light source |
Lens beam angle(°) |
Consumption(watt) |
Input Voltage(V) |
Ik rate |
|
C829068(H) |
1*6W COB LED |
15°/25°/38°/60° |
6.2 |
DC12V/DC24V / AC100V-AC240V |
08 |
|
CS829068(H) |
1*6W COB LED |
15°/25°/38°/60° |
6.2 |
DC12V/DC24V / AC100V-AC240V |
08 |
Material Specifications Table
|
Item |
Description |
|
Housing |
Pure aluminum 6063# housing, outdoor powder painted or anti-UV anodized, T=60-80um |
|
Front cover |
Stainless steel 316L# or 304# |
|
Lens |
Optical lens, efficiency≥85% |
|
Glass |
Tempered step glass T=7mm |
|
Glass pressure capacity |
Full area = 760kgs |
|
Gasket |
Molding shaped silicone seal |
|
Operating temperature |
-20℃~40℃ |
|
Power cable |
H05RN-F 2x0.75mm² L=0.5m (low voltage) / H05RN-F 3x0.75mm² L=0.5m (for single color/high voltage) |
|
Mounting sleeve |
ABS |
|
Housing color option |
Dark grey RAL7012 / Silver painting RAL9006 / Matt black RAL9005 |
