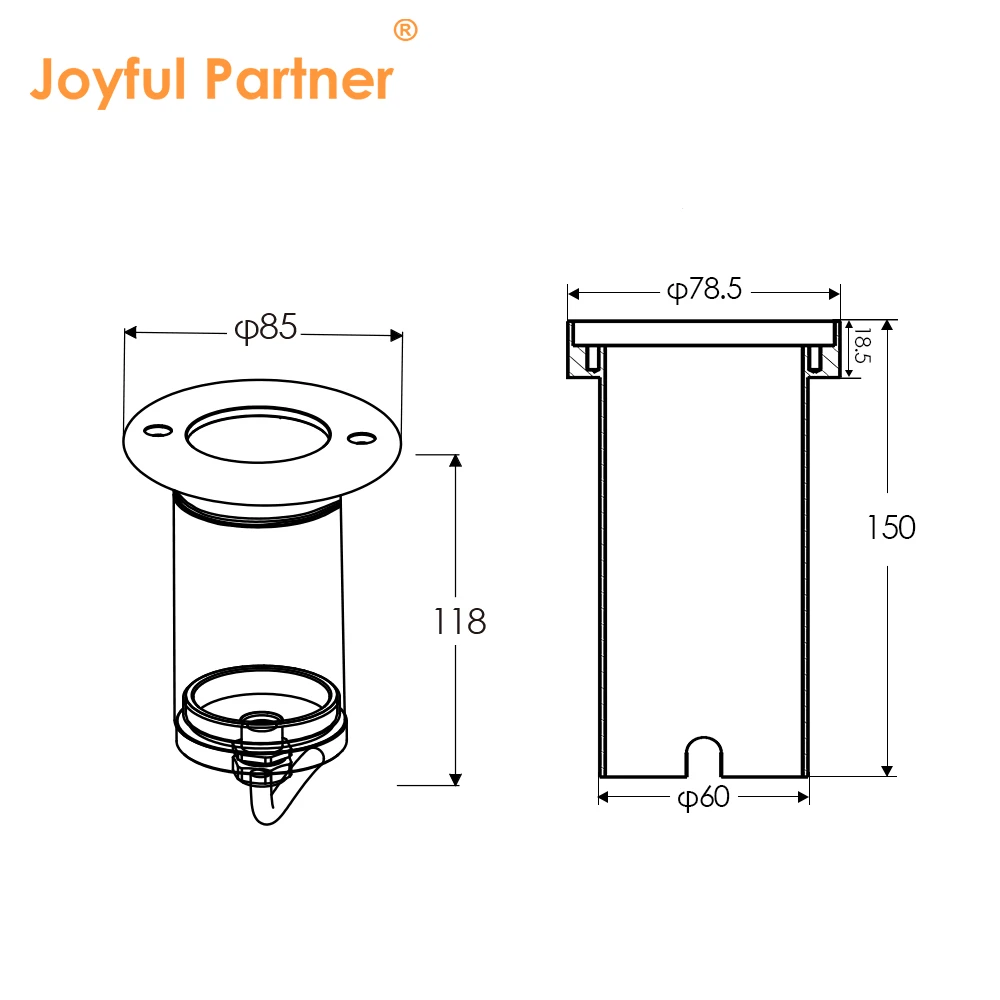

82578R（Ø 85mm）
Waterproof Rating: IP67
Material: SS304/SS316 face cover
Model: 82578R Series
Certification: IP67, RoHS, CE
High-performance COB LED inground light available in both round and square form factors for modern architectural designs.

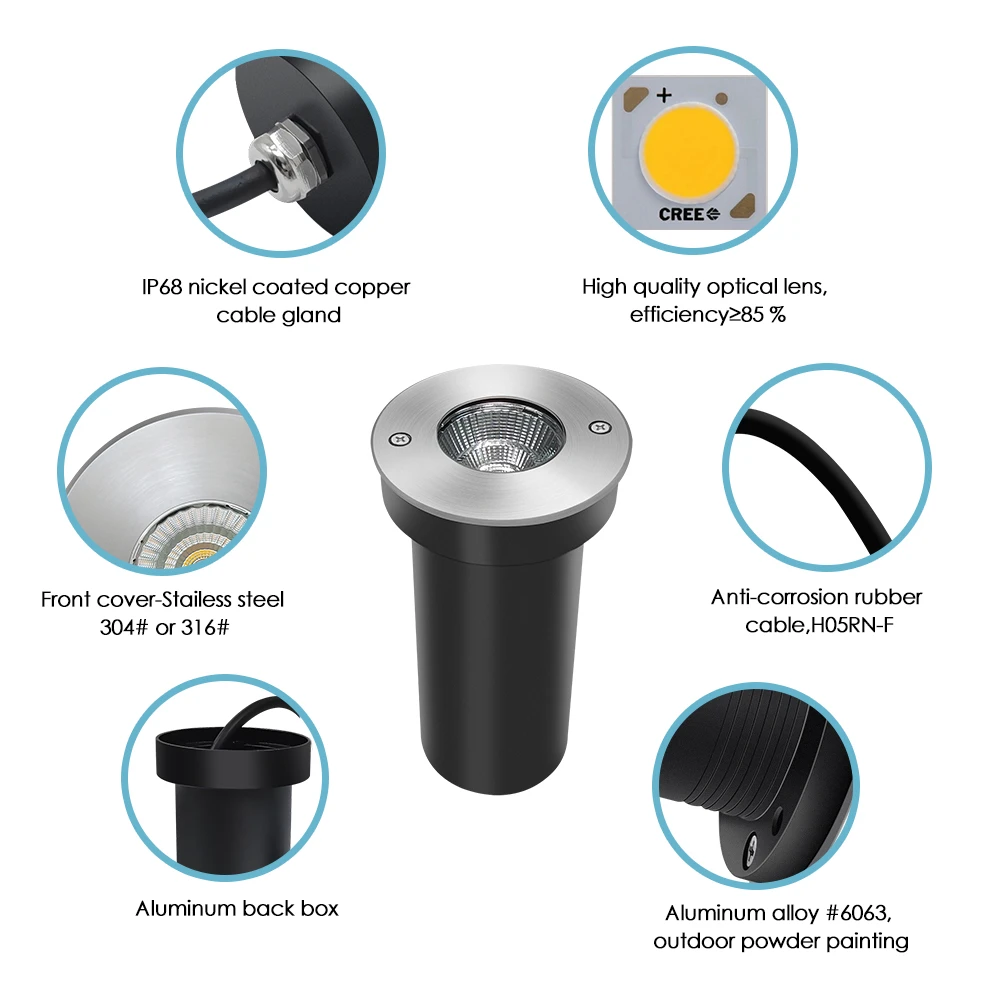

Constructed with a premium SUS316L# or 304# stainless steel front cover and high-strength aluminum housing.
Utilizes a high-efficiency CREE COB LED source providing a powerful and uniform 7W architectural light output.
Equipped with a 7mm thick tempered step glass, supporting a full-area pressure capacity of 760kgs for safety.
Certified with IP67 waterproof protection ensured by molding shaped silicone seals and specialized outdoor cables.

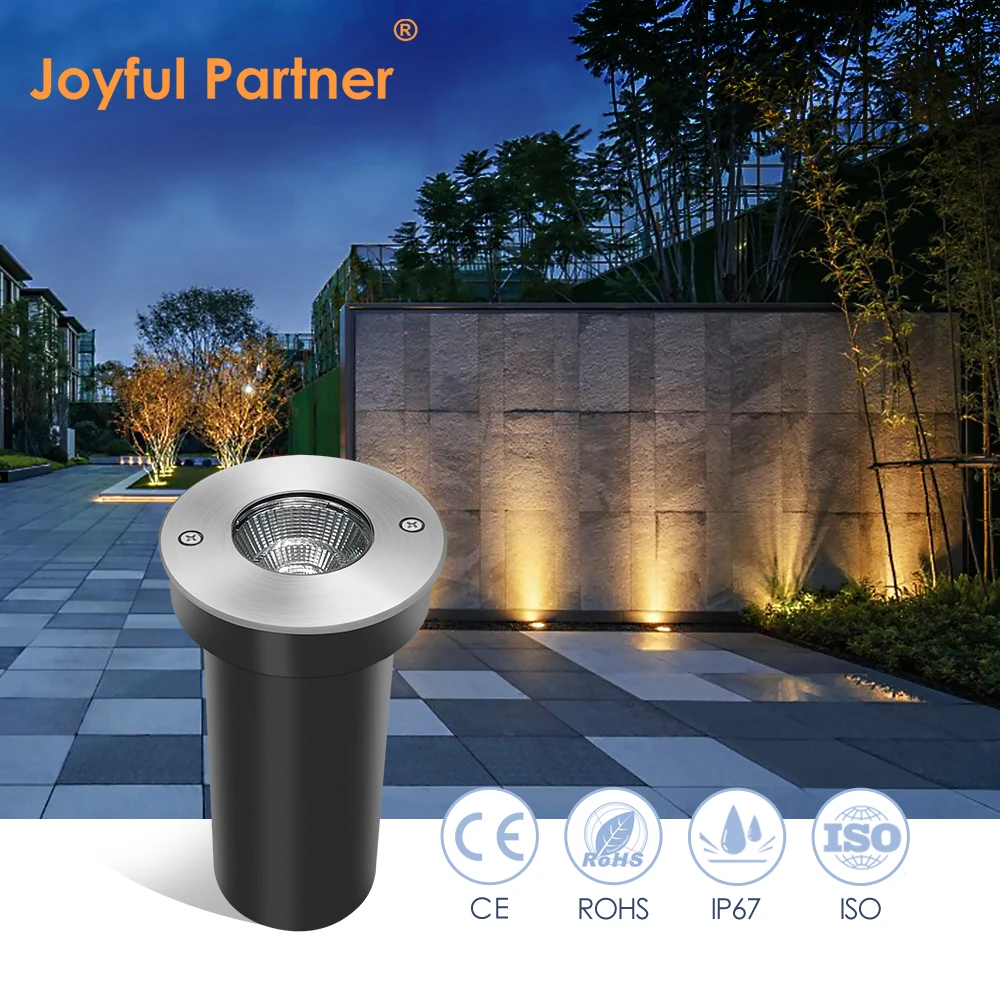

Versatile installation with high-quality aluminum mounting sleeves, suitable for commercial walkways and hotel facades.
Model Specification Table
|
Item No. |
Light source |
Lens beam angle(°) |
Consumption(watt) |
Input Voltage(V) |
|
82578R |
1X7W CREE COB |
12°/24°/38° |
7W |
DC12V/DC24V/AC100-240V |
|
82578S |
1X7W CREE COB |
12°/24°/38° |
7W |
DC12V/DC24V/AC100-240V |
Material Specifications Table
|
Item |
Description |
|
Housing |
Aluminum anodized or outdoor powder coated finish housing T=60-80um Adhesion of ISO class 1 / ASTM class 4B |
|
Front cover |
304# or 316# Stainless Steel |
|
Lens |
Optical lens, efficiency≥85% |
|
Glass |
Tempered step glass T=7mm |
|
Glass pressure capacity |
Full area = 760kgs |
|
Gasket |
Molding shaped silicone seal |
|
Operating temperature |
-20℃~40℃ |
|
Power cable |
H05RN-F 2x0.75mm² L=0.5m (low voltage) / H05RN-F 3x0.75mm² L=0.5m (for single color/high voltage) |
|
Mounting sleeve |
Aluminum |
