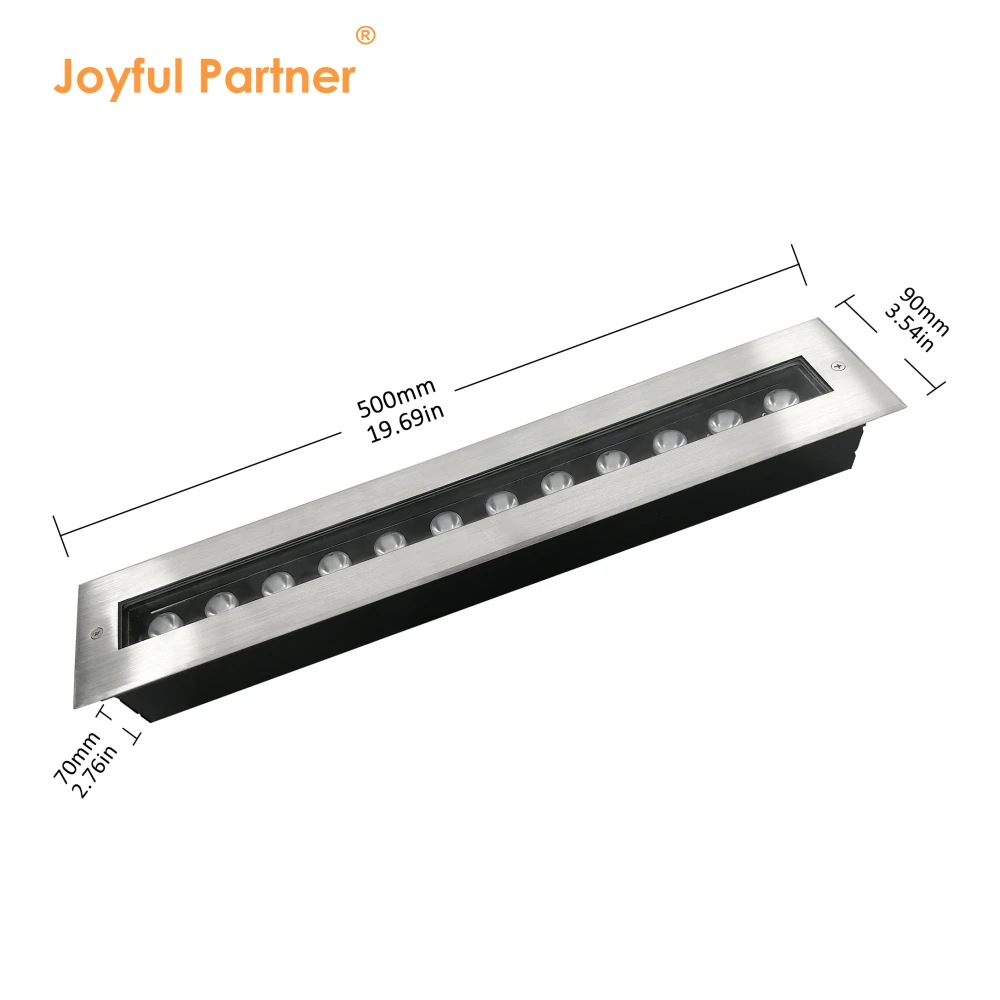

820512X（L500*W90*H65mm）
Waterproof Rating: IP67
Material: SS304/SS316 face cover
Model: 820512X Series
Certification: IP67, RoHS, CE

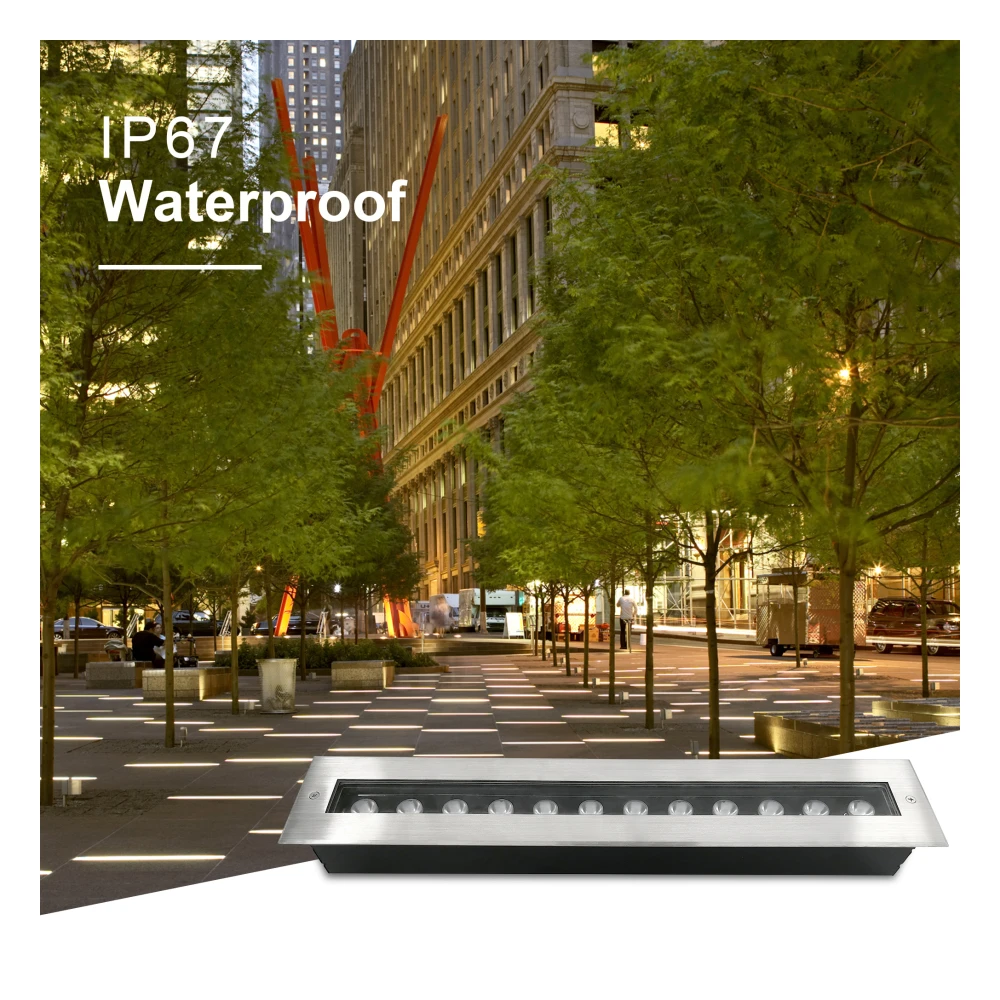

High-performance linear wall washer designed for powerful architectural facade and park pathway illumination.

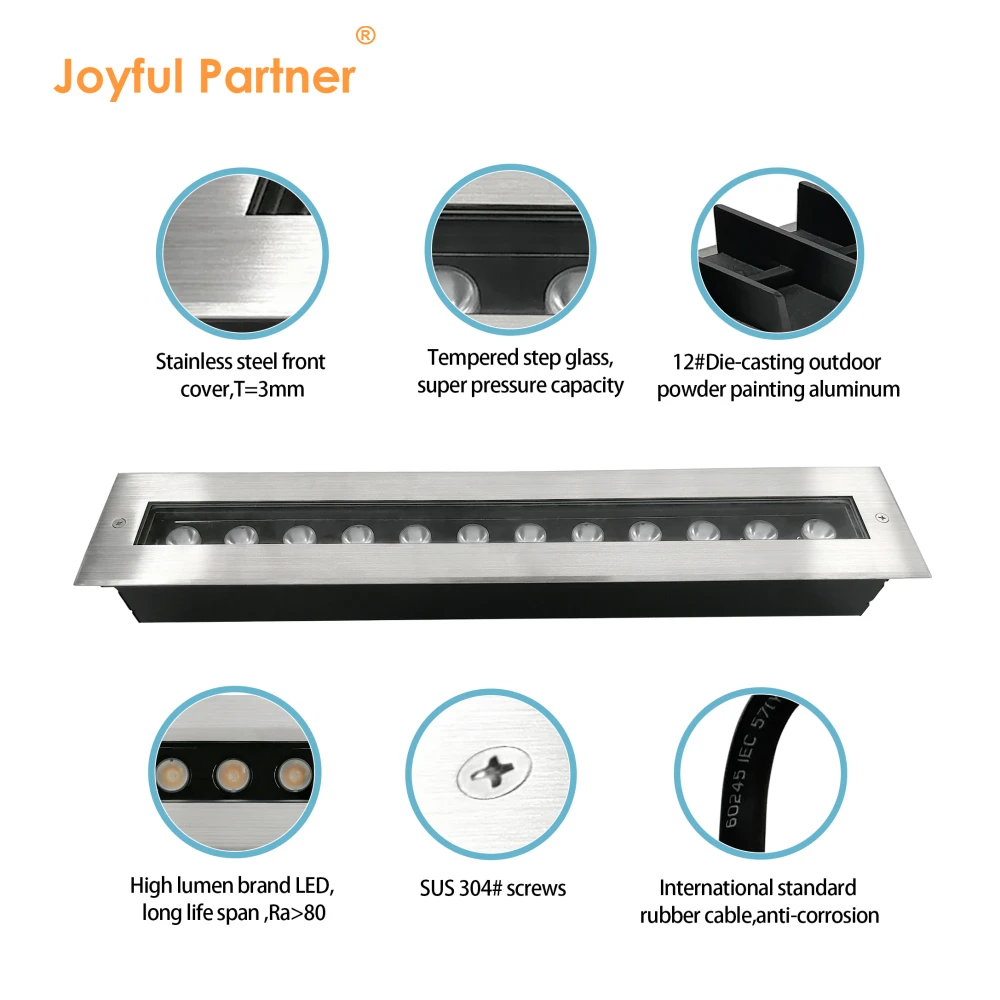

Features premium 304# or 316# stainless steel trim combined with a robust powder-coated aluminum housing for ultimate durability.
Equipped with a 7mm thick tempered step glass, providing a full-area pressure capacity of 1700kgs for public safety.

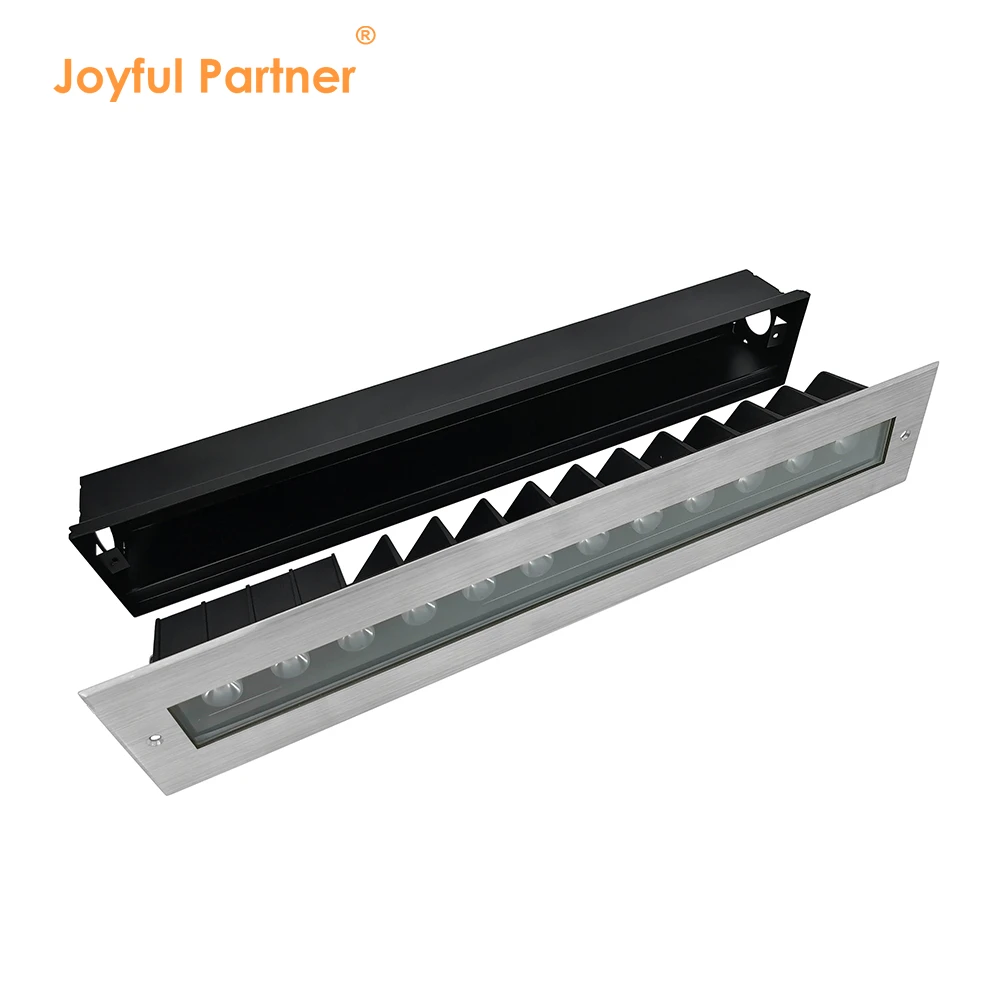

Advanced optical lens system (efficiency ≥85%) offering diverse beam angles from 8° to 60° including specialized 10x45° asymmetrical options.
Available in versatile lengths (500mm/1000mm) and wattage configurations from 12W up to 48W to meet diverse global engineering needs.
Reliable outdoor performance ensured by molding shaped silicone seals and an IK08 impact resistance rating.
Model Specification Table
|
Item No. |
Light source |
Lens beam angle(°) |
Consumption(watt) |
Input Voltage(V) |
Ik rate |
|
8205121(AS/H) |
12x1W LED |
8°/15°/25°/30°/45°/10x45° |
12 |
DC24V / AC100-240V |
08 |
|
8205122(AS/H) |
12x2W LED |
8°/15°/25°/30°/45°/10x45° |
24 |
DC24V / AC100-240V |
08 |
|
8210241(AS/H) |
24x1W LED |
8°/15°/25°/30°/45°/10x45° |
24 |
DC24V / AC100-240V |
08 |
|
8210242(AS/H) |
24x2W LED |
8°/15°/25°/30°/45°/10x45° |
48 |
DC24V / AC100-240V |
08 |
Material Specifications Table
|
Item |
Description |
|
Housing |
Outdoor dark grey powder coated aluminum T=60-80um Adhesion of ISO class 1 / ASTM class 4B |
|
Front cover |
304# or 316# Stainless Steel |
|
Lens |
Optical lens, efficiency≥85% |
|
Glass |
Tempered step glass T=7mm |
|
Glass pressure capacity |
Full area = 1700kgs |
|
Gasket |
Molding shaped silicone seal |
|
Operating temperature |
-20℃~40℃ |
|
Power cable |
H05RN-F 2x0.75mm² L=0.5m (low voltage) / H05RN-F 3x0.75mm² L=0.5m (for single color/high voltage) / H05RN-F 4x0.75mm² L=0.5m (for RGB) |
|
Mounting sleeve |
ABS |
