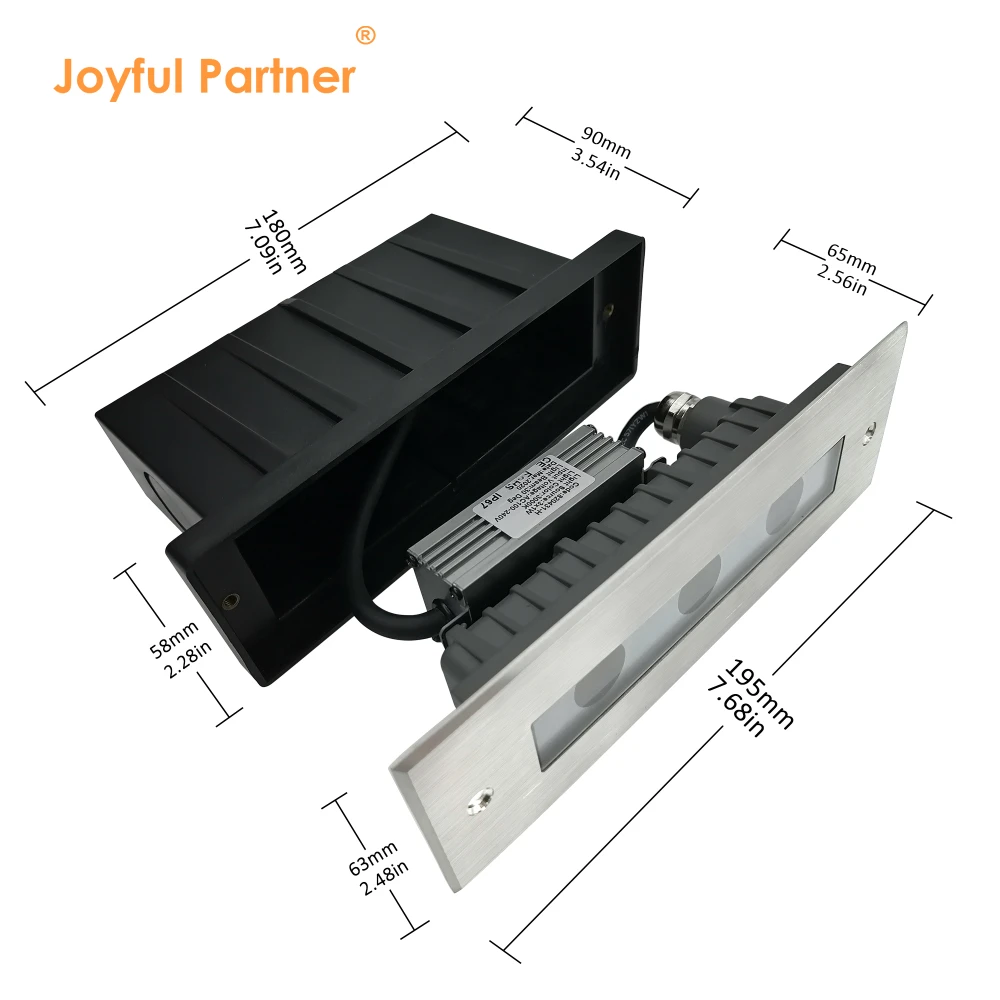

82043X（L195*W63*H65mm）
Waterproof Rating: IP67
Material: SS304/SS316 face cover
Model: 82043X Series
Certification: IP67, RoHS, CE

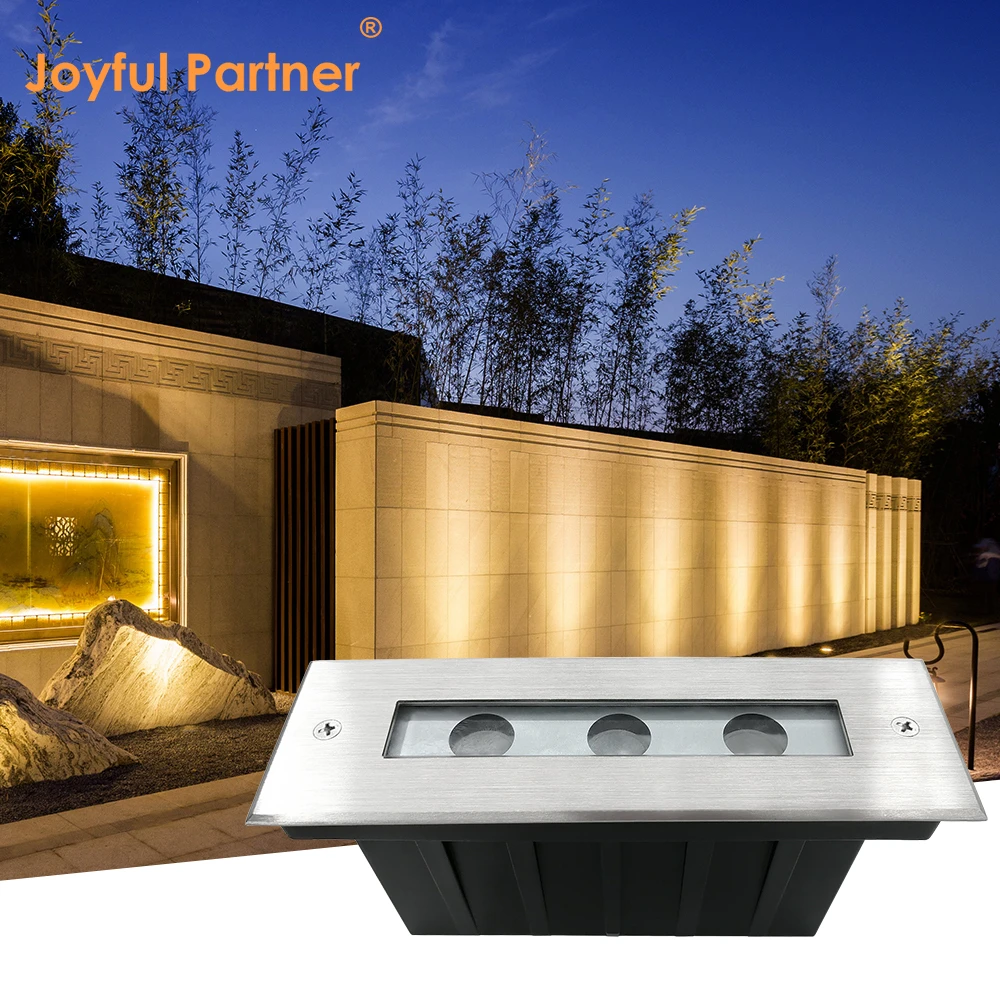

Professional linear inground light designed for high-end architectural facade and commercial walkway illumination.

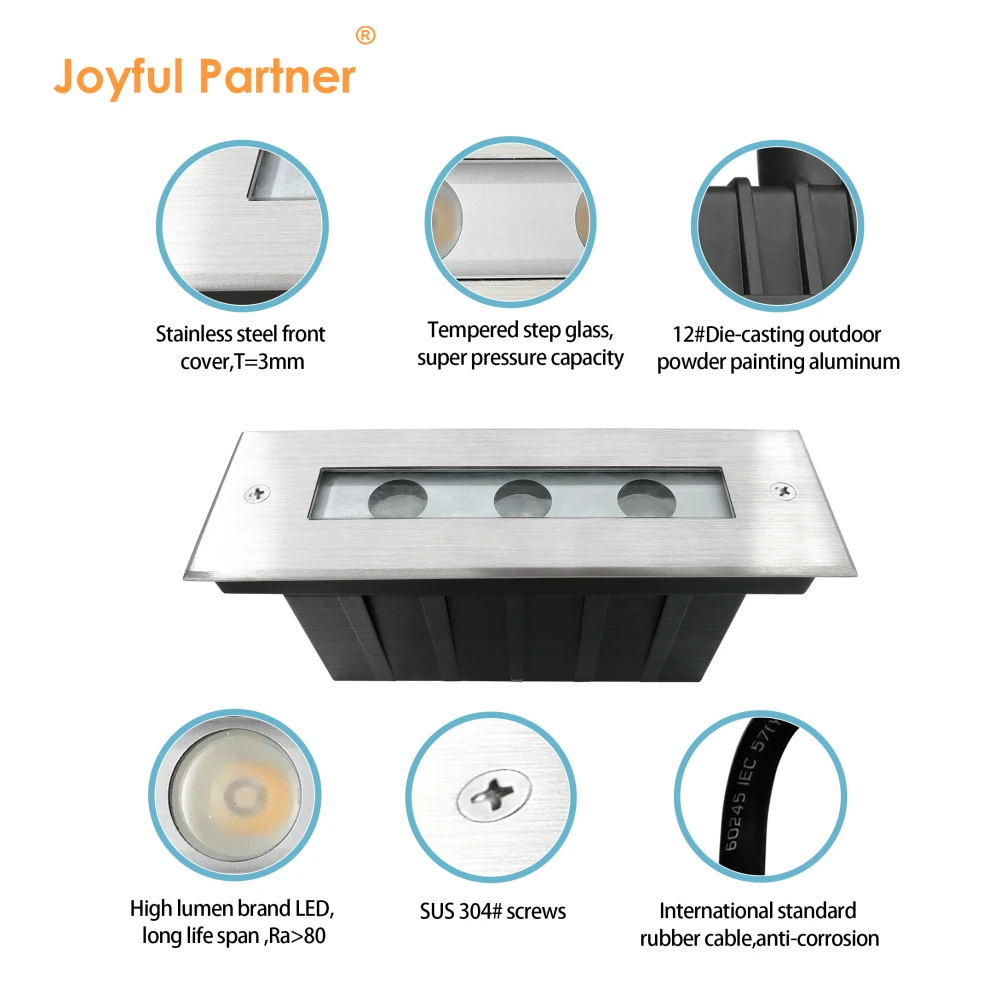

Features a premium 304 or 316 stainless steel face cover combined with a robust powder-coated aluminum housing.
Equipped with a 7mm thick tempered step glass, providing a full-area pressure capacity of 1700kgs for pedestrian safety.
Advanced optical lens system (efficiency ≥85%) offering beam angles from 8° to 60° including specialized 10x45° asymmetrical options.
Includes frosted glass (diffuser) options for soft, uniform lighting effects without visible LED hot spots.
Reliable outdoor performance ensured by molding shaped silicone seals and an IK08 impact resistance rating.
Model Specification Table
|
Item No. |
Light source |
Lens beam angle(°) |
Consumption(watt) |
Input Voltage(V) |
Ik rate |
|
820431(AS/H) |
3x1W LED |
8°/15°/25°/30°/45°/10x45° |
3.2 |
DC24V/AC100-240V |
08 |
|
820432(AS/H) |
3x2W LED |
8°/15°/25°/30°/45°/10x45° |
6.6 |
DC24V/AC100-240V |
08 |
|
8204067(H) |
SMD3030*6pcs |
frosted glass(diffuser) |
3.1 |
DC24V/AC100-240V |
08 |
|
820461(AS/H) |
6x1W LED |
8°/15°/25°/30°/45°/10x45° |
6.3 |
DC24V/AC100-240V |
08 |
|
820462(AS/H) |
6x2W LED |
8°/15°/25°/30°/45°/10x45° |
12.6 |
DC24V/AC100-240V |
08 |
|
8204107(H) |
SMD3030*12pcs |
frosted glass(diffuser) |
6.3 |
DC24V/AC100-240V |
08 |
Material Specifications Table
|
Item |
Description |
|
Housing |
Outdoor dark grey powder coated aluminum T=60-80um Adhesion of ISO class 1 / ASTM class 4B |
|
Front cover |
304 or 316 Stainless Steel |
|
Lens |
Optical lens, efficiency≥85% |
|
Glass |
Tempered step glass T=7mm |
|
Glass pressure capacity |
Full area = 1700kgs |
|
Gasket |
Molding shaped silicone seal |
|
Operating temperature |
-20℃~40℃ |
|
Power cable |
H05RN-F 2x0.75mm² L=0.5m (low voltage) / H05RN-F 3x0.75mm² L=0.5m (for single color/high voltage) / H05RN-F 4x0.75mm² L=0.5m (for RGB) |
|
Mounting sleeve |
ABS |
