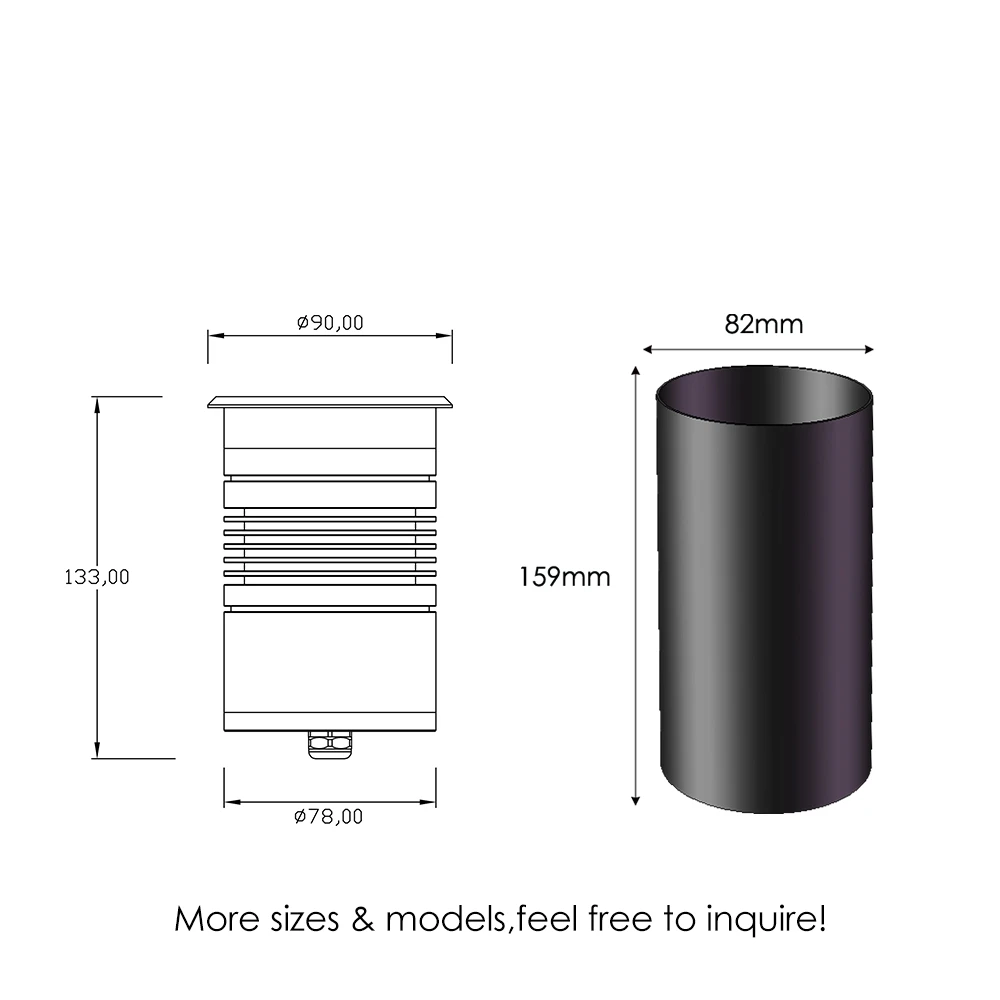

D8290158（Ø 90mm）

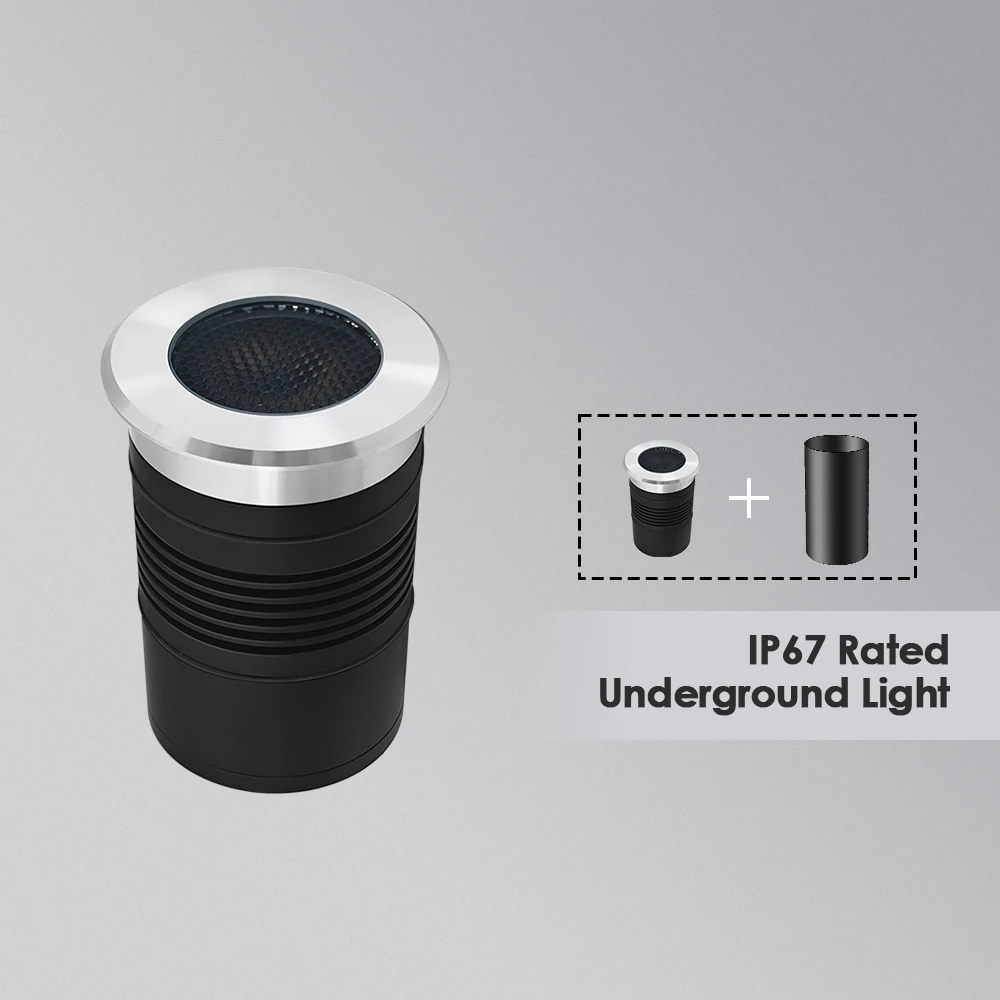

Waterproof Rating: IP67
Material: SS304/SS316 face cover
Model: D8290158 Series
Certification: IP67, RoHS, CE

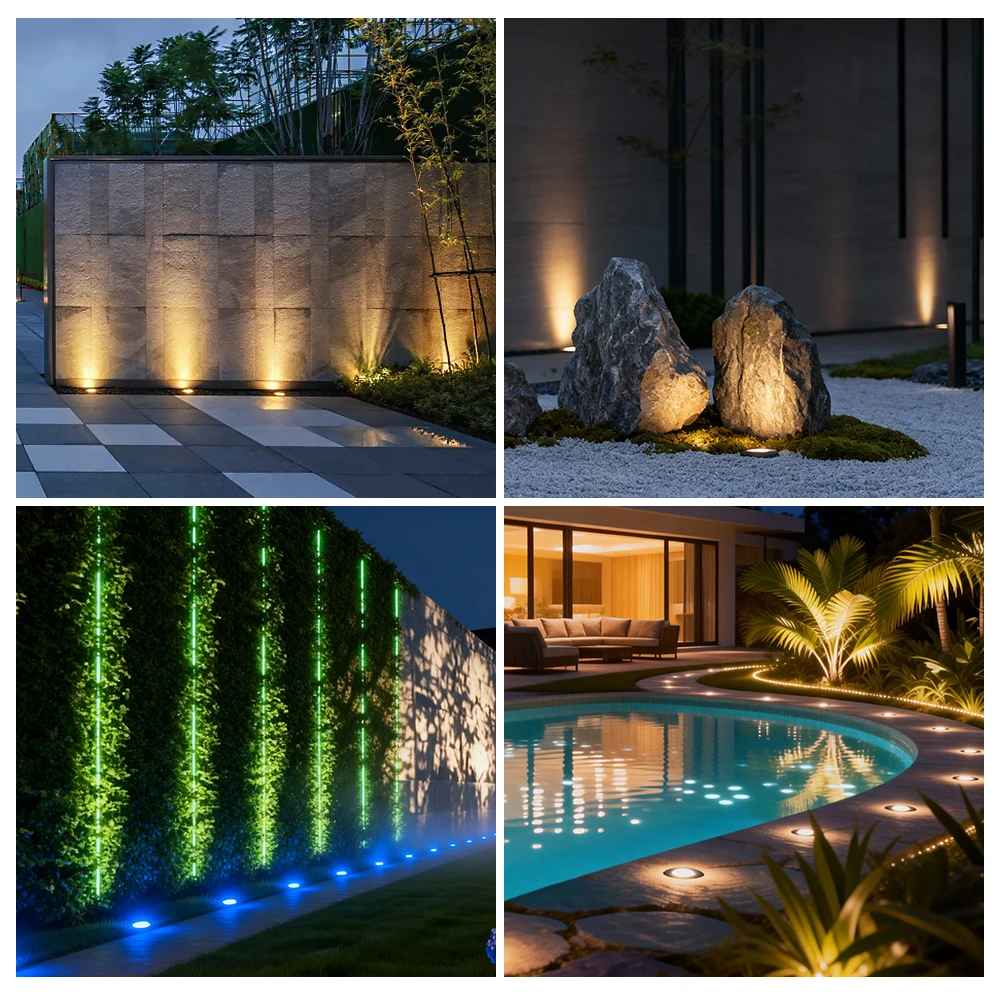

Professional-grade COB LED underground light designed for superior architectural facade and landscape illumination.
Features high-performance CREE COB LEDs delivering a powerful and uniform light beam with high efficiency.

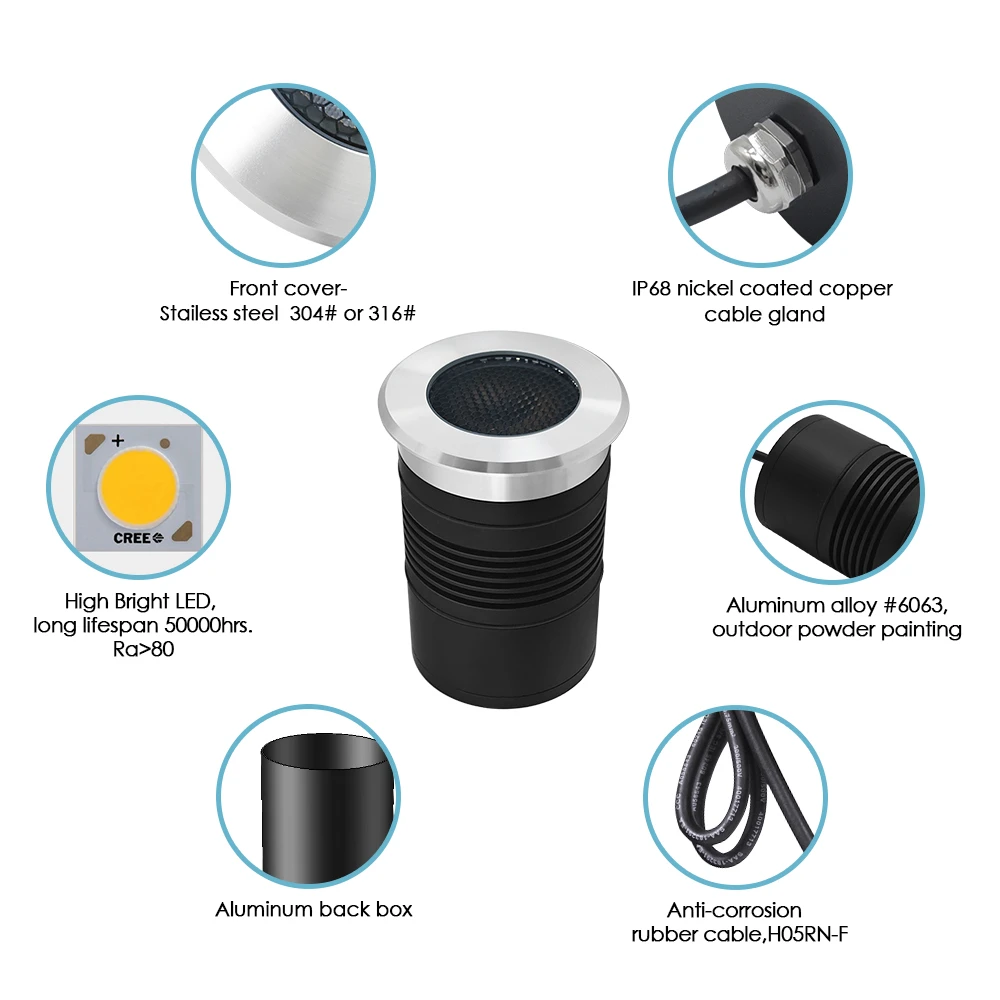

Constructed with a premium SUS316L# or 304# stainless steel front cover and robust 6063# pure aluminum body.
Equipped with a 10mm thick tempered step glass and an IK08 rating to ensure safe use in high-traffic pedestrian areas.
Includes a specialized Honeycomb Louver accessory as an option for enhanced anti-glare control and visual comfort.
Reliable IP67 waterproof protection ensured by molding shaped silicone seals and M12 nickel-coated copper cable glands.
Model Specification Table
|
Item No. |
Light source |
Lens beam angle(°) |
Consumption(watt) |
Input Voltage(V) |
Ik rate |
|
D8290128(H) |
1x12W CREE COB LED |
12°/24°/38° |
12 |
DC24V / AC100-240V |
08 |
|
D8290158(H) |
1x15W CREE COB LED |
12°/24°/38° |
16 |
DC24V / AC100-240V |
08 |
Material Specifications Table
|
Item |
Description |
|
Housing |
Pure aluminum 6063# housing, outdoor powder painted or anti-UV anodized |
|
Front cover |
Stainless steel 316L# or 304# |
|
Glass |
Tempered step glass T=10mm |
|
Lens |
High quality optical lens, efficiency≥85% |
|
Cable gland |
M12 nickel coated copper |
|
Gasket |
Molding shaped silicone seal |
|
Operating temperature |
-20℃~40℃ |
|
Power cable |
H05RN-F 2x0.75mm² L=0.5m(low voltage) / H05RN-F 3x0.75mm² L=0.5m(for single color/high voltage) |
|

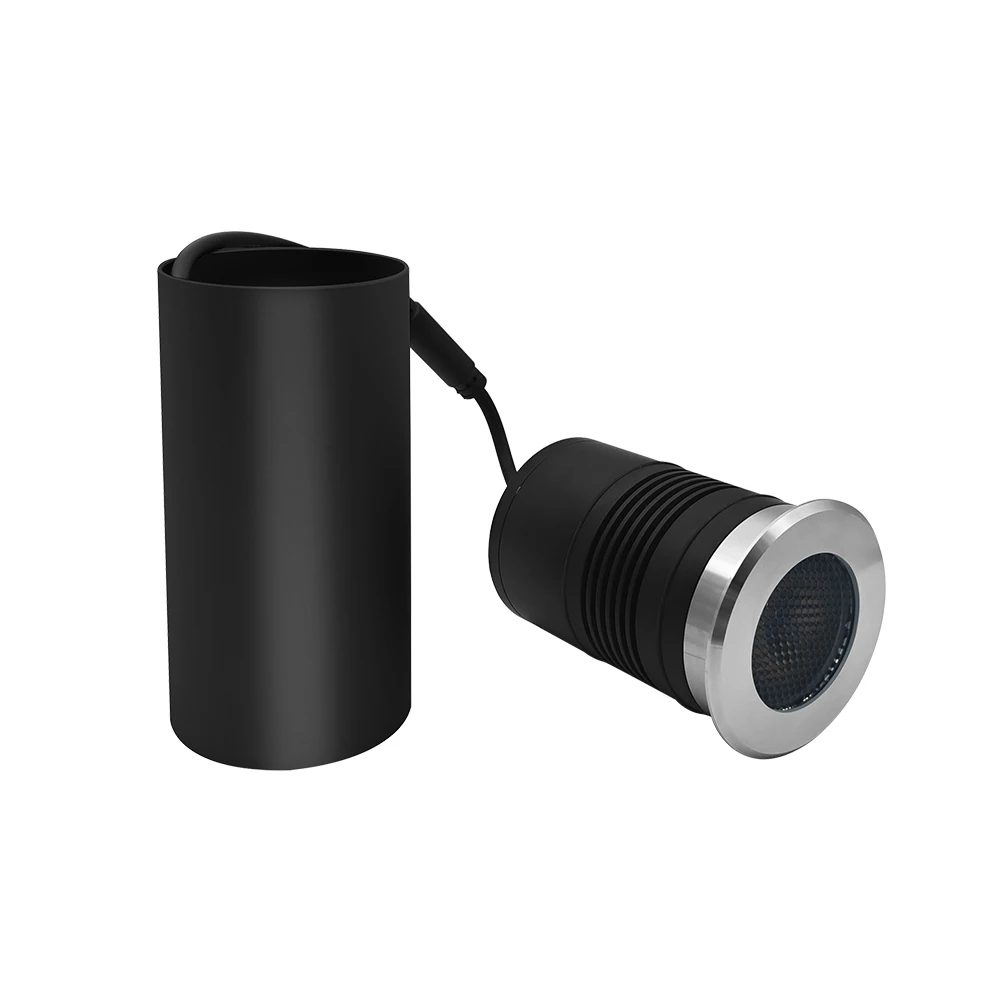

Mounting sleeve |
Aluminum back box |
