82578S（85*85mm）
Waterproof Rating: IP67
Material: SS304/SS316 face cover
Model: 82578S Series
Certification: IP67, RoHS, CE
Powered by a single 7W COB LED, this compact underground light delivers focused 12 degree beam output for landscape accents.

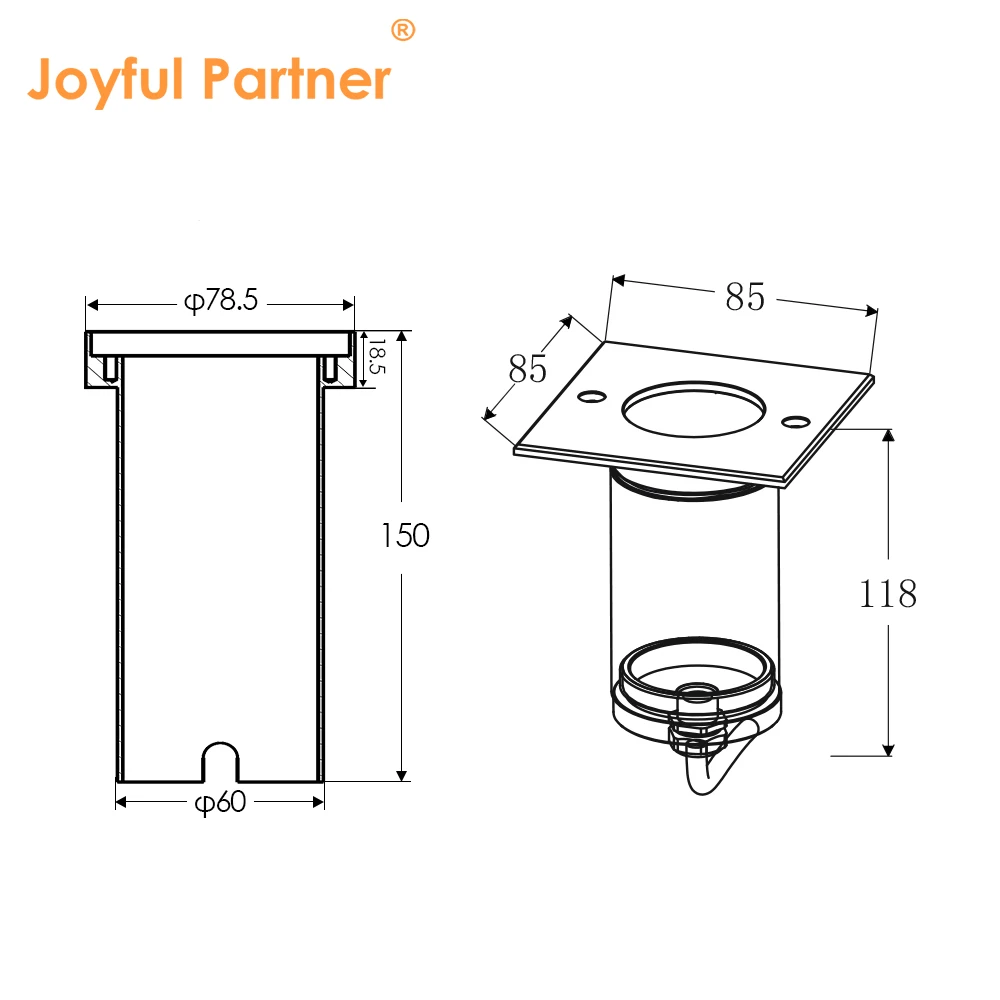

Sized at 85mm in round or square form, this small footprint fixture installs into tight ground slots with a 78.5mm aluminum sleeve.
Finished with 7mm stepped glass and a stainless cover in 304 or 316 grade, this COB light carries a 760kg full area load.
Ready for garden, pathway and wall lighting, this 7W COB light works with DC12V, DC24V or AC100-240V supply options for flexible installation.
Model Specification Table
|
Item No. |
Light source |
Lens beam angle(°) |
Consumption(watt) |
Input Voltage(V) |
|
82578R |
1X7W CREE COB |
12°/24°/38° |
7W |
DC12V/DC24V/AC100-240V |
|
82578S |
1X7W CREE COB |
12°/24°/38° |
7W |
DC12V/DC24V/AC100-240V |
Material Specifications Table
|
Item |
Description |
|
Housing |
Aluminum anodized or outdoor powder coated finish housing T=60-80um Adhesion of ISO class 1 / ASTM class 4B |
|
Front cover |
304# or 316# Stainless Steel |
|
Lens |
Optical lens, efficiency≥85% |
|
Glass |
Tempered step glass T=7mm |
|
Glass pressure capacity |
Full area = 760kgs |
|
Gasket |
Molding shaped silicone seal |
|
Operating temperature |
-20℃~40℃ |
|
Power cable |
H05RN-F 2x0.75mm² L=0.5m (low voltage) / H05RN-F 3x0.75mm² L=0.5m (for single color/high voltage) |
|
Mounting sleeve |
Aluminum |
