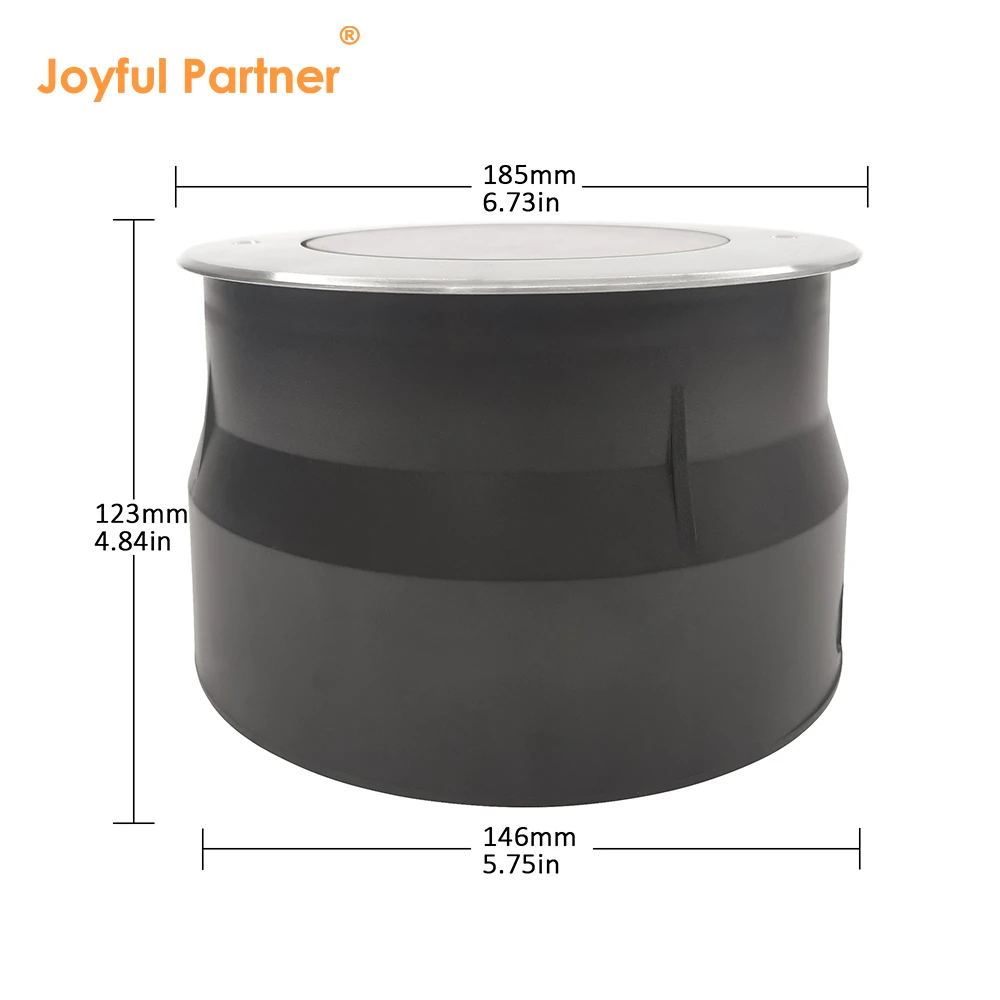

82412X（Ø 185mm）

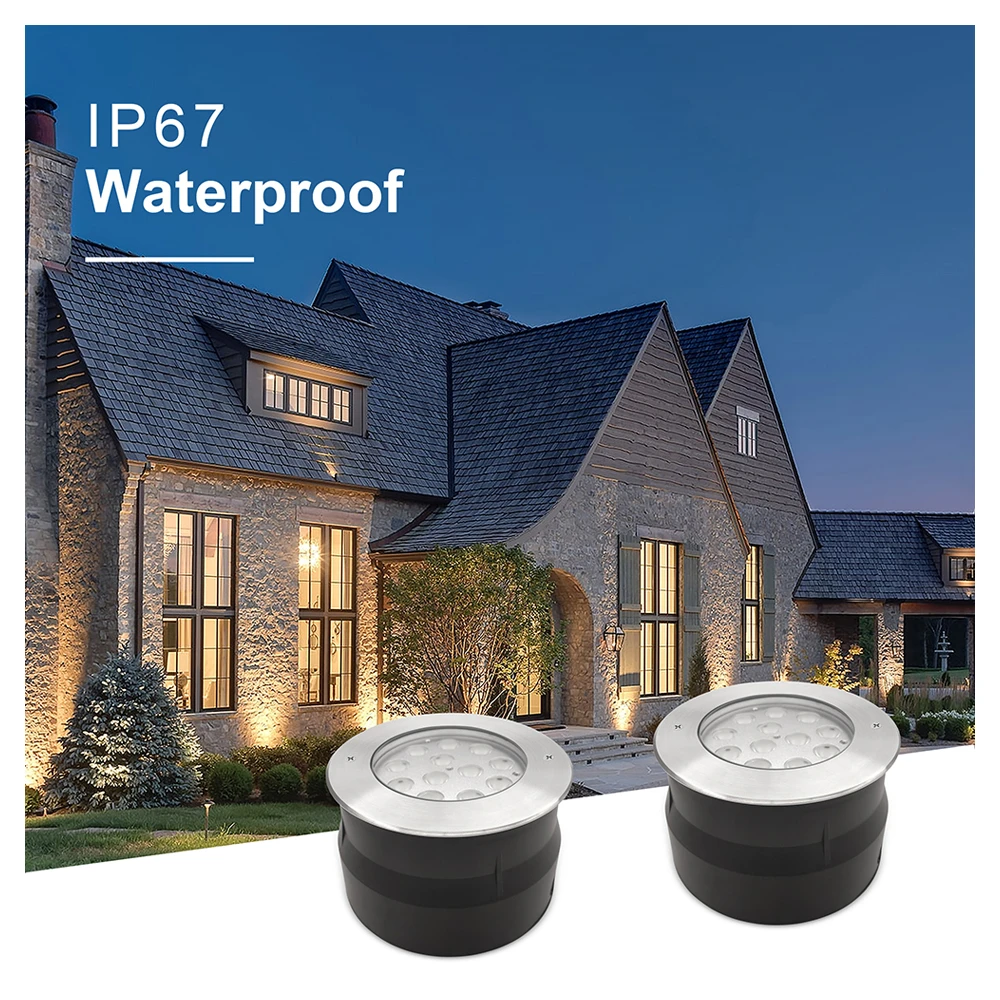

Waterproof Rating: IP67
Material: SS304/SS316 face cover
Model: 824121X Series
Certification: IP67, RoHS, CE

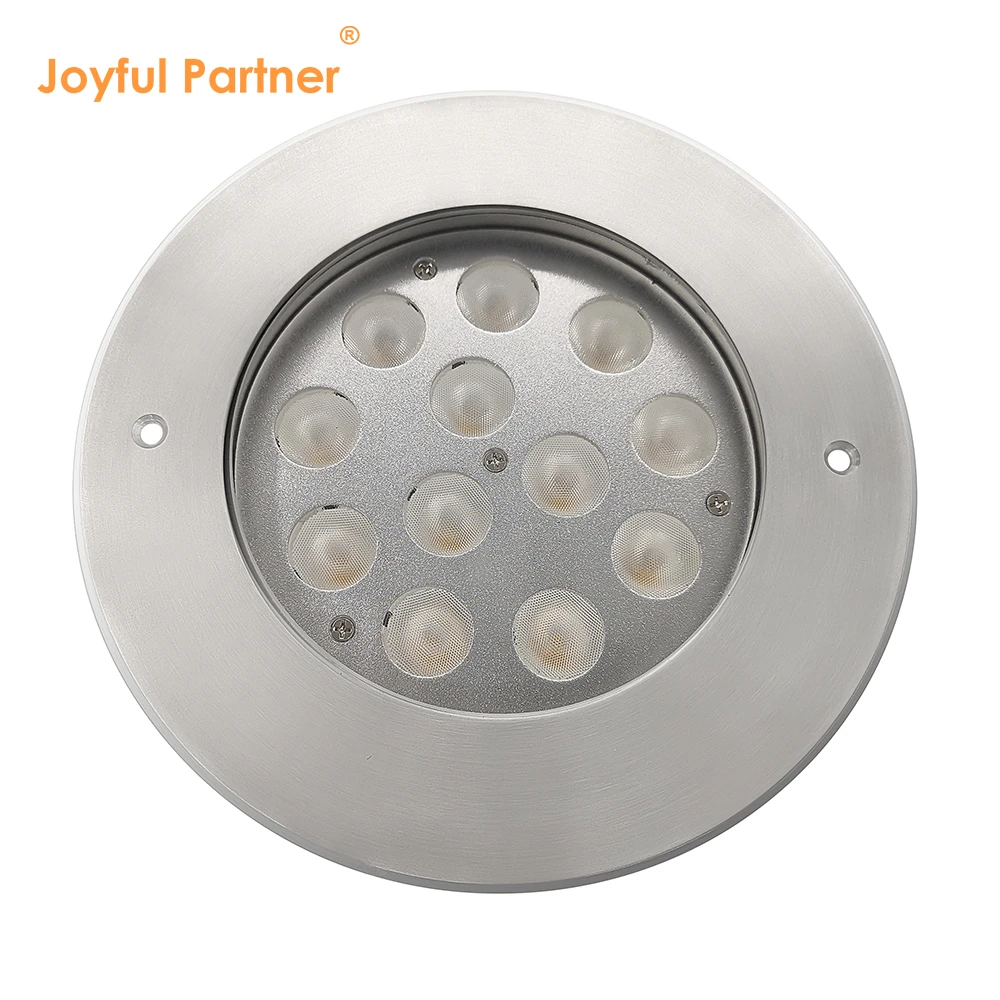

Professional-grade LED underground light designed for powerful architectural facade and landscape up-lighting.

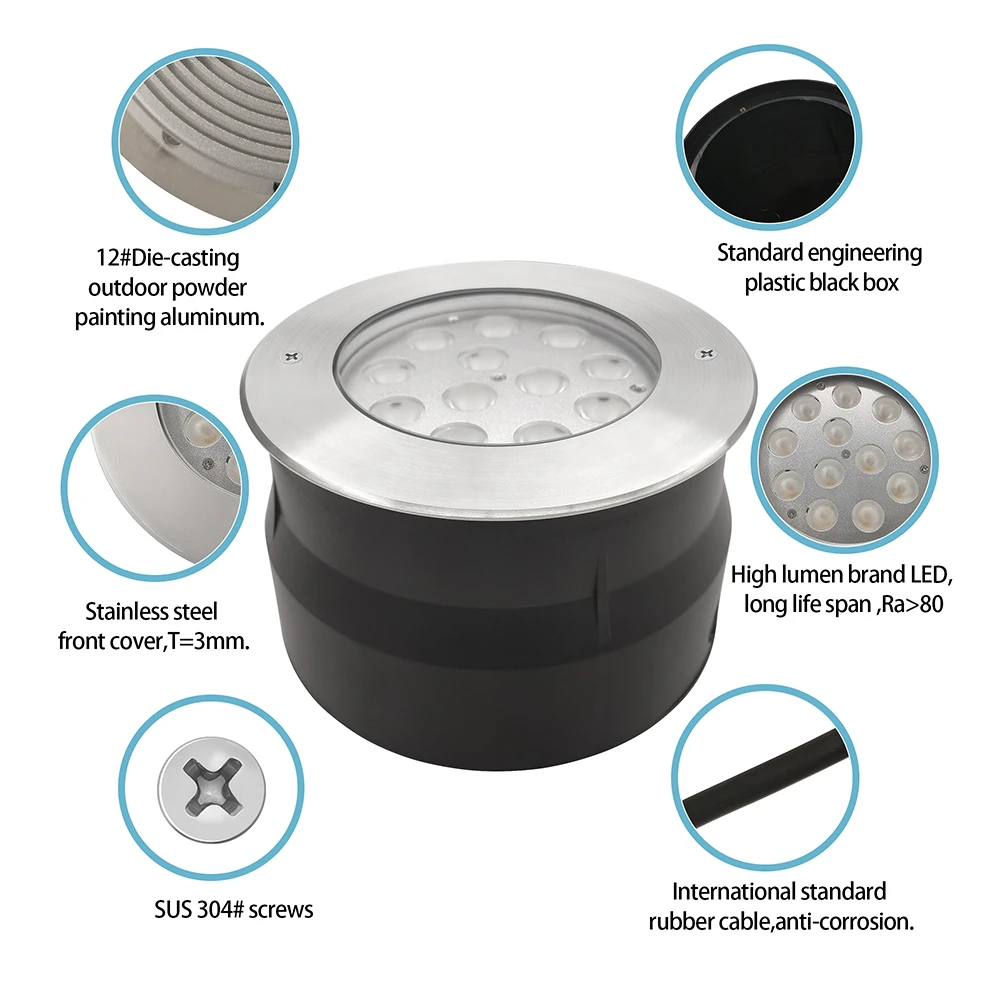

Features a premium 304 or 316 stainless steel face cover combined with a durable powder-coated aluminum housing.
Equipped with an 8mm thick tempered step glass, providing a high pressure capacity of 2250kgs for public zones.
Advanced optical lens system (efficiency ≥85%) offering both symmetrical and asymmetrical beam options for targeted light grazing.
Versatile lighting configurations up to 36W, supporting high-efficiency single color, RGB, and dynamic RGB 3in1 effects.
Reliable IP67 waterproof protection ensured by molding shaped silicone seals and robust ABS mounting sleeves for secure installation.
Model Specification Table
|
Item No. |
Light source |
Lens beam angle(°) |
Consumption(watt) |
Input Voltage(V) |
Ik rate |
|
824121(S/H/AS) |
12x1W LED |
8°/15°/25°/30°/45°/60° |
12.6 |
DC24V/AC100-240V |
08 |
|
824122(S/H/AS) |
12x2W LED |
8°/15°/25°/30°/45°/60° |
25.4 |
DC24V/AC100-240V |
08 |
|
824123(S/AS) |
12x1W RGB LED |
8°/15°/25°/30°/45°/60° |
11.8 |
DC12V/DC24V |
08 |
|
824124(S/AS) |
12x2W RGB LED |
8°/15°/25°/30°/45°/60° |
23.5 |
DC12V/DC24V |
08 |
|
824126(S/AS) |
12x3W RGB3in1 LED |
25°/30°/45°/60° |
34.6 |
DC24V |
08 |
Material Specifications Table
|
Item |
Description |
|
Housing |
Outdoor dark grey powder coated aluminum T=60-80um Adhesion of ISO class 1 / ASTM class 4B |
|
Front cover |
304# or 316# Stainless Steel |
|
Lens |
Optical lens, efficiency≥85% |
|
Glass |
Tempered step glass T=8mm |
|
Glass pressure capacity |
Full area = 2250kgs |
|
Gasket |
Molding shaped silicone seal |
|
Operating temperature |
-20℃~40℃ |
|
Power cable |
H05RN-F 2x0.75mm² L=0.5m (low voltage) / H05RN-F 3x0.75mm² L=0.5m (for single color/high voltage) / H05RN-F 4x0.75mm² L=0.5m (for RGB) |
|
Mounting sleeve |
ABS |
