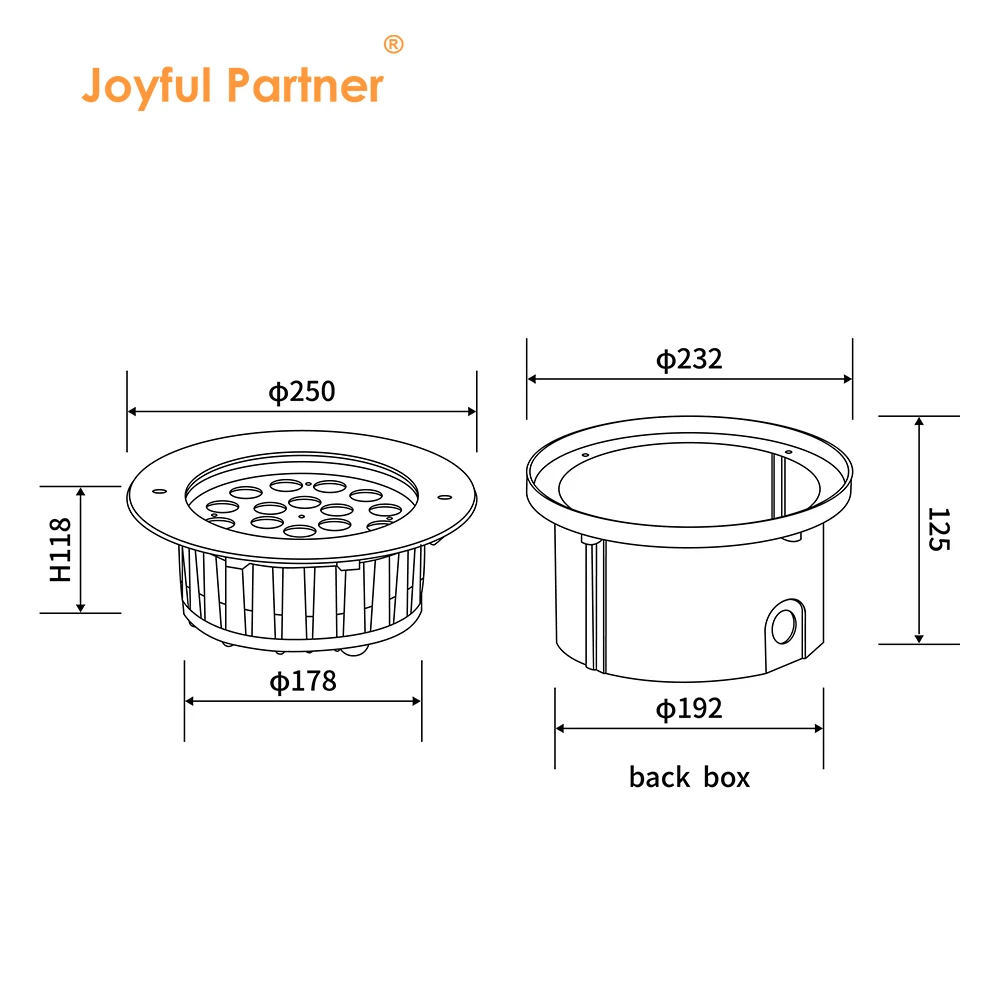

82418X（Ø 250mm）
Waterproof Rating: IP67
Material: SS304/SS316 face cover
Model: 82418X Series
Certification: IP67, RoHS, CE

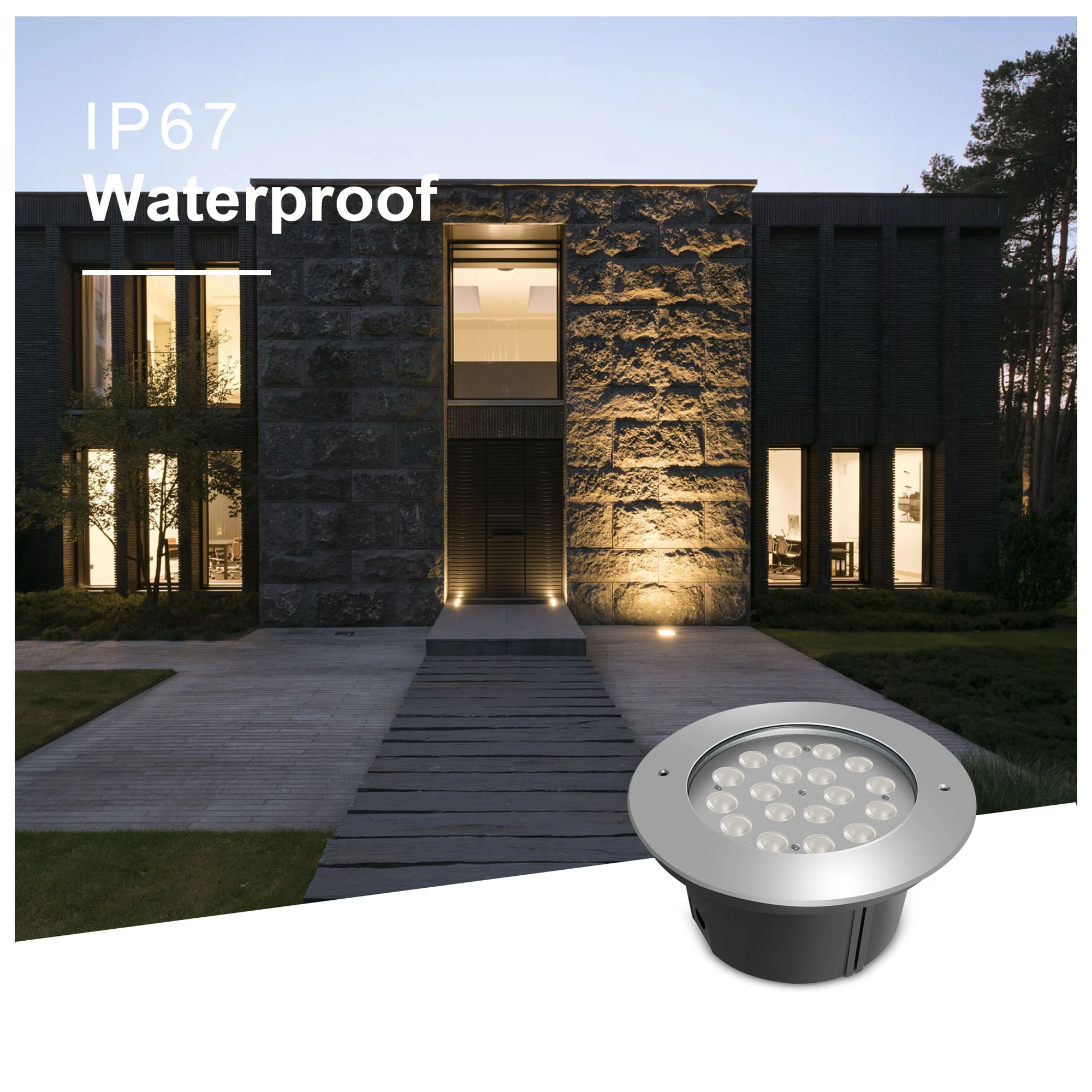

Featuring an 18 LED with power options to 54W, this extra large 250mm up light suits grand architectural and pathway installations.
Rated for IK08 impact with an 8mm stepped glass top, this 54W RGB or mono underground light provides strong outdoor illumination.
Combining mono and RGB3in1 LED versions from 18W to 54W, this 250mm underground up light fits large scale landscape and pathway projects.
Suited to pathway and architectural illumination, this large format 18 LED light delivers even light across outdoor routes and gardens.
Model Specification Table
|
Item No. |
Light source |
Lens beam angle(°) |
Consumption(watt) |
Input Voltage(V) |
Ik rate |
|
824181(S/H/AS) |
18x1W LED |
8°/15°/25°/30°/45°/60° |
19.2 |
DC24V/AC100-240V |
08 |
|
824182(S/H/AS) |
18x2W LED |
8°/15°/25°/30°/45°/60° |
37 |
DC24V/AC100-240V |
08 |
|
824183(S/AS) |
18x1W RGB LED |
8°/15°/25°/30°/45°/60° |
18 |
DC24V |
08 |
|
824184(S/AS) |
18x2W RGB LED |
8°/15°/25°/30°/45°/60° |
40 |
DC24V |
08 |
|
824186(S/AS) |
18x3W RGB3in1 LED |
25°/30°/45°/60° |
54 |
DC24V |
08 |

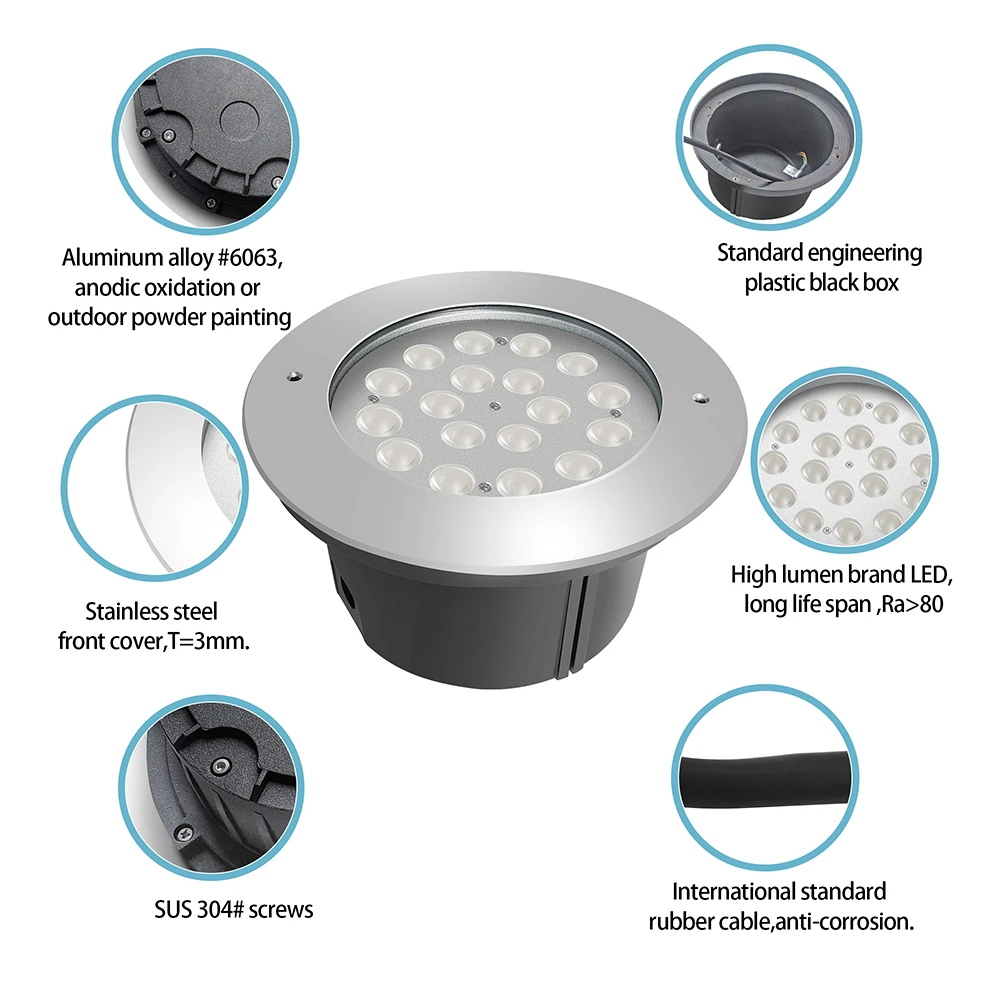

Material Specifications Table
|
Item |
Description |
|
Housing |
Outdoor dark grey powder coated aluminum T=60-80um Adhesion of ISO class 1 / ASTM class 4B |
|
Front cover |
304# or 316# Stainless Steel |
|
Lens |
Optical lens, efficiency≥85% |
|
Glass |
Tempered step glass T=8mm |
|
Glass pressure capacity |
Full area = 2250kgs |
|
Gasket |
Molding shaped silicone seal |
|
Operating temperature |
-20℃~40℃ |
|
Power cable |
H05RN-F 2x0.75mm² L=0.5m (low voltage) / H05RN-F 3x0.75mm² L=0.5m (for single color/high voltage) / H05RN-F 4x0.75mm² L=0.5m (for RGB) |
|

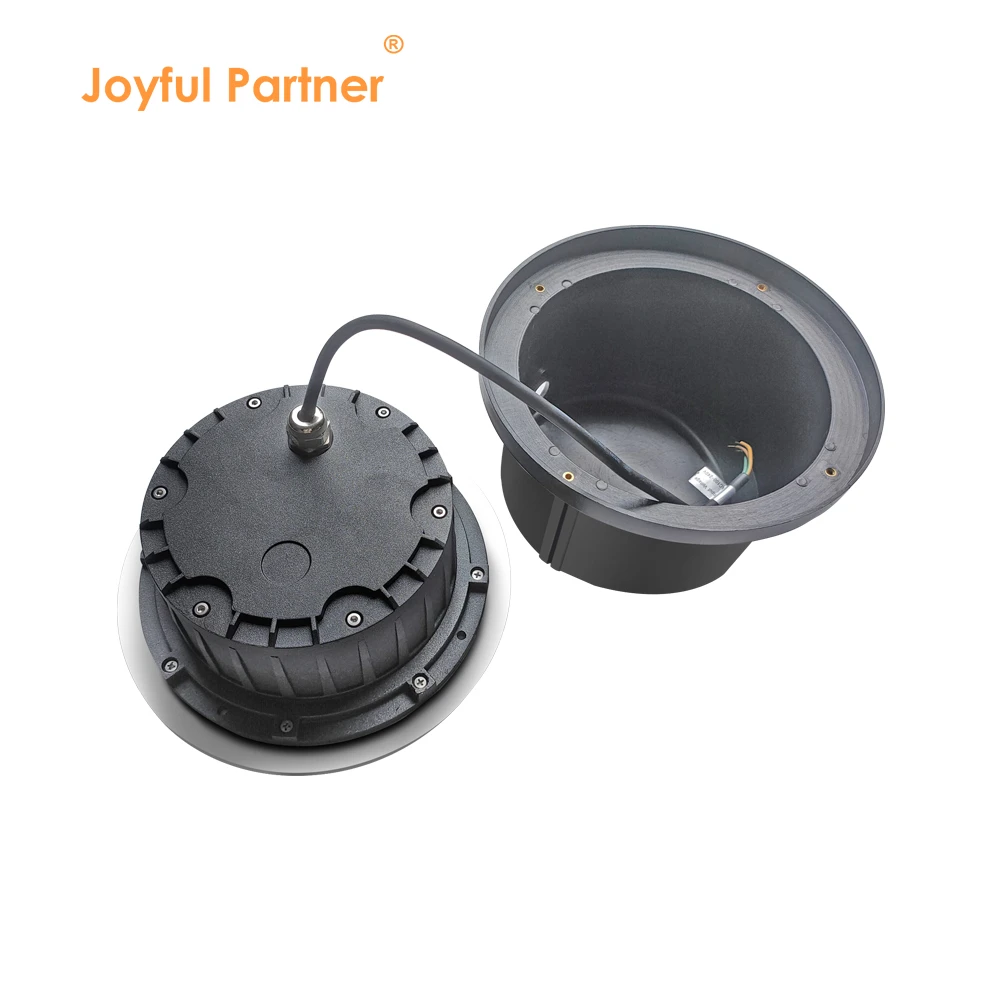

Mounting sleeve |
ABS |
