IP67 LED Underground Light Inground Up Light Stainless Steel 1.2W-5W CREE LED Single Color RGB RGBW for Garden Walkway LED Underground light/Inground up light/Asymmetrical LED Inground light
Waterproof Rating: IP67
Material: Outdoor dark gray powder coated aluminum with 304# or 316# Stainless Steel face cover
Model: 82021X / 82311X Series
Certification: IP67, RoHS, CE
High-performance LED underground light designed for professional landscape and architectural up-lighting.
Features a premium 304# or 316# stainless steel face cover combined with a durable powder-coated aluminum housing.
Equipped with a 12mm thick tempered step glass capable of withstanding heavy pressure up to 2600kgs.
Offers both symmetrical and asymmetrical lens options to meet precise light distribution requirements for building facades.
Reliable IP67 waterproof protection ensured by molding shaped silicone seals and integrated ABS mounting sleeves.
Lighting effects available in single color, RGB 3in1, and advanced RGBW 4in1 for dynamic landscape environments.
Model Specification Table
|
Item No. |
Light source |
Lens beam angle(°) |
Consumption(watt) |
Input Voltage(V) |
IK rate |
|
820211(H)/82311(H/AS) |
1x1W LED |
8°/15°/30°/45°/60° |
1.2 |
DC12V/DC24V AC100-240V |
09 |
|
820211(H)/82311(H/AS) |
1x2W LED |
8°/15°/30°/45°/60° |
2.6 |
DC12V/DC24V AC100-240V |
09 |
|
820216/82316(AS) |
1x3W RGB3in1 LED |
30°/45°/60° |
3.1 |
DC12V/DC24V |
09 |
|
820219/82319 |
1x5W RGBW4in1 LED |
30°/45°/60° |
5.0 |
DC12V/DC24V |
09 |

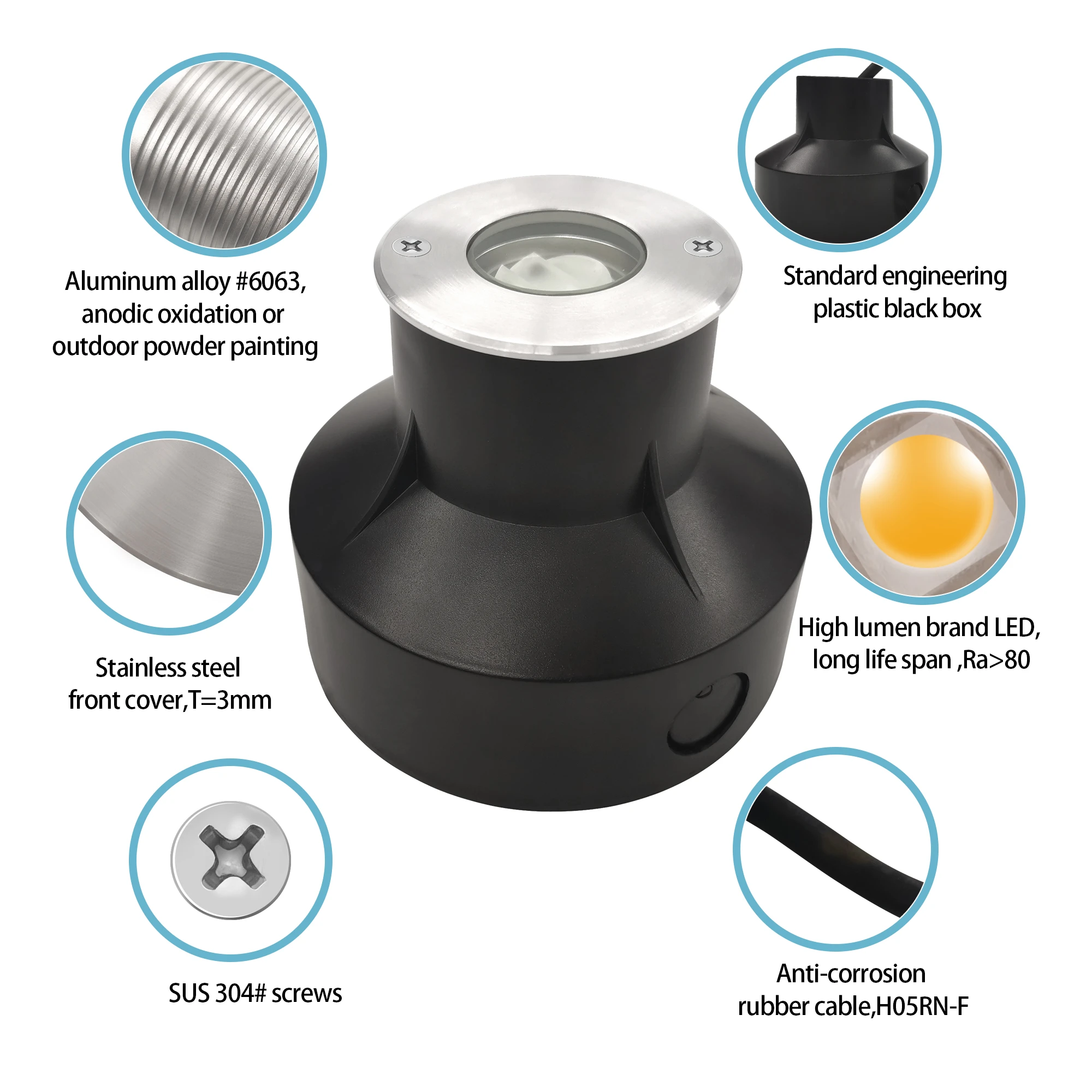

Material Specifications Table
|
Item |
Description |
|
Housing |
Outdoor dark gray powder coated aluminum T=60-80um Adhesion of ISO class 1 / ASTM class 4B |
|
Front cover |
304# or 316# Stainless Steel |
|
Lens |
Optical lens, efficiency≥85% |
|
Glass |
Tempered step glass T=12mm |
|
Glass pressure capacity |
ø10=940kgs, ø30=2600kgs |
|
Gasket |
Molding shaped silicone seal |
|
Operating temperature |
-20℃~40℃ |
|
Power cable |
H05RN-F 2x0.75mm² L=0.5m(low voltage) / H05RN-F 3x0.75mm² L=0.5m(for Single color/high voltage) / H05RN-F 4x0.75mm² L=0.5m(for RGB) |
|
Mounting sleeve |
ABS |
