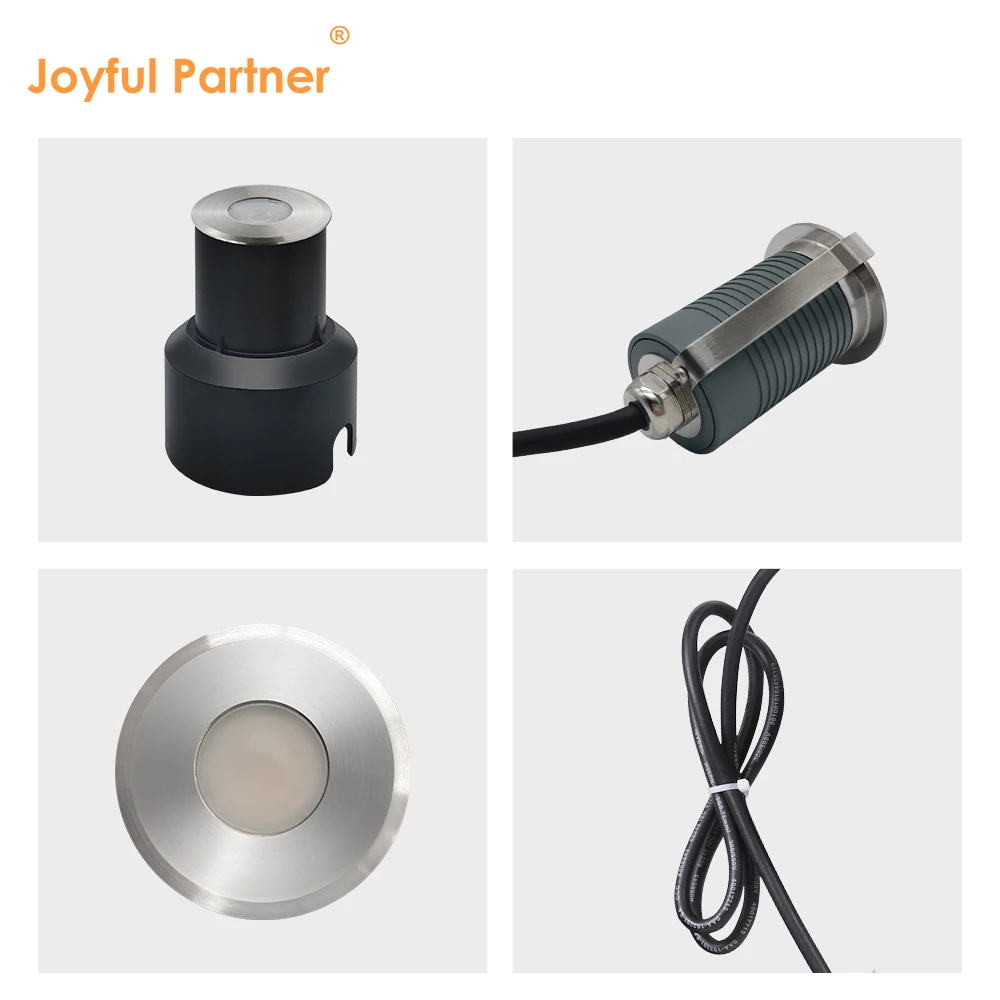

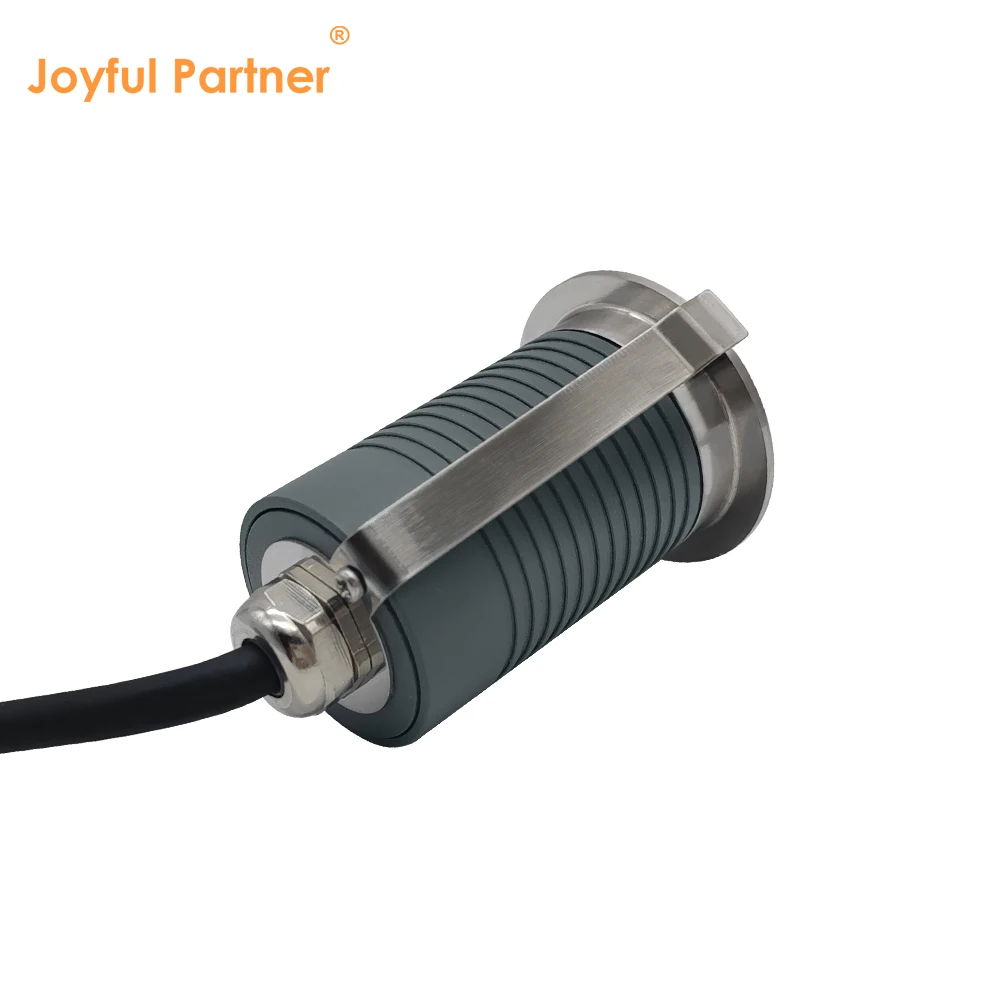

IP67 LED Tiny Type Underground Light Stainless Steel 1.2W-2.6W DIA 45MM CREE LED Single Color for Architectural Decking Tiny type LED underground light/Mini LED Inground light/LED step light
Waterproof Rating: IP67
Material: Aluminum with outdoor dark gray powder coated with 304# or 316# Stainless Steel face cover
Model: 8271X / B8271X Series
Certification: IP67, RoHS, CE
Professional tiny type LED underground light designed for sophisticated architectural and landscape path lighting.
High-grade 304# or 316# stainless steel face cover combined with durable powder-coated aluminum housing.
Features a 4mm tempered step glass with a full area pressure capacity of 250kgs for safe outdoor installation.
Advanced optical lens system (efficiency ≥85%) offering beam angles from 8° to 60° for precise light control.
Reliable IP67 waterproof rating and IK08 impact resistance ensured by molding shaped silicone seals.

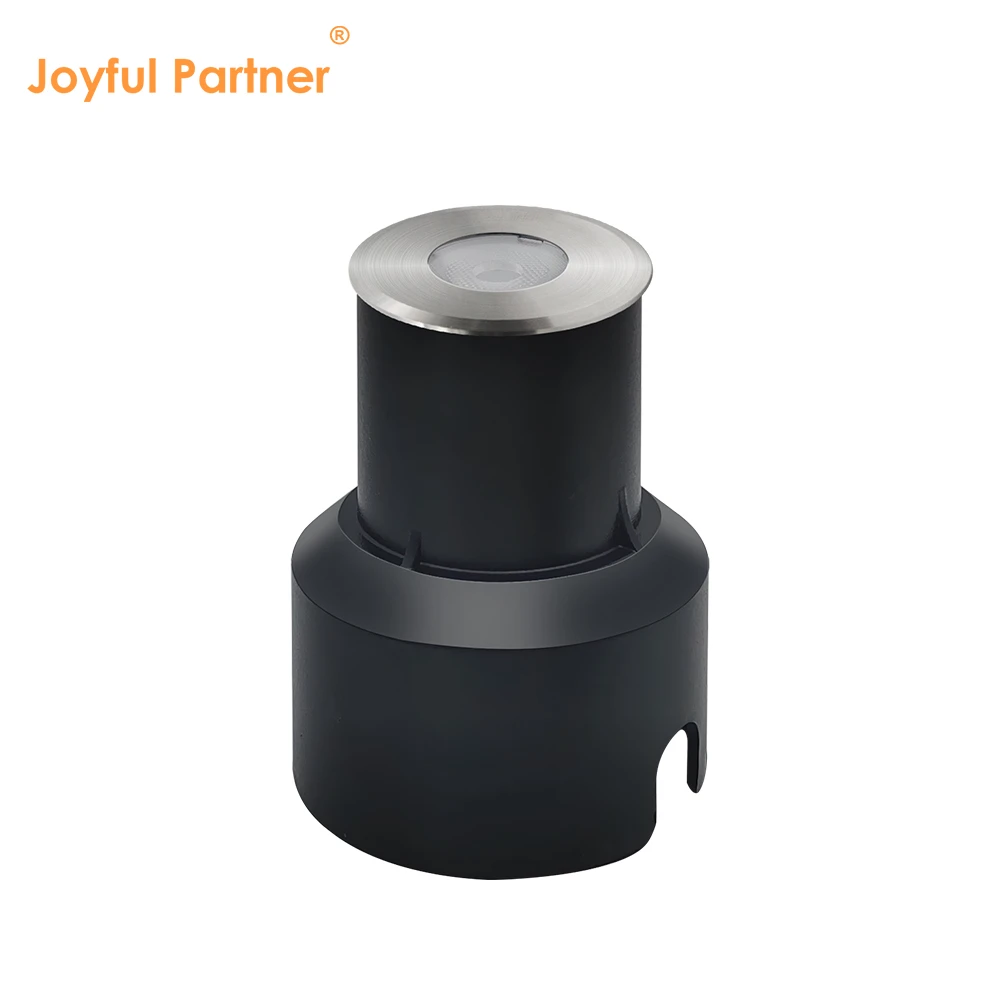

Compact design with optional ABS mounting sleeves, ideal for recessed installation in narrow stairs and decks.
Model Specification Table
|
Item No. |
Light source |
Lens beam angle(°) |
Consumption(watt) |
Input Voltage(V) |
Ik rate |
|
82711 / B82711(H/AS) / B82711S(H/AS) |
1x1W LED |
8°/15°/30°/45°/60° |
1.2 |
DC12V/DC24V AC100-240V |
08 |
|
82712 / B82712(H/AS) / B82712S(H/AS) |
1x2W LED |
8°/15°/30°/45°/60° |
2.6 |
DC12V/DC24V AC100-240V |
08 |

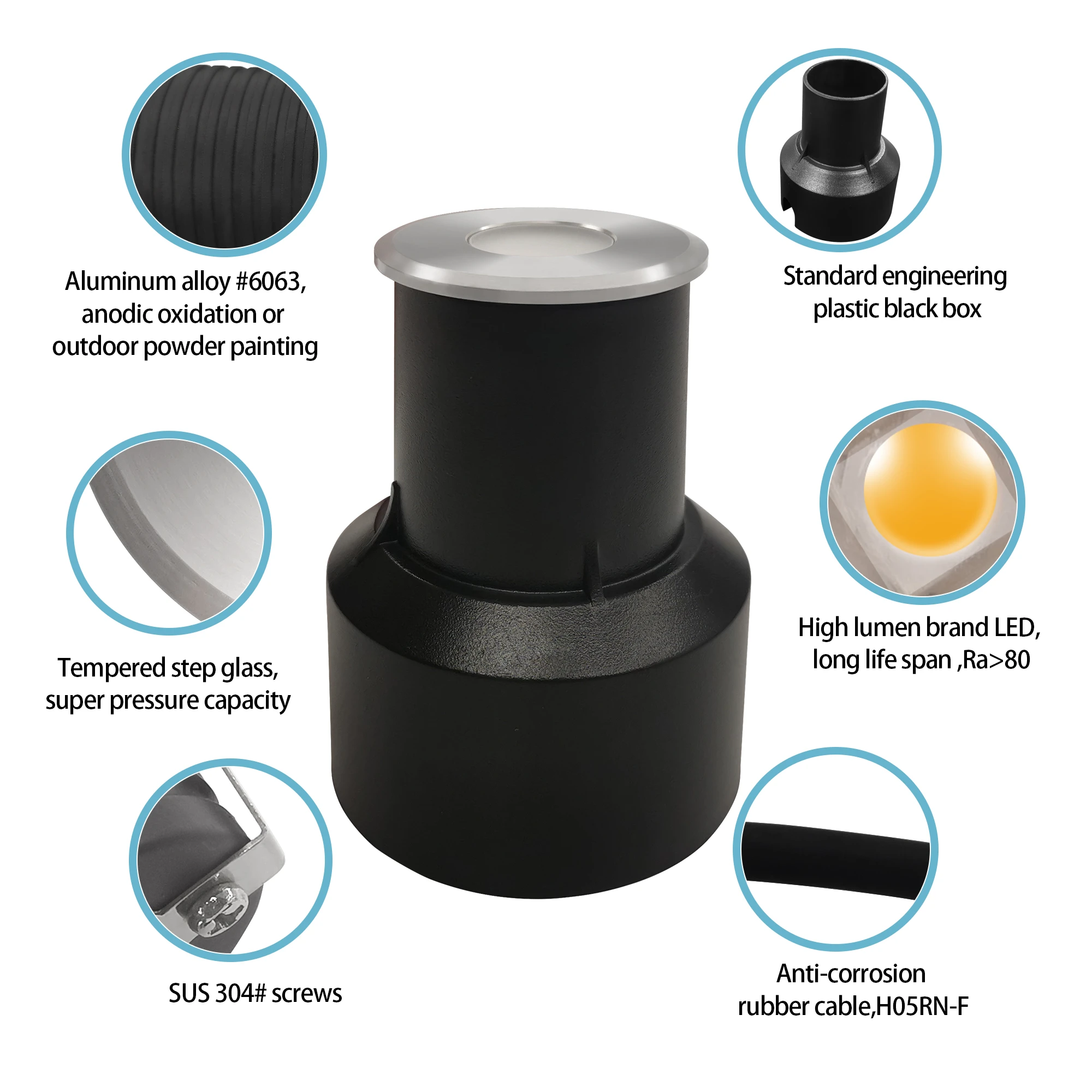

Material Specifications Table
|
Item |
Description |
|
Housing |
Aluminum with outdoor dark gray powder coated T=60-80um Adhesion of ISO class 1 / ASTM class 4B |
|
Front cover |
304# or 316# Stainless Steel |
|
Lens |
Optical lens, efficiency≥85% |
|
Glass |
Tempered step glass T=4mm |
|
Glass pressure capacity |
Full area = 250kgs |
|
Gasket |
Molding shaped silicone seal |
|
Operating temperature |
-20℃~40℃ |
|
Power cable |
H05RN-F 2x0.75mm² L=0.5m(low voltage) / H05RN-F 3x0.75mm² L=0.5m(for Single color/high voltage) / H05RN-F 4x0.75mm² L=0.5m(for RGB) |
|
Mounting sleeve(optional) |
ABS |
