IP65 CREE COB LED Garden Spot Light & Spike Light Aluminum 10W-11W DIA 63MM Single Color for Landscape Tree Lighting COB LED Garden Spot Light/COB LED spike light
Waterproof Rating: IP65
Material: Aluminum anodized finishing & powder painting
Model: B83310X / B83510X Series
Certification: IP65, RoHS, CE
High-performance garden spot light utilizing authentic CREE COB LEDs for superior architectural landscape lighting.

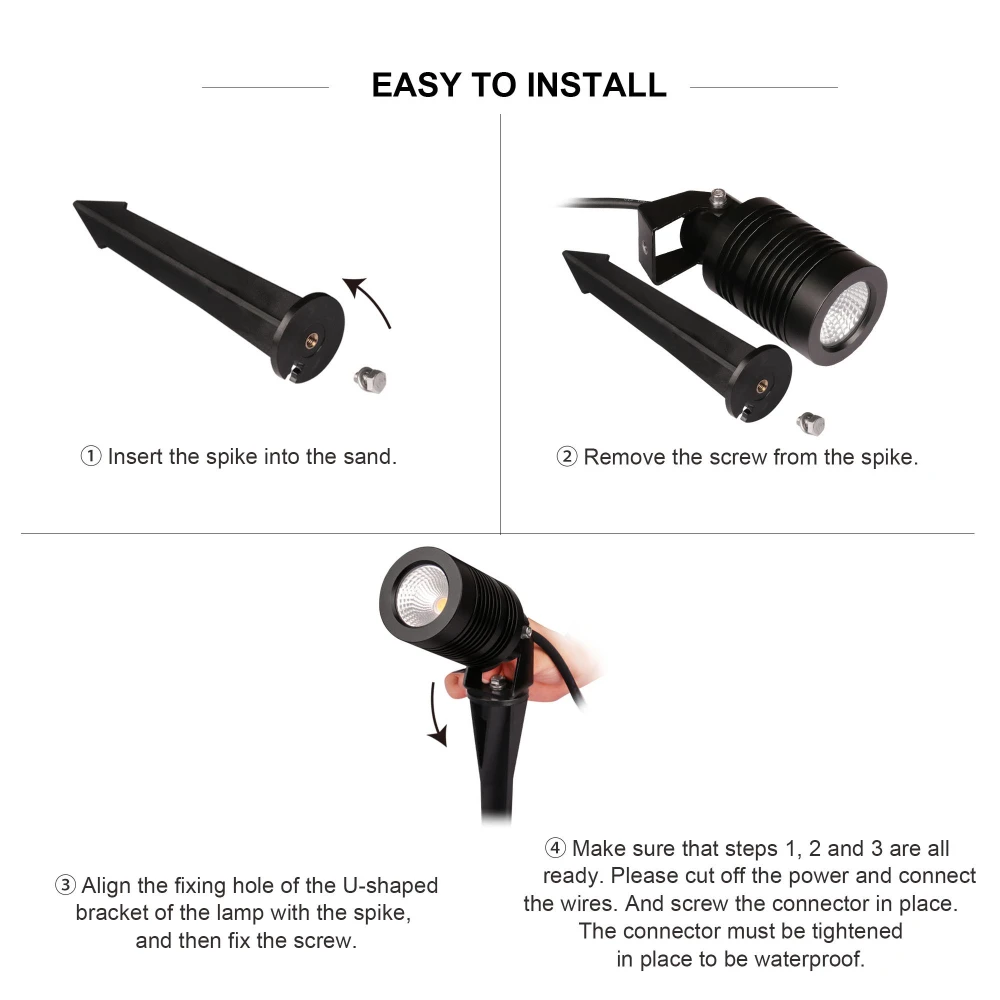

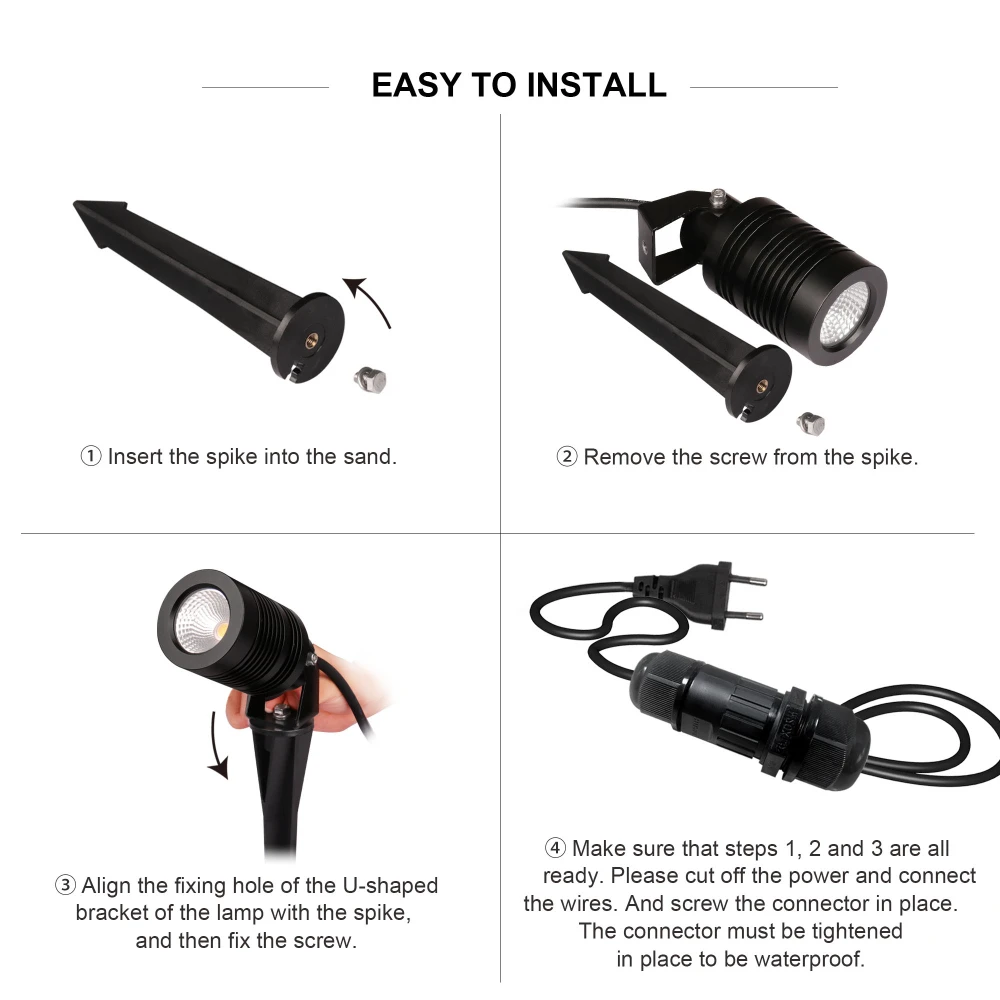

Versatile mounting options including a durable PVC spike for soil installation or an aluminum base for surface mounting.
Constructed with robust aluminum featuring anodized and powder-coated finishes for maximum corrosion resistance.
Precision optical lens with ≥85% efficiency offers beam angles from 15° to 60° for varied lighting requirements.
Engineered with a 3mm tempered glass and tooling shaped seals to ensure reliable outdoor performance.
Available in low voltage (12V/24V) and high voltage (120V/240V) versions to match project electrical specifications.
Model Specification Table
|
Item No. |
Light source |
Lens beam angle(°) |
Consumption(watt) |
Input Voltage(V) |
Ik rate |
|
B83310COB |
1x10W CREE |
15°/25°/38°/60° |
10.5 |
DC12V/DC24V |
04 |
|
B83510COB |
1x10W CREE |
15°/25°/38°/60° |
11.2 |
AC120V/AC240V |
04 |
Material Specifications Table
|
Item |
Description |
|
Housing |
Aluminum anodized finishing & powder painting |
|
Glass |
Tempered glass. T=3mm |
|
Lens |
Optical lens, efficiency≥85% |
|
Cable gland |
Copper and nickel coated |
|
Gasket |
Tooling shaped seal |
|
LED |
CREE COB LED |
|
Driver |
Constant current output |
|
Spike |
PVC(grey or black) |
|
Mounting base |
Aluminum anodized finishing or powder painting |
|
Power cable |
H05RN-F 2×0.75mm² L=1m(low voltage) / H05RN-F 3×0.75mm² L=1m(high voltage) |
