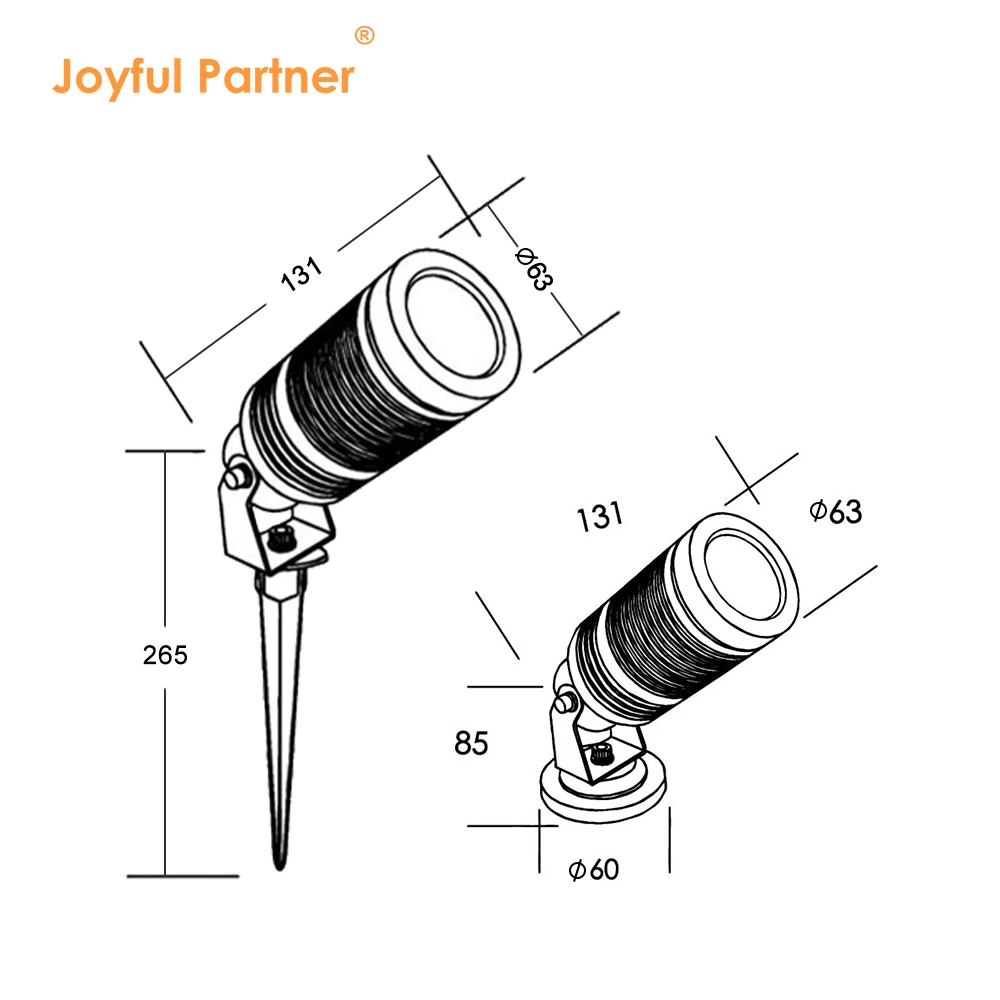

IP65 CREE COB LED Garden Spot Light & Spike Light Aluminum 14W-15W DIA 63MM Single Color for High-end Landscape Projects COB LED Garden Spot Light/COB LED spike light
Waterproof Rating: IP65
Material: Aluminum anodized finishing & powder painting
Model: B83314COB / B83514COB
Certification: IP65, RoHS, CE
Professional-grade 14W garden spot light featuring authentic CREE COB LEDs for superior architectural highlighting.

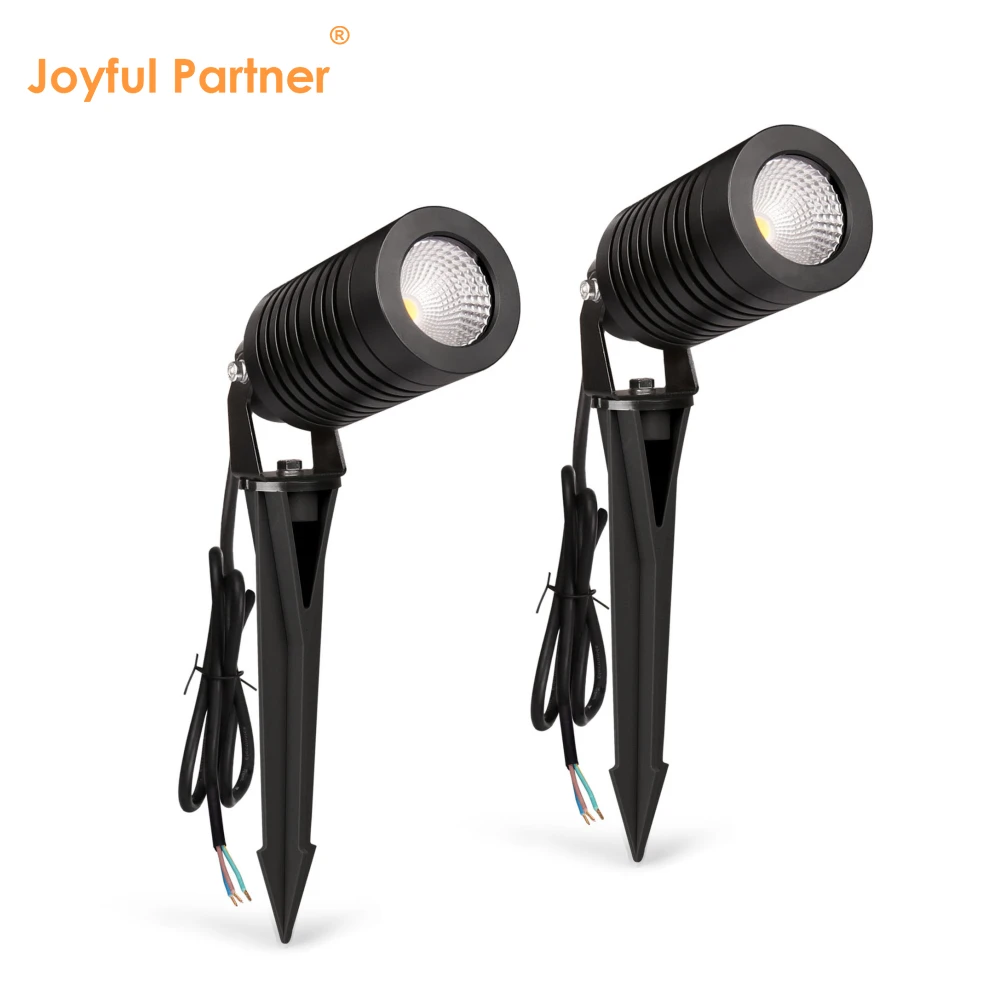

Dual mounting versatility: comes with a high-strength PVC spike for soil or an aluminum base for surface mounting.
Durable aluminum housing with premium anodized and powder-coated finishes to prevent corrosion in coastal areas.

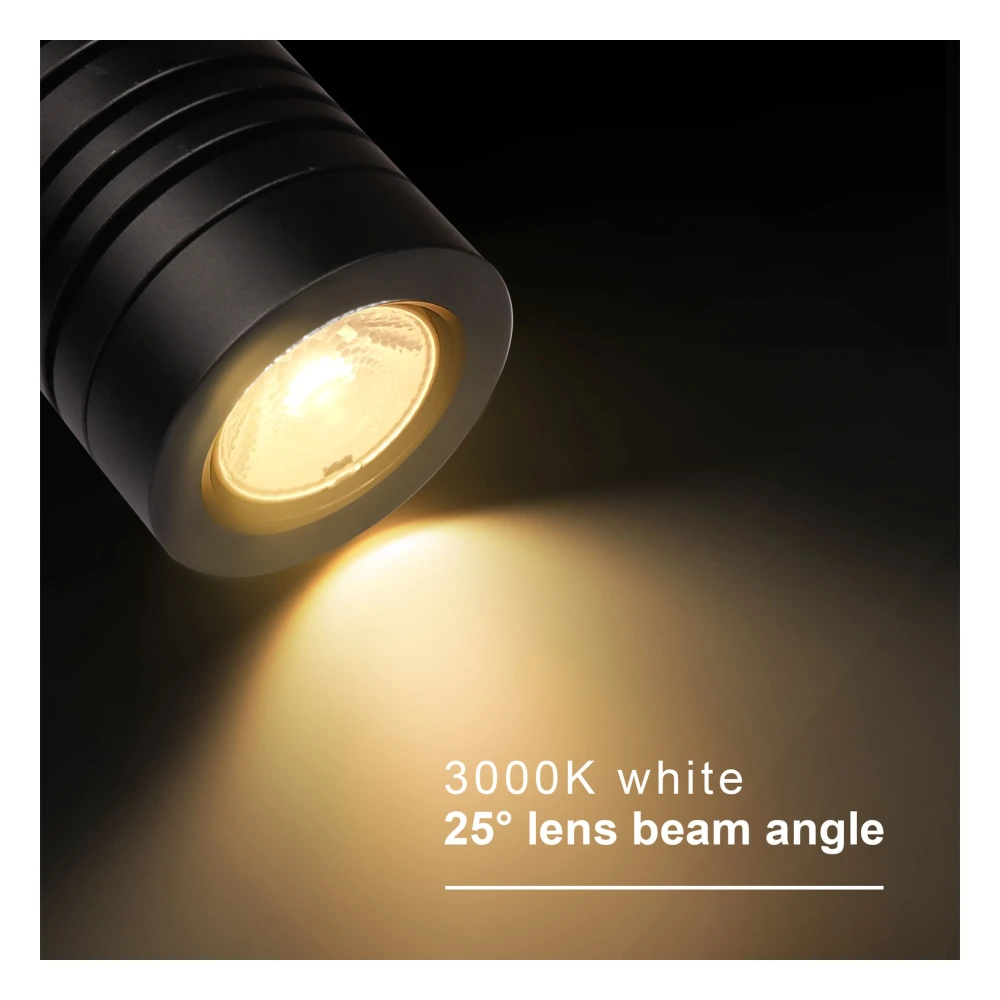

Specialized optical lens with ≥85% efficiency offers multiple beam angles (15°/25°/38°/60°) for precise beam control.

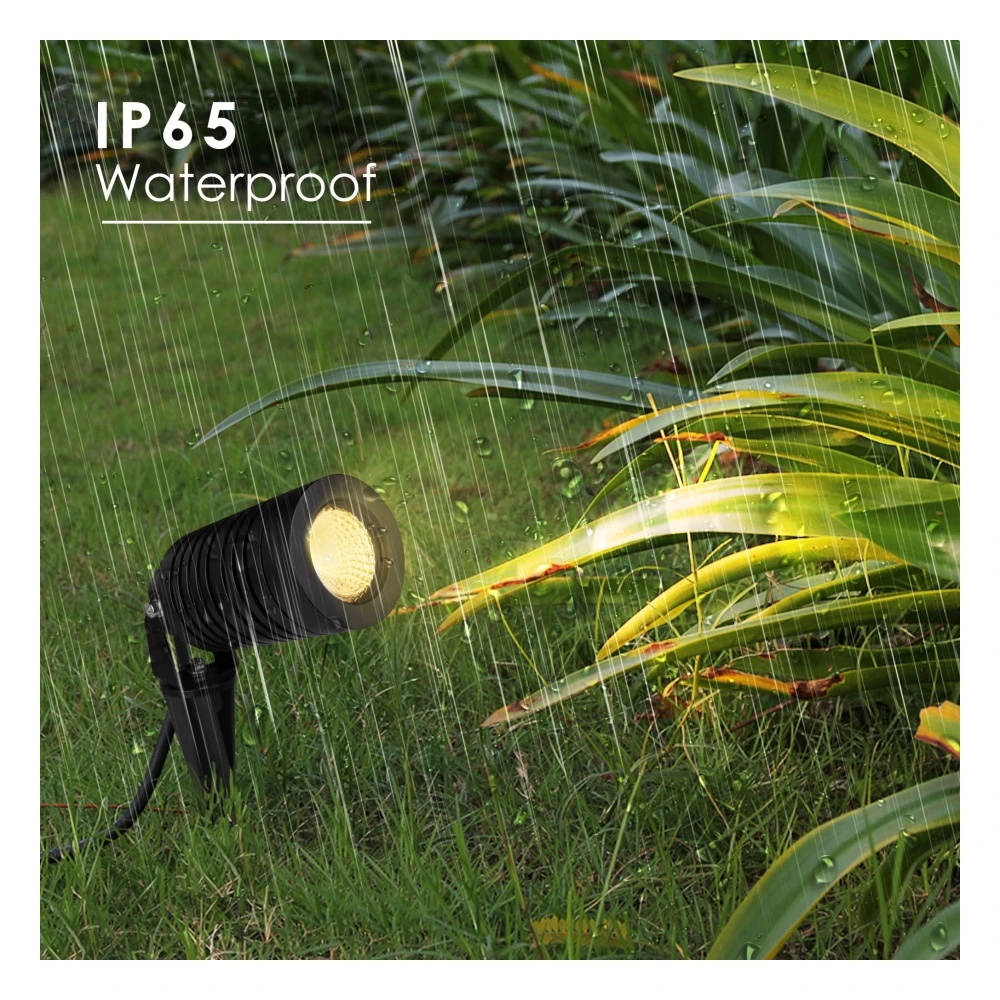

Engineered with 3mm tempered glass and tooling shaped seals for reliable IP65 waterproof and IK04 impact protection.
Compatible with both DC12V/24V low voltage and AC120V/240V high voltage systems for diverse project site requirements.
Model Specification Table
|
Item No. |
Light source |
Lens beam angle(°) |
Consumption(watt) |
Input Voltage(V) |
Ik rate |
|
B83314COB |
1x14W CREE |
15°/25°/38°/60° |
14.1 |
DC12V/DC24V |
04 |
|
B83514COB |
1x14W CREE |
15°/25°/38°/60° |
15.2 |
AC120V/AC240V |
04 |
Material Specifications Table
|
Item |
Description |
|
Housing |
Aluminum anodized finishing & powder painting |
|
Glass |
Tempered glass. T=3mm |
|
Lens |
Optical lens, efficiency≥85% |
|
Cable gland |
Copper and nickel coated |
|
Gasket |
Tooling shaped seal |
|
LED |
CREE COB LED |
|
Driver |
Constant current output |
|
Spike |
PVC(grey or black) |
|
Mounting base |
Aluminum anodized finishing or powder painting |
|
Power cable |
H05RN-F 2×0.75mm² L=1m(low voltage) / H05RN-F 3×0.75mm² L=1m(high voltage) |
