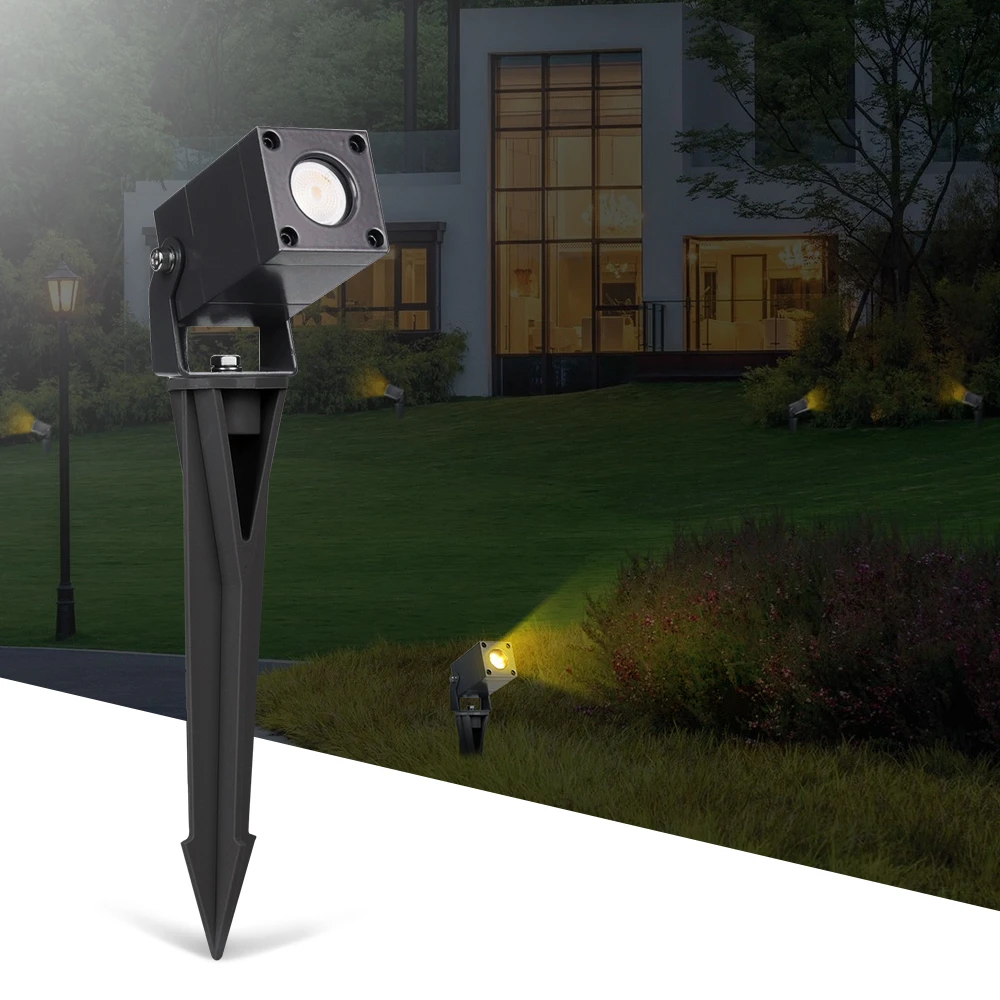

IP65 LED Garden Spot Light & Spike Light Aluminum 1.1W-6.2W SMD LED Single Color and RGB 3in1 for Exterior Landscape Accent LED Garden Spot Light/LED Spike Light/COB LED Garden Spot Light
Waterproof Rating: IP65
Material: Aluminum anodized finishing or powder painting
Model: S8331X / BS8351X Series
Certification: IP65, RoHS, CE
Versatile outdoor spot light series available in high-performance SMD and COB LED configurations.

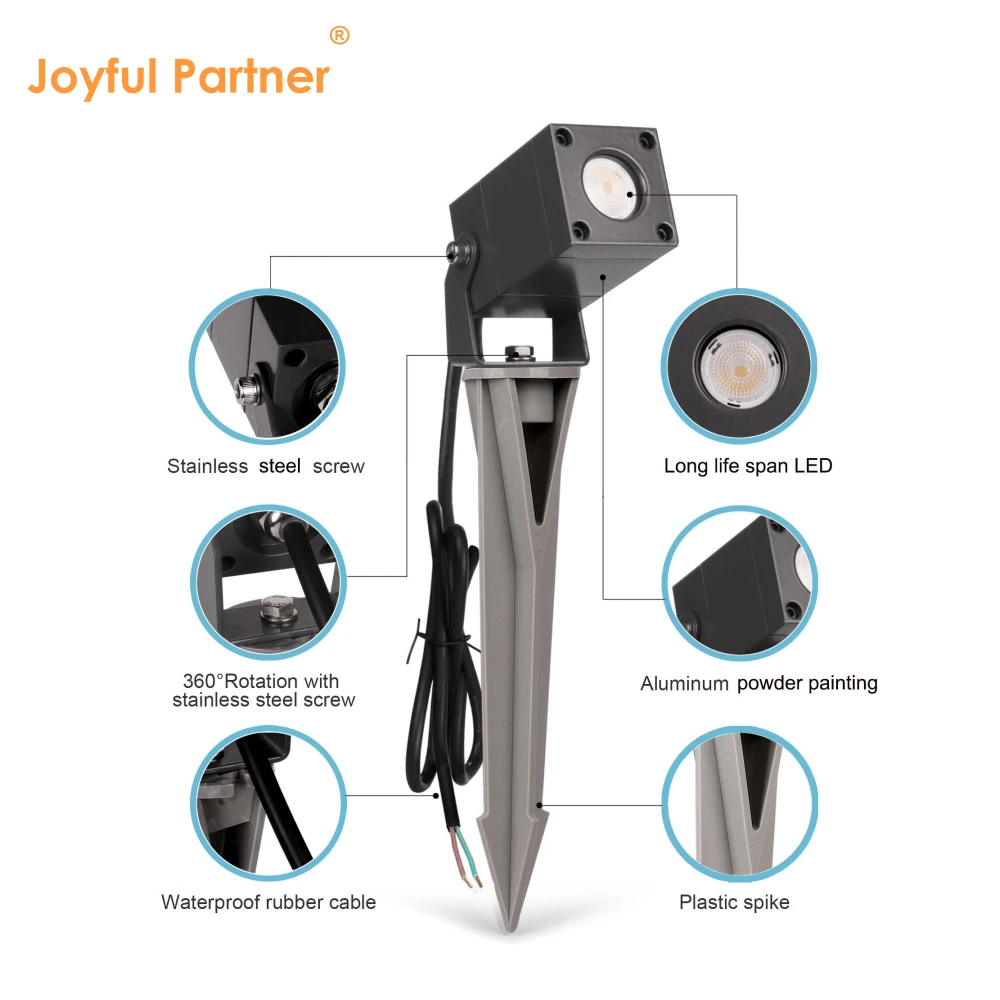

Robust aluminum housing with professional anodized or powder-coated finishes for superior weather resistance.

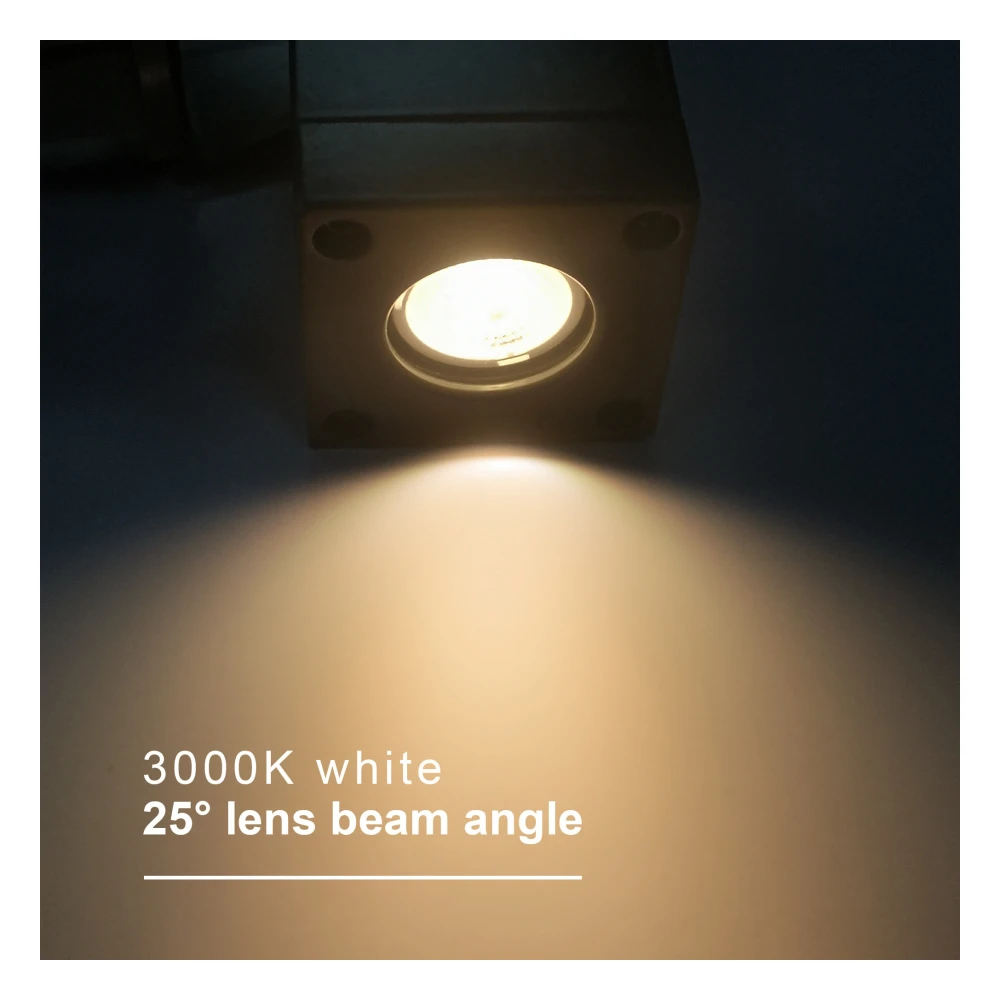

Equipped with specialized optical lenses (efficiency ≥85%) providing a wide range of beam angles from 8° to 60°.
High-quality illumination from 1.1W to 6.2W, supporting both single color and vibrant RGB 3in1 effects.
Integrated antiglare hood option for enhanced visual comfort and controlled light distribution.
Reliable IP65 waterproof rating and IK02 impact resistance, ideal for residential and commercial garden lighting.
Model Specification Table
|
Item No. |
Light source |
Lens beam angle(°) |
Consumption(watt) |
Input Voltage(V) |
Ik rate |
|
S83311 |
1x1W |
8°/15°/20°/30°/45°/60° |
1.1 |
DC12V/DC24V |
02 |
|
S83311H |
1x1W |
8°/15°/20°/30°/45°/60° |
1.3 |
AC120V-AC240V |
02 |
|
S83312 |
1x2W |
8°/15°/20°/30°/45°/60° |
2.2 |
DC12V/DC24V |
02 |
|
S83312H |
1x3W |
8°/15°/20°/30°/45°/60° |
3.3 |
AC120V-AC240V |
02 |
|
S83316 |
1x3W RGB3in1 |
30°/45°/60° |
3.2 |
DC12V/DC24V |
02 |
|
BS835068 |
1*6W LED |
15°/25°/38°/60° |
6.2 |
DC24V/AC220-240V |
02 |
Material Specifications Table
|
Item |
Description |
|
Housing&face cover |
Aluminum anodized finishing or powder painting |
|
Glass |
Tempered glass. T=3mm |
|
Lens |
Optical lens, efficiency≥85% |
|
Cable gland |
Copper and nickel coated |
|
Gasket |
Tooling shaped seal |
|
LED |
SMD LED |
|
PCB |
Excellent heat conductivity aluminum, coefficient of Heat Conductivity≥2.0w/mk |
|
Driver |
Constant current output, single color LED=1-circuit output, RGB 3in1 LED=3-circuit output |
|
Operating temperature |
-20℃~40℃ |
|
Power cable |
H05RN-F 2x0.75mm² L=1m (low voltage) / H05RN-F 3x0.75mm² L=1m (high voltage) |
