IP65 LED Garden Spot Light & Spike Light Aluminum 6W-10W CREE COB and RGBW 4in1 LED for Architectural Color Lighting COB LED Garden Spot Light/COB LED spike light/RGBW LED spike light
Waterproof Rating: IP65
Material: Aluminum anodized finishing & powder painting
Model: B83306X / B83506X / B835109 Series
Certification: IP65, RoHS, CE
Professional landscape spot light featuring high-performance CREE COB and advanced RGBW 4in1 LED technology.
Versatile lighting solution providing both high-quality single color and dynamic multi-color architectural effects.
Constructed with durable aluminum housing featuring premium anodized and powder-coated finishes for outdoor longevity.

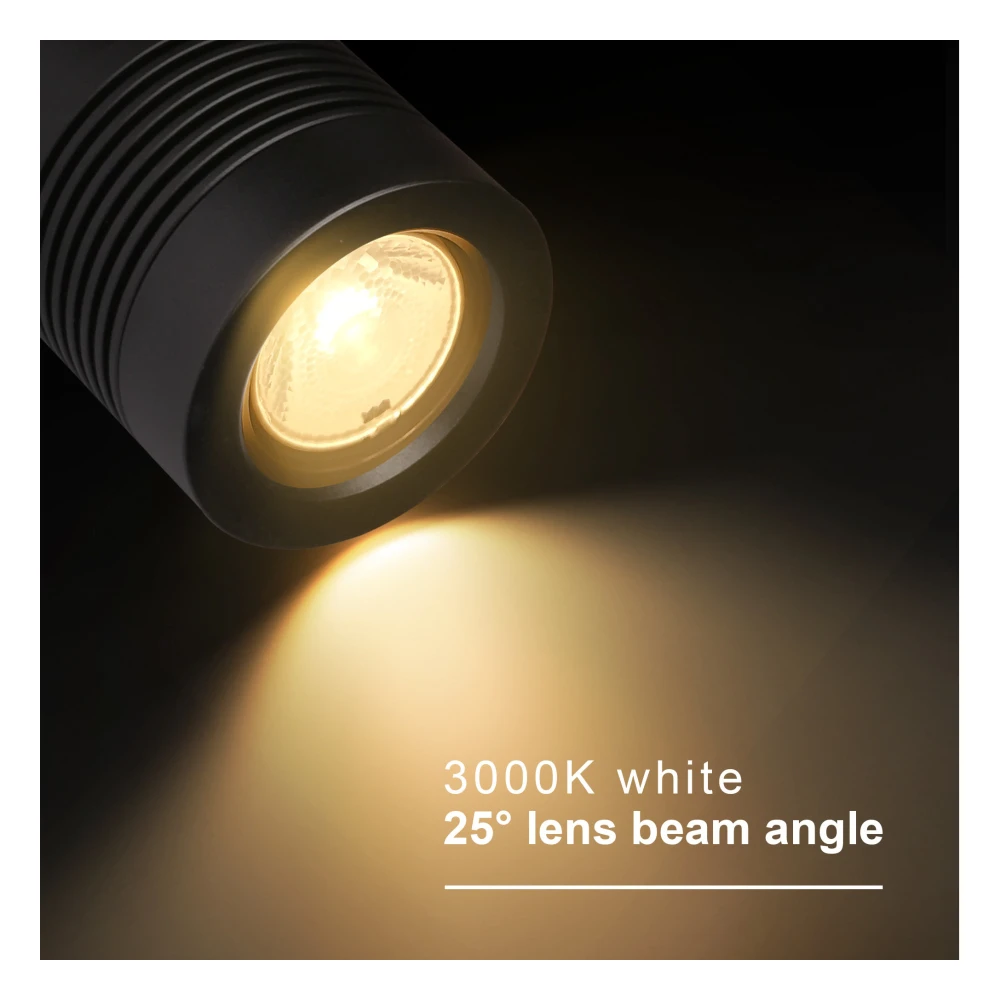

Specialized optical lenses with ≥85% efficiency offer beam angles from 15° to 120° including oval beam 10x30° options.
Engineered for safety and reliability with an IK04 impact rating and precision-tooled waterproof seals.
Supports various installation methods with a high-strength PVC spike for landscape or a stable aluminum base for hard surfaces.
Model Specification Table
|
Item No. |
Light source |
Lens beam angle(°) |
Consumption(watt) |
Input Voltage(V) |
Ik rate |
|
B83306COB / B83506COB |
1x6W CREE |
15°/25°/38°/60° |
5.3 / 6.5 |
DC12V/DC24V / AC120V/AC240V |
04 |
|
B833109 / B835109 |
1x10W RGBW4in1 (W=3000/4000/6000K) |
24°/36°/60°/10x30° |
10.2 |
DC12V/DC24V |
04 |

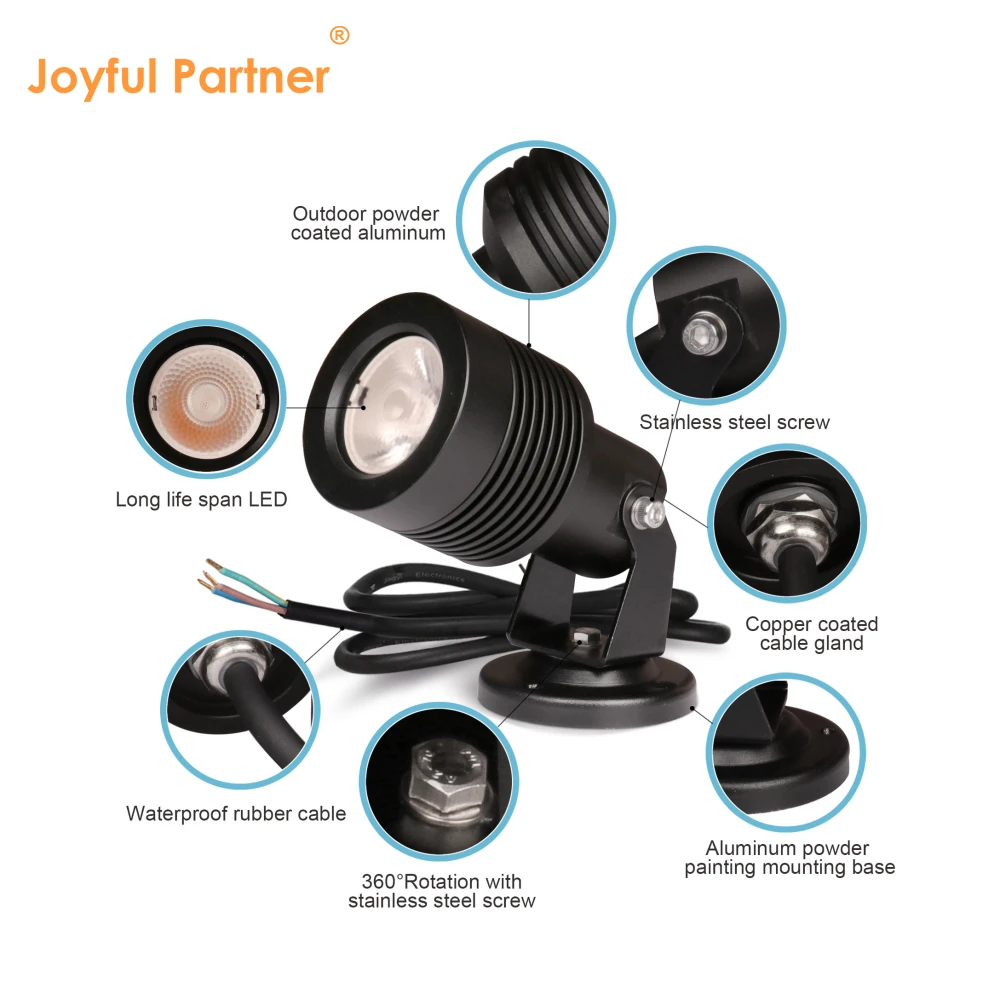

Material Specifications Table
|
Item |
Description |
|
Housing |
Aluminum anodized finishing & powder painting |
|
Glass |
Tempered glass. T=3mm |
|
Lens |
Optical lens, efficiency≥85% |
|
Cable gland |
Copper and nickel coated |
|
Gasket |
Tooling shaped seal |
|
LED |
CREE COB LED / RGBW 4in1 LED |
|
Driver |
Constant current output |
|
Spike |
PVC(grey or black) |
|
Mounting base |
Aluminum anodized finishing or powder painting |
|
Power cable |
H05RN-F 2×0.75mm² L=1m(low voltage) / H05RN-F 3×0.75mm² L=1m(high voltage) / H05RN-F 5×0.75mm² L=1m(RGBW) |
