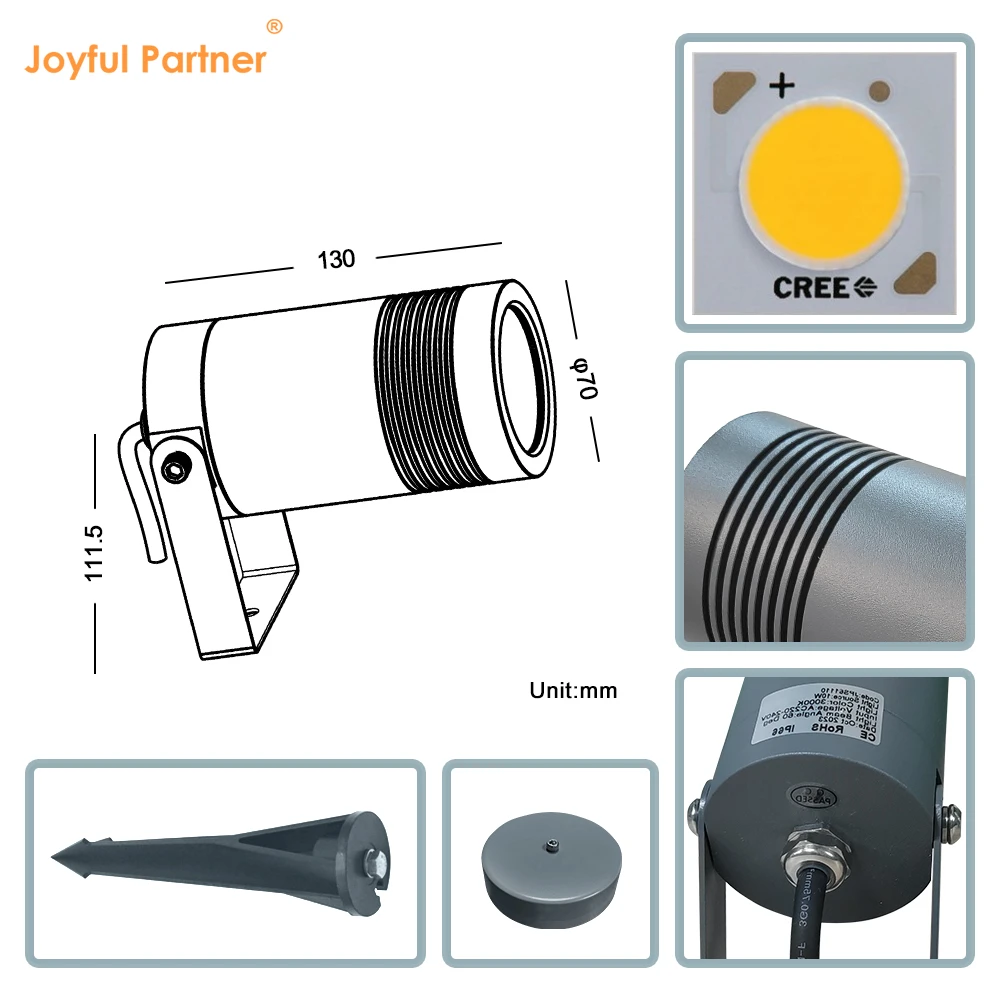

JPS71315 (Ø 70*H130mm)
Waterproof Rating: IP65
Material: Aluminum anodized finishing or powder painting
Model: JPS71315 Series
Certification: IP65, RoHS, CE
Constructed with an aluminum housing and shade featuring outdoor powder coating and a tempered glass front cover for superior outdoor durability.
Equipped with high-quality COB LEDs delivering a uniform 6W to 15W light output at 110 lm/W with Ra85 color rendering.

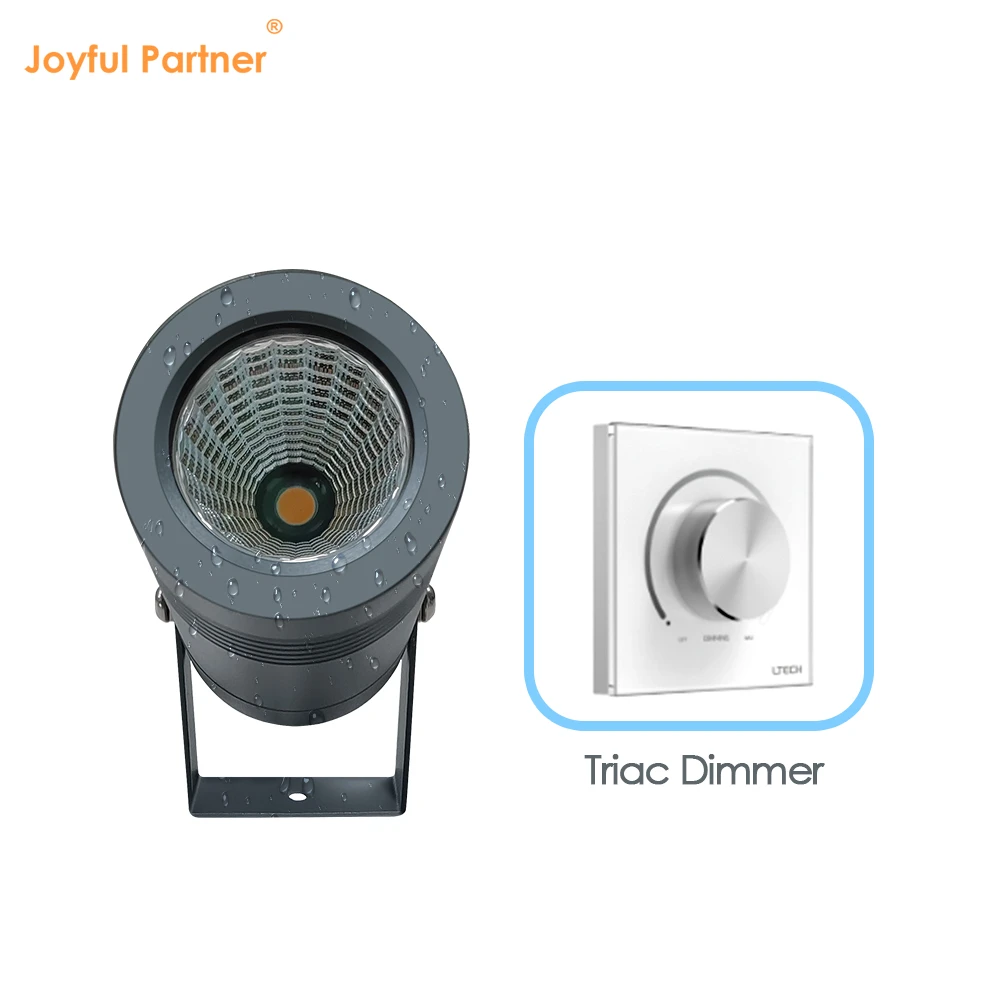

Supports AC100-240V input with a built-in triac dimming driver, plus DC12V/24V versions and remote control for precise atmospheric lighting adjustment.
Precision optical design provides four beam angle options from 15° to 60° for various targeted garden and tree lighting effects.
Reliable outdoor performance ensured by IP65-rated aluminum construction with 660 lm output, a 50,000-hour life, 2-year warranty and CE/RoHS/EMC/LVD compliance.
Model Specification Table
|
Item No. |
Light source |
LED Driver |
Lens beam angle(°) |
Consumption(watt) |
Input Voltage(V) |
Ik rate |
|
JPS51006 |
COB |
Triac Dimmer |
15°/25°/38°/60° |
6W |
DC24V/220-240V |
06 |
|
JPS61110 |
COB |
Triac Dimmer |
15°/25°/38°/60° |
10W |
DC24V/220-240V |
06 |
|
JPS71315 |
COB |
Triac Dimmer |
15°/25°/38°/60° |
15W |
DC24V/220-240V |
06 |
Material Specifications Table
|
Item |
Description |
|
Housing |
Aluminum anodized finishing & powder painting |
|
Glass |
Tempered glass. T=3mm |
|
Lens |
Optical lens, efficiency≥85% |
|
Cable gland |
Copper and nickel coated |
|
Gasket |
Tooling shaped seal |
|
LED |
CREE COB LED |
|
Driver |
Constant current output |
|
Spike |
PVC (gray or black) |
|
Mounting base |
Aluminum anodized finishing or powder painting |
|
Power cable |
H05RN-F 2x0.75mm² L=1m (low voltage) / H05RN-F 3x0.75mm² L=1m (high voltage) |
