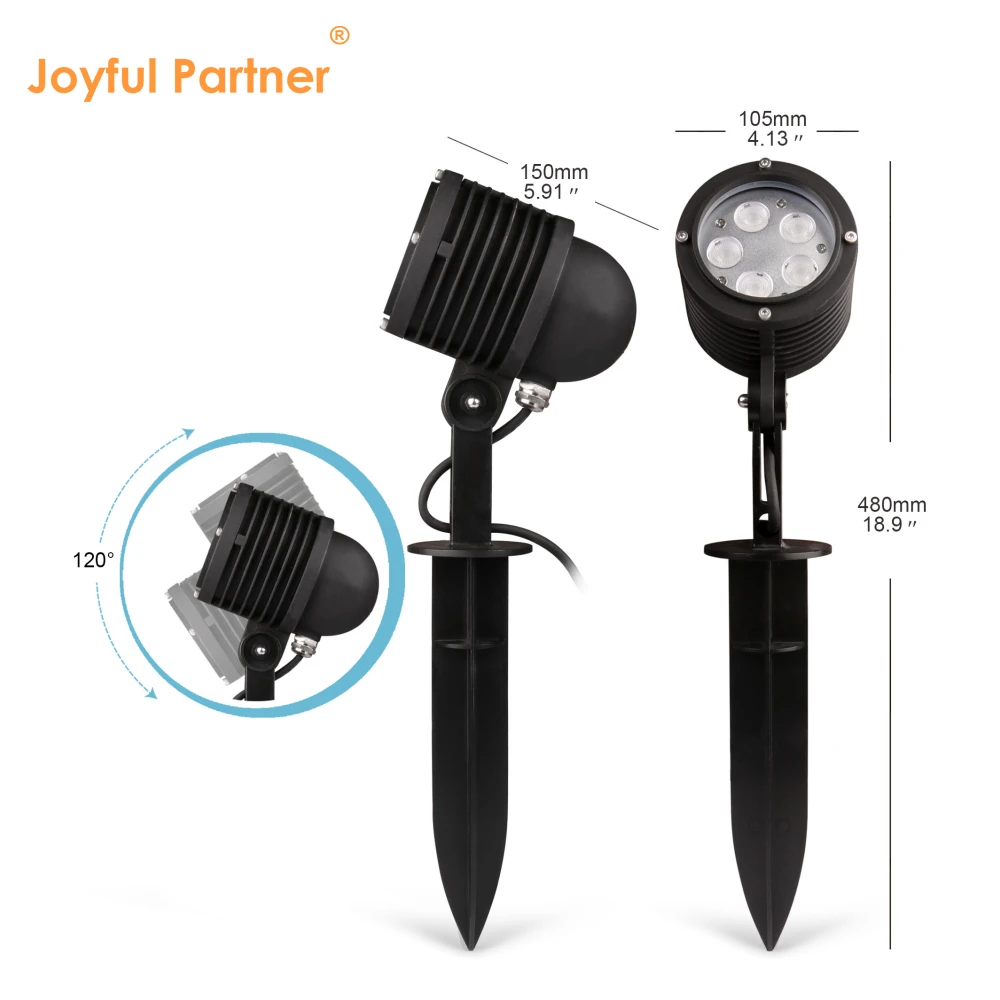

JP-83551B (Ø 105*H150mm)

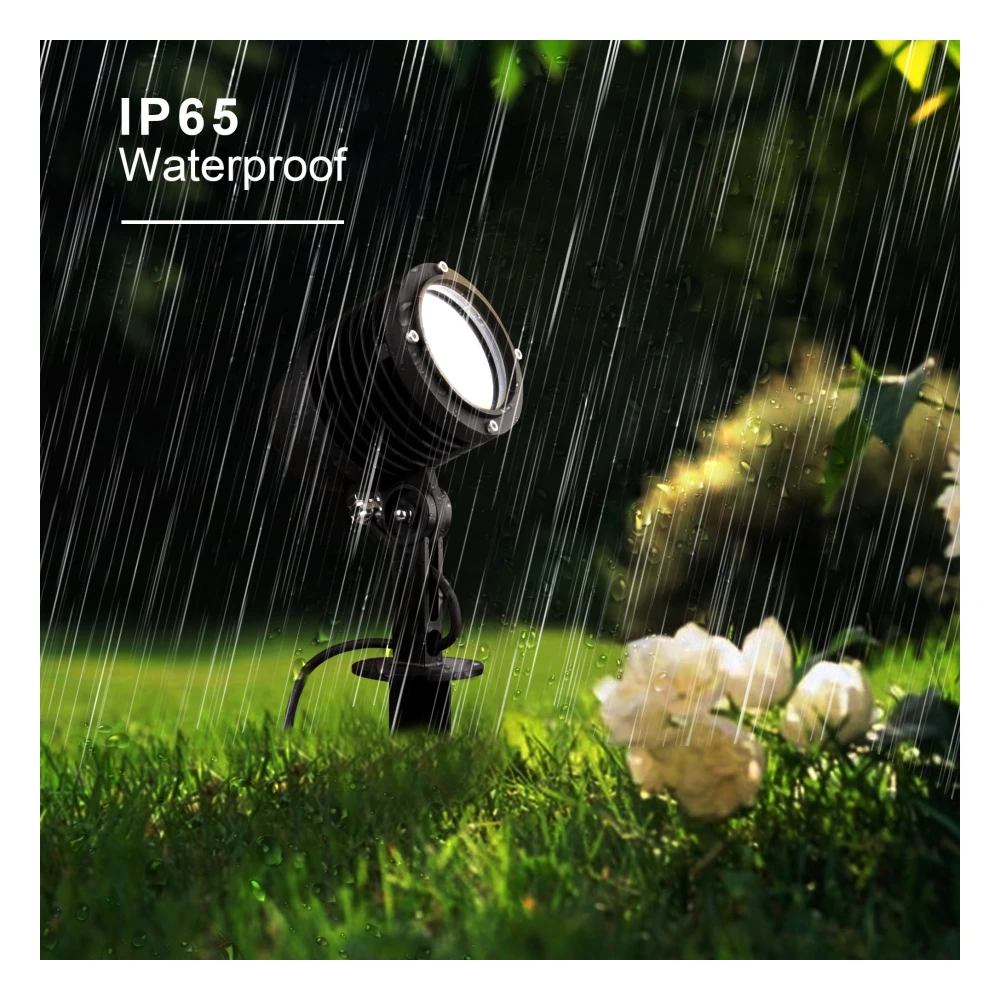

Waterproof Rating: IP65
Material: 12# Die-casting outdoor powder coated aluminum
Model:8355X/8355XB Series
Certification: IP65, RoHS, CE
Constructed with a die-cast aluminum body finished in outdoor powder coating and protected by a glass front panel for lasting garden durability at just 1.8 kg.
Equipped with Anti Blue LEDs delivering a 5W to 20W output across RGB 3in1 and RGB 4in1 versions for comfortable evening color.
Supports a wide-range AC100-240V or 24V DC input, letting one fixture serve projects across different grids without any conversion decisions.
Precision optics deliver six beam angles from 8° to 60° with 500 lm at 100 lm/W, Ra85 and dimming across 2700K to 6000K.
Reliable outdoor performance ensured by an IP65 enclosure, a rated life of 50,000 hours, a 2-year warranty and CE, RoHS, EMC and LVD compliance from -20°C to +45°C.
Model Specification Table
|
Item No. |
Light source |
Lens beam angle(°) |
Consumption(watt) |
Input Voltage(V) |
Ik rate |
|
83551 / 83551B |
5x1W |
8°/15°/20°/30°/45°/60° |
5.3 |
DC24V |
05 |
|
83551H / 83551BH |
5x1W |
8°/15°/20°/30°/45°/60° |
6.1 |
AC120V/AC240V |
05 |
|
83552 / 83552B |
5x2W |
8°/15°/20°/30°/45°/60° |
10.4 |
DC24V |
05 |
|
83552H / 83552BH |
5x2W |
8°/15°/20°/30°/45°/60° |
12.5 |
AC120V/AC240V |
05 |
|
83556 / 83556B |
5x3W RGB3in1 |
30°/45°/60° |
15.1 |
DC24V |
05 |
|
83559 / 83559B |
5x4W RGBW4in1 (W=3000/4000/6000K) |
8°/15°/25°/30°/45°/60° |
20.2 |
DC24V |
05 |
|
835110B / 835110BD |
GU10/E27/MR16 socket |
N/A |
N/A |
N/A |
05 |

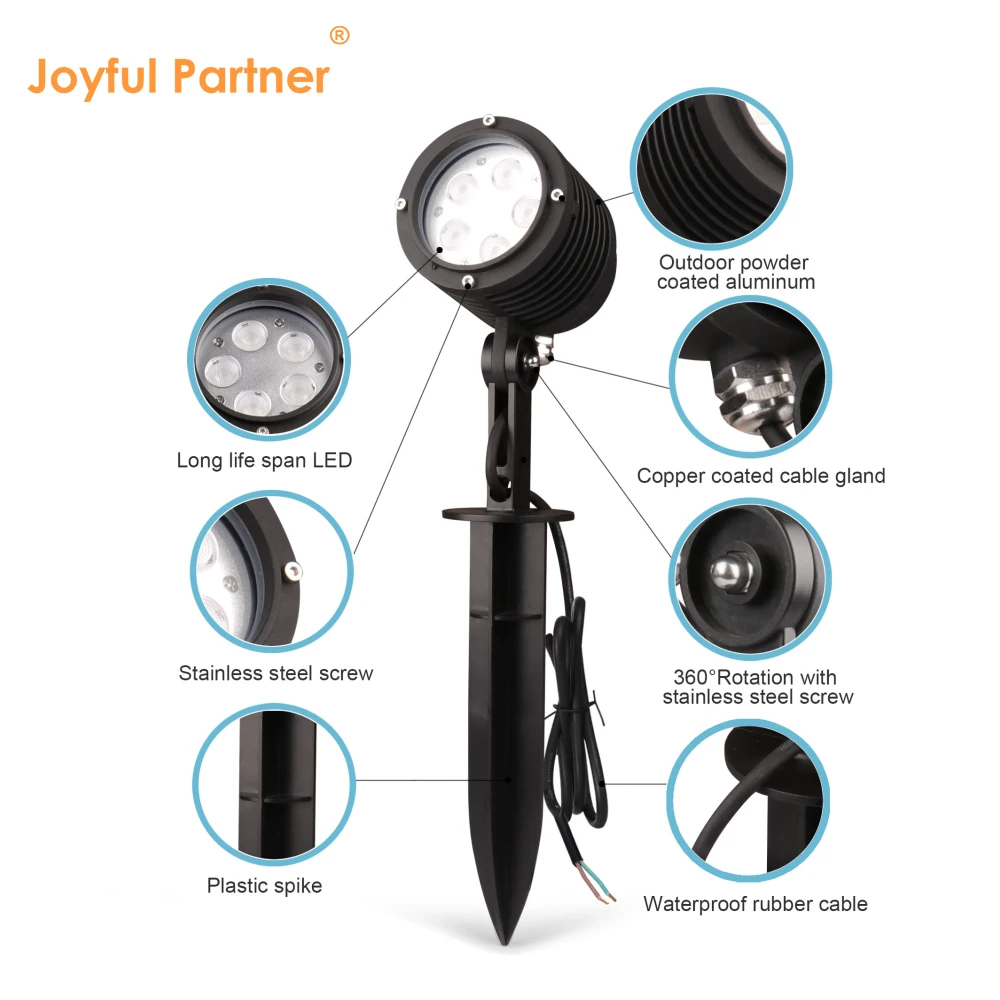

Material Specifications Table
|
Item |
Description |
|
Housing |
12# Die-casting outdoor powder coated aluminum T=60-80um Adhesion of ISO class 1 / ASTM class 4B |
|
Glass |
Tempered glass. T=4mm |
|
Lens |
Optical lens, efficiency≥85% |
|
Cable gland |
IP-68 PG-9 copper and nickel coated |
|
Gasket |
Molding shaped silicone double seal |
|
LED |
CREE XP-E LED / EDISON LED |
|
PCB |
Excellent heat conductivity aluminum, coefficient of Heat Conductivity≥2.0w/mk |
|
Driver |
Constant current output, single color LED=1-circuit output, RGB 3in1 LED=3-circuit output |
|
Operating temperature |
-20℃~40℃ |
|
Power cable |
H05RN-F 2x0.75mm² L=1m (low voltage) / H05RN-F 3x0.75mm² L=1m (high voltage) / H05RN-F 4×0.75mm² L=1m (for RGB) |
|
Spike |
PVC |
|
Mounting base |
Powder coated die-casting aluminum |
