JP-83203XD (Ø 88*H110mm)
Waterproof Rating: IP65
Material: 12# Die-casting outdoor powder coated aluminum
Model:83203XD Series
Certification: IP65, RoHS, CE
Professional high-power landscape spot light series designed for powerful architectural and large tree illumination.

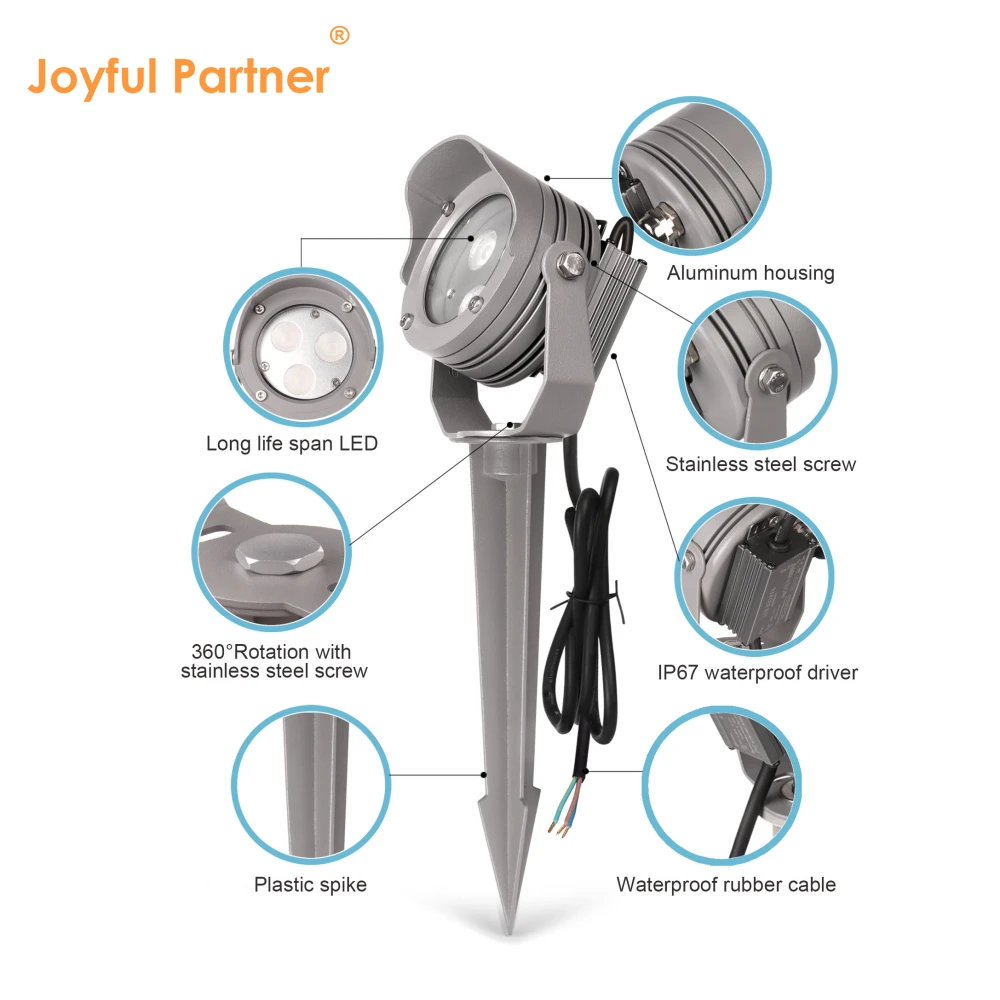

Constructed with robust 12# die-casting aluminum housing featuring specialized outdoor powder coating (T=60-80um).

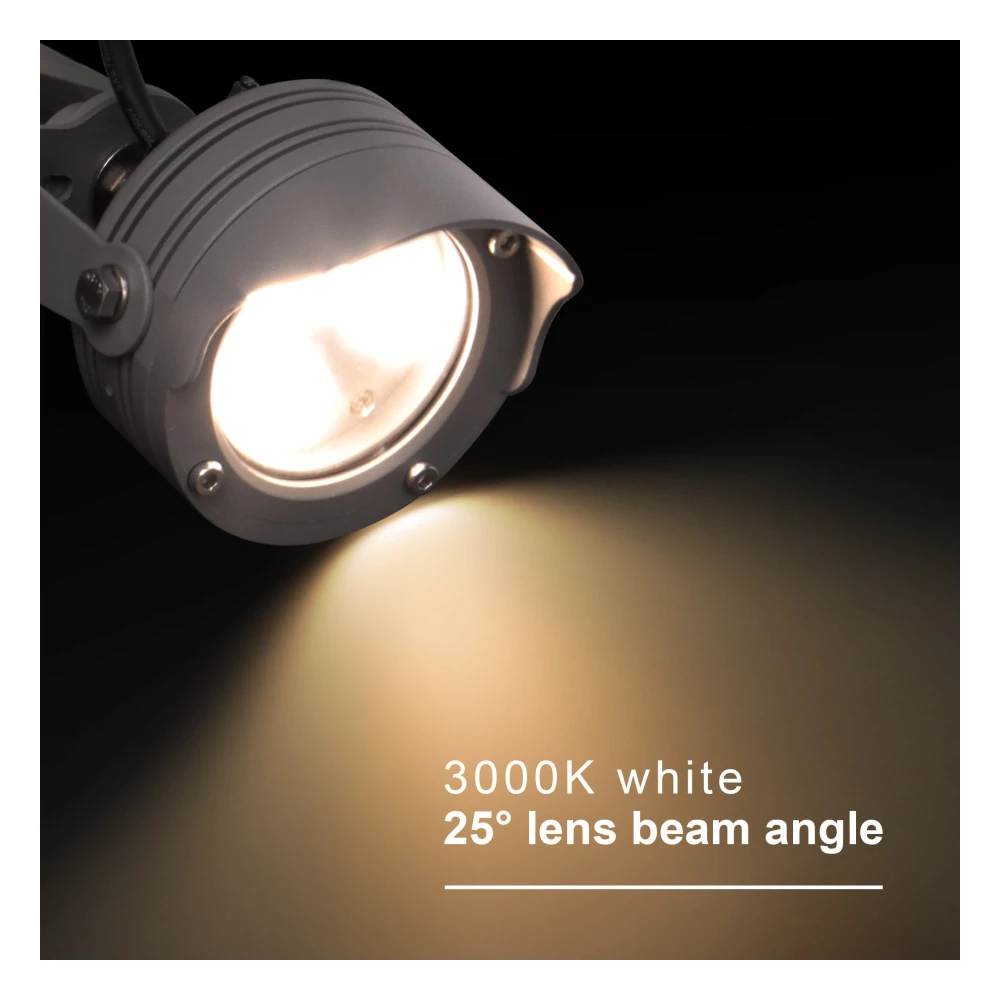

Equipped with high-performance LEDs and precision optical lenses (efficiency ≥85%) offering beam angles from 8° to 90°.
Features advanced waterproof engineering with molding shaped silicone double seals and IP68 nickel-coated glands.
Versatile wattage options ranging from 3.3W to 35.5W, supporting single color and dynamic RGB 3in1 effects.
Available in multiple sizes (DIA 88mm/130mm/160mm) and optional anti-glare hoods to meet diverse landmark requirements.
Model Specification Table
|
Item No. |
Light source |
Lens beam angle(°) |
Consumption(watt) |
Input Voltage(V) |
Ik rate |
|
832031D/832032D/832036D |
3x1W/3x2W/3x3W RGB3in1 |
8°/15°/20°/30°/45°/60°/90° |
3.3/7.5/9.1 |
DC24V / AC100-240V |
07 |
|
83261D/83262D/83266D |
6x1W/6x2W/6x3W RGB3in1 |
8°/15°/20°/30°/45°/60°/90° |
6.5/15.0/18.3 |
DC24V / AC100-240V |
07 |
|
832121D/832122D/832126D |
12x1W/12x2W/12x3W RGB3in1 |
8°/15°/20°/30°/45°/60°/90° |
12.5/30.0/35.5 |
DC24V / AC100-240V |
07 |
Material Specifications Table
|
Item |
Description |
|
Housing |
12# Die-casting outdoor powder coated aluminum T=60-80um |
|
Glass |
Tempered glass. T=4mm |
|
Lens |
Optical lens, efficiency≥85% |
|
Cable gland |
IP-68 PG-9 copper and nickel coated |
|
Gasket |
Molding shaped silicone double seal |
|
LED |
SMD LED |
|
Operating temperature |
-20℃~40℃ |
|
Power cable |
H05RN-F 2x0.75mm² / 3x0.75mm² / 4x0.75mm² L=1m |
|
Mounting base |
Powder coated die-casting aluminum |
