83831（Ø 96mm）
Waterproof Rating: IP67
Material: SUS 304/316 stainless steel front cover
Model: 838X / 830X Series
Certification: IP67, RoHS, CE

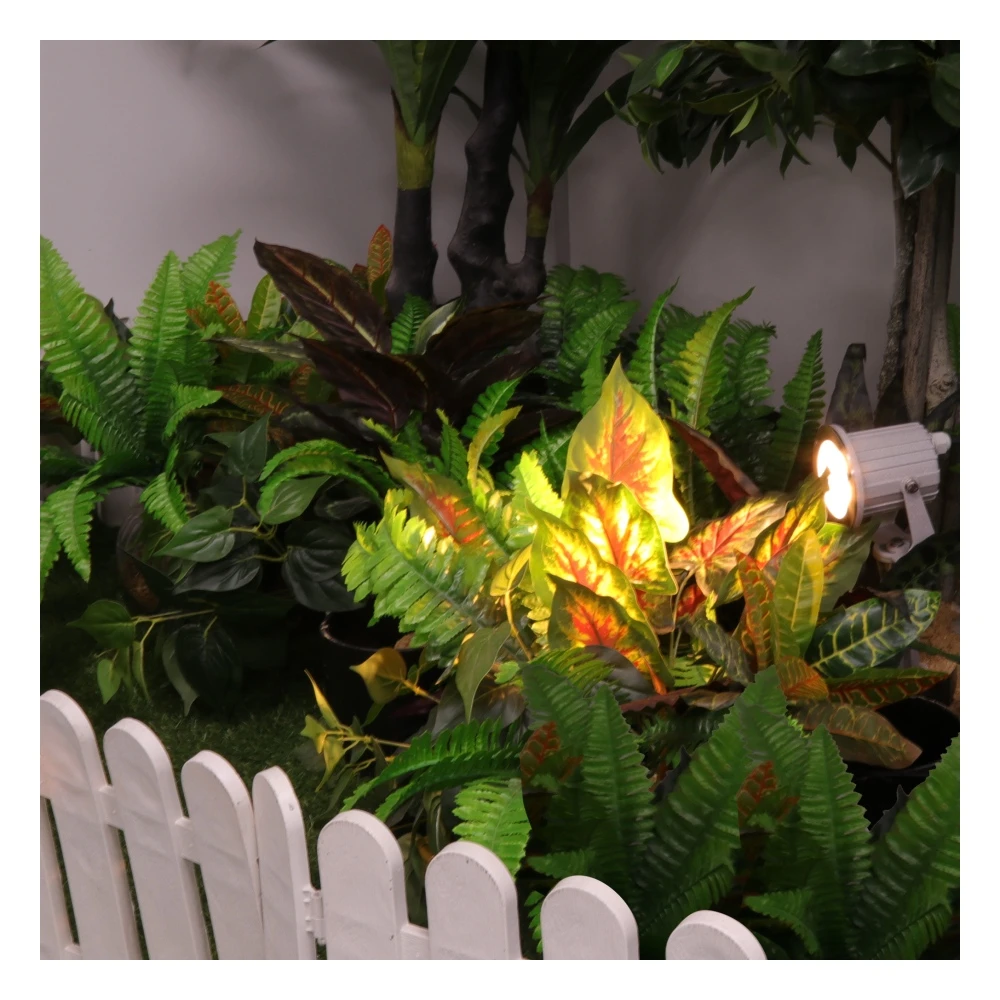

High-performance outdoor garden spike and spot light series designed for premium architectural landscape projects.
Constructed with 12 die-casting aluminum and a high-grade SUS 304 or 316 stainless steel front cover for ultimate corrosion resistance.
Versatile lighting options including high-power single color, RGB 3in1, and advanced RGBW 4in1 for dynamic color-changing effects.
Features a GU10 socket version for flexible lamp replacement and customization lighting scenarios.
Reliable IP67 waterproof protection and up to IK05 impact resistance ensured by molding shaped silicone double seals.

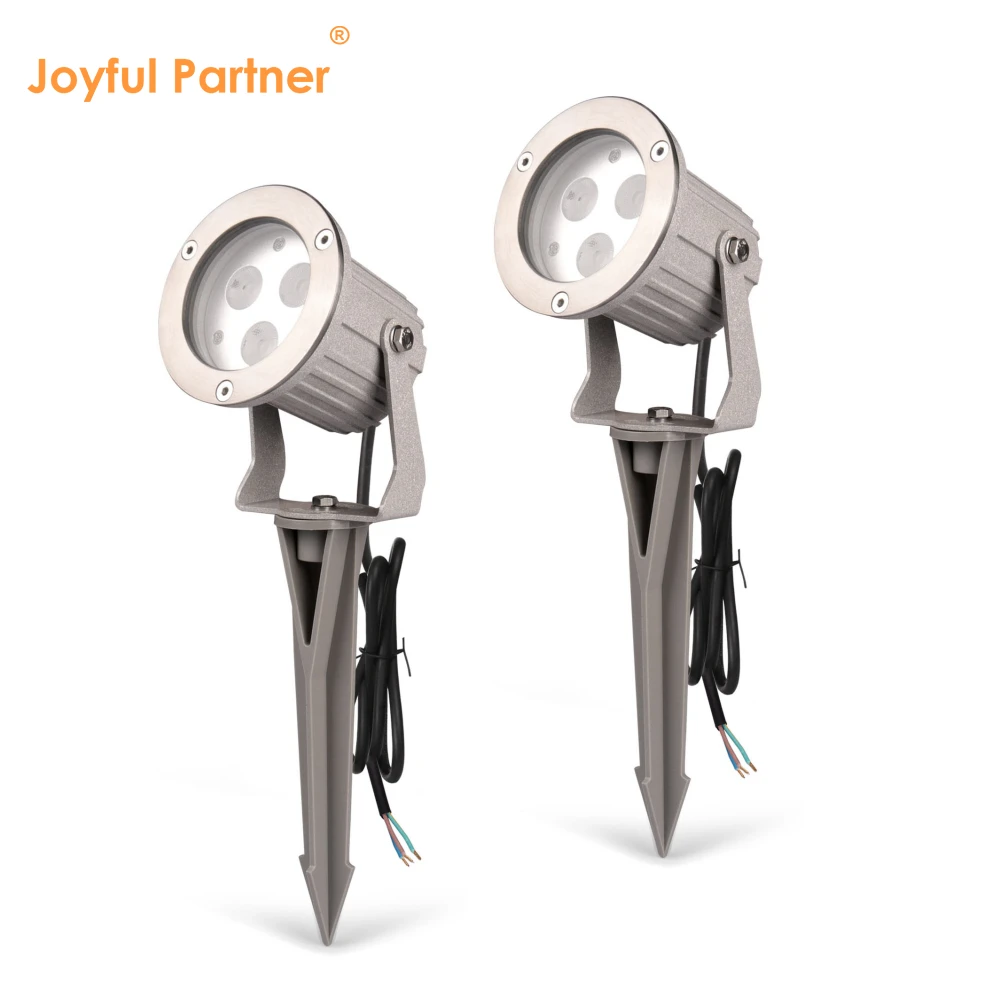

Easy installation with various mounting accessories including a durable PVC spike for soil or a die-casting aluminum base for surface mounting.
Model Specification Table
|
Item No. |
Light source |
Lens beam angle(°) |
Consumption(watt) |
Input Voltage(V) |
Ik rate |
|
83831 / 83031 |
3x1W |
8°/15°/20°/30°/45°/60°/90° |
3.2 |
DC12V/DC24V |
04 |
|
83831H / 83031H |
3x1W |
8°/15°/20°/30°/45°/60°/90° |
3.5 |
AC120V/AC240V |
04 |
|
83832 / 83032 |
3x2W |
8°/15°/20°/30°/45°/60°/90° |
6.2 |
DC12V/DC24V |
04 |
|
83832H / 83032H |
3x2W |
8°/15°/20°/30°/45°/60°/90° |
7.5 |
AC120V/AC240V |
04 |
|
83836 / 83036 |
3x3W RGB3in1 |
30°/45°/60° |
3.2 |
DC12V/DC24V |
04 |
|
83839 / 83039 |
3x4W RGBW4in1 (W=3000/4000/6000K) |
30°/45°/60° |
13.2 |
DC24V |
04 |
|
838110 / 830110 |
GU10 socket |
N/A |
N/A |
N/A |
05 |
Material Specifications Table
|
Item |
Description |
|
Housing |
12 Die-casting powder coated aluminum, T=60-80um. Adhesion of ISO class 1 / ASTM class 4B |
|
Front cover |
Stainless steel SUS 304 or 316 |
|
Bracket |
Powder coated aluminum |
|
Glass |
Tempered glass. T=4mm |
|
Lens |
Optical lens, efficiency≥85% |
|
Cable gland |
P-67 PG-9 PA66 |
|
Gasket |
Molding shaped silicone double seal |
|
Power cable |
H05RN-F 2x0.75mm² L=1m (low voltage) / H05RN-F 3x0.75mm² L=1m (high voltage) / H05RN-F 4x0.75mm² L=1m (for RGB) / H05RN-F 5x0.75mm² L=1m (for RGBW) |
|
Spike |
PVC(gray or black) |
|
Mounting base |
Powder coated die-casting aluminum |
