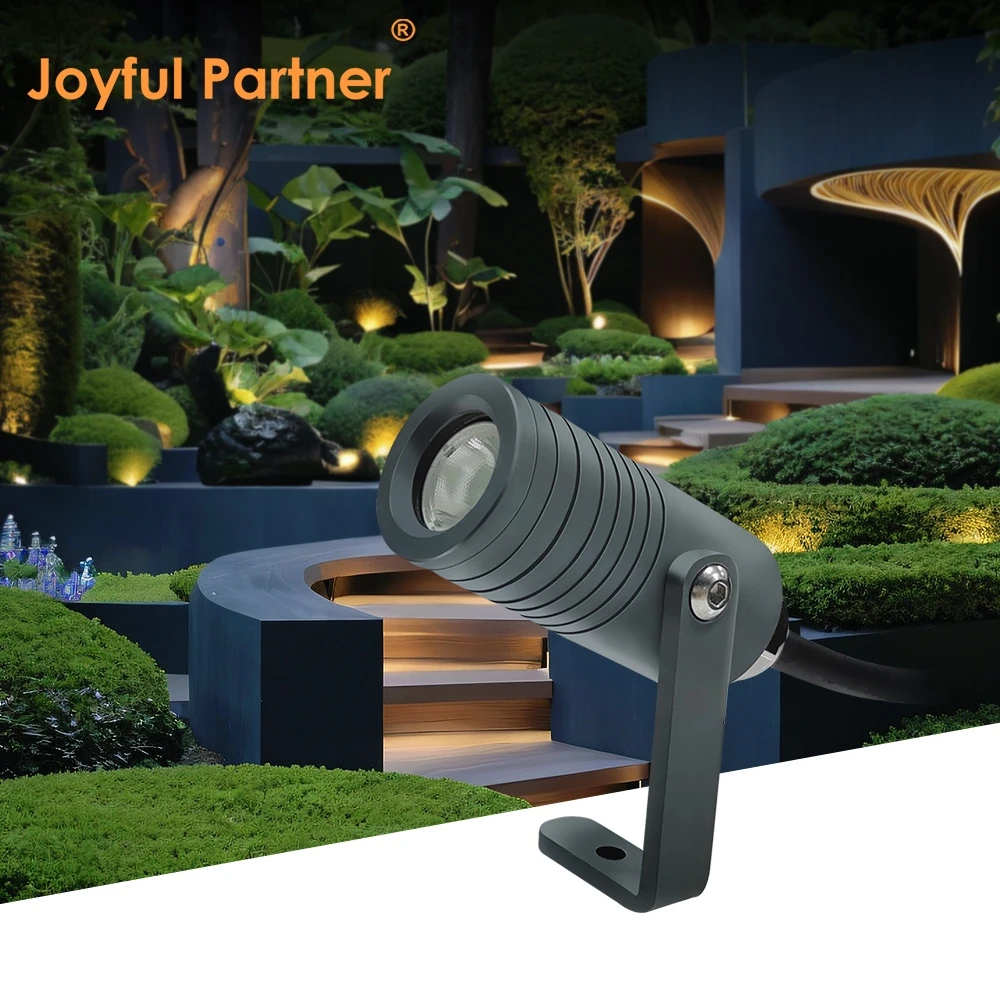

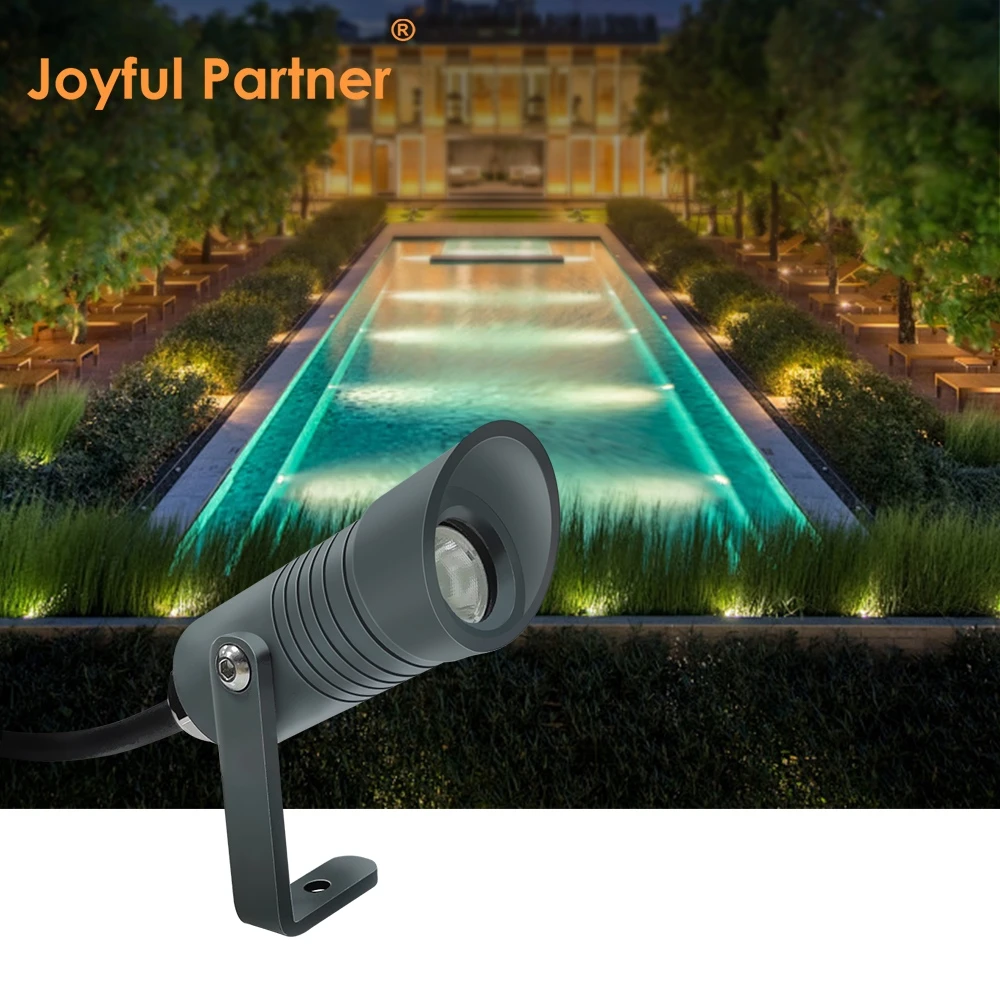

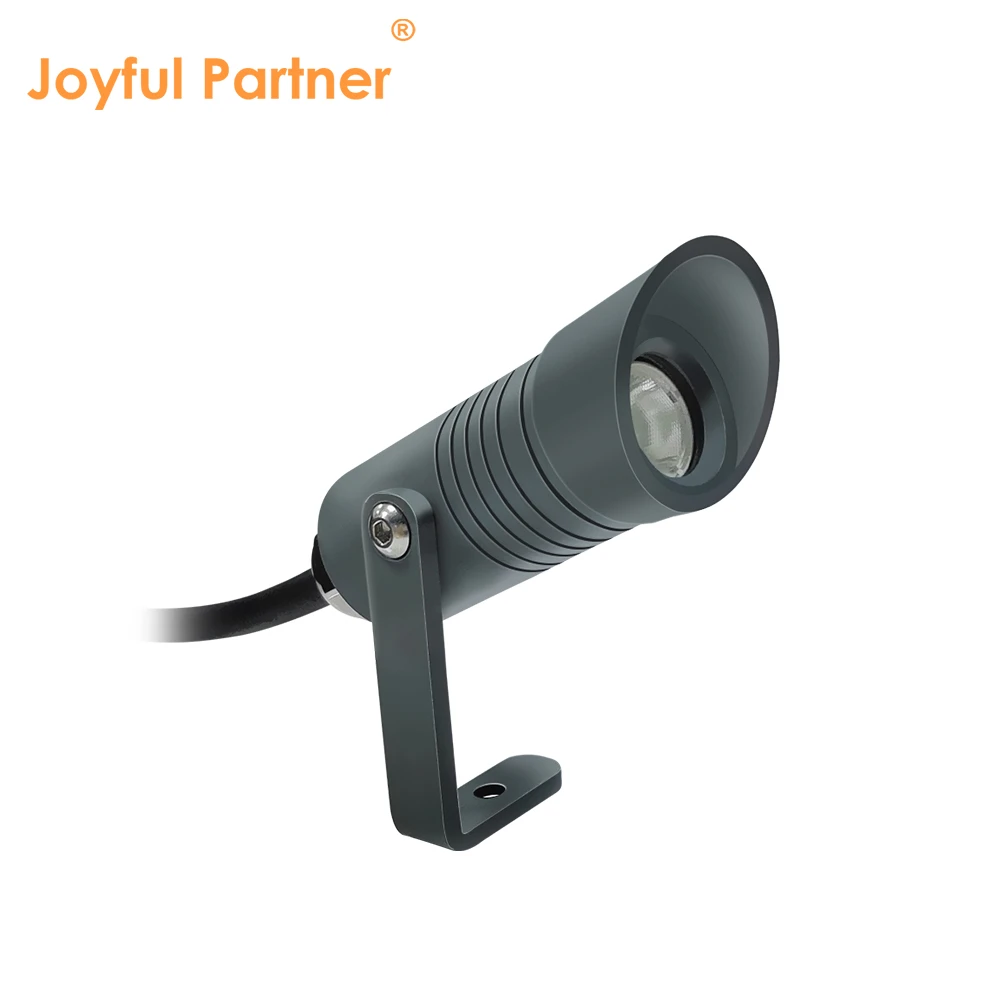

LED Garden Spot Light Aluminum Housing Outdoor Powder Coating 1W IP65 DC24V For Outdoor Pathway Small Size LED Garden Spot Light/Landscape Projector
Waterproof Rating: IP67
Material: Aluminum anodized finishing or powder painting
Model: 8325X Series
Certification: IP67, RoHS, CE
Compact 1W LED garden spot light designed for precise landscape and architectural highlighting.
Features a durable aluminum housing with options for anodized finishing or professional powder painting.
Equipped with a 3mm tempered glass and high-efficiency optical lens with ≥85% light transmission.
Beam angle options (8°/15°/30°/45°/60°) provide flexible illumination for small garden features.
Optional accessories include anti-glare hood, honeycomb louver, frosted glass, and aluminum spike for diverse installations.
Engineered for outdoor reliability with a tooling shaped seal and DC12V/DC24V low voltage power input.
Model Specification Table
|
Item No. |
Light source |
Lens beam angle(°) |
Consumption(watt) |
Input Voltage(V) |
Ik rate |
|
832511 |
1x1W LED |
8°/15°/30°/45°/60° |
1.1 |
DC12V/DC24V |
- |
Material Specifications Table
|
Item |
Description |
|
Housing&face cover |
Aluminum anodized finishing or powder painting |
|
Glass |
Tempered glass. T=3mm |
|
Lens |
Optical lens, efficiency≥85% |
|
Cable gland |
Copper and nickel coated |
|
Gasket |
Tooling shaped seal |
|
LED |
SMD LED |
|
PCB |
Excellent heat conductivity aluminum, coefficient of Heat Conductivity≥2.0w/mk |
|
Driver |
Constant current output, single color LED=1-circuit output |
|
Operating temperature |
-20℃~40℃ |
|
Power cable |
H05RN-F 2x0.75mm² L=0.5m (low voltage) |
