JPG825306 （H600mm）
Waterproof Rating: IP65
Material: ADC12# Die-casting aluminum
Model: JPG825306（H600mm）
Certification: IP65, RoHS, CE
Professional modern garden pillar light series featuring sleek circular and square bollard designs for architectural illumination.
Constructed with robust ADC12# die-casting aluminum housing with high-quality outdoor powder coating for ultimate durability.
Equipped with tempered diffuser glass to provide smooth, glare-free, and uniform light distribution for pedestrian safety.
Integrated with high-performance Bridgelux LEDs delivering a powerful and energy-efficient 10W architectural output.

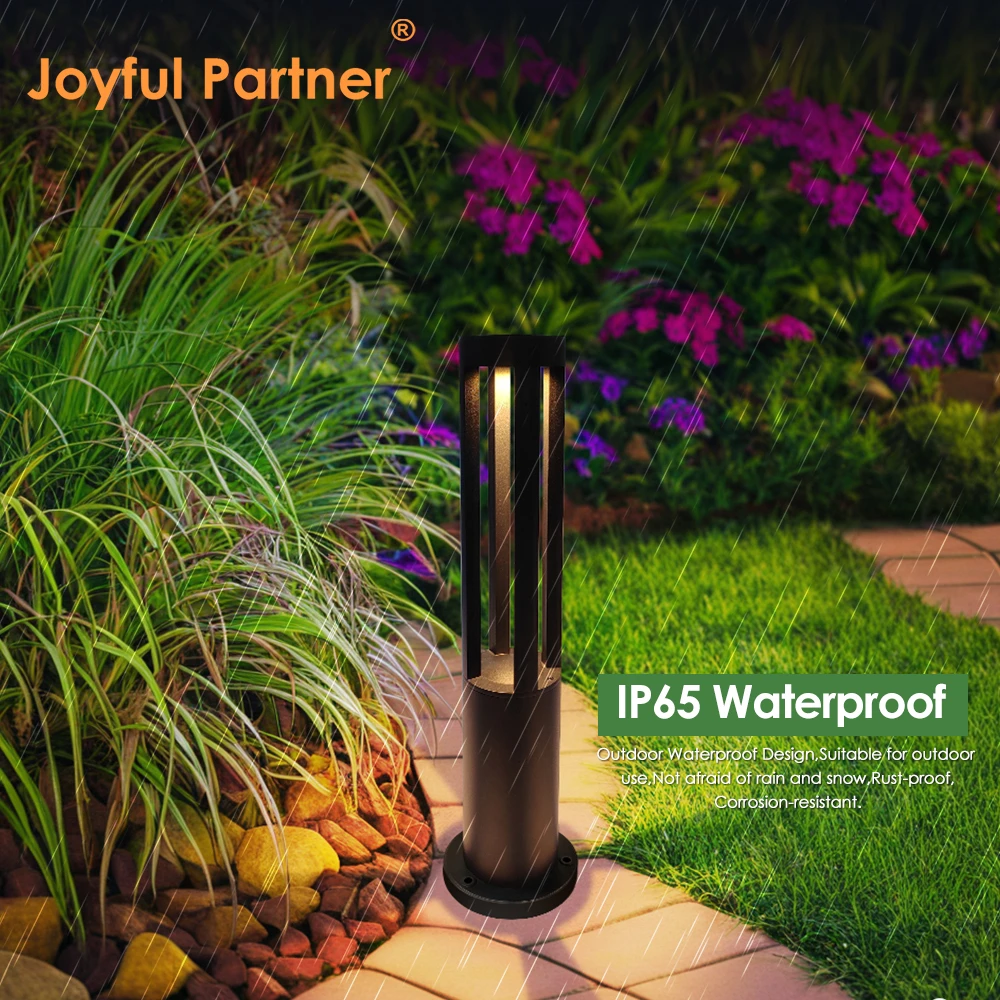

Certified with IP65 waterproof rating and tooling shaped seals, specifically engineered for long-term outdoor reliability.

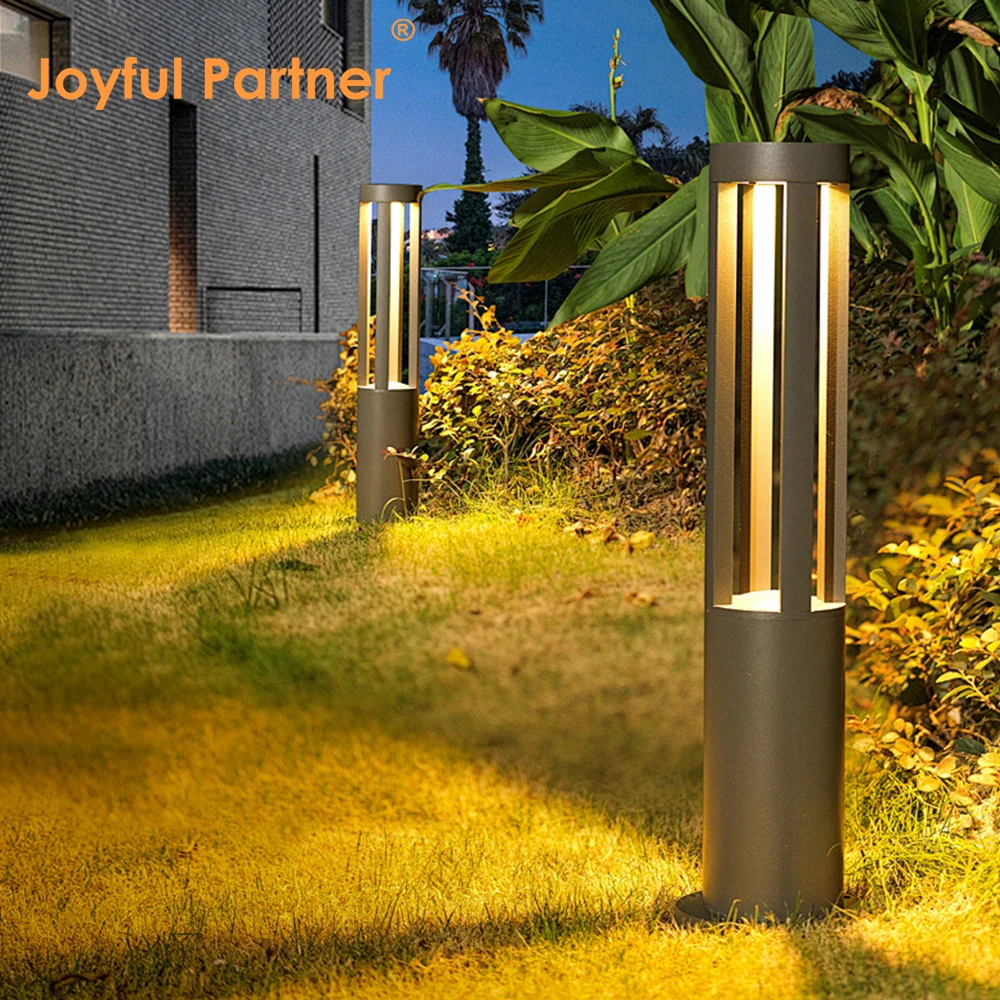

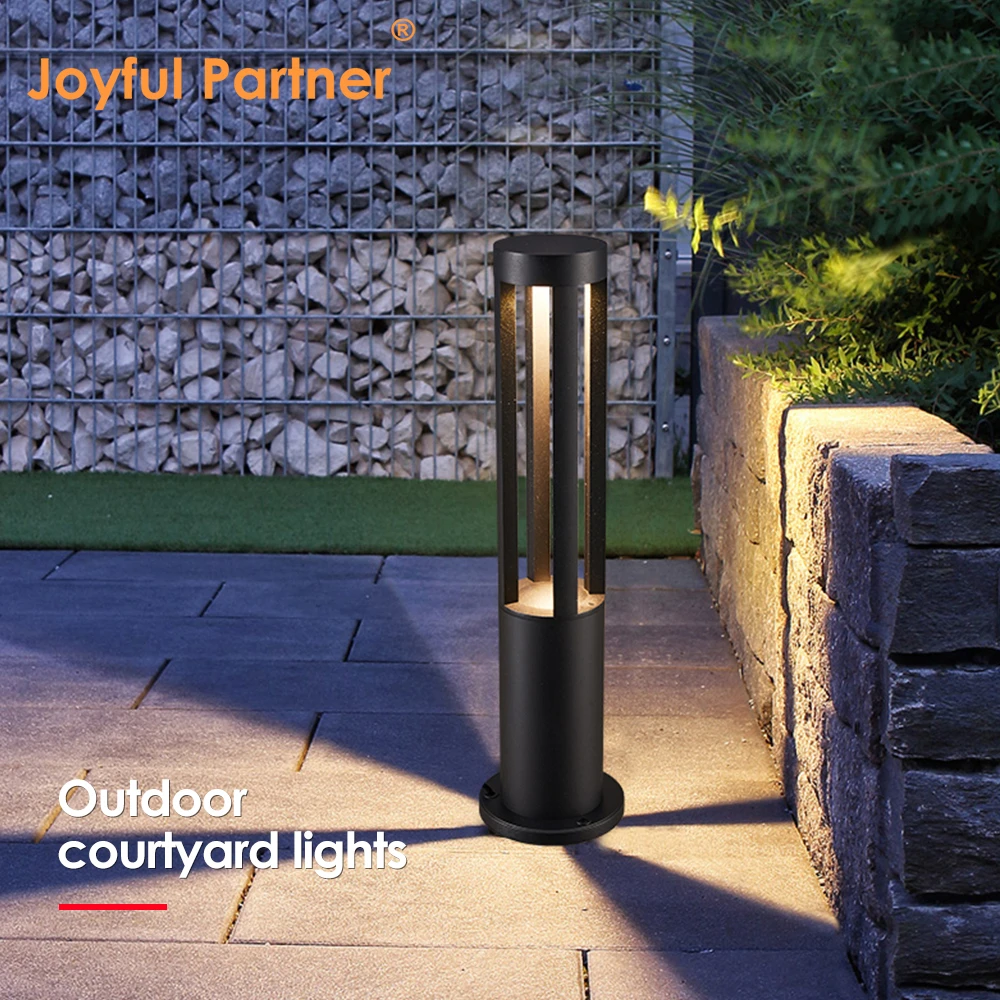

Versatile mounting options suitable for high-end residential gardens, commercial building pathways, and public landscape zones.

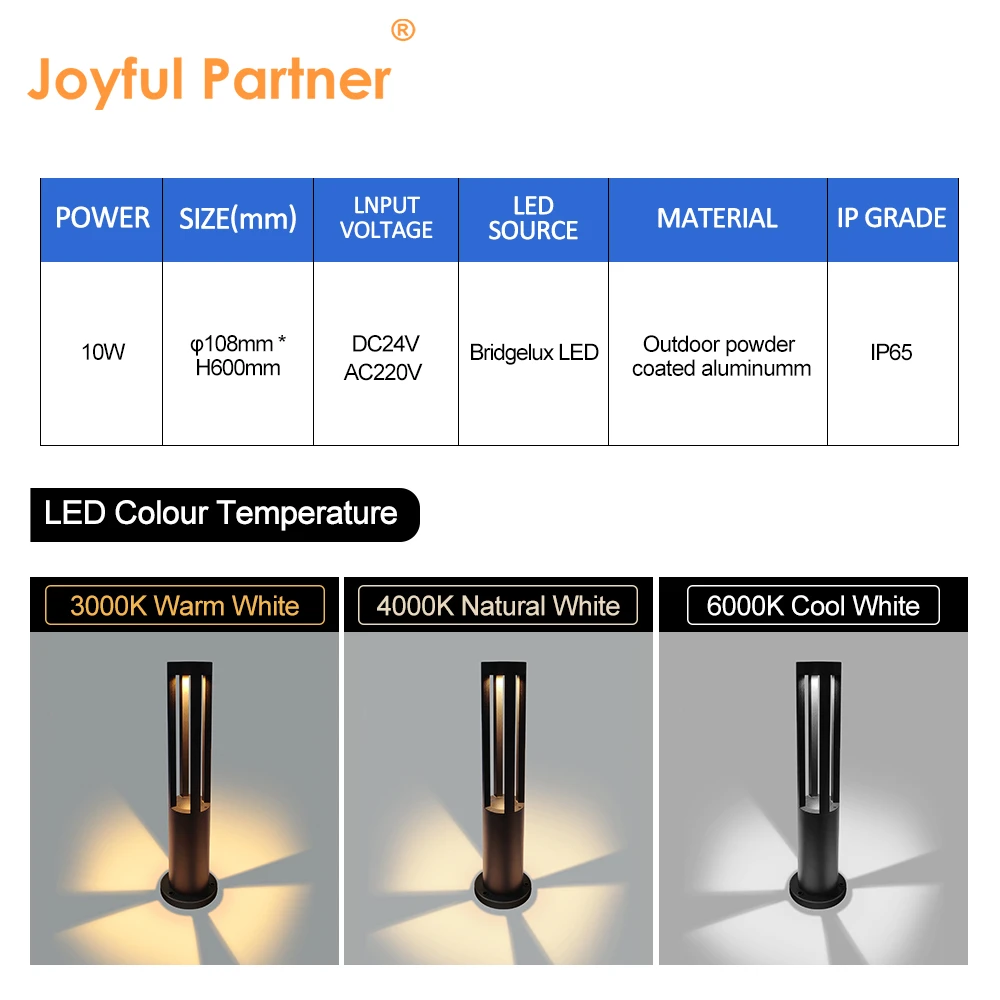

Model Specification Table
|
Item No. |
Light source |
Beam angle |
Consumption (watt) |
Input Voltage (V) |
|
JPG825306 |
Bridgelux LED |
120° |
10W |
DC24V / AC220V |
Material Specifications Table
|
Item |
Description |
|
Material |
ADC12# Die-casting powder coated aluminum + Tempered Diffuser Glass |
|
Brand LED |
OSRAM & CREE & Bridgelux |
|
CRI |
Ra>80% |
|
IP Grade |
IP65 |
|
Gasket |
Tooling shaped seal |
|
Operating temperature |
-20℃~+40℃ |
|
Power cable |
H05RN-F 2x0.75mm² |
|

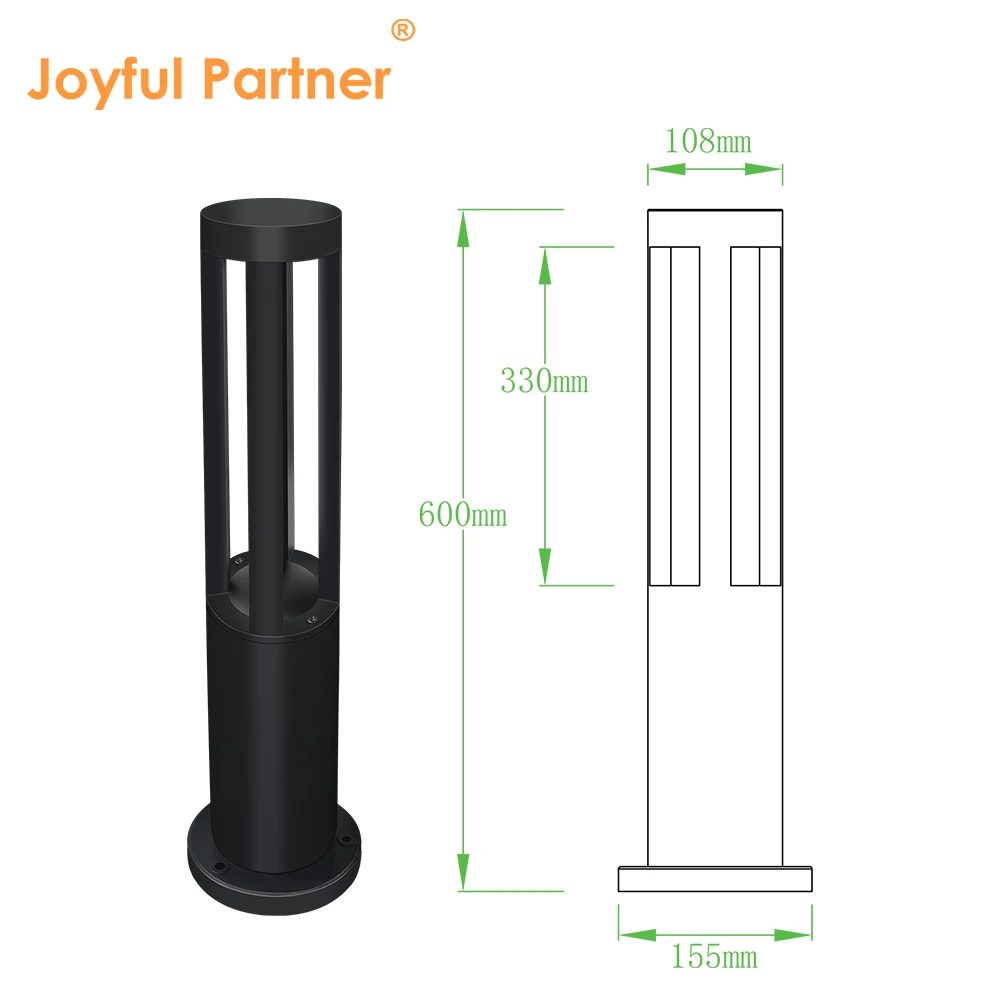

Size(mm) |
Φ108*H600mm |
|
Net weight of product (kg) |
1.64kg |
