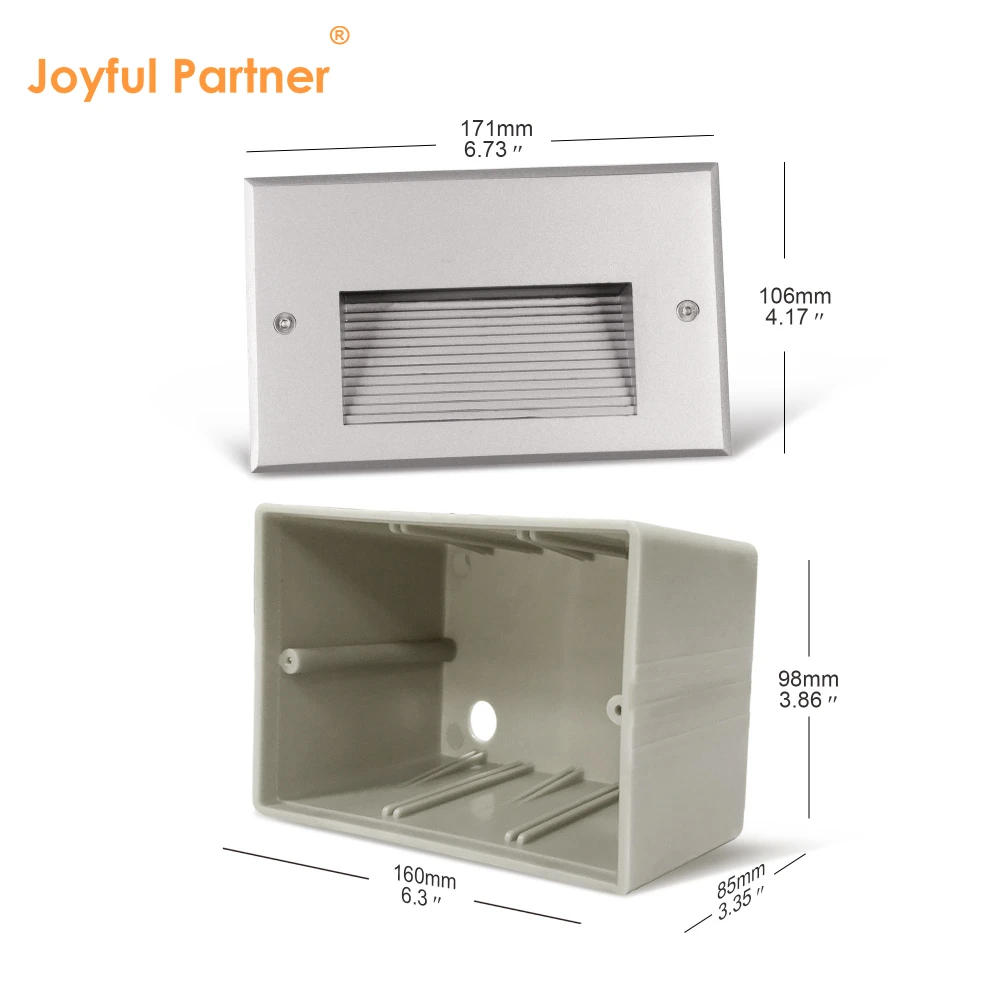

819187 (170*106mm)
Waterproof Rating: IP65
Material: ADC12 Die-casting outdoor powder coated aluminum
Model: 819187 Series
Certification: IP65, RoHS, CE

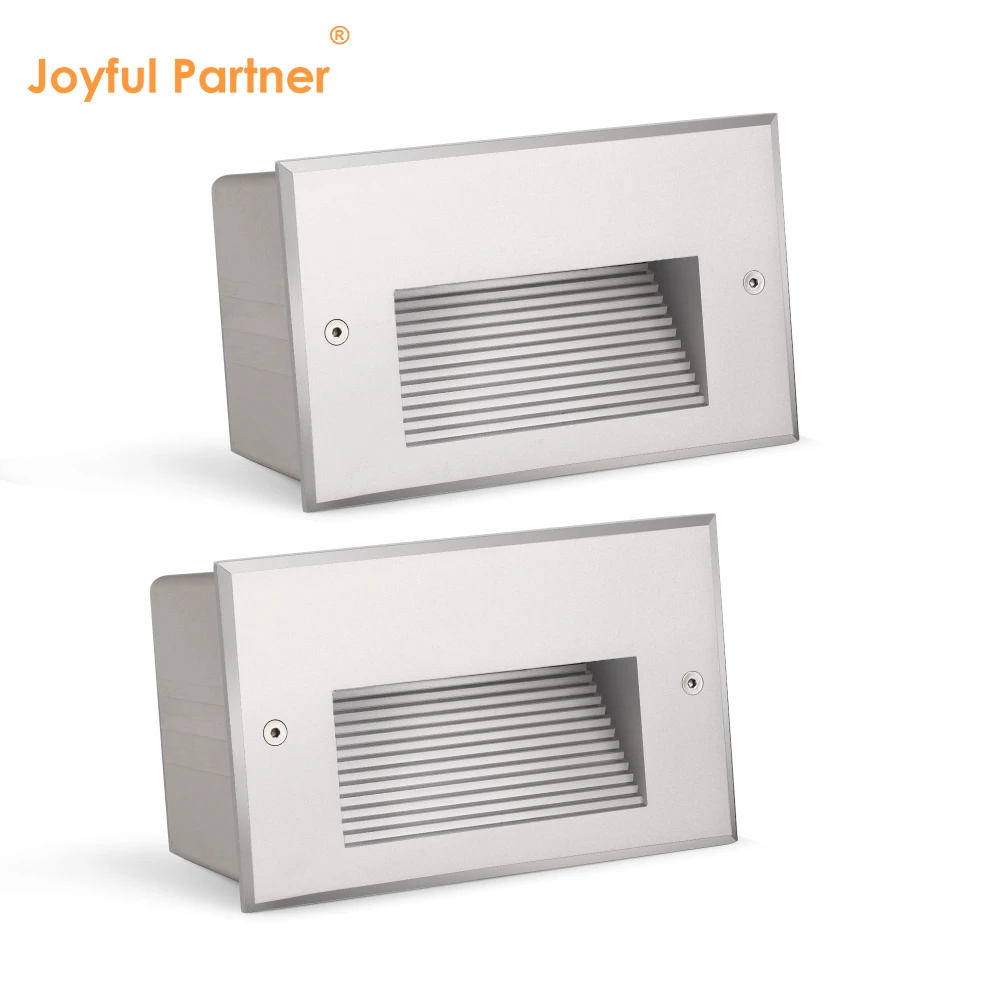

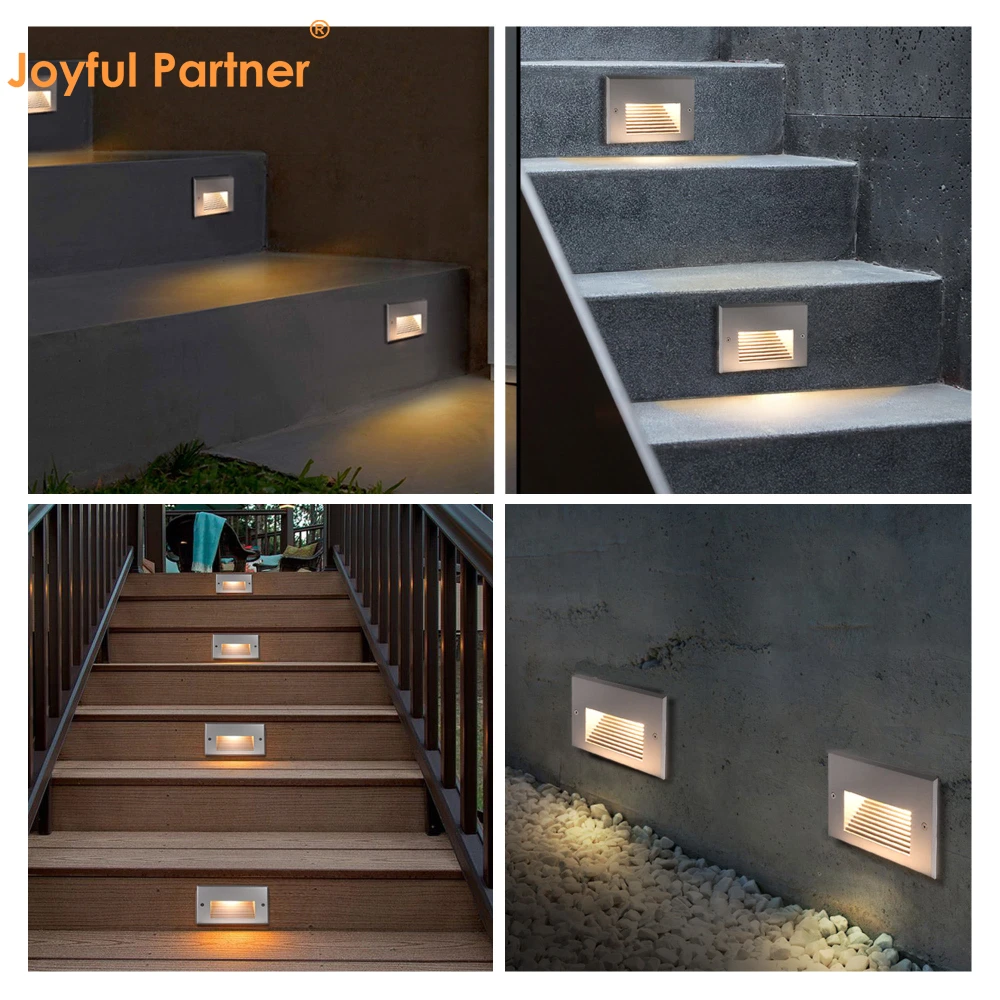

Recessed LED wall light specifically engineered for architectural pathway and step illumination.
ADC12 die-casting aluminum housing with an outdoor-grade powder-coated finish for superior weather resistance.
Includes high-impact 3mm tempered glass and a specialized optical lens with ≥85% light transmission efficiency.
Engineered with an IK10 impact resistance rating, providing maximum protection in high-traffic public areas.
Equipped with high-performance OSRAM SMD LEDs to deliver consistent and energy-efficient lighting performance.
Reliable IP65 waterproof protection ensured by precision tooling shaped seals and IP67 nickel-coated copper cable glands.
Model Specification Table
|
Item No. |
Light source |
Lens beam angle(°) |
Consumption(watt) |
Input Voltage(V) |
Ik rate |
|
819187 |
SMD2835*18 |
120° |
2.5 |
AC100-240V |
10 |
|
819088 |
6*1W OSRAM |
120° |
8.2 |
DC24V/AC100-240V |
10 |
|
819157 |
SMD3528*15 |
120° |
2.2 |
12VDC/24VDC |
10 |
|
819068 |
6*1W OSRAM |
120° |
6.2 |
DC24V/AC100-240V |
10 |

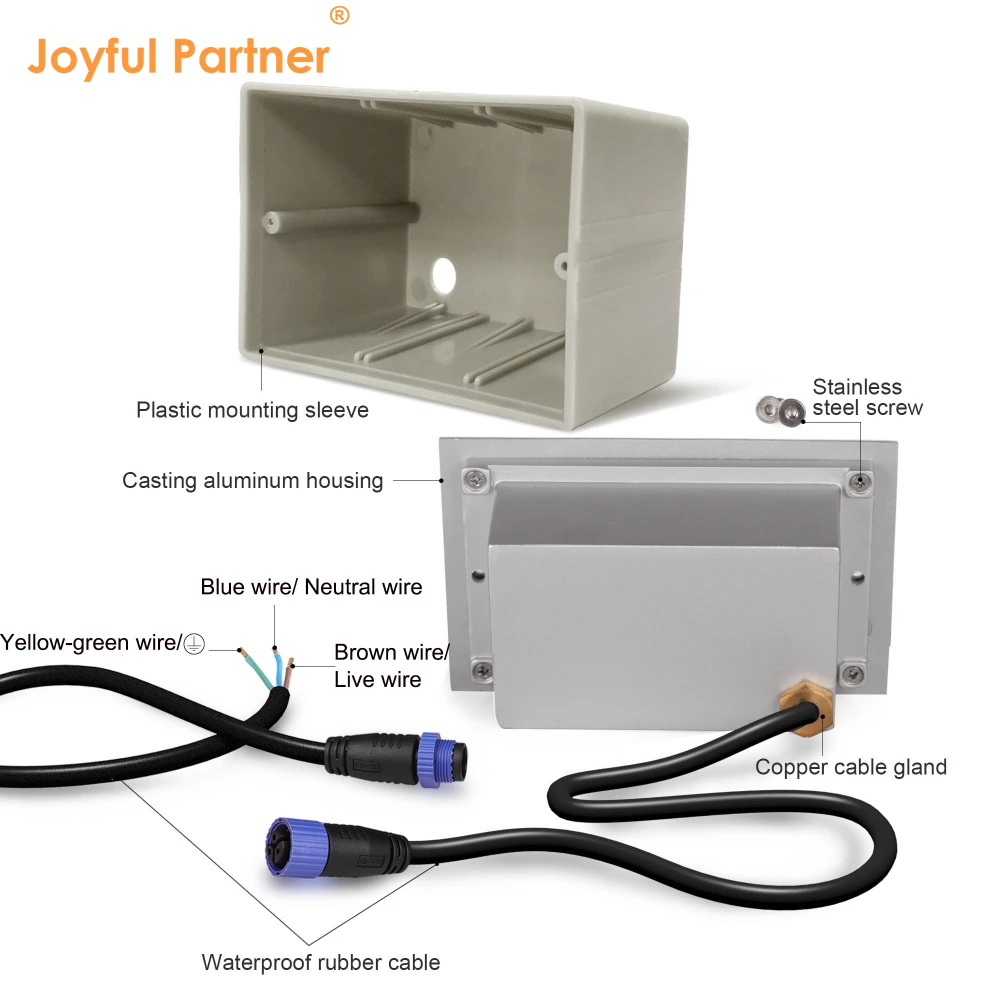

Material Specifications Table
|
Item |
Description |
|
Housing |
ADC12 Die-casting outdoor powder coated aluminum |
|
Front cover |
ADC12 Die-casting outdoor powder coated aluminum |
|
Glass |
Tempered glass. T=3mm |
|
Cable gland |
IP67 Copper and nickel coated |
|
Gasket |
Tooling shaped seal |
|
LED |
SMD LED or Customized LED |
|
PCB |
Excellent heat conductivity aluminum, coefficient of Heat Conductivity≥2.0w/mk |
|
Driver |
Constant current output |
|
Operating temperature |
-20℃~40℃ |
|
Power cable |
H05RN-F 2×0.75mm² L=0.3m (low voltage) / H05RN-F 3×0.75mm² L=0.3m (high voltage) |
