IP65 LED Recessed LED Wall Light & Stair Light Die-casting Aluminum 2.2W-8.2W OSRAM SMD LED Single Color for Architectural Decking Recessed LED Wall Light & Stair Light
Waterproof Rating: IP65
Material: ADC12# Die-casting outdoor powder coated aluminum
Model: 8190X / 8191X Series
Certification: IP65, RoHS, CE

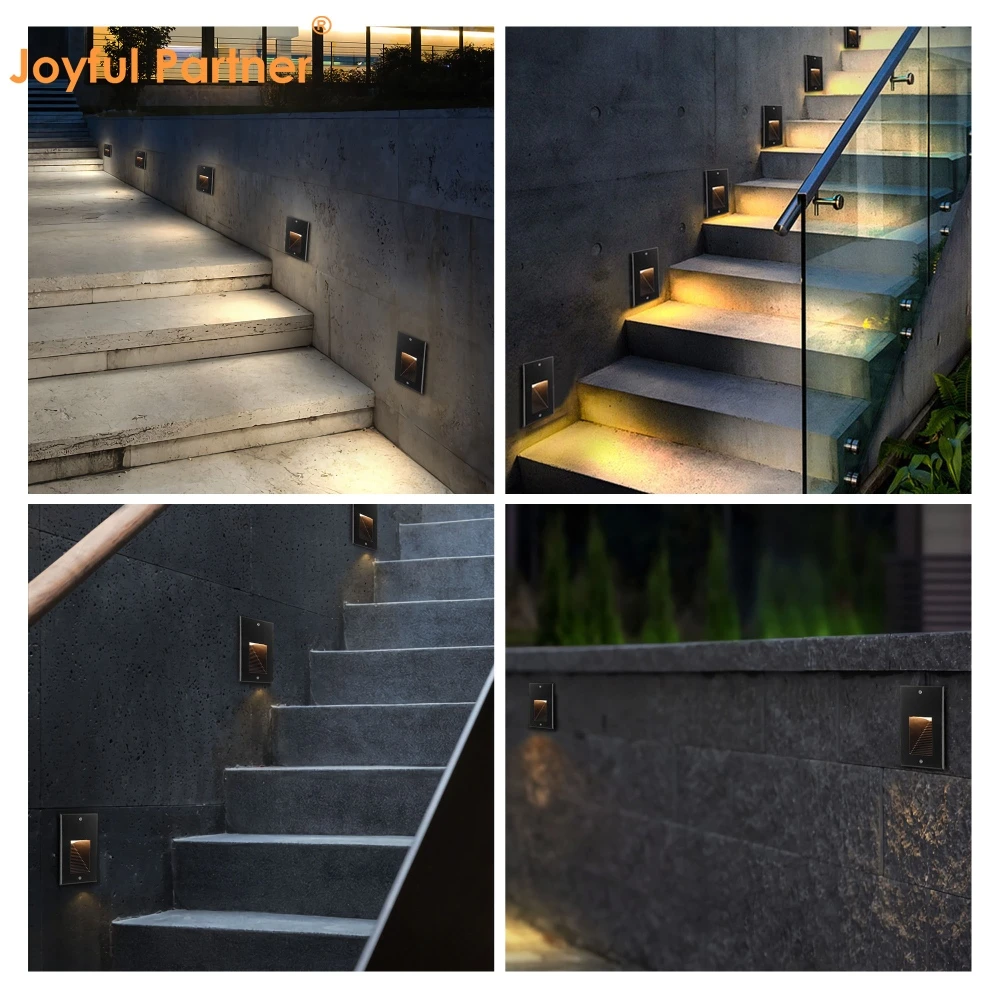

Professional recessed LED wall light designed for architectural safety and decorative pathway illumination.
Constructed with high-strength ADC12# die-casting aluminum housing with durable outdoor powder coating.
Features 3mm tempered glass and high-efficiency optical components for uniform light distribution.

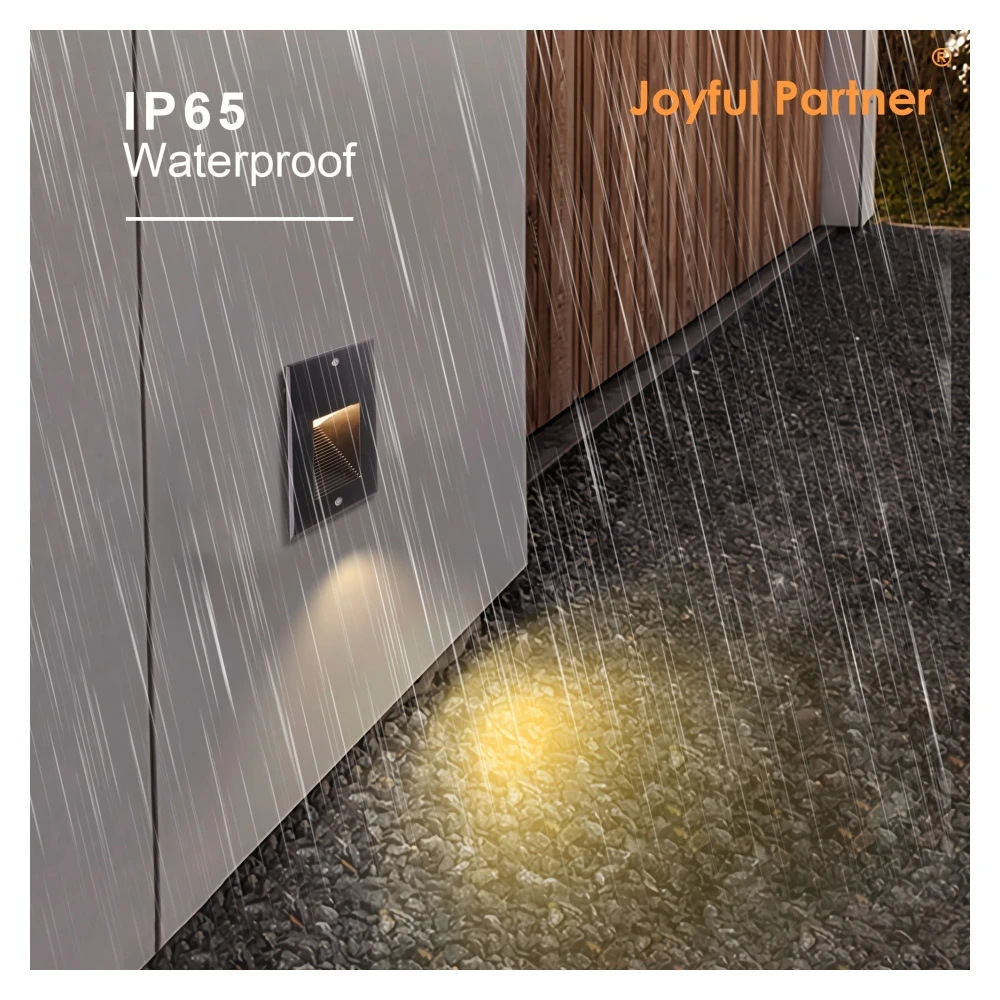

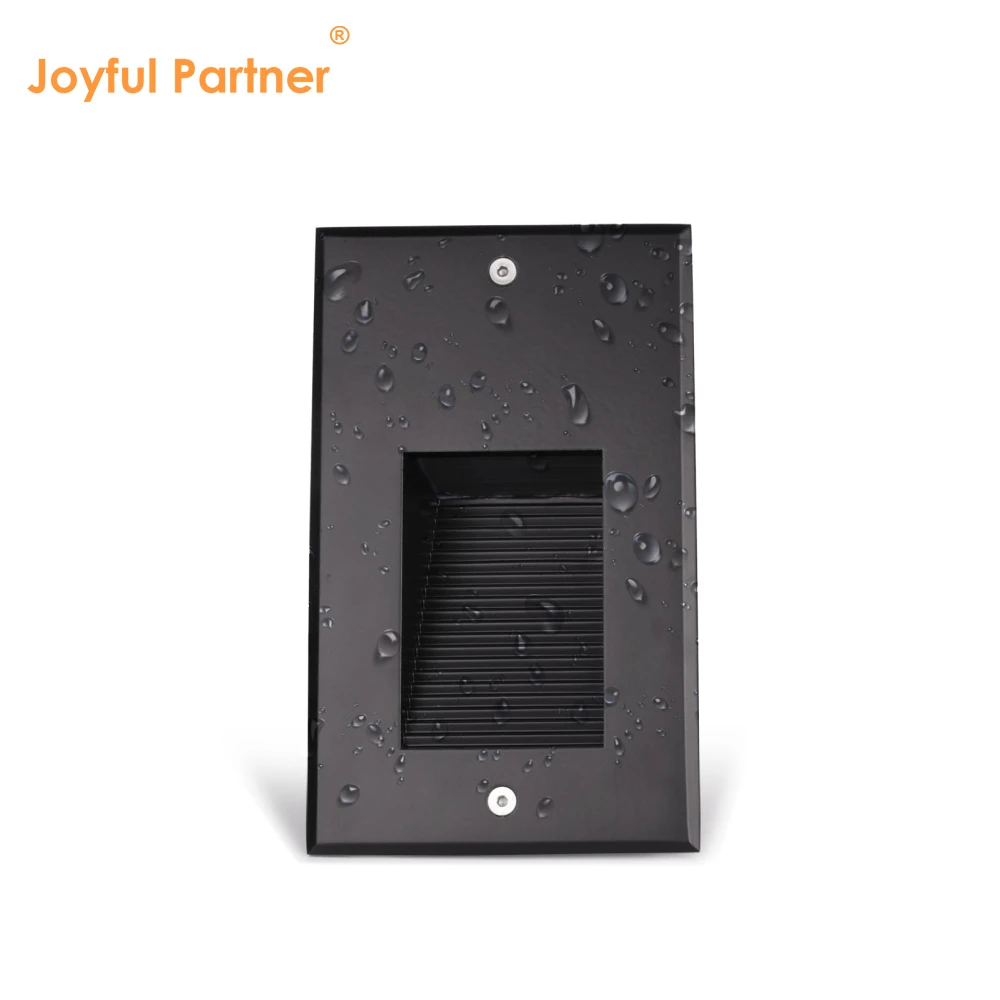

Reliable IP65 waterproof rating and IK10 impact resistance for harsh outdoor environments.
High-performance OSRAM and SMD LED light sources provide efficient output from 2.2W to 8.2W.

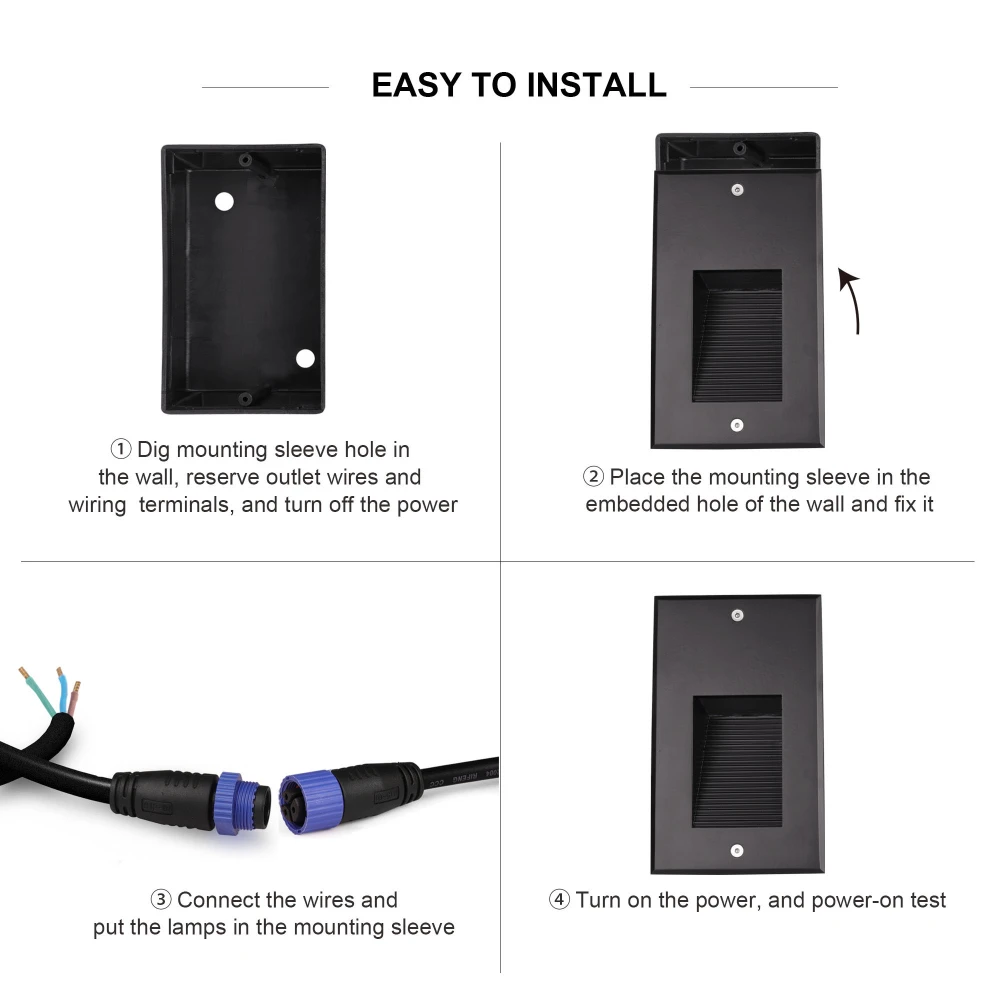

Simplified installation with integrated plastic sleeves for recessed mounting in walls and stairs.
Model Specification Table
|
Item No. |
Light source |
Lens beam angle(°) |
Consumption(watt) |
Input Voltage(V) |
Ik rate |
|
819187 |
SMD3528*18 |
120° |
2.5 |
AC100-240V |
10 |
|
819088 |
6*1W OSRAM |
120° |
8.2 |
DC24V/AC100-240V |
10 |
|
819157 |
SMD3528*15 |
120° |
2.2 |
AC100-240V |
10 |
|
819068 |
6*1W OSRAM |
120° |
6.2 |
DC24V/AC100-240V |
10 |
Material Specifications Table
|
Item |
Description |
|
Housing |
ADC12# Die-casting outdoor powder coated aluminum |
|
Front cover |
ADC12# Die-casting outdoor powder coated aluminum |
|
Glass |
Tempered glass. T=3mm |
|
Cable gland |
IP67 Copper and nickel coated |
|
Gasket |
Tooling shaped seal |
|
LED |
SMD LED or Customized LED |
|
PCB |
Excellent heat conductivity aluminum, coefficient of Heat Conductivity≥2.0w/mk |
|
Driver |
Constant current output |
|
Operating temperature |
-20℃~40℃ |
|
Power cable |
H05RN-F 2×0.75mm² L=0.3m (low voltage) / H05RN-F 3×0.75mm² L=0.3m (high voltage) |
