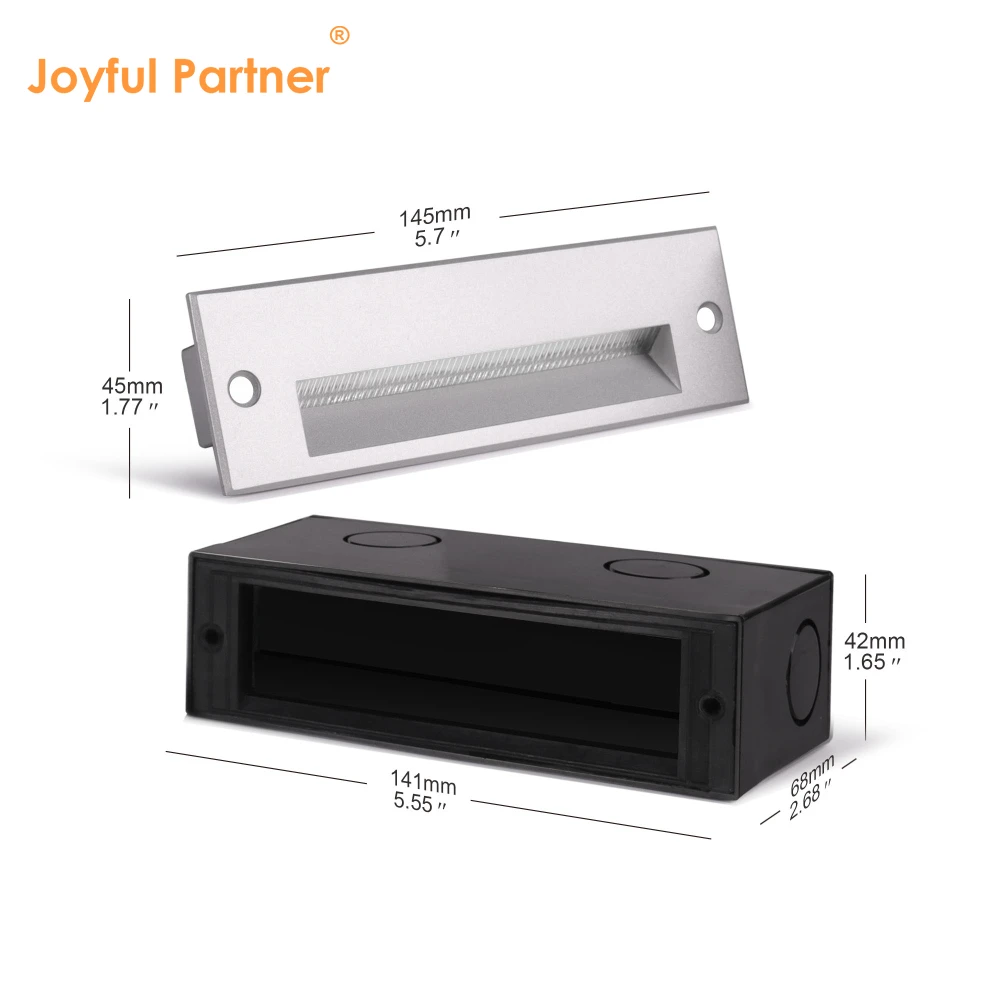

819067(L145*W45mm)
Waterproof Rating: IP65
Material: ADC12 Die-casting powder coated aluminum
Model: 819067
Certification: IP65, RoHS, CE

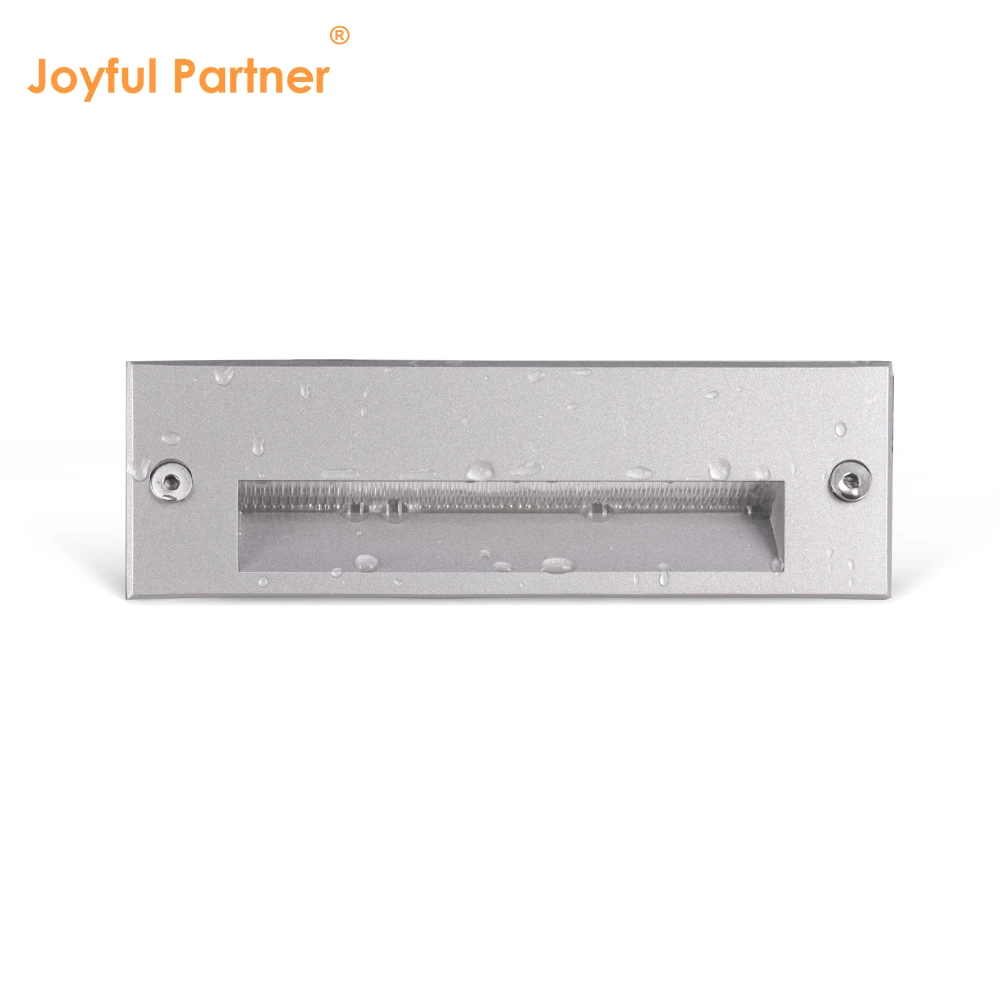

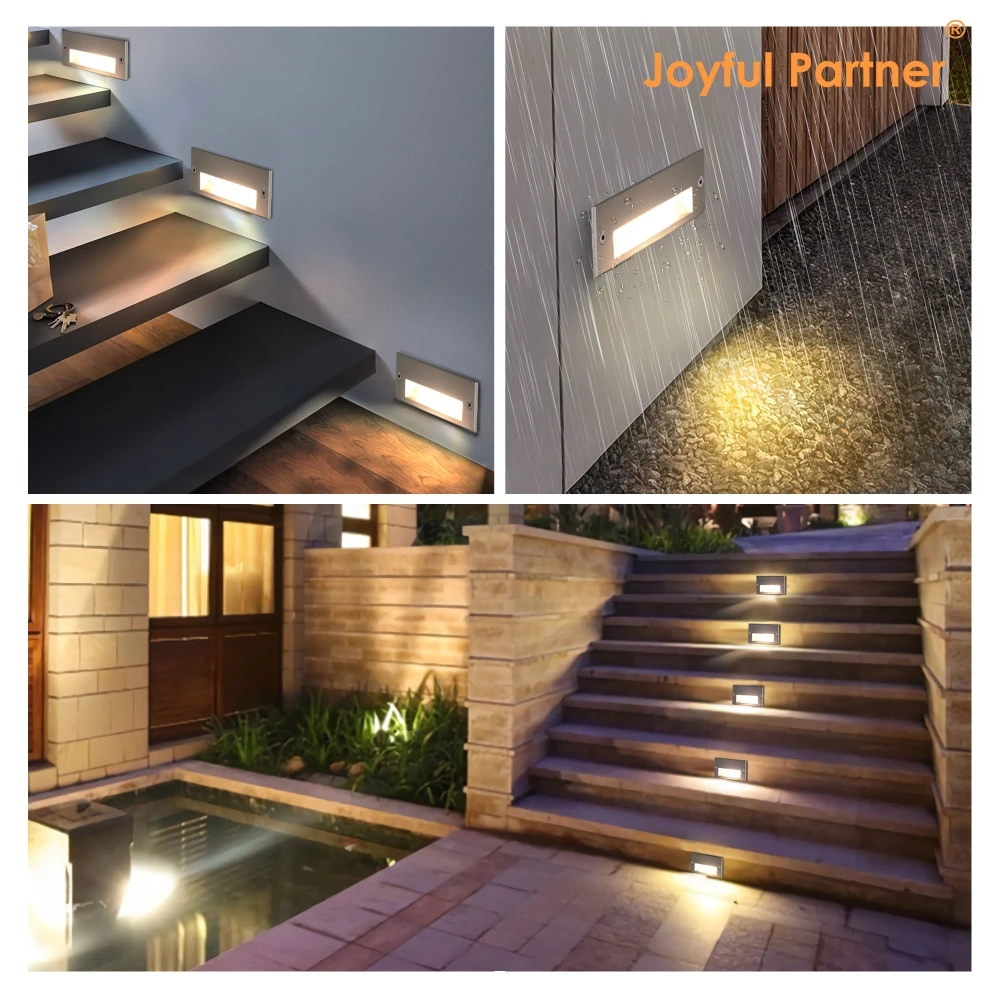

Professional linear recessed LED wall light designed for sophisticated path and stair illumination.
Features a high-strength ADC12 die-casting aluminum housing with durable powder-coated finish.
Equipped with 4mm tempered glass and high-efficiency optical lens featuring ≥85% light transmission.

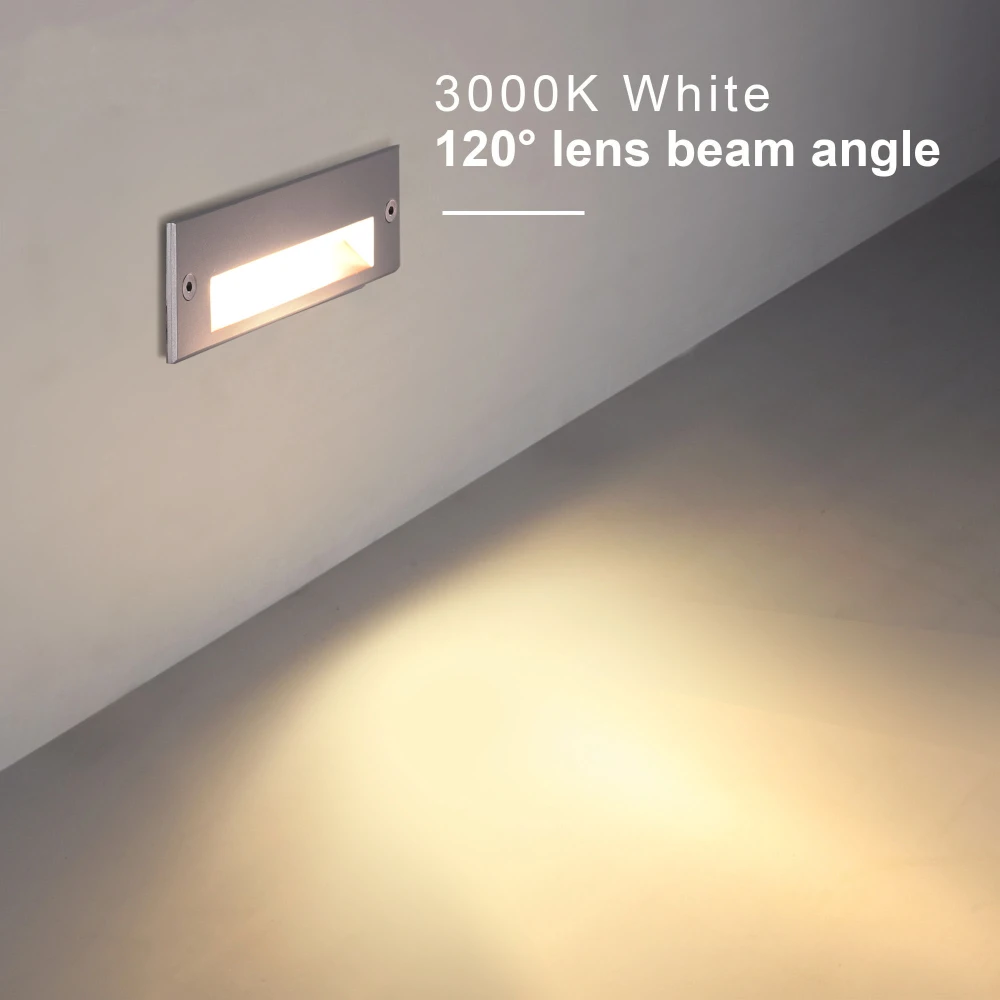

Built-in 6 high-performance SMD5630 LEDs delivering 3W output with a wide 60°/120° beam angle.
Certified with IP65 waterproof rating and IK09 impact resistance for reliable outdoor performance.

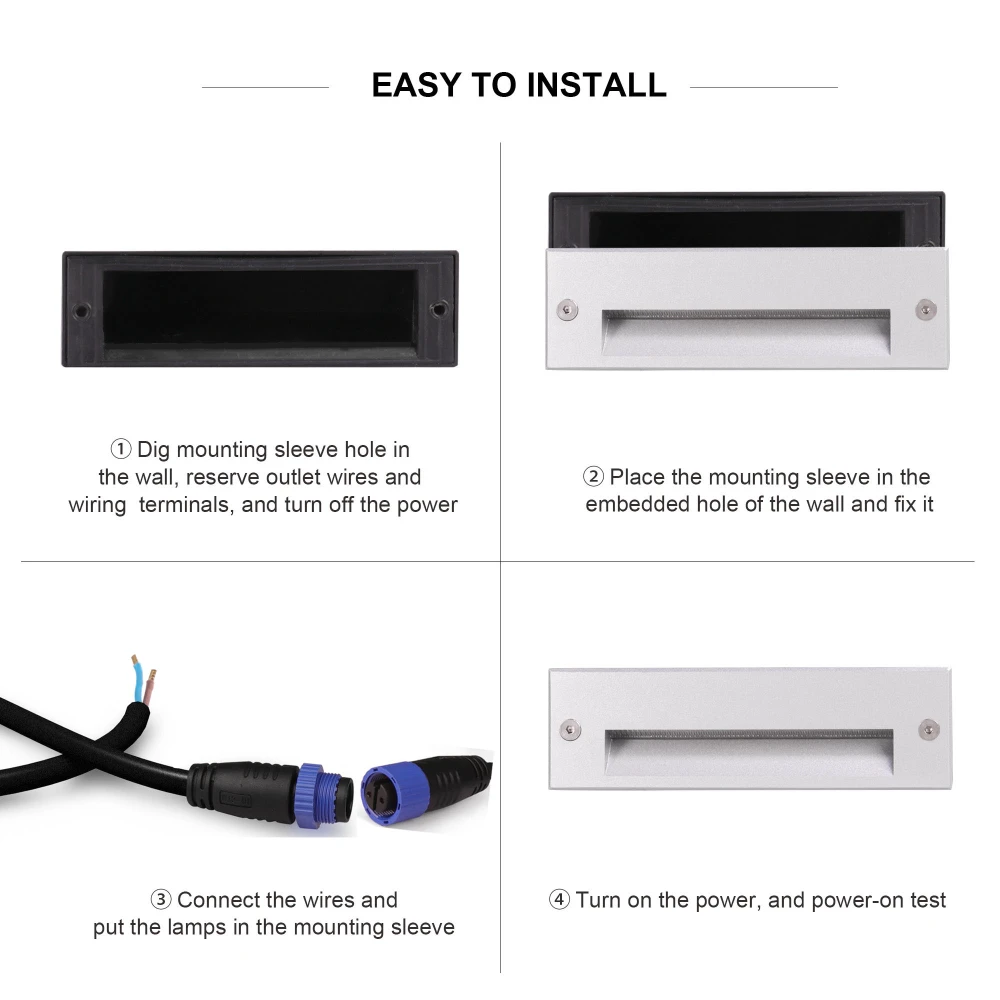

Optional mounting sleeve for diverse architectural needs.
Model Specification Table
|
Item No. |
Light source |
Lens beam angle(°) |
Consumption(watt) |
Input Voltage(V) |
Ik rate |
|
819067 |
SMD5630*6 |
60°/120° |
3.0 |
DC12V/DC24V AC100-240V |
09 |
Material Specifications Table
|
Item |
Description |
|
Housing |
ADC12 Die-casting powder coated aluminum |
|
Glass |
Tempered glass. T=4mm |
|
Lens |
Optical lens, efficiency≥85% |
|
Cable gland |
Copper and nickel coated |
|
Gasket |
Tooling shaped seal |
|
LED |
SMD LED |
|
PCB |
Excellent heat conductivity aluminum, coefficient of Heat Conductivity≥2.0w/mk |
|
Driver |
-20℃~40℃ |
|
Operating temperature |
Constant current output, single color LED=1-circuit output |
|
Power cable |
H05RN-F 2×0.75mm² L=0.3m (low voltage) / H05RN-F 3×0.75mm² L=0.3m (high voltage) |
