IP65 LED Square Recessed LED Wall Light Die-casting Aluminum 2W-3W OSRAM SMD LED Single Color 2700K-6000K Square recessed LED Wall Light/LED Stair Light
Waterproof Rating: IP65
Material: ADC12# Die-casting powder coated aluminum
Model: 815067 / 816067 Series
Certification: IP65, RoHS, CE

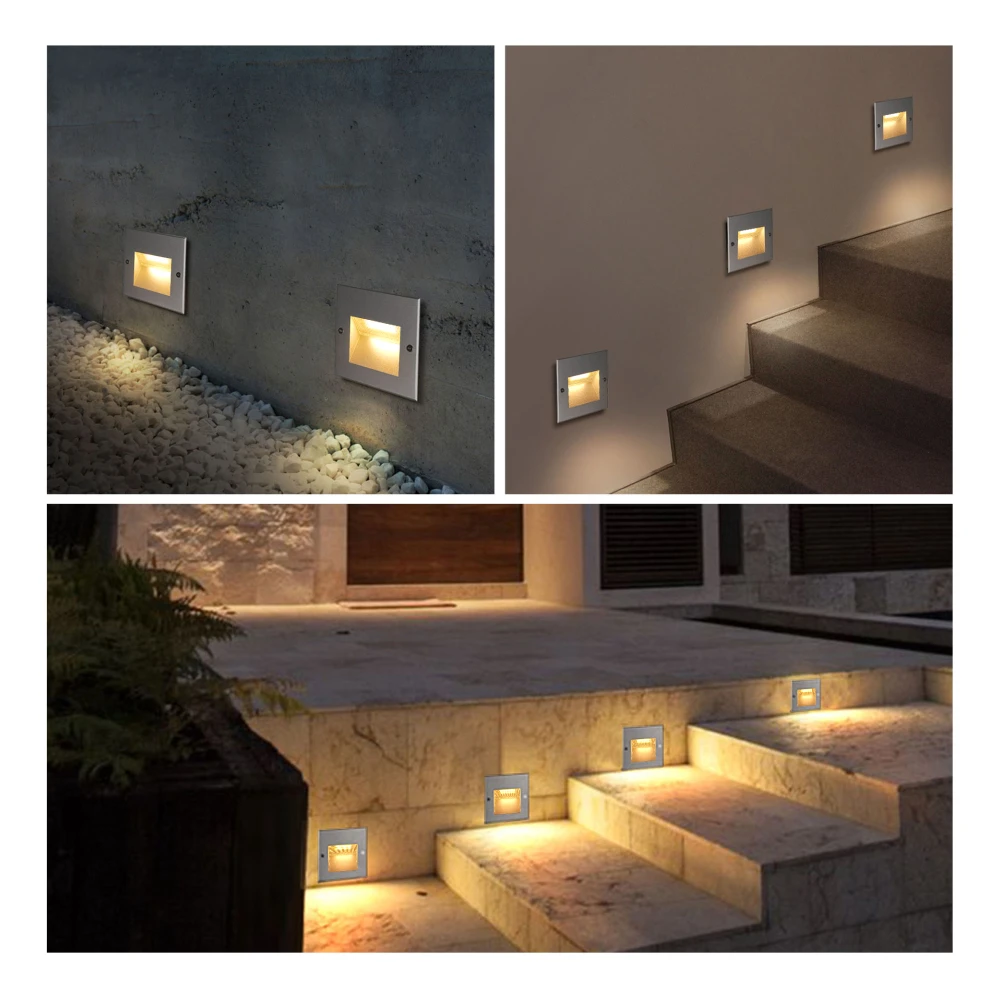

Professional square recessed LED wall light designed for path and stair illumination in modern outdoor spaces.
High-strength ADC12# die-casting aluminum housing with premium powder-coated finish for ultimate durability.
Equipped with 4mm tempered glass and high-efficiency optical lens featuring ≥85% light transmission.
Integrated with 6 OSRAM SMD2835 LED providing high-performance and energy-efficient 2W/3W output.
Engineered for safety with an IK10 impact resistance rating and reliable IP65 waterproof protection.

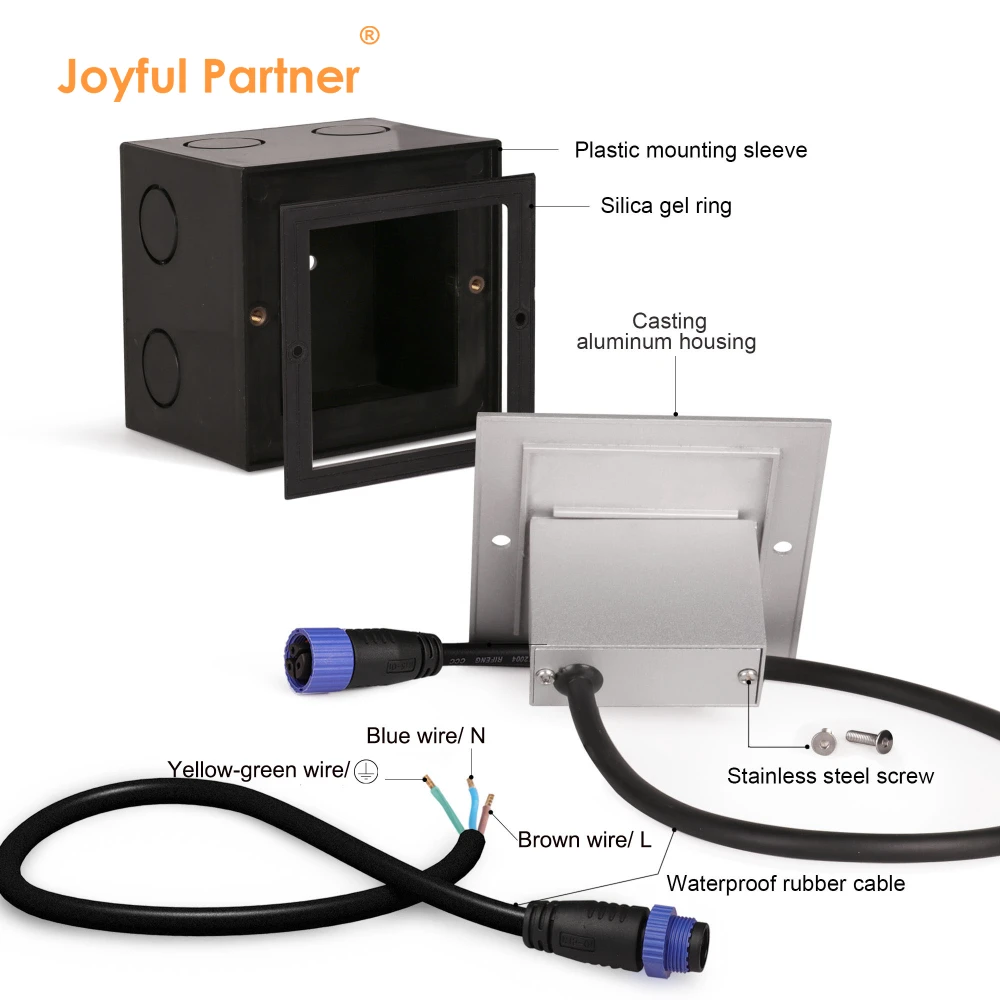

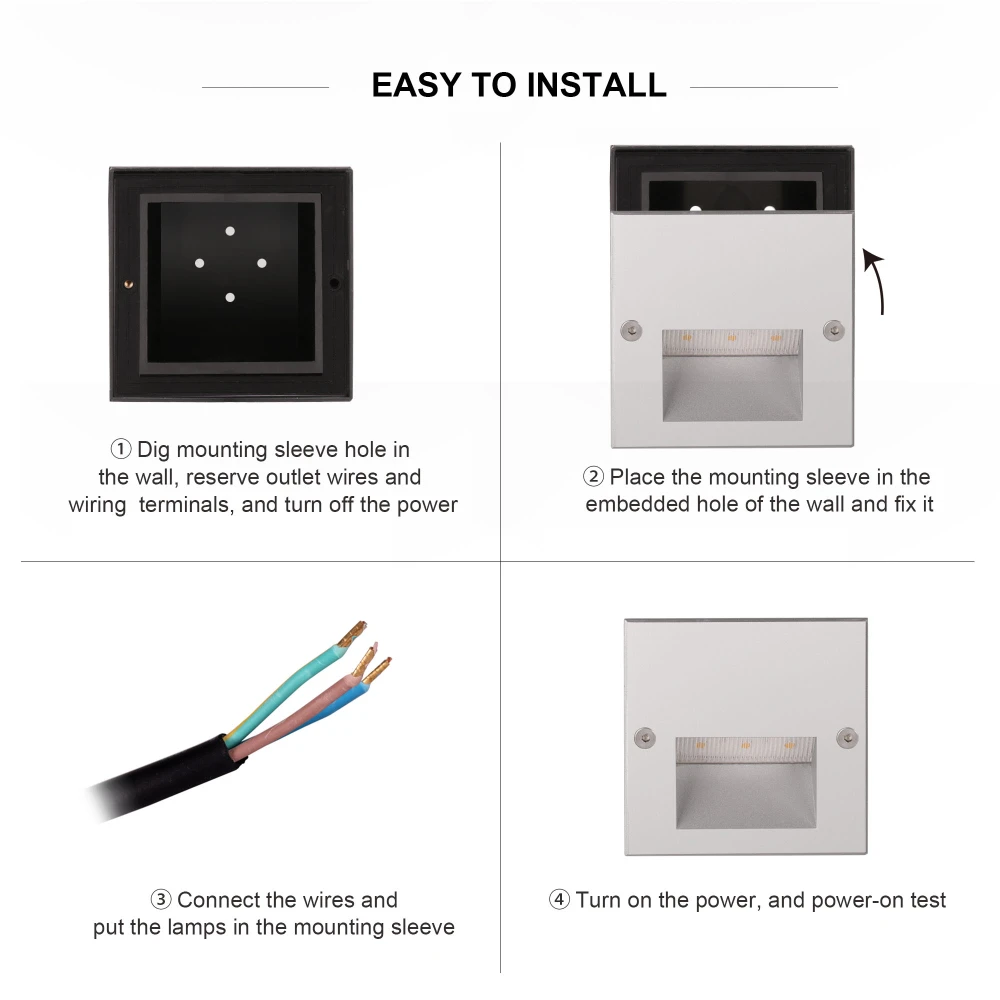

Flexible installation options with cir-clip design and optional plastic mounting sleeve for recessed applications.
Model Specification Table
|
Item No. |
Light source |
Lens beam angle(°) |
Consumption(watt) |
Input Voltage(V) |
Ik rate |
|
815067 |
OSRAM SMD2835*6 |
120° |
2W/3W |
DC12V/DC24V AC100-240V |
10 |
|
816067 |
OSRAM SMD2835*6 |
120° |
2W/3W |
DC24V AC100-240V |
10 |
Material Specifications Table
|
Item |
Description |
|
Housing |
ADC12# Die-casting powder coated aluminum |
|
Glass |
Tempered glass. T=4mm |
|
Lens |
Optical lens, efficiency≥85% |
|
Cable gland |
Copper and nickel coated |
|
Gasket |
Tooling shaped seal |
|
LED |
SMD or COB LED |
|
PCB |
Excellent heat conductivity aluminum, coefficient of Heat Conductivity≥2.0w/mk |
|
Driver |
-20℃~40℃ |
|
Operating temperature |
Constant current output, single color LED=1-circuit output |
|
Power cable |
H05RN-F 2×0.75mm² L=0.3m (low voltage) / H05RN-F 3×0.75mm² L=0.3m (high voltage) |
