Outdoor Recessed LED Wall Light 3W 3000K White Aluminum for Garden & Patio

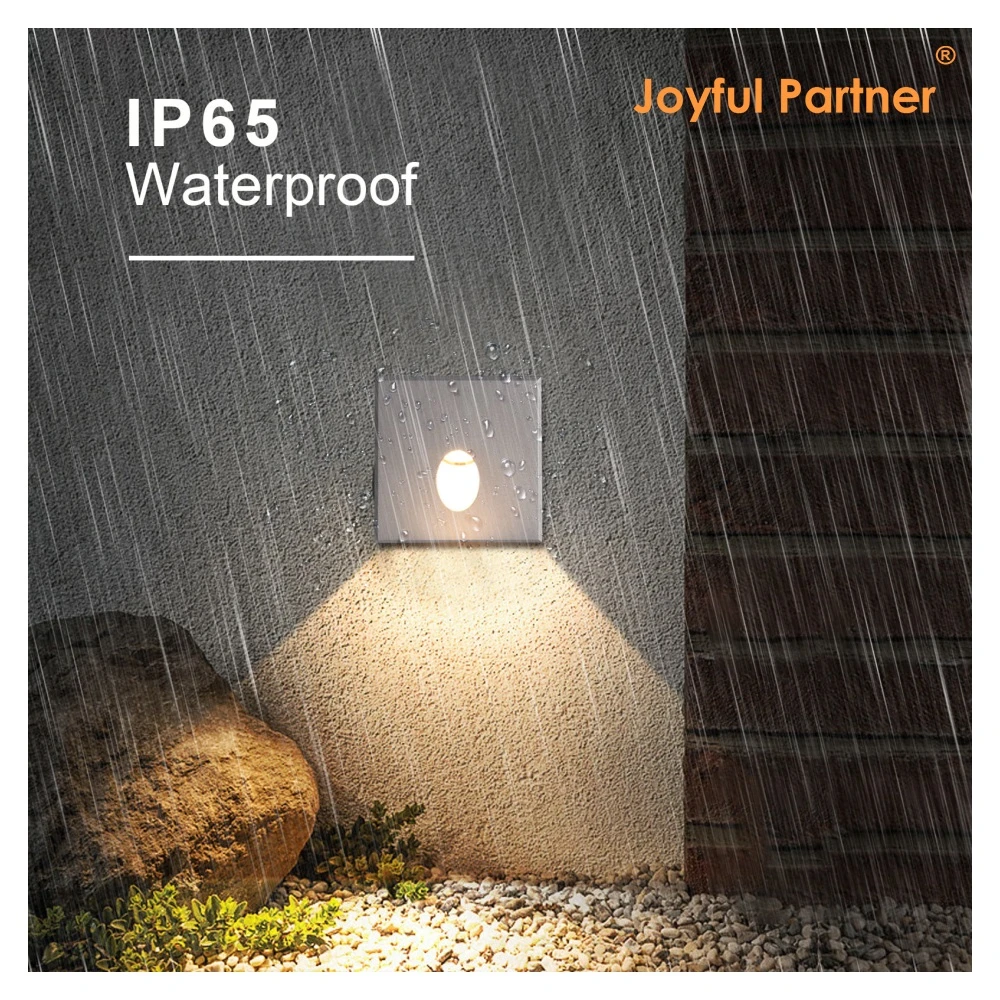

Waterproof Rating: IP65
Material: ADC12# Die-casting outdoor powder coated aluminum
Model: 1SR01 / 1SS01 / 1SR01AR Series
Certification: IP65, RoHS, CE

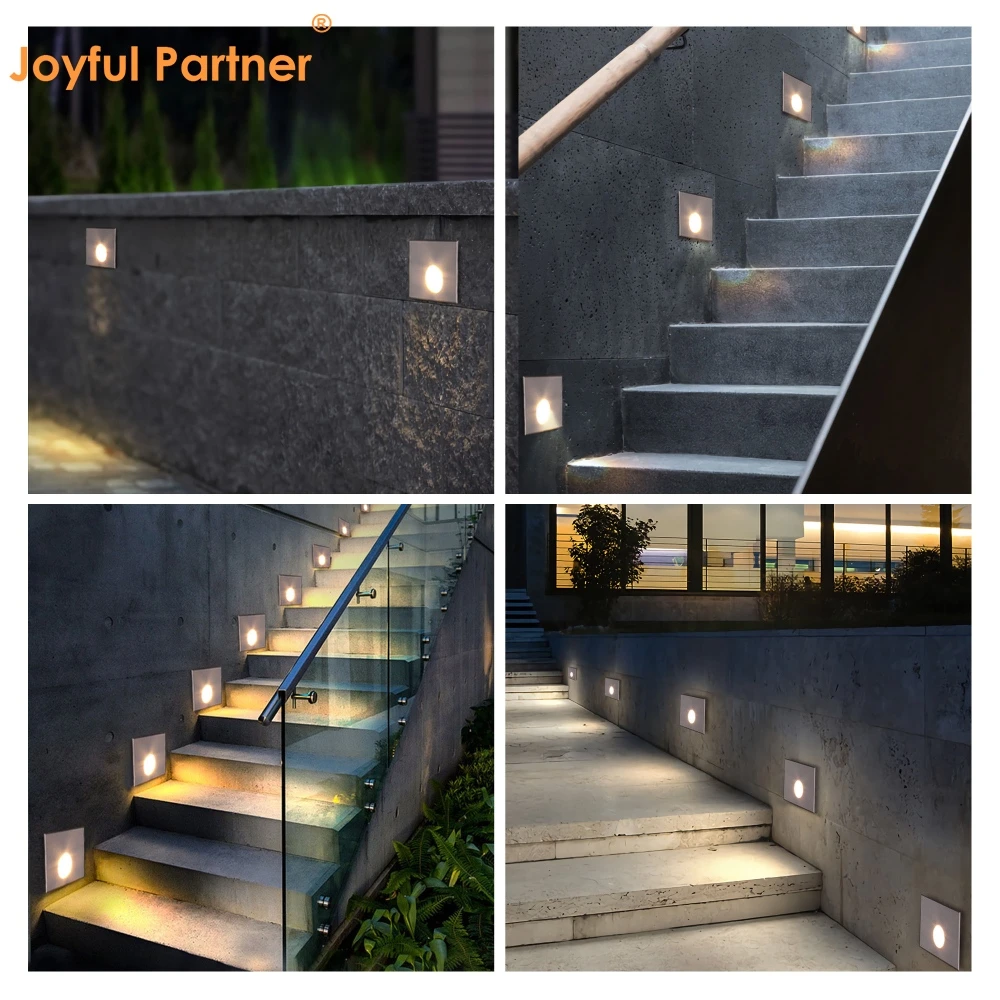

IP65 waterproof for outdoor stair/step/corn/stairway/park lighting use
Input Voltage: 12V/24VDC/100-240VAC for your option
IP65 rating with CE, ROHS certificated
Rated Lifespan: more than 50,000+ hours

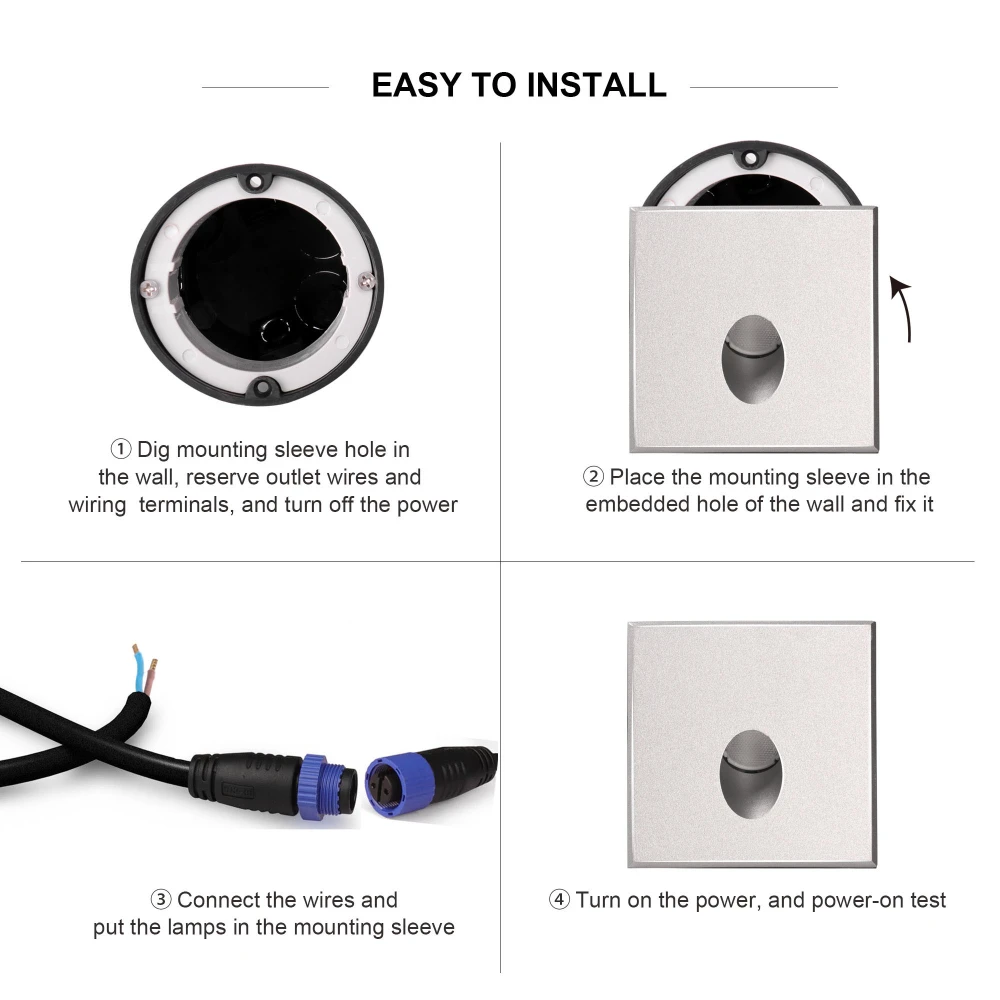

Easy to install and operate, with clips directly
Excellent heat conductivity aluminum, high efficiency constant current drivers
Housing color option: Gray/Silver RAL9005/Matt black RAL9006 other customized colors
Come with mounting sleeve
Model Specification Table
|
Item No. |
Light source |
Lens beam angle(°) |
Consumption(watt) |
Input Voltage(V) |
Ik rate |
|
1SR0101 / 1SS0101 / 1SR0101AR |
1*1W |
60° |
1.1 |
DC12V/DC24V |
10 |
|
1SR0101H / 1SS0101H / 1SR0101ARH |
1*1W |
60° |
1.3 |
AC100-240V |
10 |
|
1SR0102 / 1SS0102 / 1SR0102AR |
1*3W |
60° |
3 |
DC12V/DC24V |
10 |
|
1SR0102H / 1SS0102H / 1SR0102ARH |
1*3W |
60° |
3.3 |
AC100-240V |
10 |
|
1SR0107 / 1SS0107 / 1SR0107AR |
1*0.5W |
60° |
0.5 |
AC100-240V / DC12V/DC24V |
10 |
Material Specifications Table
|
Item |
Description |
|
Housing |
ADC12# Die-casting outdoor powder coated aluminum |
|
Glass |
Tempered glass. T=2mm |
|
Lens |
Optical lens, efficiency≥85% |
|
Cable gland |
M12 nickel coated copper |
|
Gasket |
Tooling shaped seal |
|
LED |
Epistar or CREE power LED. Ra>80 |
|
PCB |
Excellent heat conductivity aluminum, coefficient of Heat Conductivity≥2.0w/mk |
|
Driver |
Constant current output |
|
Operating temperature |
-20℃~40℃ |
|
Power cable |
H05RN-F 2×0.75mm² L=0.3m (low voltage) / H05RN-F 3×0.75mm² L=0.3m (high voltage) |
