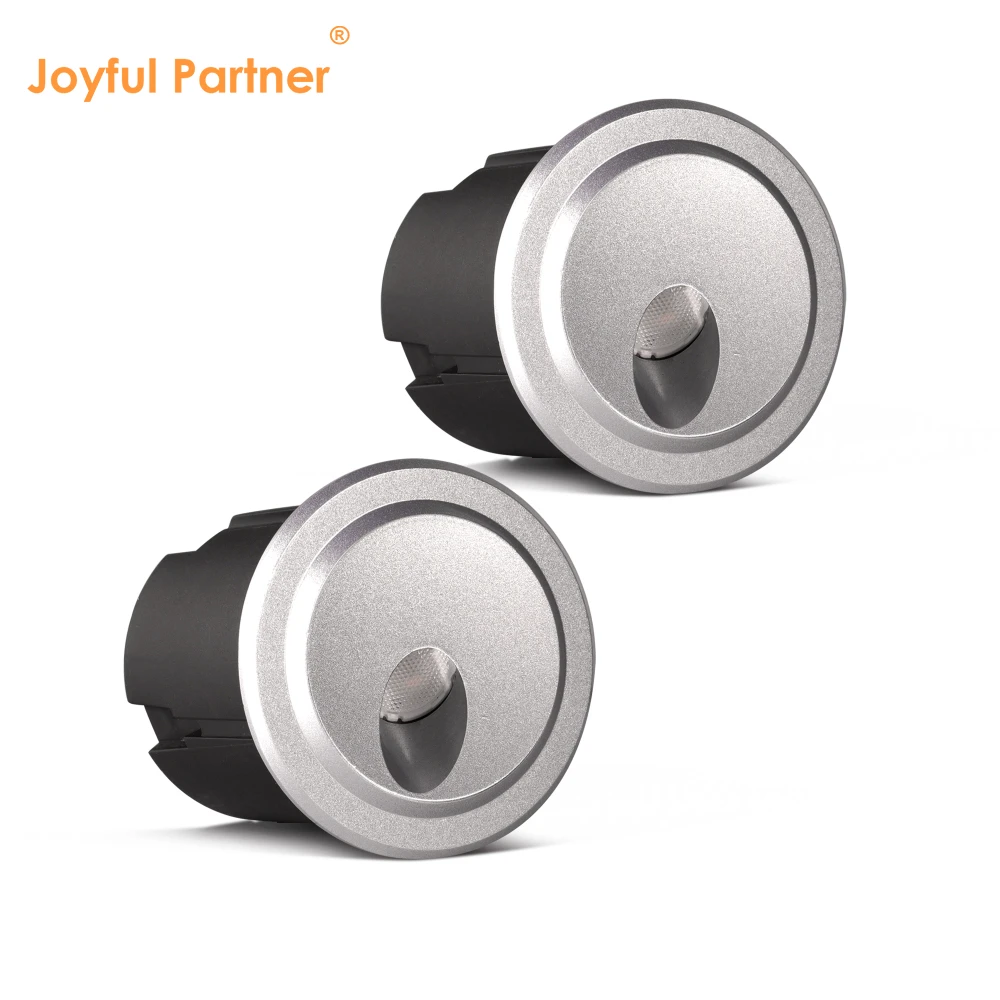

Outdoor Recessed Wall Light IP65 Waterproof Casting Aluminum Housing LED 3000K For Stairs Recessed LED Stair Light/LED Step Light
Waterproof Rating: IP65
Material: ADC12# Die-casting powder coated aluminum
Model: 1QR010X / 1QS010X Series
Certification: IP65, RoHS, CE

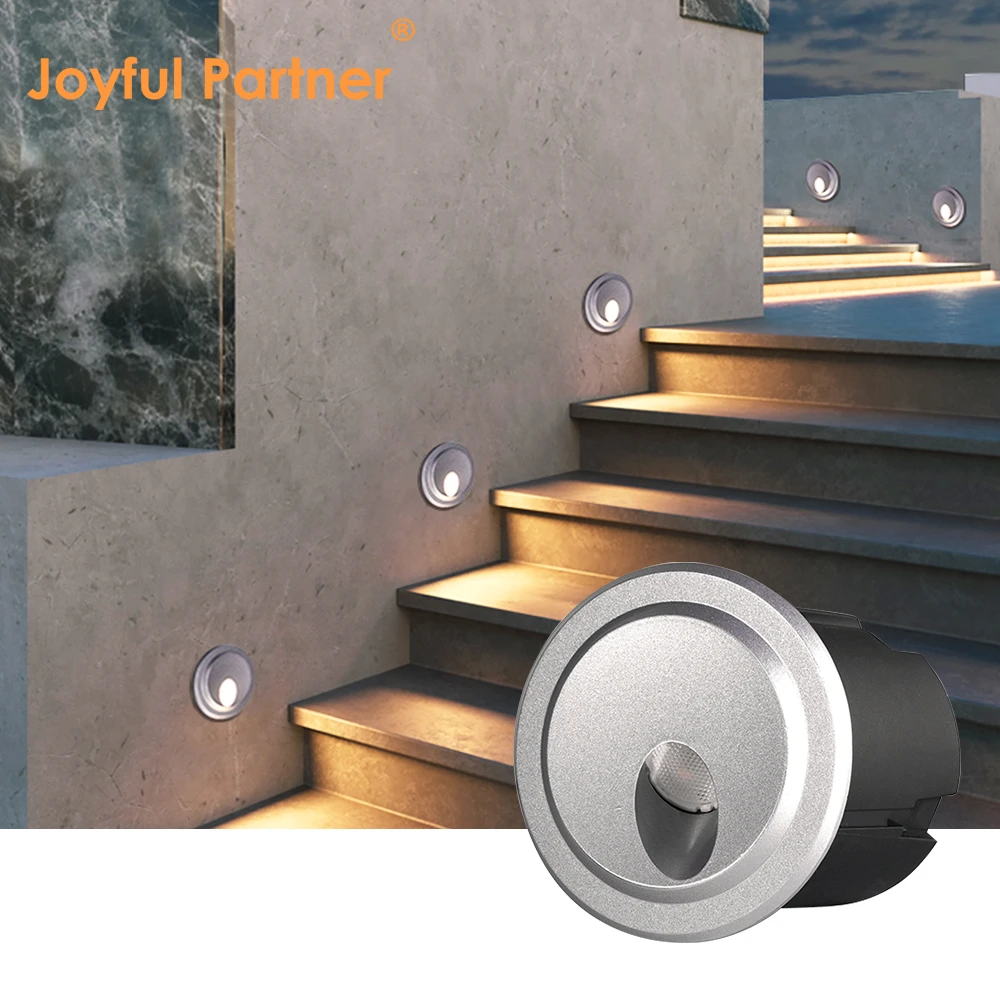

Designed for professional recessed wall and stair lighting in outdoor environments.
High-strength ADC12# die-casting aluminum housing with durable powder-coated finish.
Features 2mm tempered glass and high-efficiency optical lens with ≥85% efficiency.
Engineered for safety with an IK10 impact resistance rating for public and commercial spaces.
Reliable IP65 protection ensured by tooling shaped seals and M12 nickel-coated copper cable glands.

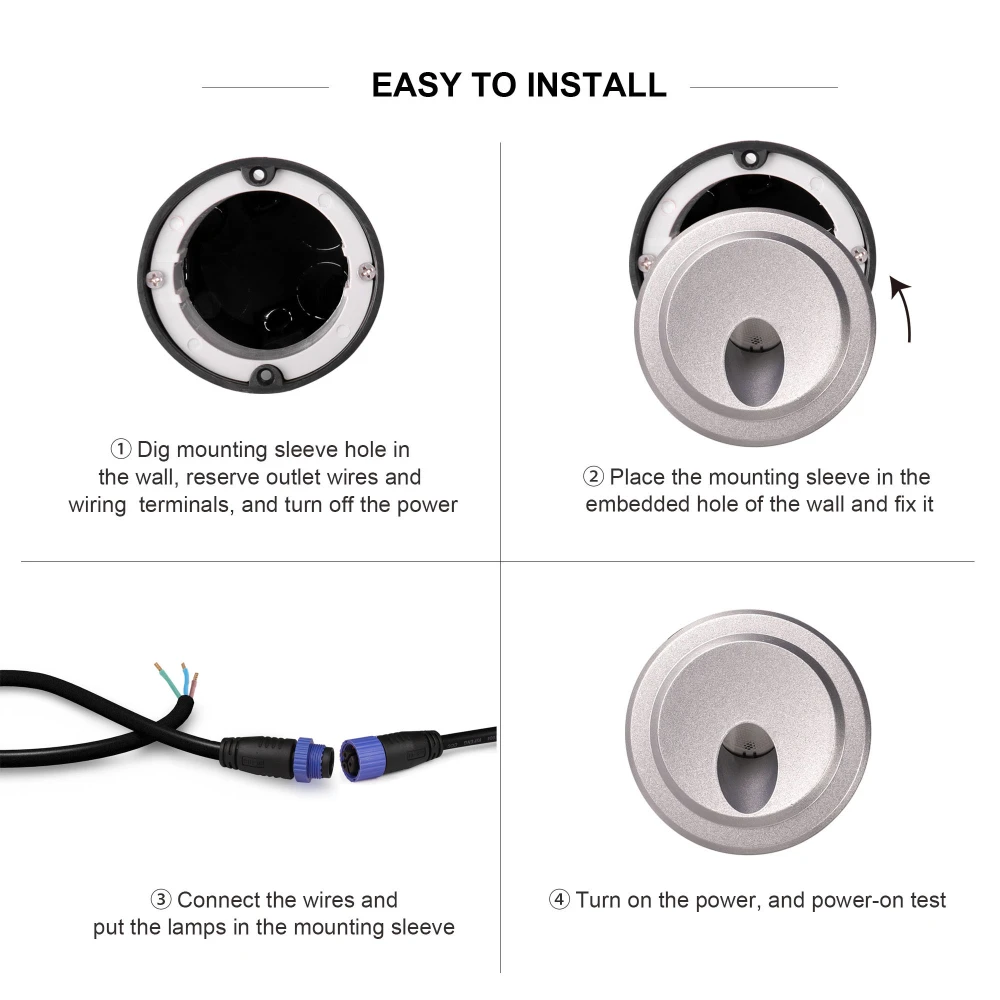

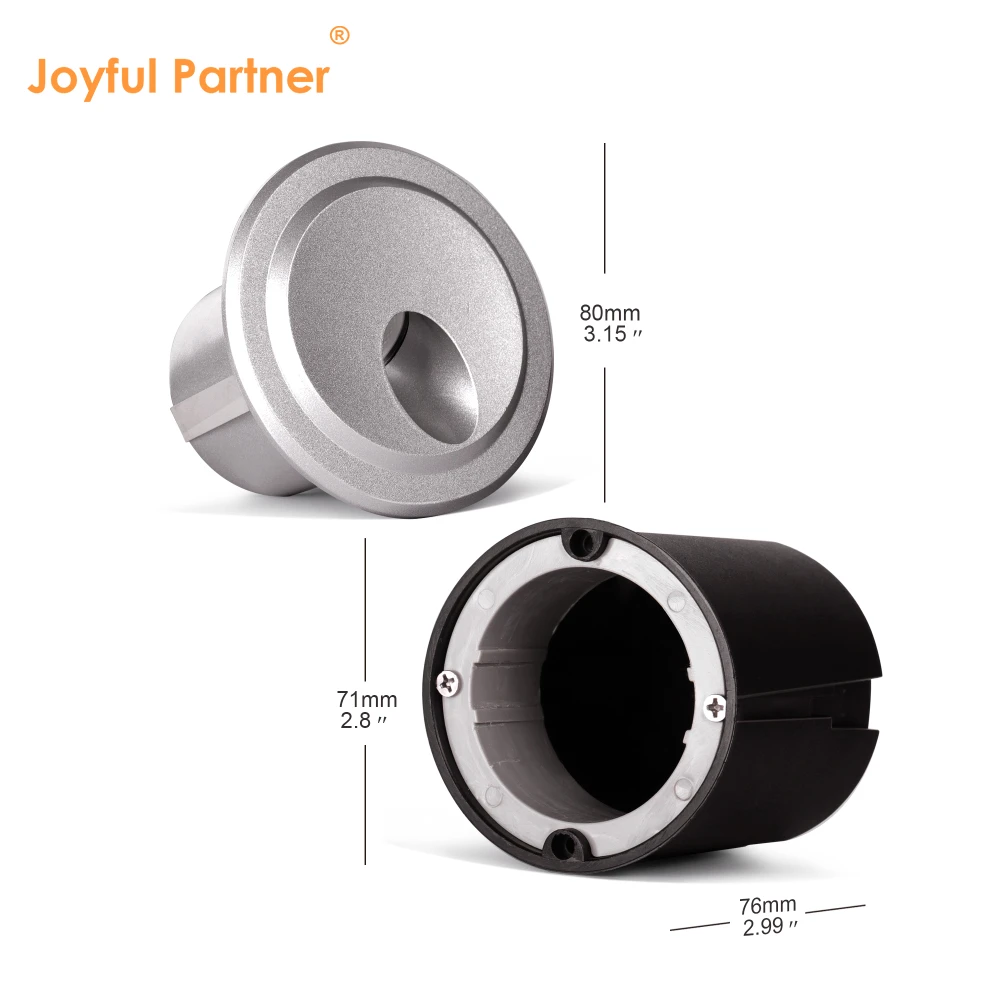

Versatile installation options available in both round and square form factors with integrated mounting sleeves.
Model Specification Table
|
Item No. |
Light source |
Lens beam angle(°) |
Consumption(watt) |
Input Voltage(V) |
Ik rate |
|
1QR0101 / 1QS0101 |
1*1W |
60° |
1.1 |
DC12V/DC24V |
10 |
|
1QR0101H / 1QS0101H |
1*1W |
60° |
1.3 |
AC100-240V |
10 |
|
1QR0102 / 1QS0102 |
1*2W |
60° |
2.5 |
DC12V/DC24V |
10 |
|
1QR0102H / 1QS0102H |
1*3W |
60° |
3.3 |
AC100-240V |
10 |
|
1QR0107 / 1QS0107 |
1*0.5W |
60° |
0.5 |
AC100-240V / DC12V/DC24V |
10 |
Material Specifications Table
|
Item |
Description |
|
Housing |
ADC12# Die-casting powder coated aluminum |
|
Glass |
Tempered glass. T=2mm |
|
Lens |
Optical lens, efficiency≥85% |
|
Cable gland |
M12 nickel coated copper |
|
Gasket |
Tooling shaped seal |
|
LED |
Epistar or CREE power LED. Ra>80 |
|
PCB |
Excellent heat conductivity aluminum, coefficient of Heat Conductivity≥2.0w/mk |
|
Driver |
-20℃~40℃ |
|
Operating temperature |
Constant current output, single color LED=1-circuit output |
|
Power cable |
H05RN-F 2×0.75mm² L=0.3m (low voltage) / H05RN-F 3×0.75mm² L=0.3m (high voltage) |
