LSW178-18W（Ø178mm）
Waterproof Rating: IP68
Material: High-strength PC+ABS
Model: LSW178X Series (AC)
Certification: IP68, RoHS, CE | Control: Switch, Remote, APP, DALI, 0-10V
Professional wall-mounted underwater light series featuring a massive DIA 260MM footprint for powerful aquatic center illumination.
A fully potted PAR56 LED bulb for direct replacement inside existing pool housings. AC series floods the panel with epoxy resin, sealing each LED against water and corrosion, so it works in chlorinated or salt water. Four steps: 18W to 42W at AC12V, running 252 to 540 SMD2835 chips through a 120 degree beam. Warm white, natural white, cool white, red, green, blue, RGB and RGBW. PC+ABS body at 178mm diameter, CRI above 80, IP68, CE and RoHS marked, working from -20°C to 40°C. Controller sold separately. Install underwater only.

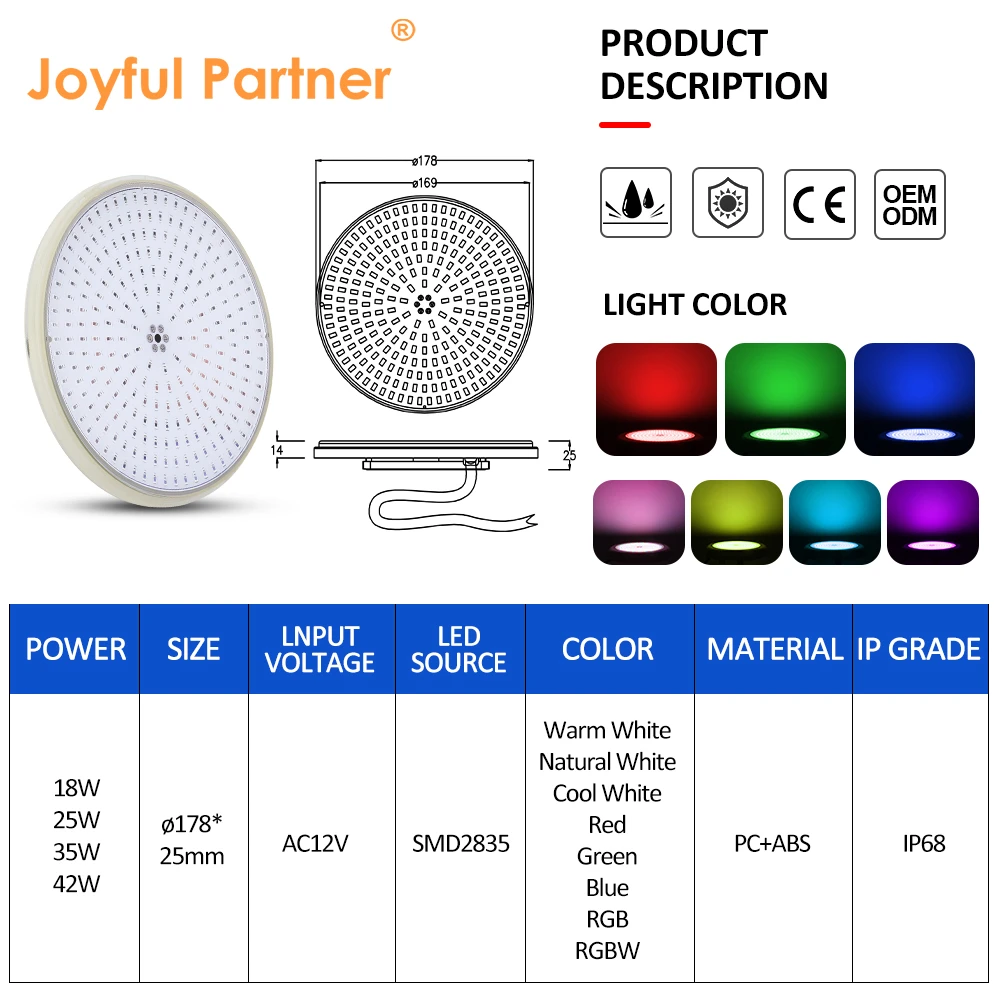

Model Specification Table
|
Item No. |
LED Qty (PCS) |
Power (Watts) |
Input Voltage |
LED Color |
Beam angle |
Material |
|
LSW178-18W |
SMD2835 252pcs |
18W |
AC12V |
Warm/Natural/Cool White/Red/Green/Blue/RGB/RGBW |
120° |
PC+ABS |
|
LSW178-25W |
SMD2835 324pcs |
25W |
AC12V |
Warm/Natural/Cool White/Red/Green/Blue/RGB/RGBW |
120° |
PC+ABS |
|
LSW178-35W |
SMD2835 432pcs |
35W |
AC12V |
Warm/Natural/Cool White/Red/Green/Blue/RGB/RGBW |
120° |
PC+ABS |
|
LSW178-42W |
SMD2835 540pcs |
42W |
AC12V |
Warm/Natural/Cool White/Red/Green/Blue/RGB/RGBW |
120° |
PC+ABS |
Material Specifications Tab
|
Item |
Description |
|
Material |
PC+ABS |
|
LED |
High bright SMD LED |
|
CRI |
Ra>80% |
|
IP Grade |
IP68 |
|
Operating temperature |
-20℃~40℃ |
|
Power cable |
H05RN-F 2*1.0mm²=2m(for single color) / H05RN-F 4*1.0mm²=2m(for RGB/RGBW) |
|
Control mode |
Switch control, Remote control(RF,IR), APP, DALI, 0-10V ... |
Epoxy-potted panel: the whole light source sits in resin, so water never reaches the LEDs and corrosion is held off.
Built as a replacement lamp: drops into existing PAR56 housings, so failed lamps are swapped without new fittings.
Four power steps, eight colors: 18W to 42W with 252-540 SMD2835 chips, a 120 degree beam, white tones plus RGB and RGBW.
IP68 at AC12V: built for continuous underwater use from -20°C to 40°C in a PC+ABS shell; controller sold separately.
