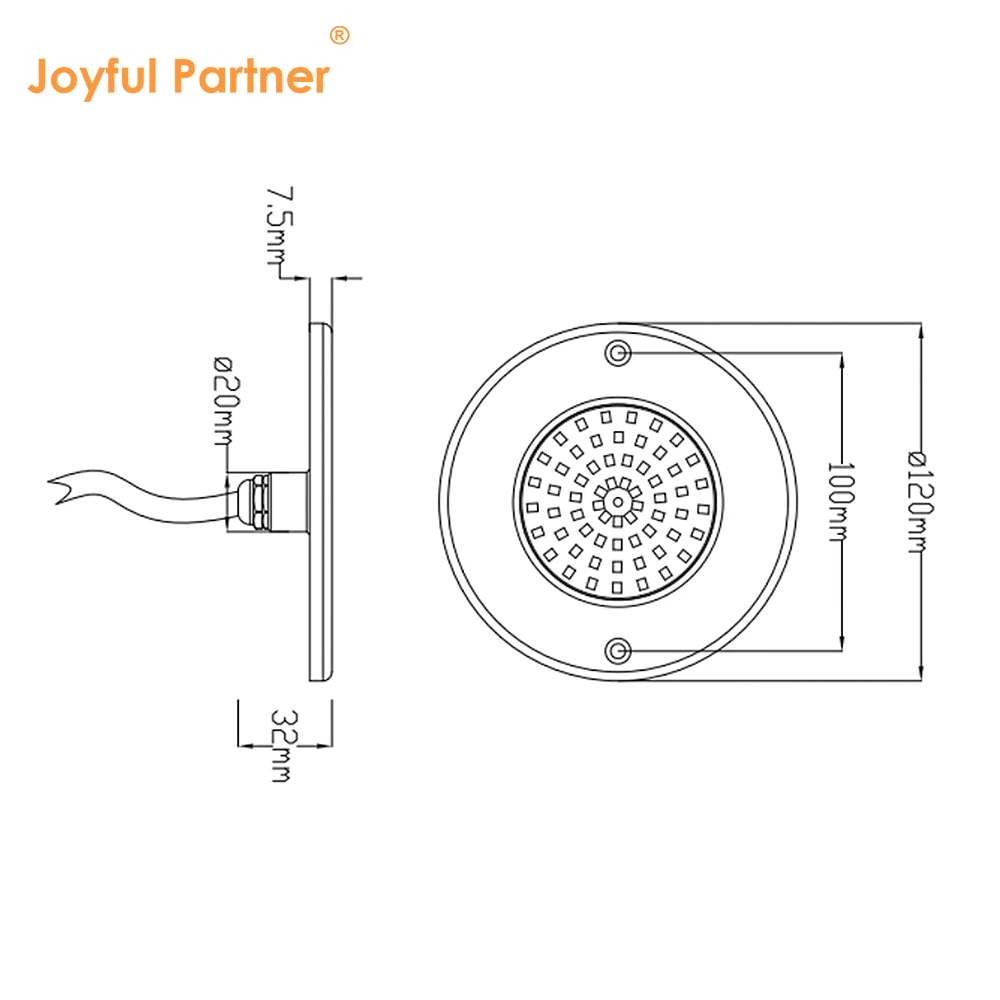

JPP12006（Ø120*H7.5 mm）
Waterproof Rating: IP68
Material: ABS+PC
Model: JPP12006 (DC12V)

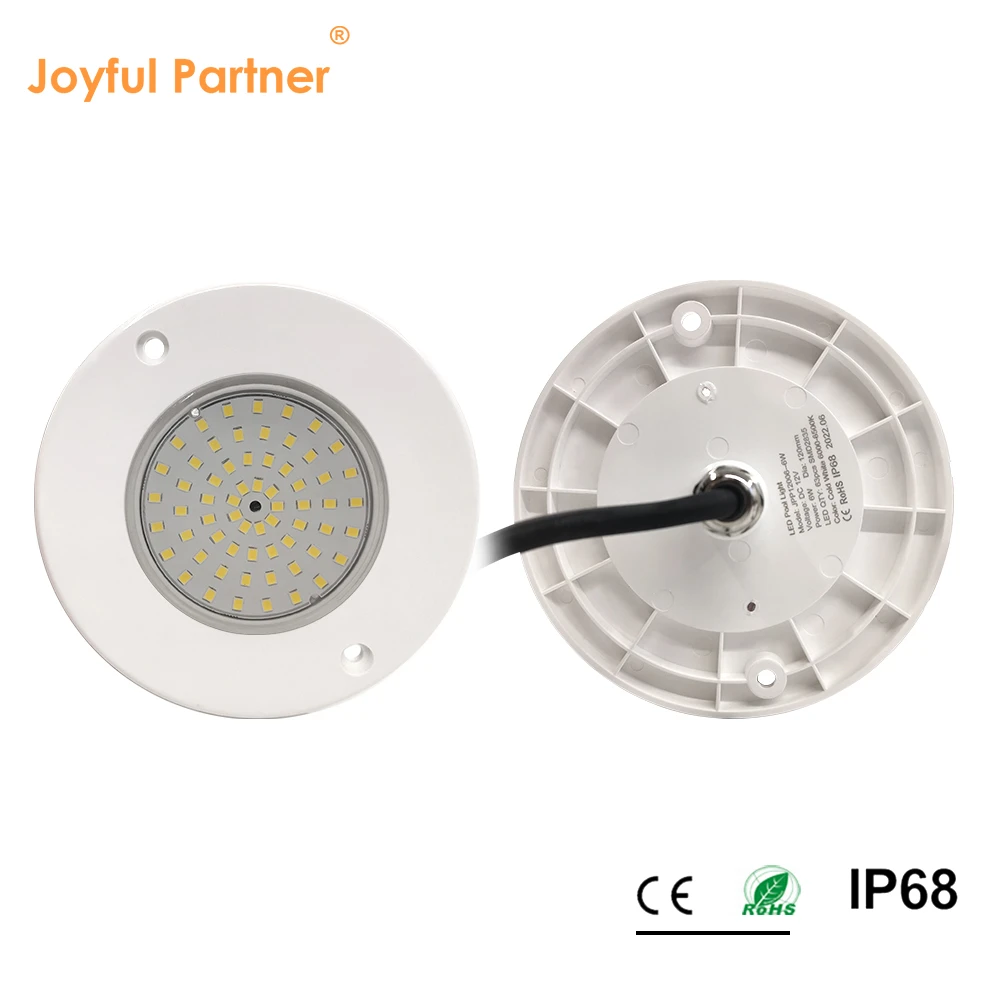

Certification: IP68, RoHS, CE | Control: Switch, Remote, APP, DALI, 0-10V

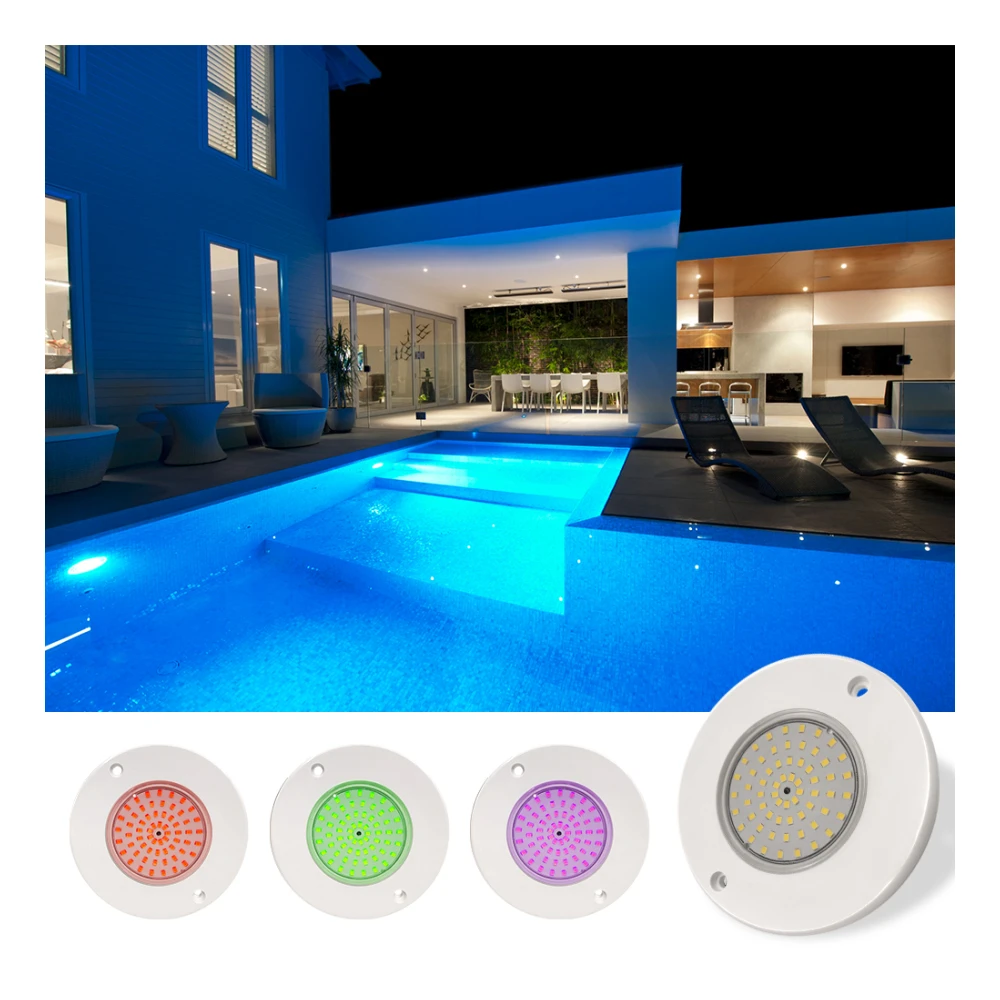

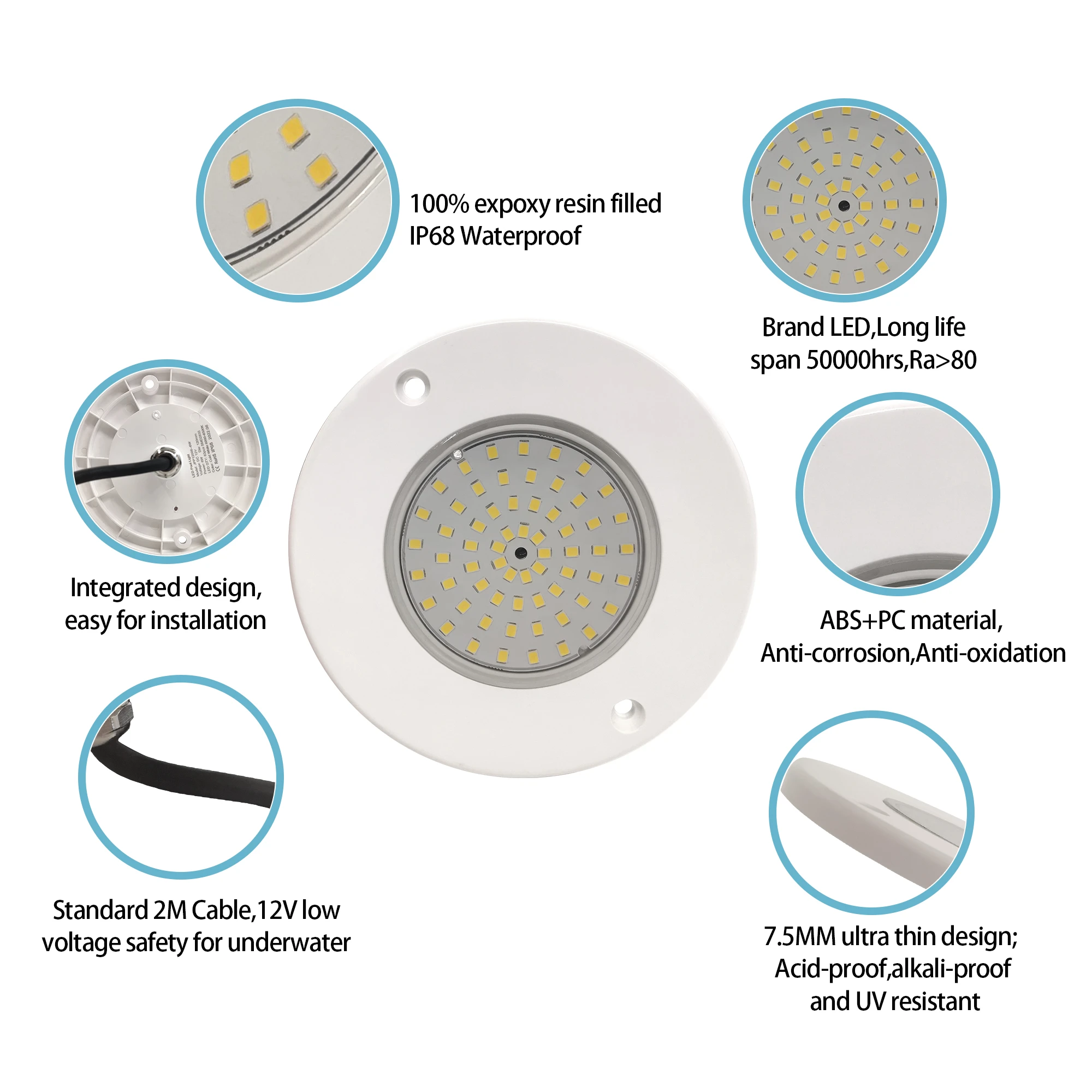

Innovative ultra-thin 7.5mm pool light design for a sleek, modern architectural aquatic appearance.
Fully constructed with high-strength PC plastic to ensure 100% corrosion-free performance in chlorinated or salt water.
Equipped with high-bright SMD 2835 LEDs and a 120° beam angle for wide and uniform underwater illumination.
Reliable IP68 waterproof rating and -20°C to +40°C working environment for long-term submerged durability.
Versatile control options including Switch, Remote (RF/IR), APP, and professional DALI or 0-10V protocols.
Simplified wall-mounted installation with specialized PC mounting accessories for diverse swimming pool projects.
Model Specification Table
|
Item No. |
LED Qty(pcs) |
Power |
Input Voltage |
Emitting Color |
Beam Angle |
Material |
|
JPP12006 |
SMD 2835 63pcs |
6W |
DC12V |
Warm White/Cool White/Red/Green/Blue/RGB/RGBW |
120° |
PC |
|
JPP16010 |
SMD 2835 108pcs |
10W |
DC12V |
Warm White/Cool White/Red/Green/Blue/RGB/RGBW |
120° |
PC |
|
JPP23018 |
SMD 2835 252pcs |
18W |
DC12V |
Warm White/Cool White/Red/Green/Blue/RGB/RGBW |
120° |
PC |
|
JPP23025 |
SMD 2835 324pcs |
25W |
DC12V |
Warm White/Cool White/Red/Green/Blue/RGB/RGBW |
120° |
PC |
|
JPP23035 |
SMD 2835 432pcs |
35W |
DC12V |
Warm White/Cool White/Red/Green/Blue/RGB/RGBW |
120° |
PC |
Material Specifications Tab
|
Item |
Description |
|
Housing |
PC |
|
LED |
Hight bright SMD LED |
|
CRI |
Ra>80 |
|
IP Grade |
IP68 |
|
Working Environment |
-20℃~+40℃ |
|
Power cable |
2 meters H05RNF 2 wires (single color)/ 4 wires (RGB)/ 5 wires (RGBW) |
|
Control mode |
Switch control, Remote control(RF, IR), APP, DALI, 0-10V ... |
7.5mm Ultra Thin Face: the disc stands 7.5mm off the tile, so it fits over finished mosaic in a renovation and leaves little edge to snag swimwear or a pool robot.
One Supply, Many Lamps: the wiring diagram feeds several lamps from a single DC12V supply through an external controller and junction boxes, so a long pool can be zoned without a driver per fixture.
PC Shell At IP68: an IP68 PC body with 2m H05RNF cable works from -20 to 40 degrees C, and a 120 degree face with Ra above 80 keeps colour even across the whole disc.
Three Faces, Five Outputs: 120mm at 6W, 158mm at 10W, 230mm at 18W, 25W or 35W, in warm white, cool white, red, green, blue, RGB or RGBW, all on one mounting method.
Control That Fits The Site: switch control, RF or IR remote, or APP and DALI-10V dimming.
