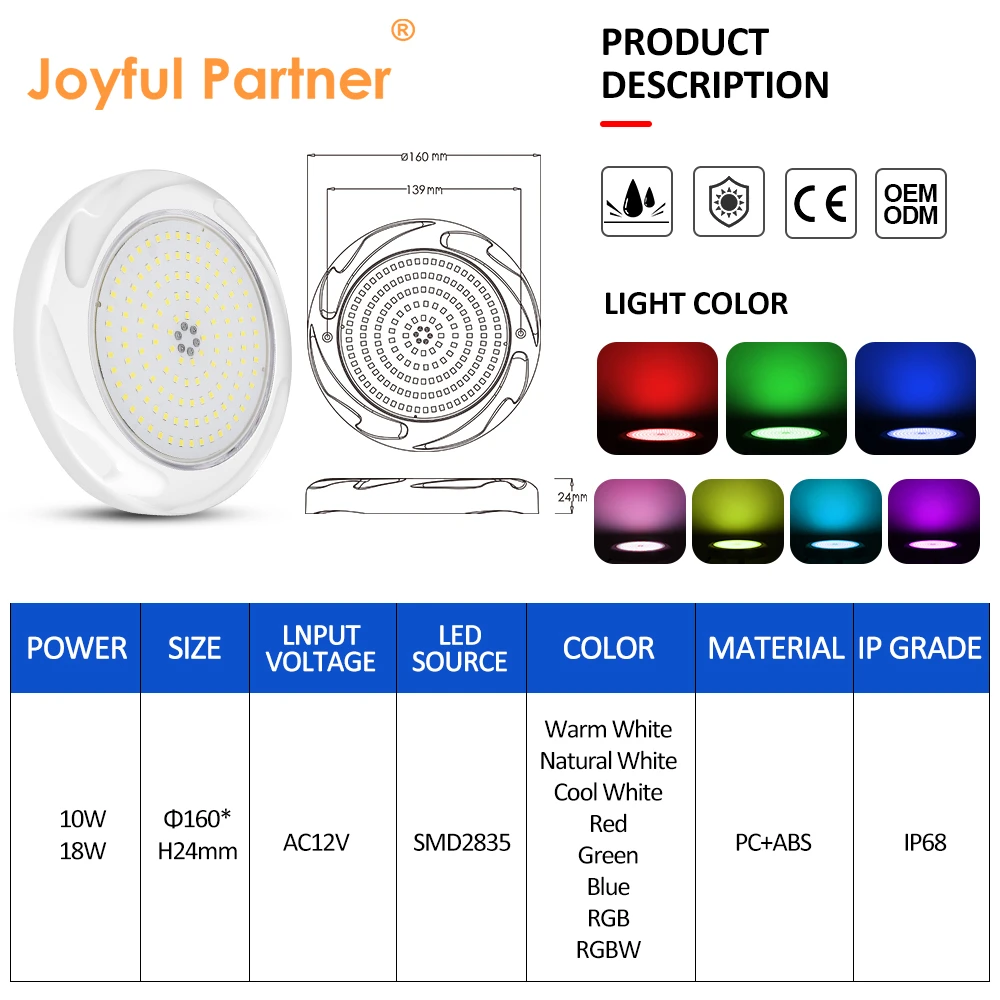

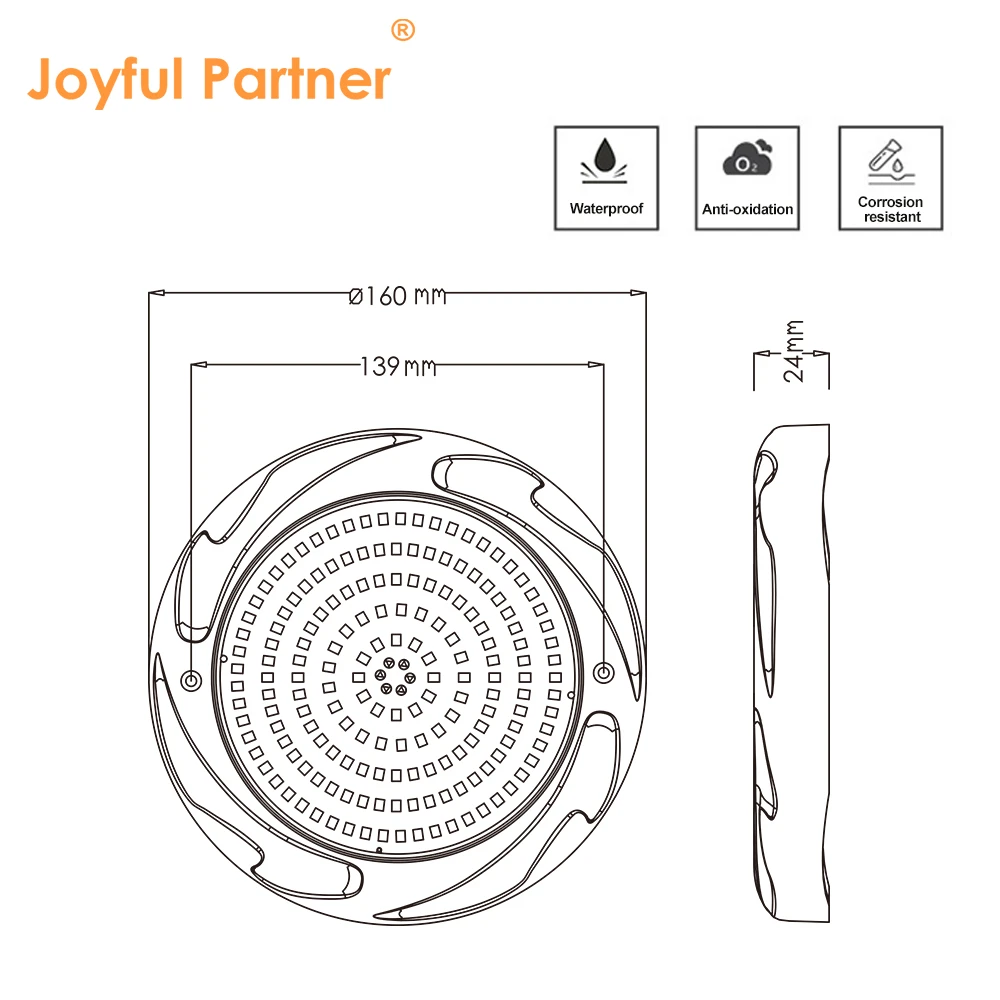

JPA160-10W（Ø160mm）
Waterproof Rating: IP68
Material: High-strength PC+ABS
Model: JPA160X / JPA230X Series (AC)
Certification: IP68, RoHS, CE | Control: Switch, Remote, APP, DALI, 0-10V
Wall fixed pool light in a polycarbonate and ABS housing, built for concrete pools. Driven by AC12V, the JPA260 line offers 18W, 25W, 35W and 42W models with 252 to 540 bright SMD2835 chips, Ra>80 and a 120 degree spread, in warm white, natural white, cool white, red, green, blue, RGB and RGBW. An IP68 seal keeps the lamp fully submerged between -20C and +40C. A 2m H05RN-F power lead runs to a junction box, fixing screw and anti-slip rubber plug handle mounting, and dimming runs from switch to RF/IR remote, APP, DALI or 0-10V.
Model Specification Table
|
Item No. |
LED Qty(PCS) |
Power(Watts) |
Input Voltage |
LED Color |
Beam angle |
Material |
|
JPA160-10W |
SMD2835 135pcs |
10W |
AC12V |
Warm/Natural/Cool White/Red/Green/Blue/RGB/RGBW |
120° |
PC+ABS |
|
JPA160-18W |
SMD2835 252pcs |
18W |
AC12V |
Warm/Natural/Cool White/Red/Green/Blue/RGB/RGBW |
120° |
PC+ABS |
|
JPA230-18W |
SMD2835 252pcs |
18W |
AC12V |
Warm/Natural/Cool White/Red/Green/Blue/RGB/RGBW |
120° |
PC+ABS |
|
JPA230-25W |
SMD2835 324pcs |
25W |
AC12V |
Warm/Natural/Cool White/Red/Green/Blue/RGB/RGBW |
120° |
PC+ABS |
|
JPA230-35W |
SMD2835 432pcs |
35W |
AC12V |
Warm/Natural/Cool White/Red/Green/Blue/RGB/RGBW |
120° |
PC+ABS |
|
JPA230-42W |
SMD2835 540pcs |
42W |
AC12V |
Warm/Natural/Cool White/Red/Green/Blue/RGB/RGBW |
120° |
PC+ABS |
Material Specifications Tab
|
Item |
Description |
|
Material |
PC+ABS |
|
LED |
Hight bright SMD LED |
|
CRI |
Ra>80% |
|
IP Grade |
IP68 |
|
Operating temperature |
-20℃~40℃ |
|
Power cable |
H05RN-F 2*1.0mm²=2m(for single color) / H05RN-F 2*1.0mm²=2m(for RGB/RGBW) |
|
Control mode |
Switch control, Remote control(RF,IR), APP, DALI, 0-10V ... |

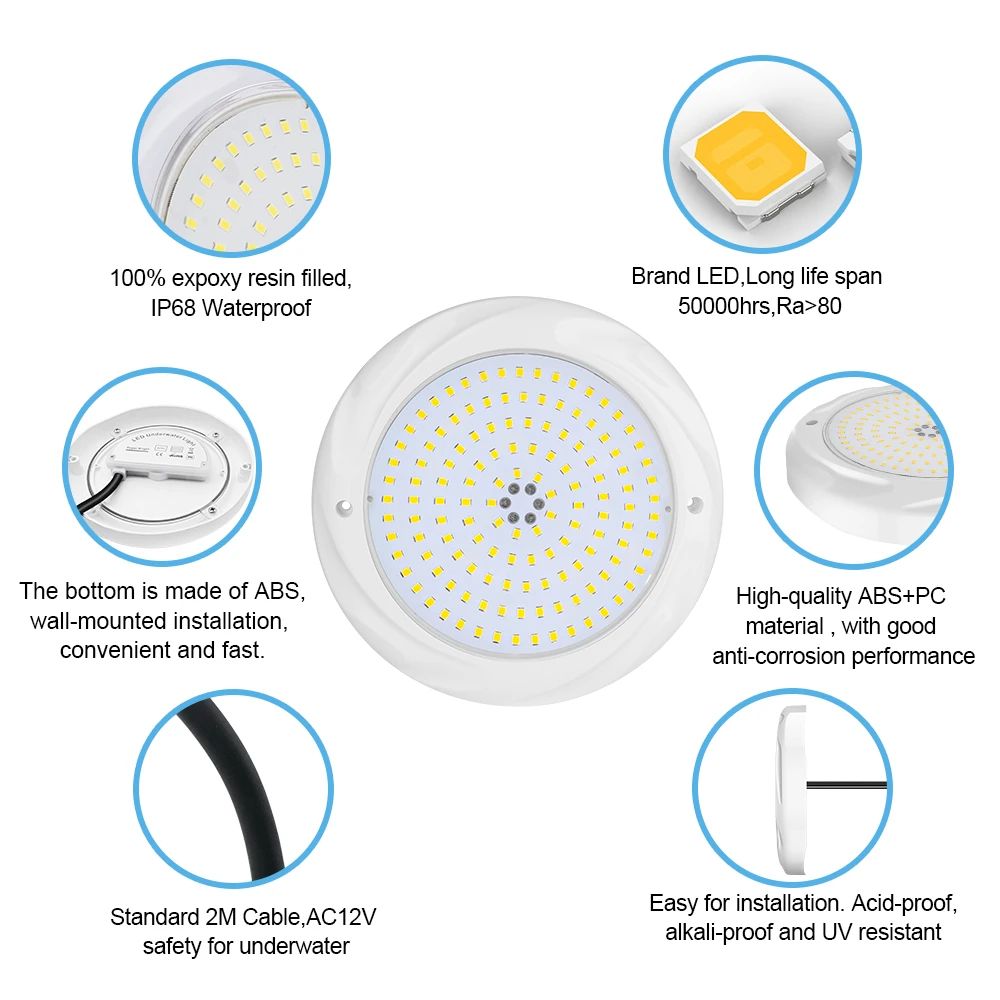

Composite PC And ABS Shell: there is no metal outer surface, so chlorinated pool water has nothing to rust or corrode.
Four Wattages, One Body Size: 18W to 42W versions share the same 260mm shell, so one mounting bracket fits any model.
IP68 Sealed, AC12V Driven: 252 to 540 SMD2835 chips give Ra>80 and a 120 degree spread across the whole pool wall.
Switch To 0-10V Dimming: choose switch, RF/IR remote, APP, DALI or 0-10V control, with an 18 key remote as an option.
