SS-JP280-18W（Ø280mm）
Waterproof Rating: IP68
Material: Stainless steel 316L + ABS
Model: SS-JP280X Series (AC)
Certification: IP68, RoHS, CE | Control: Switch, Remote, APP, DALI, 0-10V

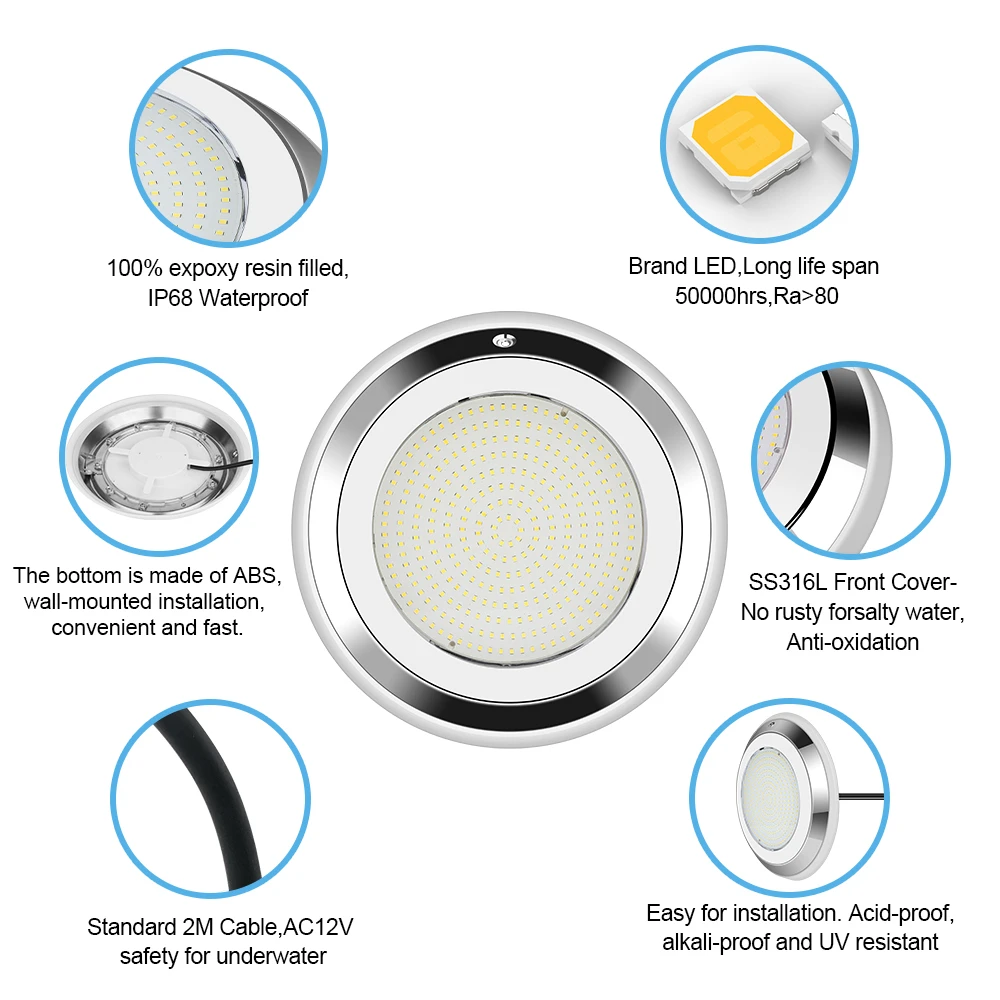

Professional wall-mounted underwater light series featuring 100% waterproof potting technology for maximum submerged safety.
Engineered with a premium marine-grade SUS 316L stainless steel front cover for ultimate corrosion resistance.
Specifically designed for large-scale concrete swimming pools and water park facilities in AC12V environments.
Features high-performance SMD 2835 LEDs with high luminous efficacy and superior energy-saving properties.
Equipped with a wide 120° beam angle and precision optics to deliver uniform light distribution across the aquatic facility.
Fully compatible with advanced smart control systems including APP and DALI for dynamic multi-color RGBW effects.
Model Specification Table
|
Item No. |
LED Qty(PCS) |
Power(Watts) |
Input Voltage |
LED Color |
Beam angle |
Material |
|
SS-JP280-18W |
SMD2835 252pcs |
18W |
AC12V |
Warm/Natural/Cool White/Red/Green/Blue/RGB/RGBW |
120° |
SS316L+ABS |
|
SS-JP280-25W |
SMD2835 324pcs |
25W |
AC12V |
Warm/Natural/Cool White/Red/Green/Blue/RGB/RGBW |
120° |
SS316L+ABS |
|
SS-JP280-35W |
SMD2835 432pcs |
35W |
AC12V |
Warm/Natural/Cool White/Red/Green/Blue/RGB/RGBW |
120° |
SS316L+ABS |
|
SS-JP280-42W |
SMD2835 540pcs |
42W |
AC12V |
Warm/Natural/Cool White/Red/Green/Blue/RGB/RGBW |
120° |
SS316L+ABS |
Material Specifications Tab
|
Item |
Description |
|
Material |
SS316L + ABS |
|
LED |
Hight bright SMD LED |
|
CRI |
Ra>80% |
|
IP Grade |
IP68 |
|
Operating temperature |
-20℃~40℃ |
|
Power cable |
H05RN-F 2*1.0mm²=2m(for single color) / H05RN-F 2*1.0mm²=2m(for RGB/RGBW) |
|
Control mode |
Switch control, Remote control(RF,IR), APP, DALI, 0-10V ... |
Extendable Lighting Run: a 12V AC transformer plus power expanders let the circuit grow to as many lights as the pool needs.

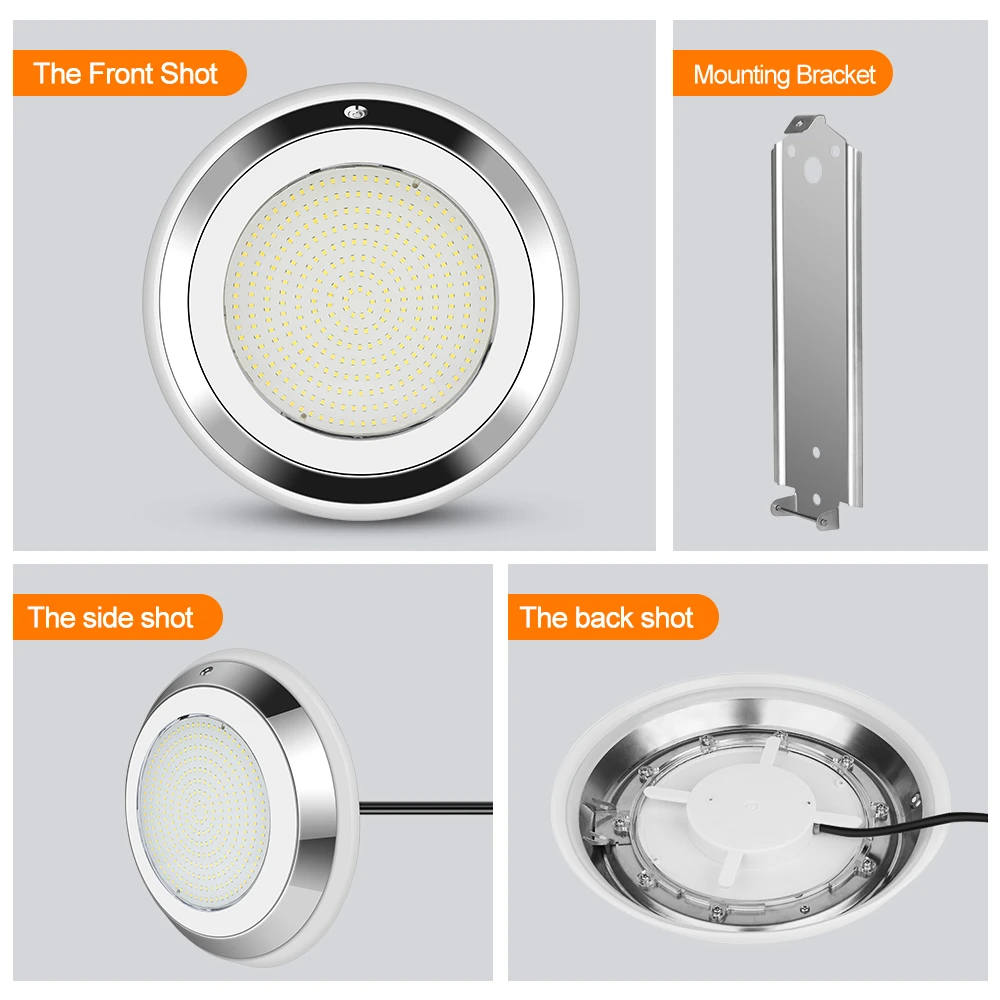

SS316L Face, ABS Back: a stainless face on a plastic body, so the water side keeps its look while the weight stays down.

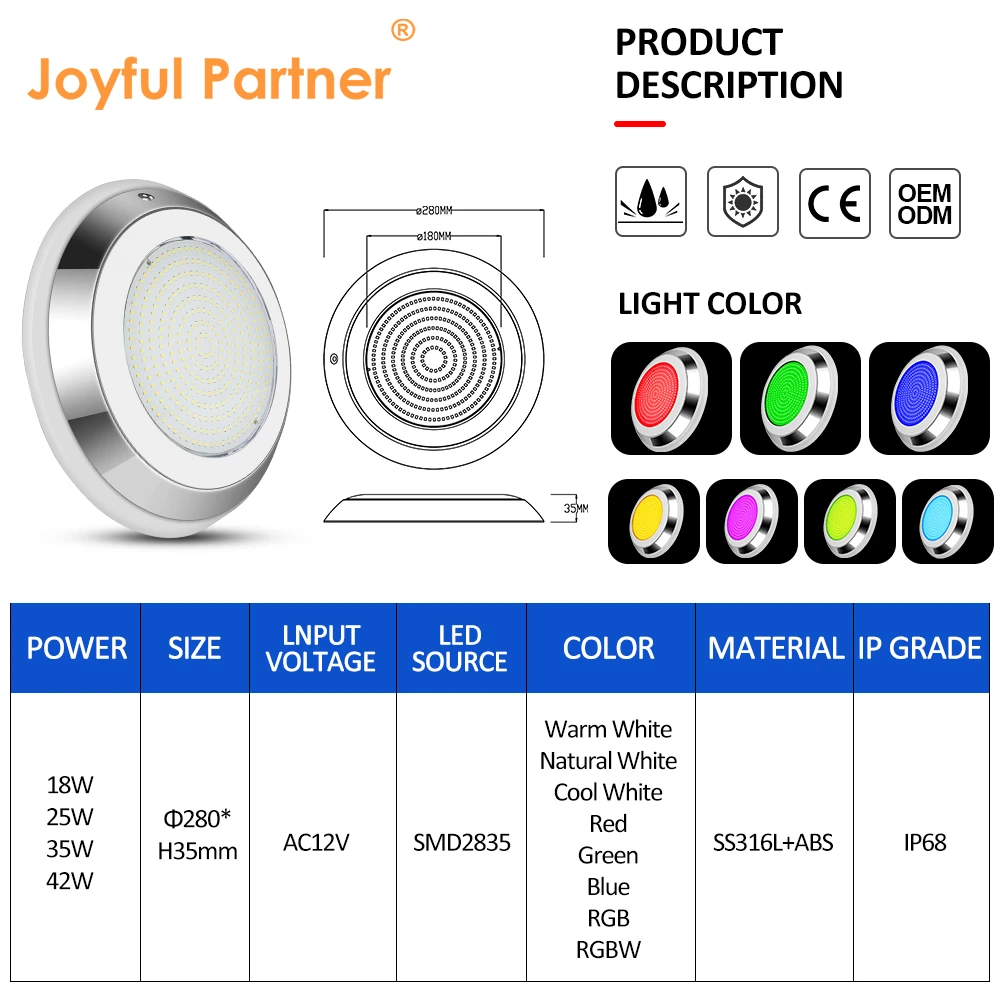

280mm, 18W, 35 mm Deep: a slim disc that sits flat against the pool wall, with a 180mm light face for an even spread.
Five Control Options: switch, RF/IR remote, APP, DALI or 0-10V, with single color, RGB and RGBW versions.
