JPB230-42W（Ø230mm）
Waterproof Rating: IP68
Material: High-strength PC+ABS
Model: JPB180X / JPB230X Series (AC)
Certification: IP68, RoHS, CE | Control: Switch, Remote, APP, DALI, 0-10V

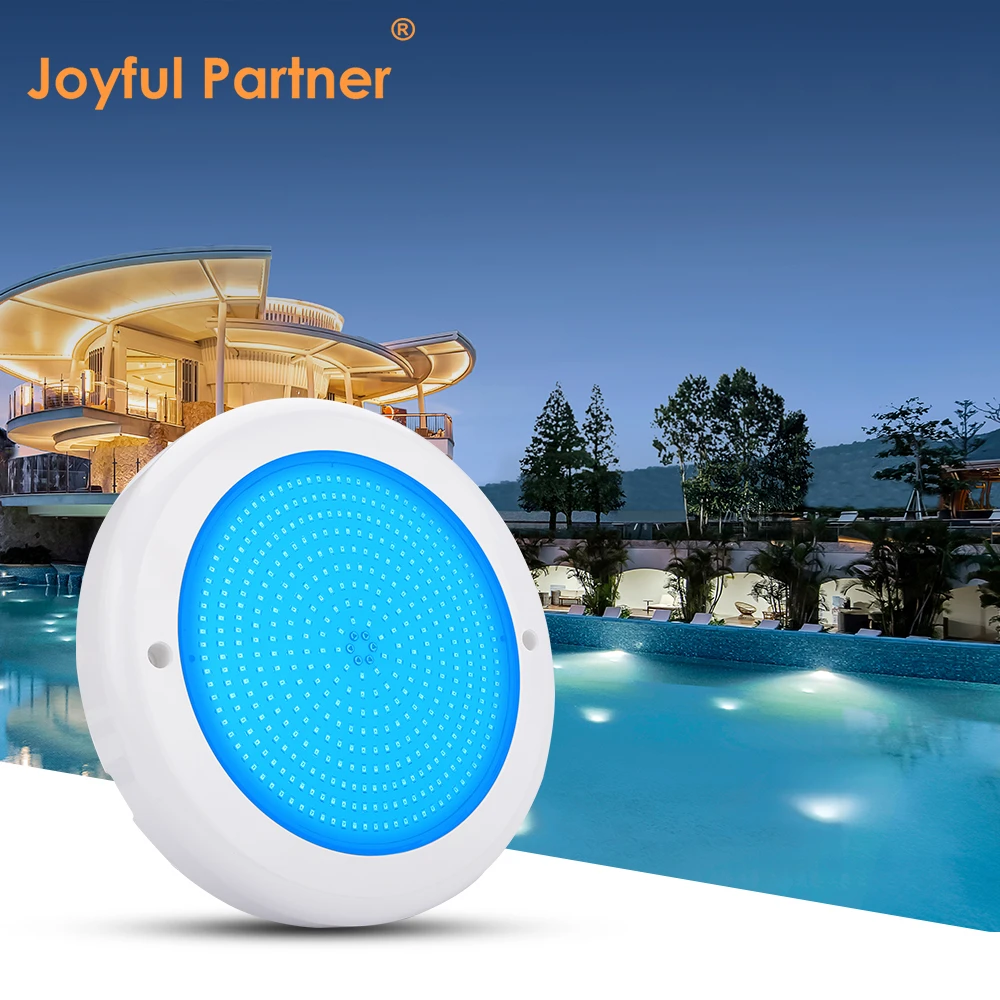

Wall mounted pool light range in a PC and ABS body, for concrete pools. Running on AC12V, it spans 6W, 10W and 18W models with 63, 135 and 252 SMD2835 LEDs, each with Ra>80 and a 120 degree beam across warm, natural and cool white, red, green, blue, RGB and RGBW. Every model is IP68 rated for permanent underwater service from -20C to +40C, wired via a junction box with a 2m H05RN-F cable; an ABS bracket is available separately. Control options include a switch, IR remote, APP, DALI and 0-10V dimming, in 110mm and 152mm bodies.
Model Specification Table
|
Item No. |
LED Qty (PCS) |
Power (Watts) |
Input Voltage |
LED Color |
Beam angle |
Material |
|
JPB180-18W |
SMD2835 252pcs |
18W |
AC12V |
Warm/Natural/Cool White/Red/Green/Blue/RGB/RGBW |
120° |
PC+ABS |
|
JPB180-24W |
SMD2835 324pcs |
24W |
AC12V |
Warm/Natural/Cool White/Red/Green/Blue/RGB/RGBW |
120° |
PC+ABS |
|
JPB230-18W |
SMD2835 252pcs |
18W |
AC12V |
Warm/Natural/Cool White/Red/Green/Blue/RGB/RGBW |
120° |
PC+ABS |
|
JPB230-25W |
SMD2835 324pcs |
25W |
AC12V |
Warm/Natural/Cool White/Red/Green/Blue/RGB/RGBW |
120° |
PC+ABS |
|
JPB230-35W |
SMD2835 432pcs |
35W |
AC12V |
Warm/Natural/Cool White/Red/Green/Blue/RGB/RGBW |
120° |
PC+ABS |
|
JPB230-42W |
SMD2835 540pcs |
42W |
AC12V |
Warm/Natural/Cool White/Red/Green/Blue/RGB/RGBW |
120° |
PC+ABS |
Material Specifications Tab
|
Item |
Description |
|
Material |
PC+ABS |
|
LED |
Hight bright SMD LED |
|
CRI |
Ra>80% |
|
IP Grade |
IP68 |
|
Operating temperature |
-20℃~40℃ |
|
Power cable |
H05RN-F 2*1.0mm²=2m(for single color) / H05RN-F 2*1.0mm²=2m(for RGB/RGBW) |
|
Control mode |
Switch control, Remote control(RF,IR), APP, DALI, 0-10V ... |

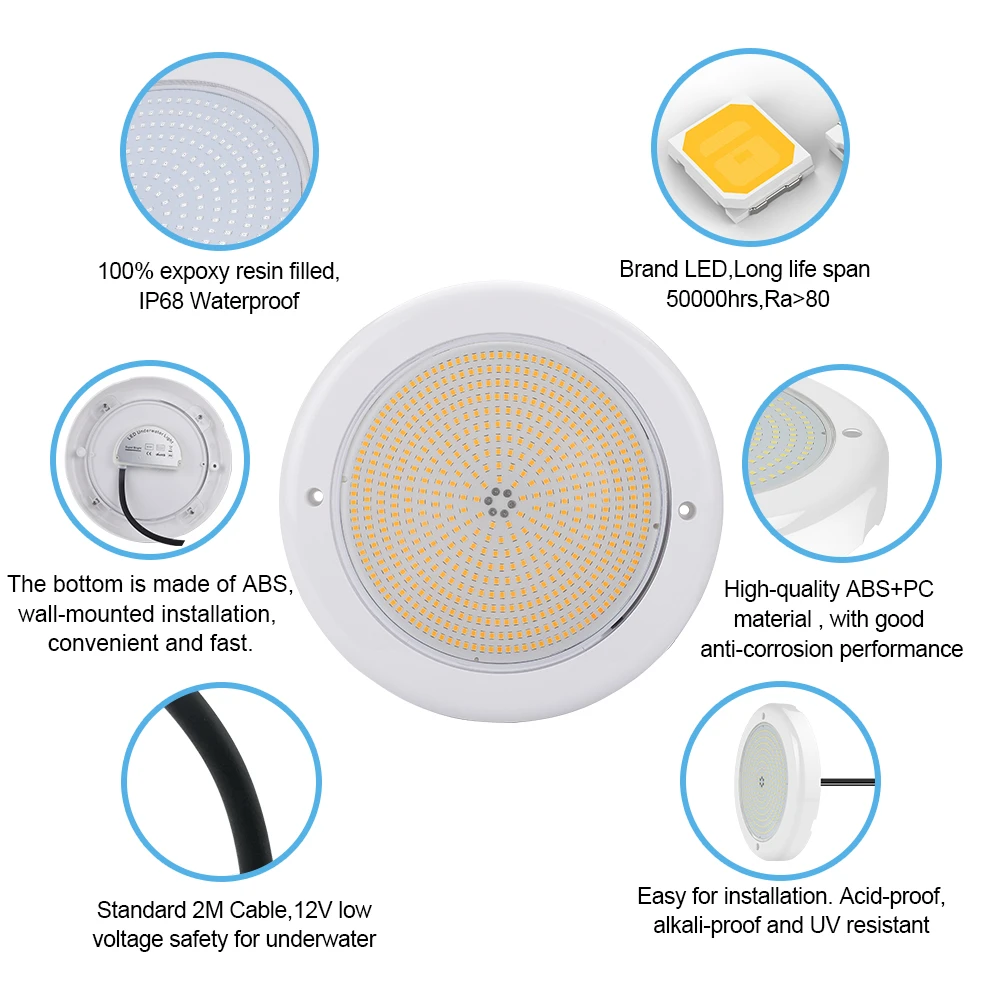

One Range, Three Sizes: 6W, 10W and 18W versions in 110mm and 152mm bodies, so one series fits small and mid sized pools.
Rust Risk Removed: the housing is PC and ABS, so chlorinated pool water has no metal surface to attack, even long term.
IP68, AC12V Low Voltage: SMD 2835 LEDs with Ra>80 and a 120 degree beam give even coverage, with no dark corners.
Switch, IR, APP, DALI Or 0-10V: choose the control that suits the project, from a simple switch to 0-10V dimming.
