JPB110-6W（Ø110mm）
Waterproof Rating: IP68
Material: PC+ABS
Model: JPB110X / JPB152X Series (AC)
Certification: IP68, RoHS, CE | Control: Switch, Remote, APP, DALI, 0-10V
Professional wall-mounted pool light specifically engineered for concrete swimming pools and high-end resort aquatic facilities.
Fully constructed with premium PC+ABS plastic to ensure 100% corrosion resistance in AC12V underwater environments.
Features high-brightness SMD 2835 LEDs with a wide 120° beam angle for uniform light distribution across the pool.
Optimized for AC12V systems with stable performance and energy-saving high luminous efficacy.
Certified with IP68 submersible protection and robust structural design for reliable long-term underwater operation.
Supports versatile control protocols including Switch, Remote, and smart APP integration for dynamic RGBW effects.

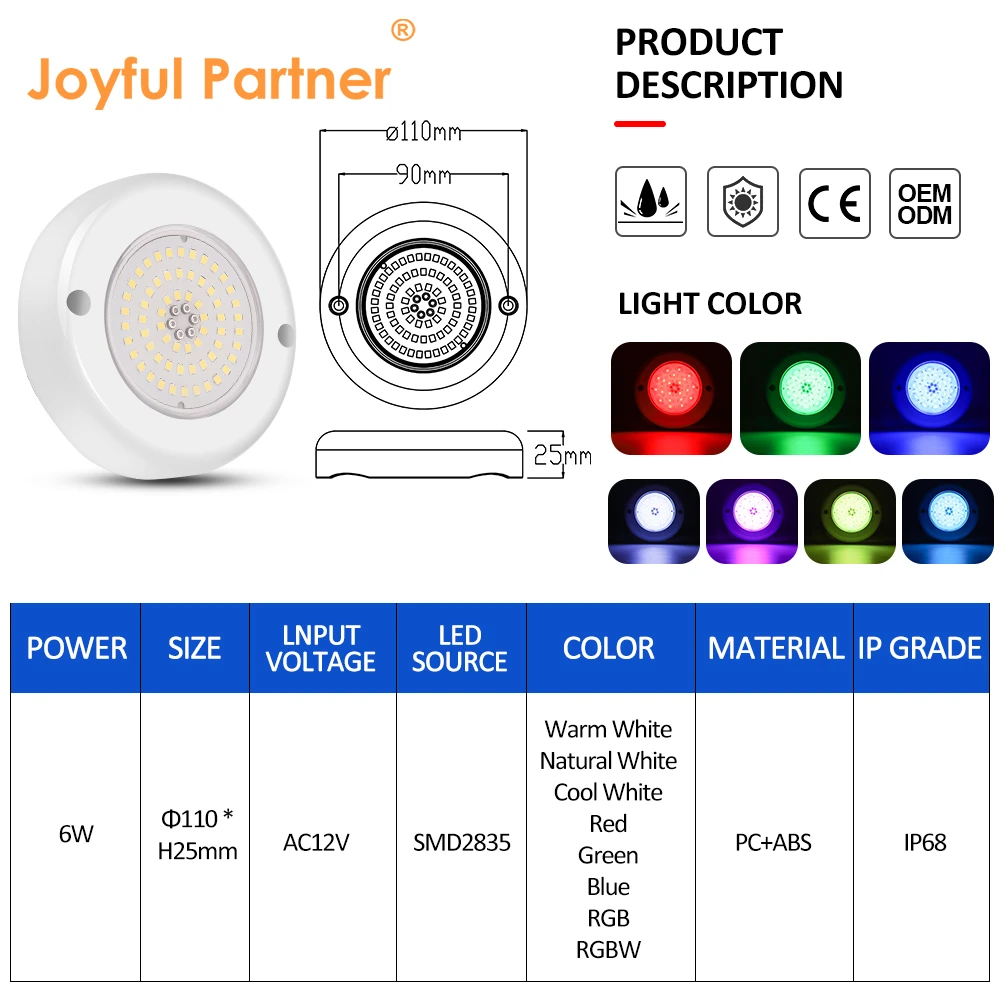

Model Specification Table
|
Item No. |
LED Qty (PCS) |
Power (Watts) |
Input Voltage |
LED Color |
Beam angle |
Material |
|
JPB110-6W |
SMD2835 63pcs |
6W |
AC12V |
Warm/Natural/Cool White/Red/Green/Blue/RGB/RGBW |
120° |
PC+ABS |
|
JPB152-10W |
SMD2835 135pcs |
10W |
AC12V |
Warm/Natural/Cool White/Red/Green/Blue/RGB/RGBW |
120° |
PC+ABS |
|
JPB152-18W |
SMD2835 252pcs |
18W |
AC12V |
Warm/Natural/Cool White/Red/Green/Blue/RGB/RGBW |
120° |
PC+ABS |
Material Specifications Tab
|
Item |
Description |
|
Material |
PC+ABS |
|
LED |
Hight bright SMD LED |
|
CRI |
Ra>80% |
|
IP Grade |
IP68 |
|
Operating temperature |
-20℃~40℃ |
|
Power cable |
H05RN-F 2*1.0mm²=2m(for single color) / H05RN-F 2*1.0mm²=2m(for RGB/RGBW) |
|
Control mode |
Switch control, Remote control(RF,IR), APP, DALI, 0-10V ... |

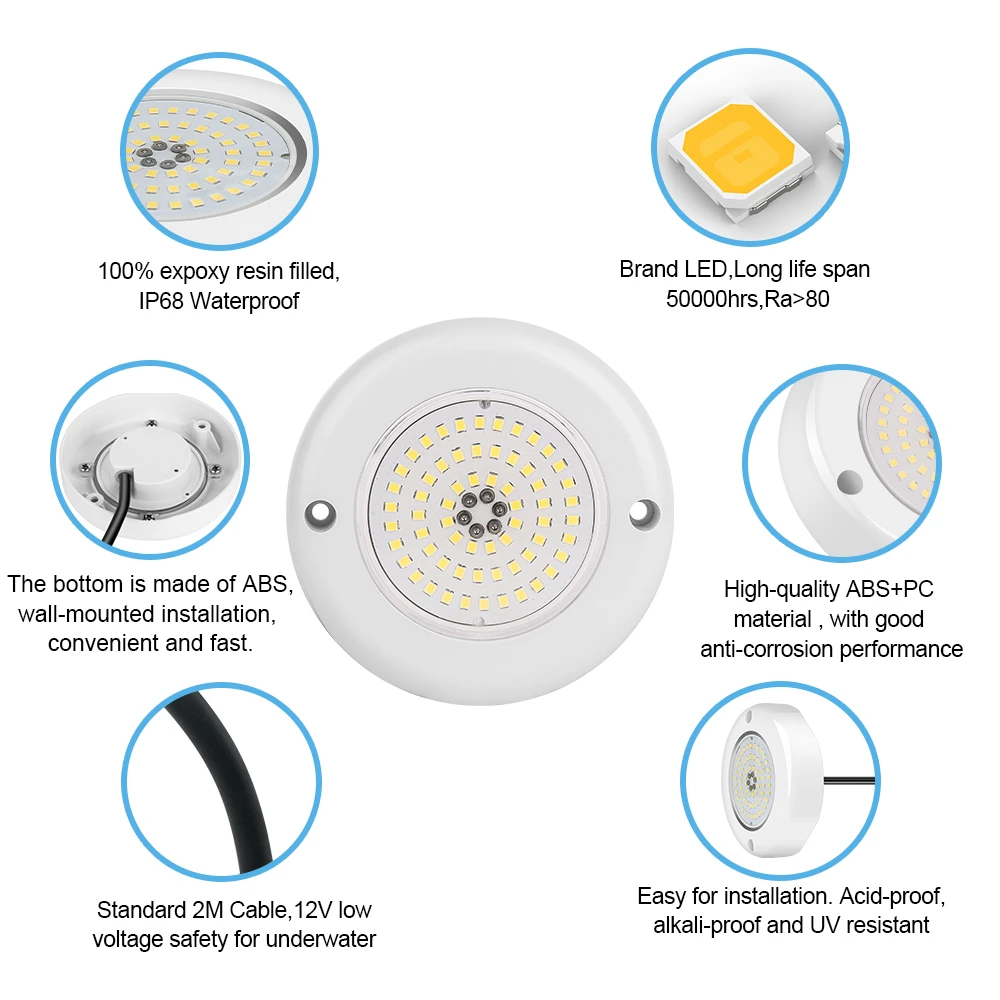

Non-Metallic PC And ABS Housing: no metal body parts to rust, so the housing holds up in chlorinated pool water.
Built For Concrete Pools: 110mm and 152mm body sizes, wired through a junction box with a 2m H05RN-F cable.
IP68 Sealed, AC12V Low Voltage: SMD 2835 LEDs with Ra>80 and a 120 degree beam give even coverage, no dark corners.
From Warm White To RGBW: warm white, natural white, cool white, red, green, blue, RGB and RGBW; switch, 18 button IR remote, APP, DALI or 0-10V.
