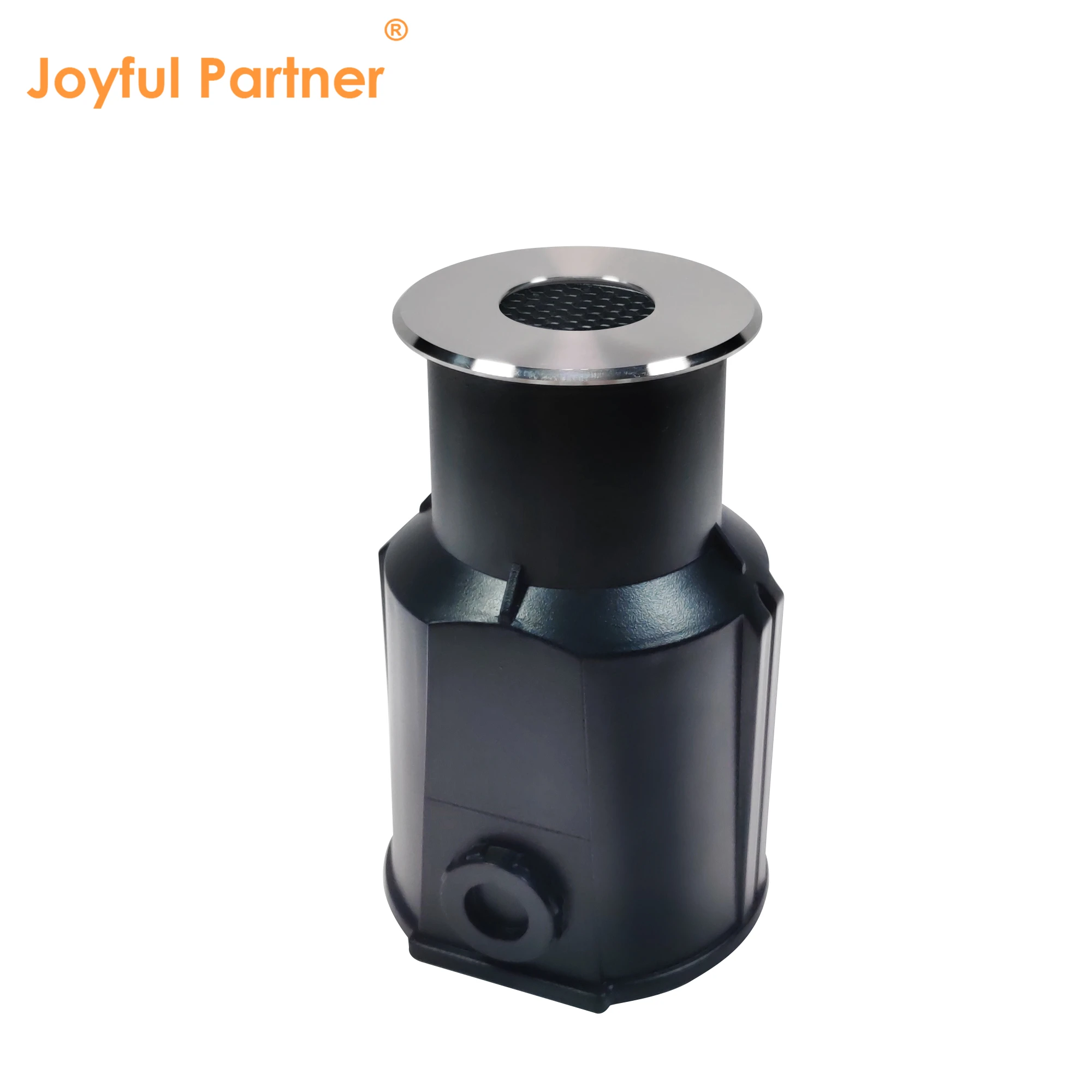

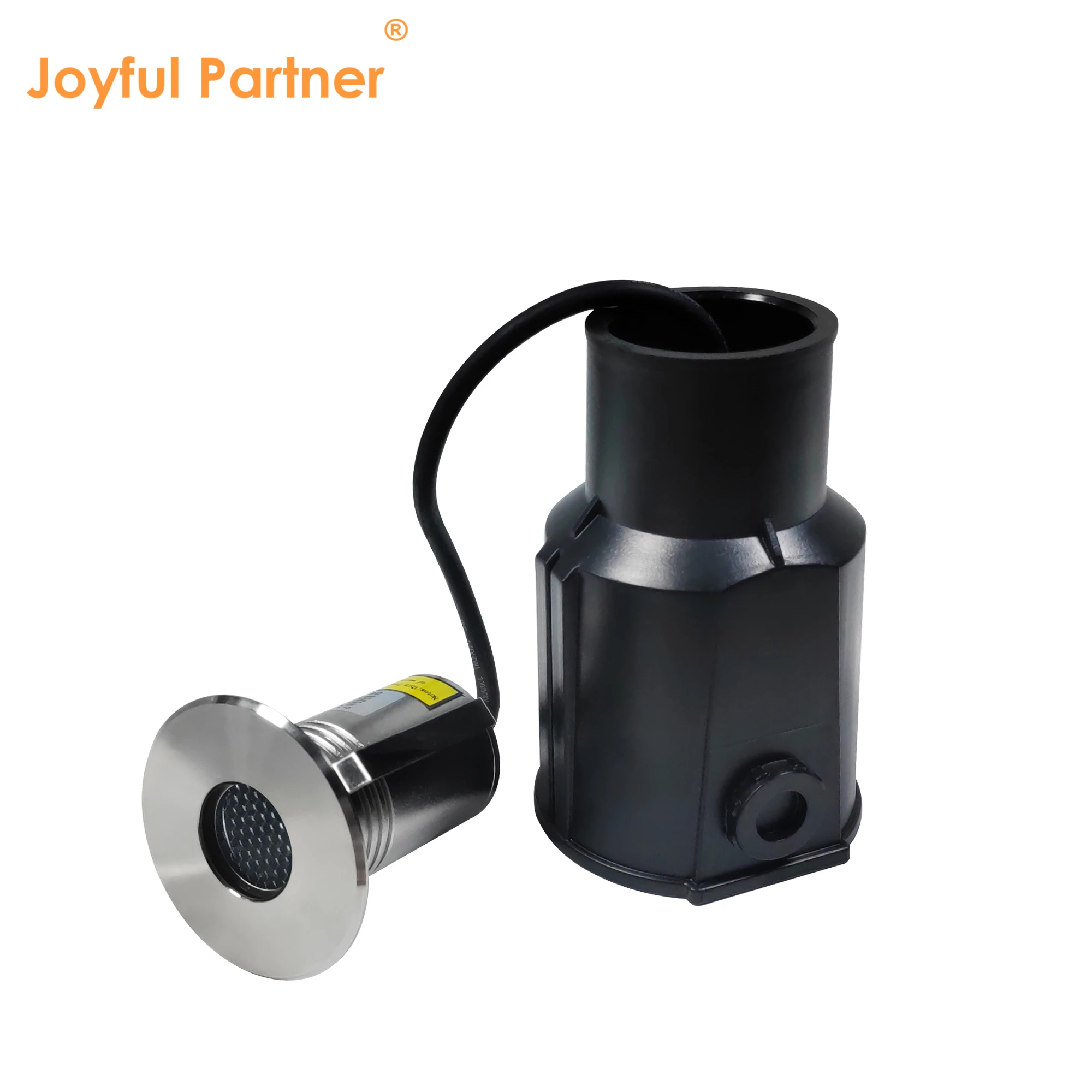

IP68 LED Mini Recessed Pool Light Stainless Steel 1W CREE LED Single Color RGB RGBW for Swimming Pool Step Small Size Recessed LED Pool Light/Underwater Inground light
Waterproof Rating: IP68
Material: Molding shaped 304# or 316L* stainless steel
Model: 9201X Series
Certification: IP68, RoHS, CE

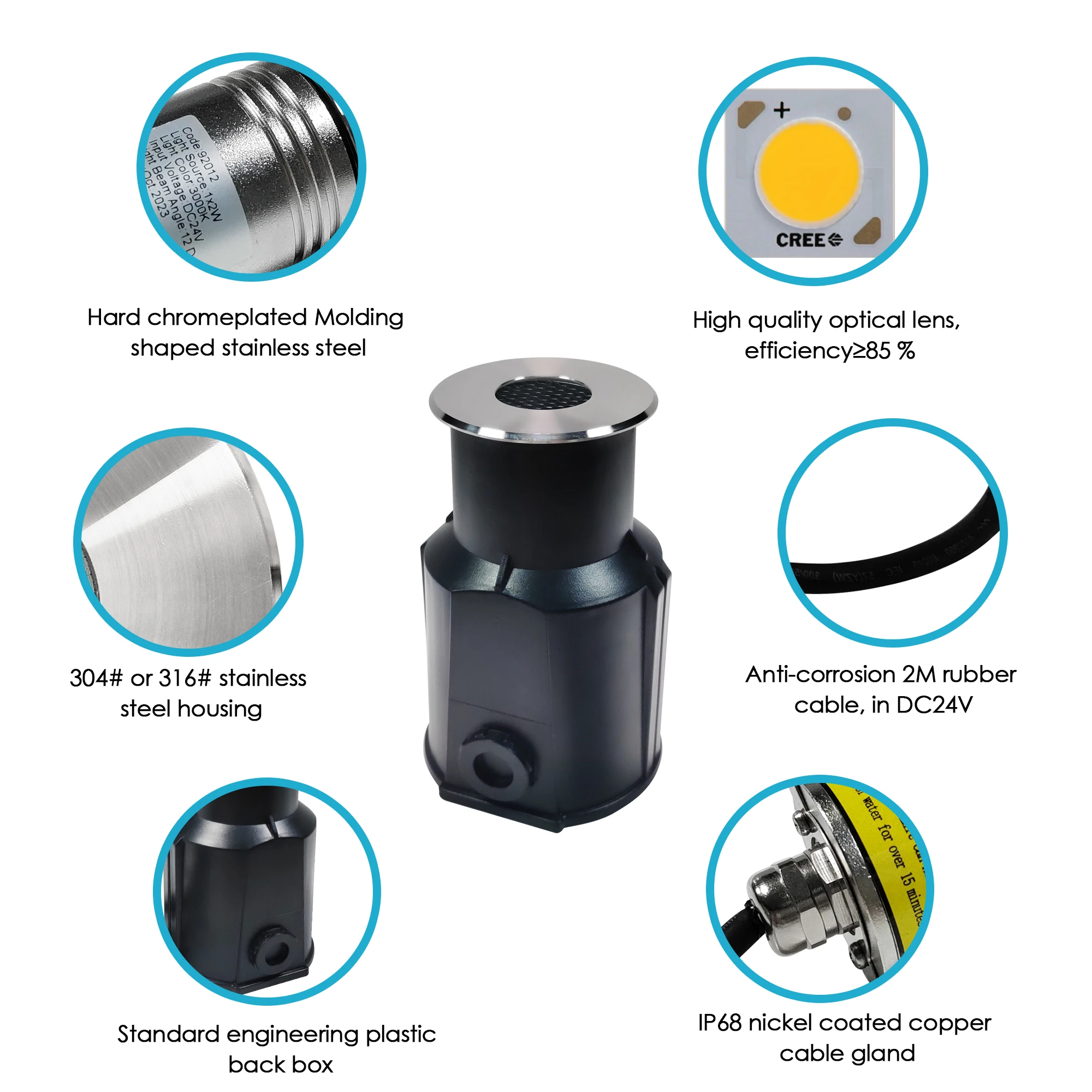

Professional small size recessed LED pool light designed for precise underwater illumination in pools and fountains.
Fully constructed with high-grade molding shaped 304# or 316L* stainless steel for superior corrosion resistance.
Features IP68 waterproof rating and PG-11 copper and nickel coated cable glands for long-term submersible reliability.
Equipped with specialized asymmetrical lens options to provide targeted light distribution for architectural pool features.
Engineered with a 7mm thick step tempered glass and reliable molding shaped silicone seals for safe underwater operation.
Versatile lighting solutions including high-power single color, RGB 3in1, and RGBW 4in1 LEDs for dynamic color effects.
Model Specification Table
|
Item No. |
Light source |
Lens beam angle(°) |
Consumption(watt) |
Input Voltage(V) |
Ik rate |
|
92011(AS) |
1x1W |
8/15/25/30/45/60° |
1.1W |
DC12V/DC24V |
07 |
|
92012(AS) |
1x2W |
8/15/25/30/45/60° |
2.4W |
DC12V/DC24V |
07 |
|
92016(AS) |
1x3W RGB3in1 |
30/45/60° |
3.2W |
DC12V/DC24V |
07 |
|
92019(AS) |
1x4W RGBW4in1 |
30/45/60° |
4.1W |
DC12V/DC24V |
07 |
Material Specifications Table
|
Item |
Description |
|
Housing&Front cover |
Molding shaped 304# or 316L* stainless steel |
|
Glass |
Step tempered glass T=7mm |
|
Lens |
High quality optical lens, efficiency≥85% |
|
Cable gland |
IP-68 PG-11 copper and nickel coated |
|
PCB |
Excellent heat conductivity aluminum, coefficient of heat conductivity≥2.0w/mk |
|
Driver |
Constant current output. Single color LED=1-circuit output. RGB 3in1 LED=3-circuits output. |
|
Application environment |
Temperature of water between -20℃ ~ 40℃ less than 1.0 meter depth. |
|
Mounting sleeve |
Plastic |
|
Power cable |
H05RN-F 2*0.75mm² L=2m(for single color) / H05RN-F 4*0.75mm² L=2m(for RGB) / H05RN-F 5*0.5mm² L=2m(for RGBW) |
