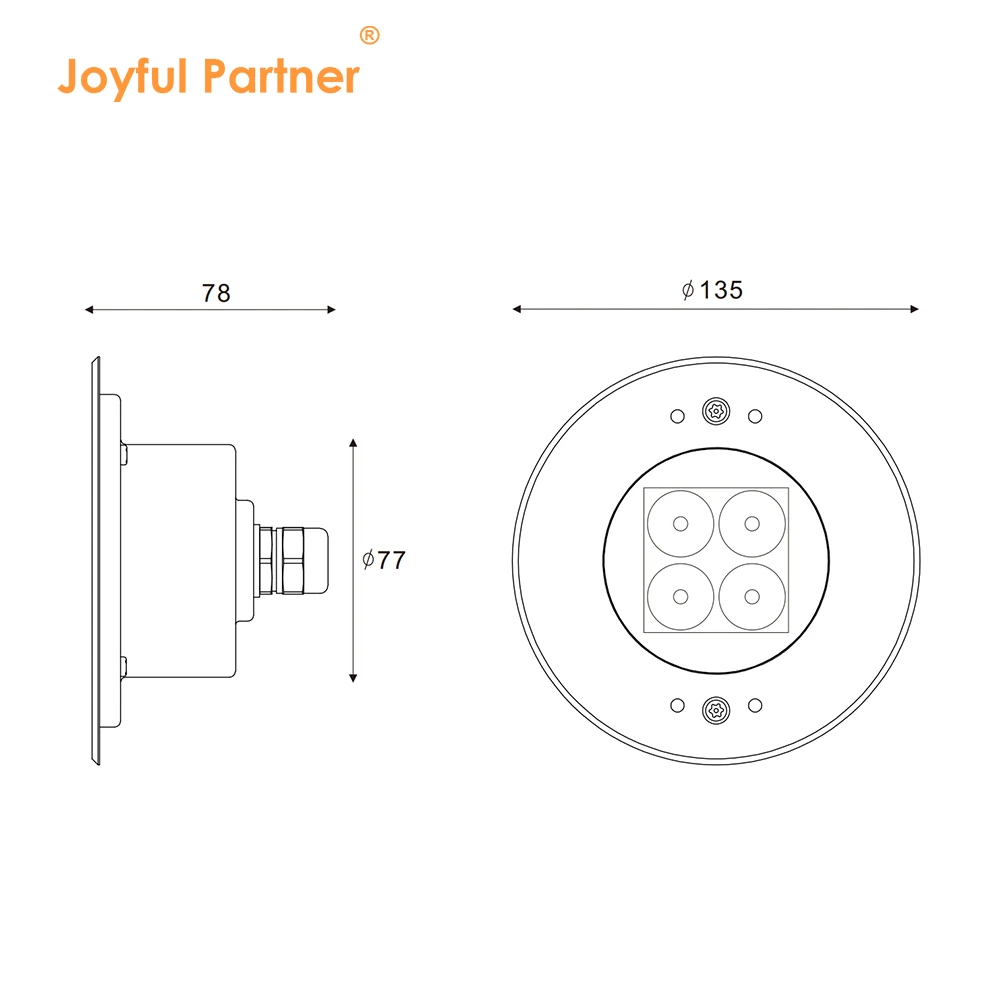

IP68 LED Recessed Underwater and Underground Light Stainless Steel 316L 4W 12W DIA 135MM CREE LED Single Color RGB RGBW for Swimming Pool IP68 Recessed Underwater/Underground Light

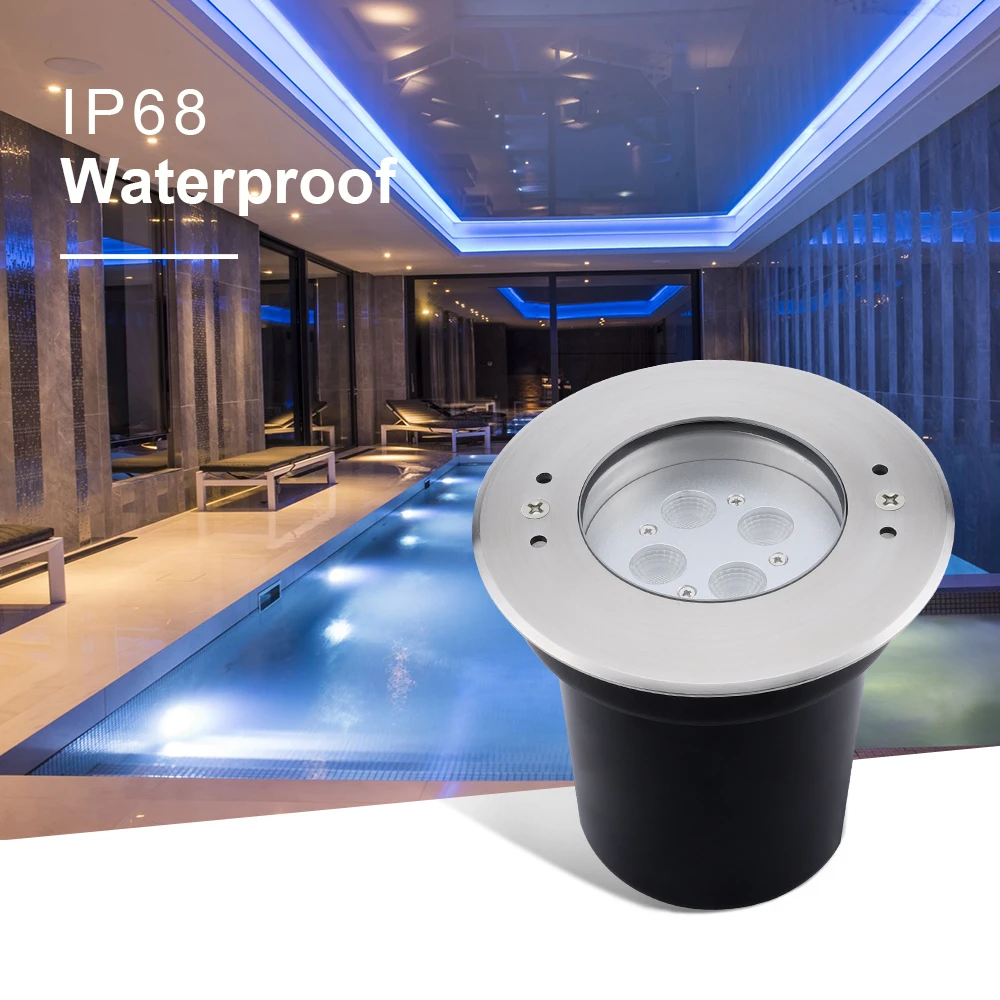

Waterproof Rating: IP68
Material: Hard chrome plated Molding shaped stainless steel SUS 316L#
Model: JPD1104X Series
Certification: IP68, RoHS, CE

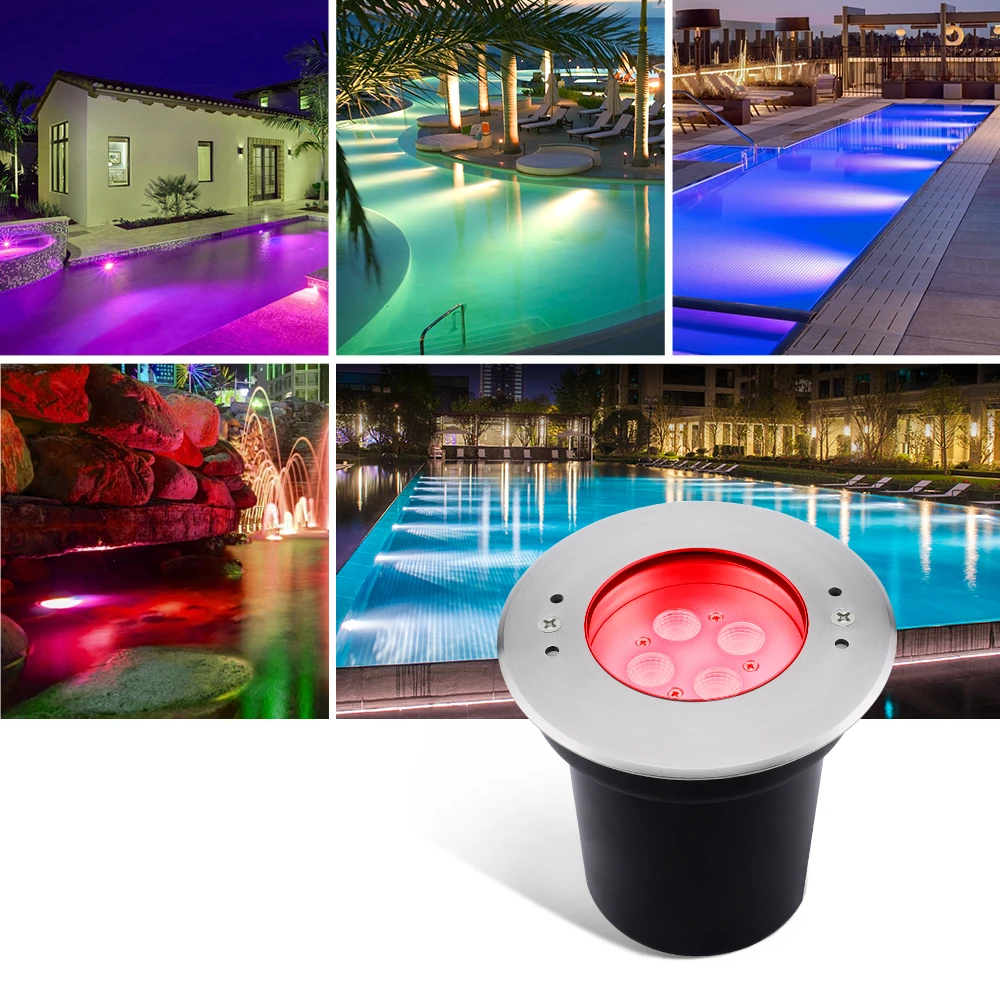

High-performance recessed underwater and underground light suitable for versatile aquatic or land-based architectural projects.
Manufactured with premium SUS 316L# hard-chrome plated stainless steel for maximum corrosion resistance and aesthetic longevity.
Equipped with an 8mm thick step tempered glass and IP68 waterproof rating for safe operation in water depths up to 2.0m.
Features a high-efficiency optical lens system (≥85%) with multiple beam angle options from 8° to 60° for precise beam control.
Reliable submersible performance ensured by PG-11 nickel-coated copper cable glands and molding shaped silicone seals.
Available in single color, RGB 3in1, and advanced RGBW 4in1 LED versions providing power outputs from 4W up to 12W.
Model Specification Table
|
Item No. |
Light source |
Lens beam angle(°) |
Consumption(watt) |
Input Voltage(V) |
Ik rate |
|
JPD11041 |
4X1W LED |
8°/12°/25°/30°/45°/60° |
4.0 |
DC24V |
08 |
|
JPD11042 |
4X2W LED |
8°/15°/25°/30°/45°/60° |
8.1 |
DC24V |
08 |
|
JPD11046 |
4X3W RGB3in1 LED |
8°/12°/25°/30°/45°/60° |
8.0 |
DC24V |
08 |
|
JPD11049 |
4X3W RGBW4in1 LED |
8°/12°/25°/30°/45°/60° |
12.0 |
DC24V |
08 |

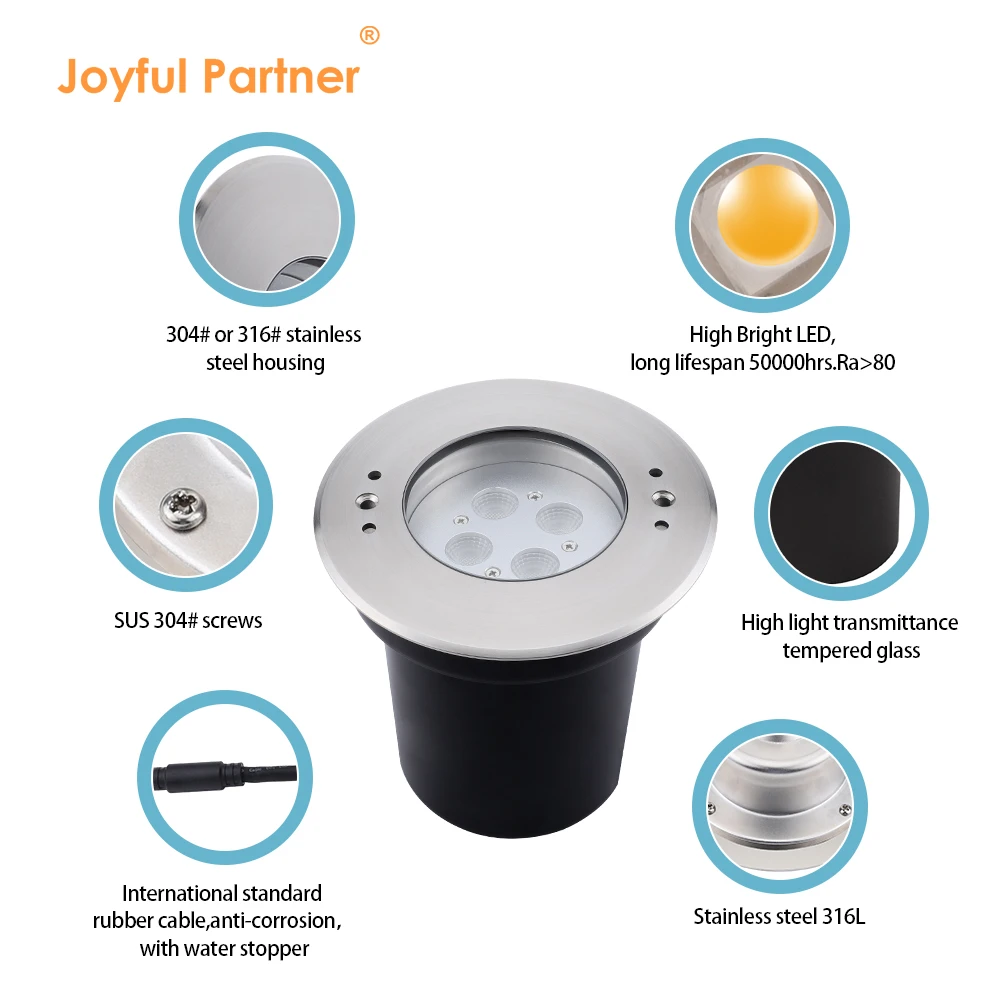

Material Specifications Table
|
Item |
Description |
|
Housing & Front cover |
Hard chrome plated Molding shaped stainless steel SUS 316L# |
|
Glass |
Step tempered glass T=8mm |
|
Lens |
High quality optical lens, efficiency≥85% |
|
Cable gland |
IP-68 PG-11 nickel coated copper |
|
PCB |
Excellent heat conductivity aluminum, coefficient of heat conductivity≥2.0w/mk |
|
Driver |
Constant current output. Single color LED=1-circuit output. RGB 3in1 LED=3-circuits output. |
|
Power cable |
H05RN-F 2*0.75mm² L=2m(for single color) / H05RN-F 4*0.75mm² L=2m(for RGB) / H05RN-F 5*0.75mm² L=2m(for RGBW) |
|
Application environment |
Temperature of water between -20℃ ~ 40℃ less than 2M meter depth. |
|
Mounting sleeve |
Plastic |
