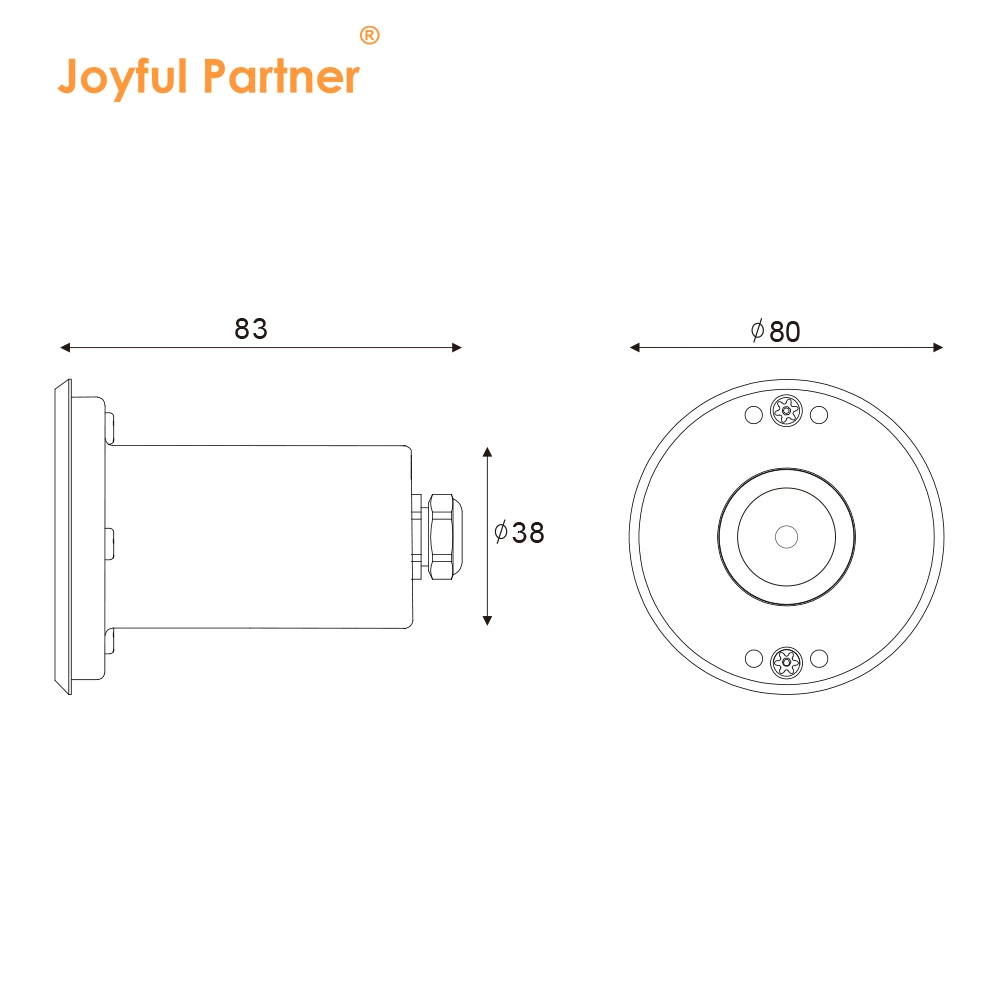

JPD0591X（Ø80*H83 mm）
Waterproof Rating: IP68
Material: Hard chromeplated Molding shaped stainless steel SUS 316L#
Model: JPD0591X Series
Certification: IP68, RoHS, CE, Suitable for land and water applications

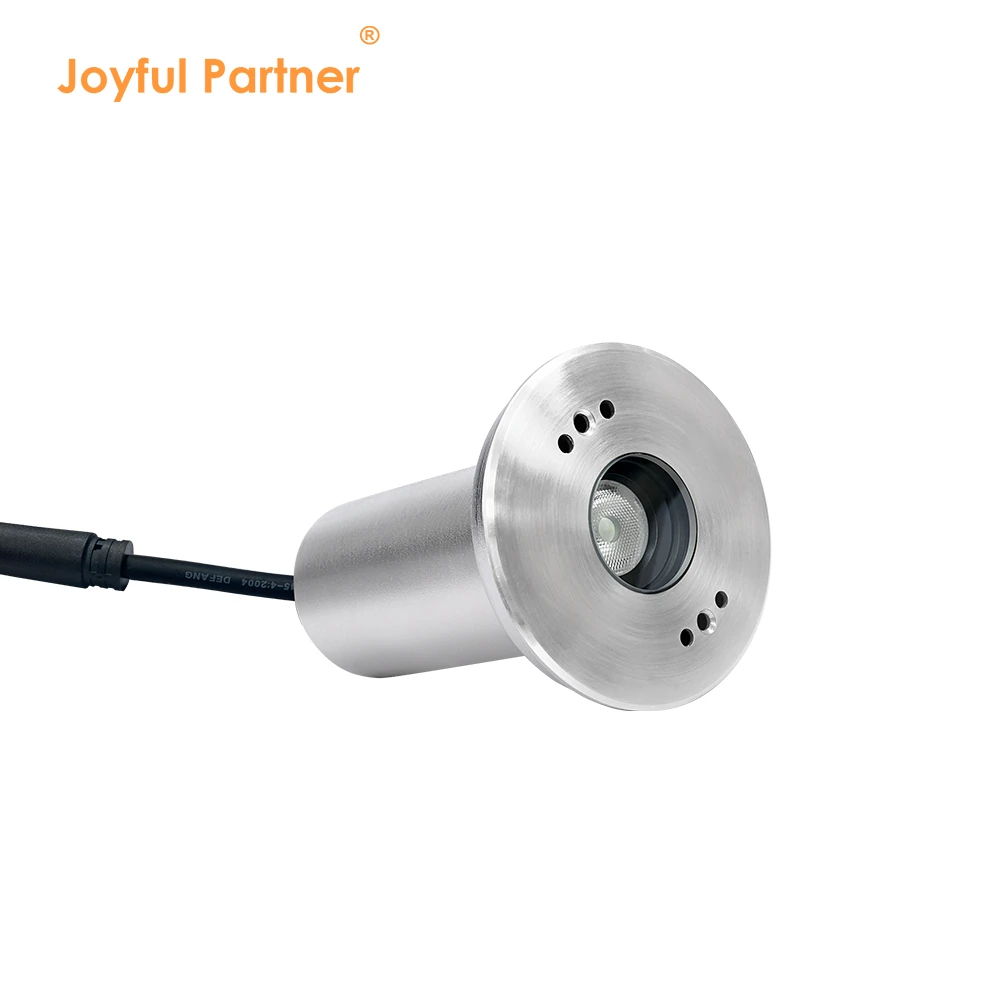

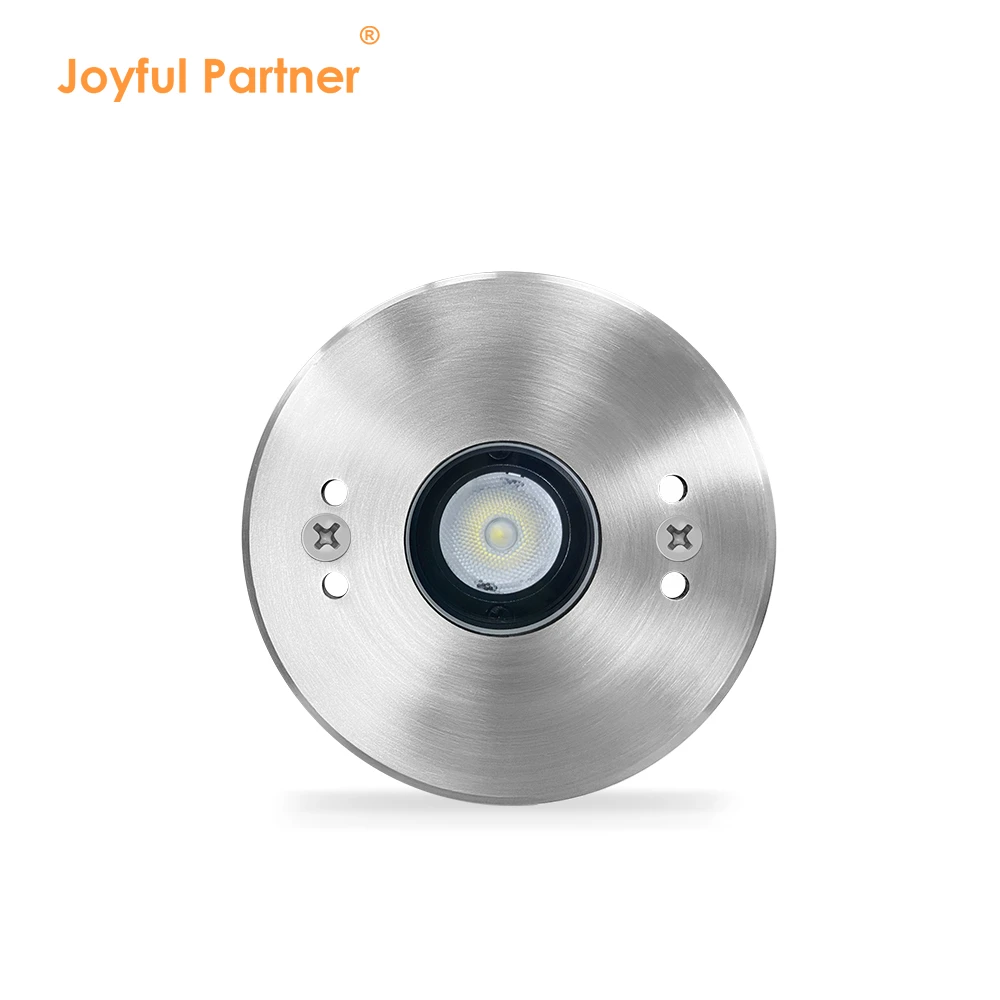

The JPD0591X is a recessed pool light built around a simple idea: light the water, not the pool deck. Its asymmetrical deep anti glare lens directs the beam downward and away from the viewer, so the fixture disappears into the wall and the surface stays calm while the water itself glows. With an 80MM front face and an 83MM body, it takes up very little of the pool finish, and the plastic mounting sleeve keeps the installation line clean on new builds and renovations alike.
Optical performance begins at the lens. A high quality optical lens rated at 85 percent efficiency shapes the output, while the asymmetrical distribution spreads light across the pool floor instead of throwing glare toward swimmers or nearby windows. Beam options spanning 8 to 60 degrees let designers work in layers, using a narrow angle for steps and feature walls and a wider angle for open basins and long water features.

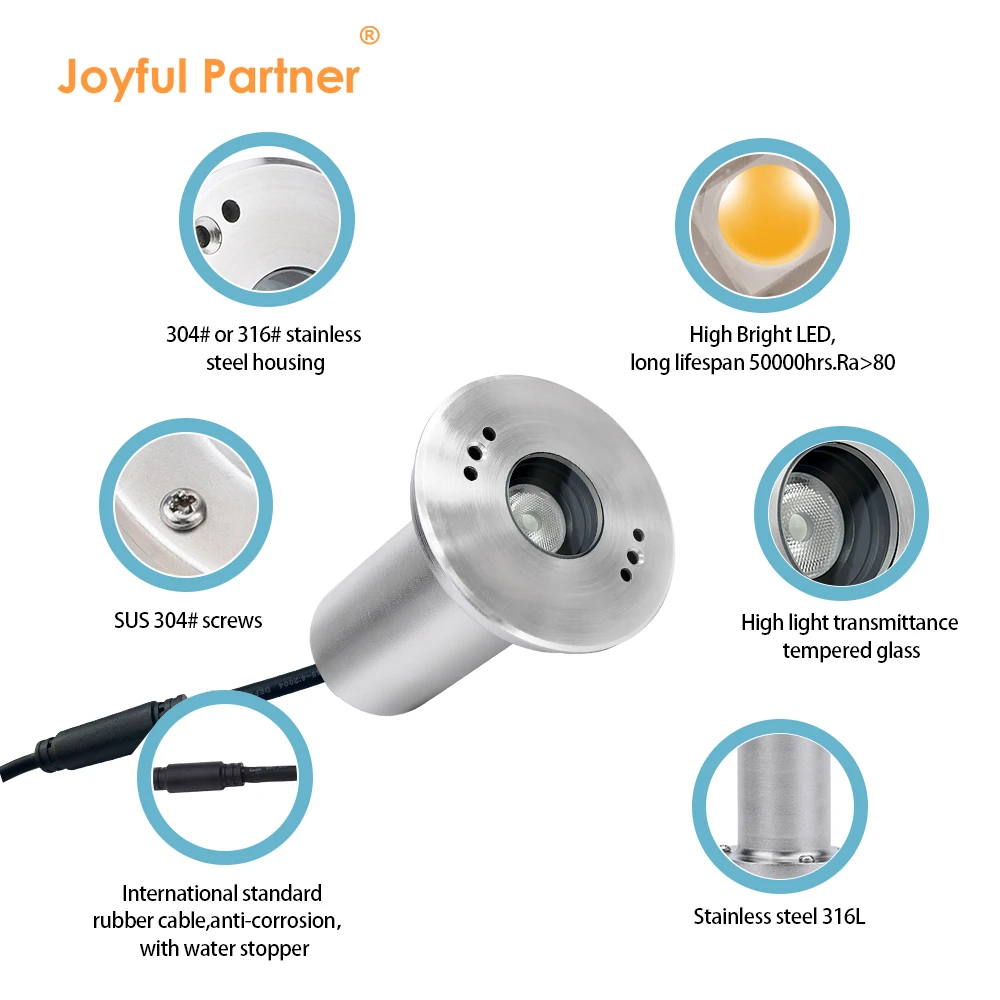

The fixture is engineered for permanent immersion. The front cover is moulded from SUS 316L stainless steel and finished with hard chrome plating, sealed behind 8MM stepped tempered glass. Inside, an aluminium PCB rated above 2.0 W/mK carries heat away from the LED, and a constant current driver feeds a single circuit for white versions or three circuits for RGB 3in1 versions. A PG 11 nickel coated copper gland secures the cable entry, and the assembly carries an IP68 rating for water from minus twenty to forty Celsius at depths under two meters, with an IK06 impact rating.
The range covers three models. JPD05911 delivers 1W, JPD05912 delivers 2.1W, and JPD05916 delivers 3W in RGB 3in1, all available in DC 12V or DC 24V for low voltage pool systems. A 65MM plastic sleeve, two meter H05RN-F cable and optional cable lengths support straightforward fitting into concrete and liner pools, spa basins, fountains and hotel water features. OEM branding and mixed model orders are available for distributors and project buyers.
Model Specification Table
|
Item No. |
Light source |
Lens beam angle(°) |
Consumption(watt) |
Input Voltage(V) |
Ik rate |
|
JPD05911 |
1X1W LED |
8°/15°/25°/30°/45° |
1.0 |
DC12V/DC24V |
08 |
|
JPD05912 |
1X2W LED |
8°/15°/25°/30°/45° |
2.1 |
DC12V/DC24V |
08 |
|
JPD05916 |
1x3W RGB3in1 LED |
20°/25°/30°/40°/60° |
3.0 |
DC12V/DC24V |
06 |
Material Specifications Table
|
Item |
Description |
|
Housing & Front cover |
Hard chromeplated Molding shaped stainless steel SUS 316L# |
|
Glass |
Step tempered glass T=8mm |
|
Lens |
High quality optical lens, efficiency≥85% |
|
Cable gland |
IP-68 PG-11 nickel coated copper |
|
PCB |
Excellent heat conductivity aluminum, coefficient of heat conductivity≥2.0w/mk |
|
Driver |
Constant current output. Single color LED=1-circuit output. RGB 3in1 LED=3-circuits output. |
|
Application environment |
Temperature of water between -20℃ ~ 40℃ less than 2M meter depth. |
|
Mounting sleeve |
Plastic |
|
Power cable |
H05RN-F 2*0.75mm² L=2m(for single color) / H05RN-F 4*0.75mm² L=2m(for RGB) / H05RN-F 5*0.75mm² L=2m(for RGBW) |

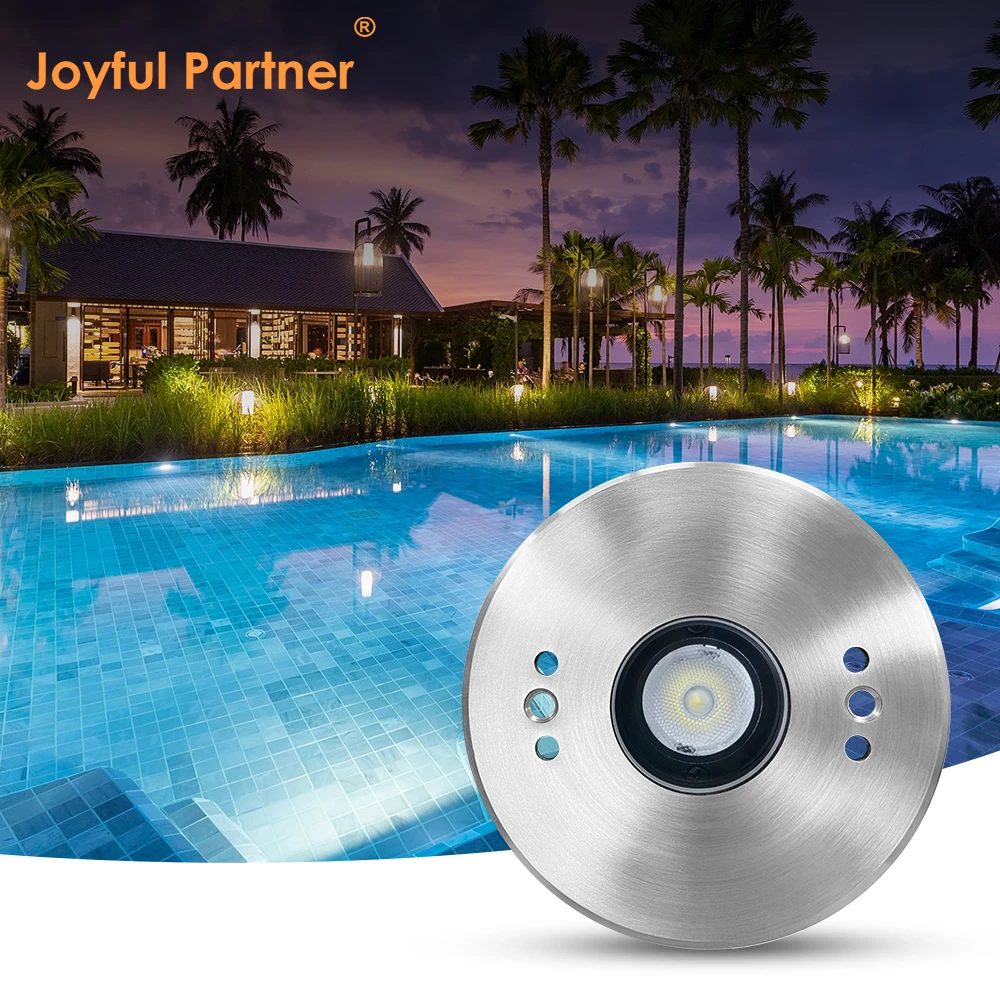

Deep Anti Glare Advantage: Recessed 316L stainless steel front with an asymmetrical deep anti glare lens, so the light hides inside the pool wall and the beam stays focused instead of spilling upward. Mounted with a plastic sleeve, the slim 83MM body sits almost flush with the pool finish, keeping villa and hotel pools clean at night.
Build And Specification: The 8MM stepped tempered glass covers an optical lens rated at 85 percent efficiency, and the aluminium PCB carries heat away to protect the LED. Constant current drivers feed single color and RGB 3in1 versions, with PG 11 nickel coated copper glands and two meter H05RN-F cable. Front diameter is 80MM, sleeve 65MM, and models run JPD05911 1W, JPD05912 2.1W and JPD05916 3W RGB in DC 12V or DC 24V.

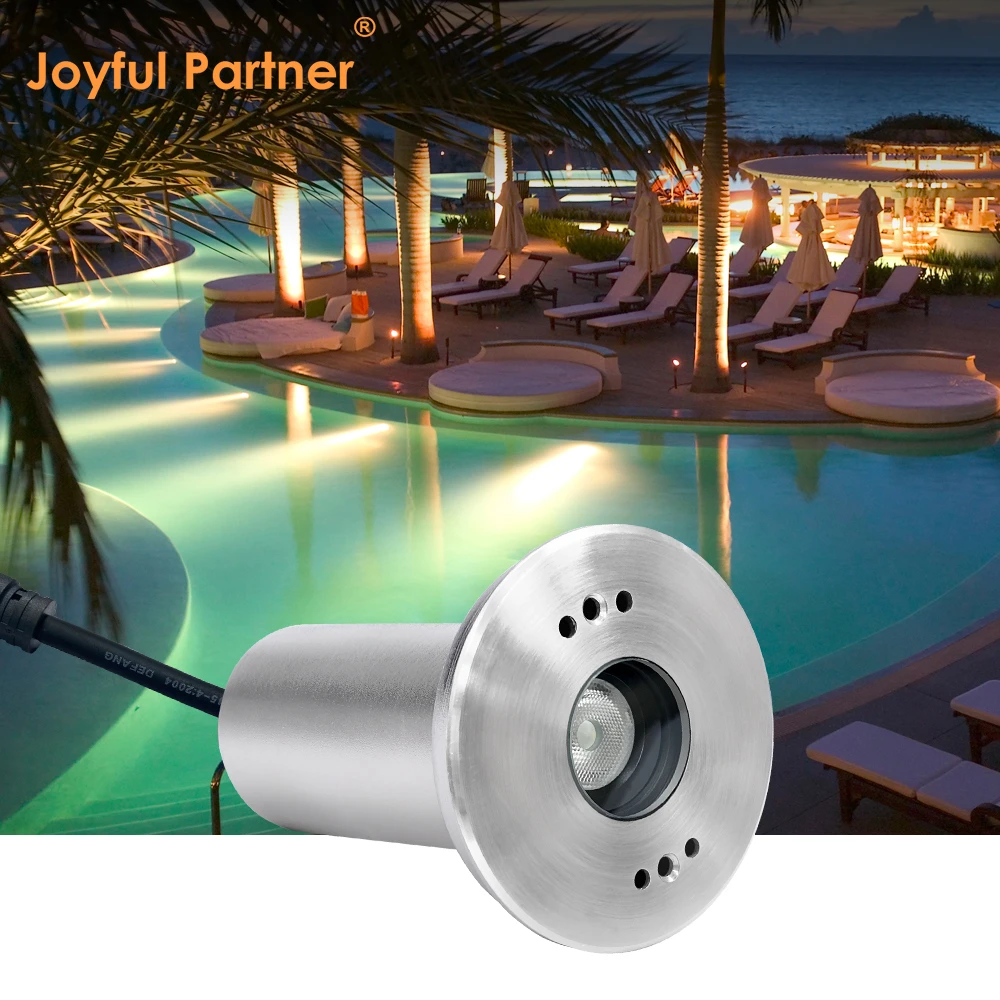

Application And Supply: Beam angles range from 8 to 60 degrees, so buyers can match narrow accent pools or wider wash lighting. Suits concrete and liner pools, spa pools, fountains and hotel water features up to two meters deep, in water from minus twenty to forty Celsius. OEM branding, custom cable length and mixed model orders are supported.
