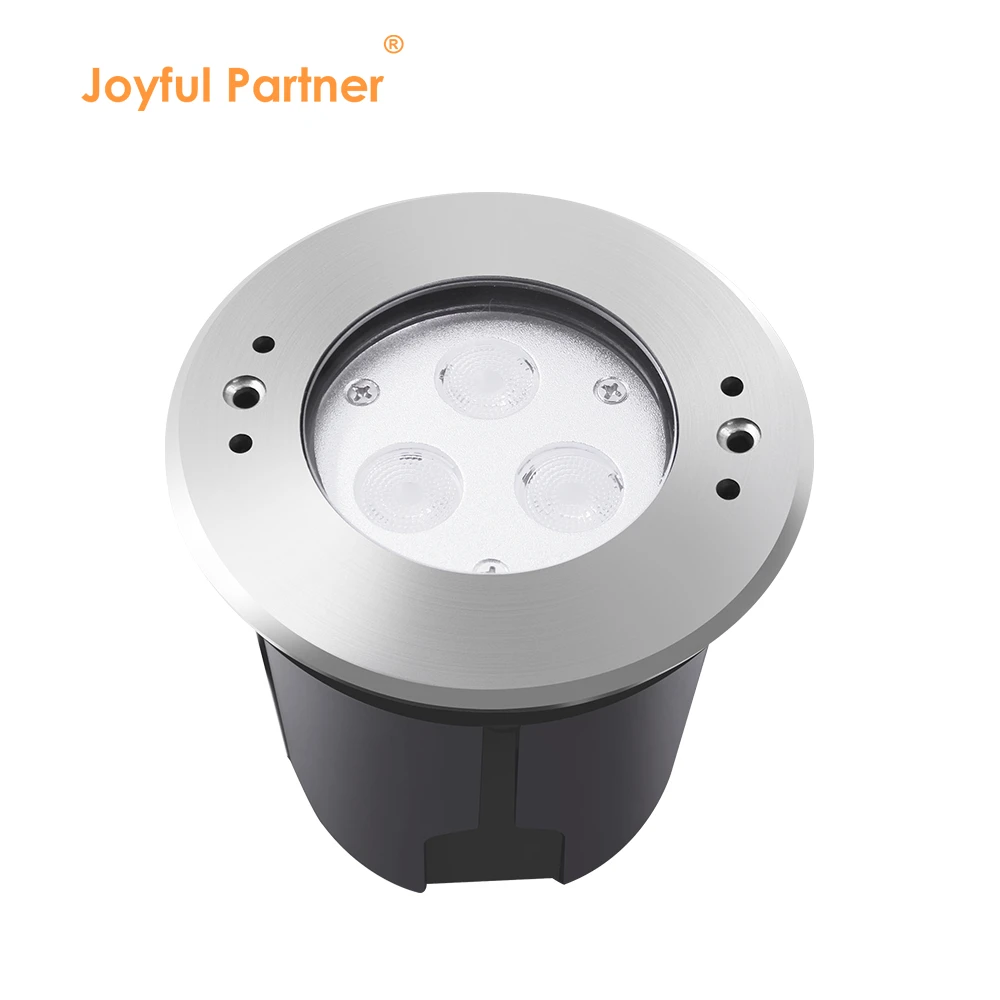

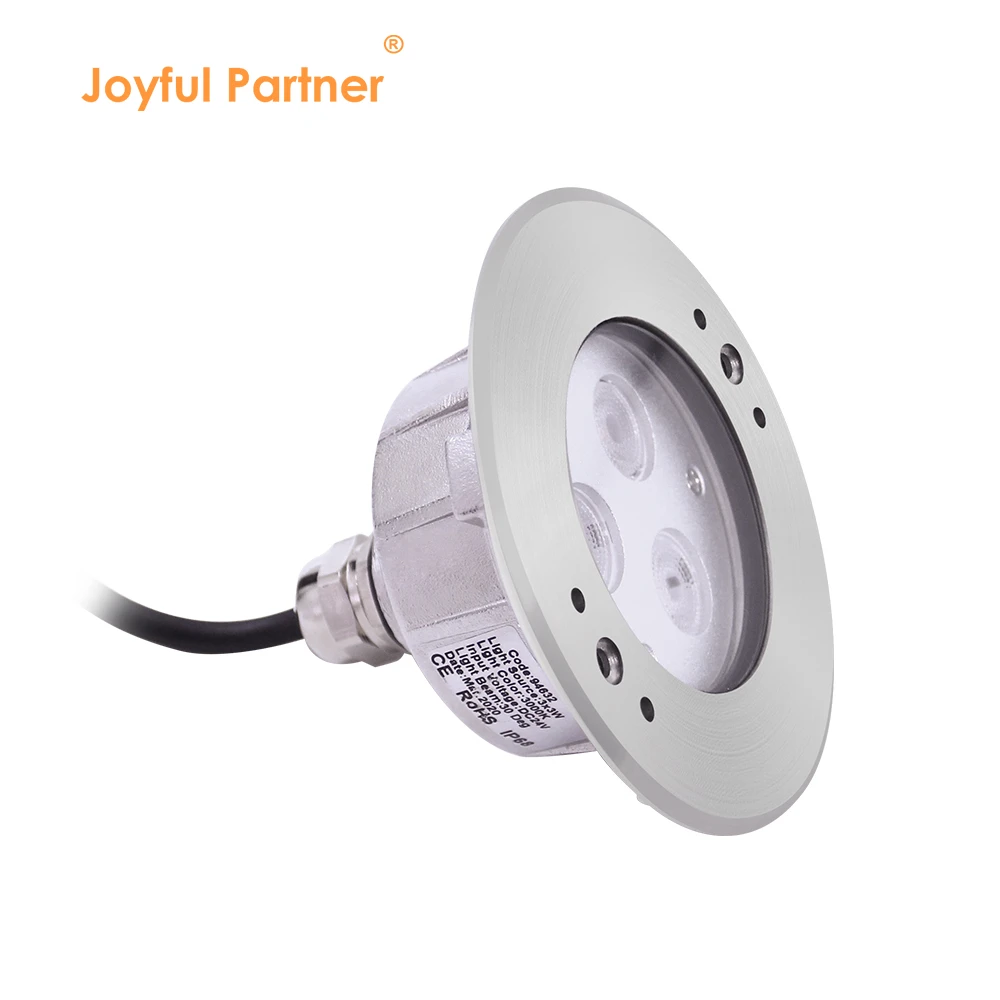

IP68 LED Stainless Steel Swimming Pool Light 3W CREE LED Single Color RGB for Architectural Pool Lighting Stainless Steel LED Swimming Pool Light
Waterproof Rating: IP68
Material: Molding shaped 304# or 316L* stainless steel
Model: 9463X Series
Certification: IP68, RoHS, CE
High-performance stainless steel swimming pool light designed for professional architectural and underwater landscape lighting.

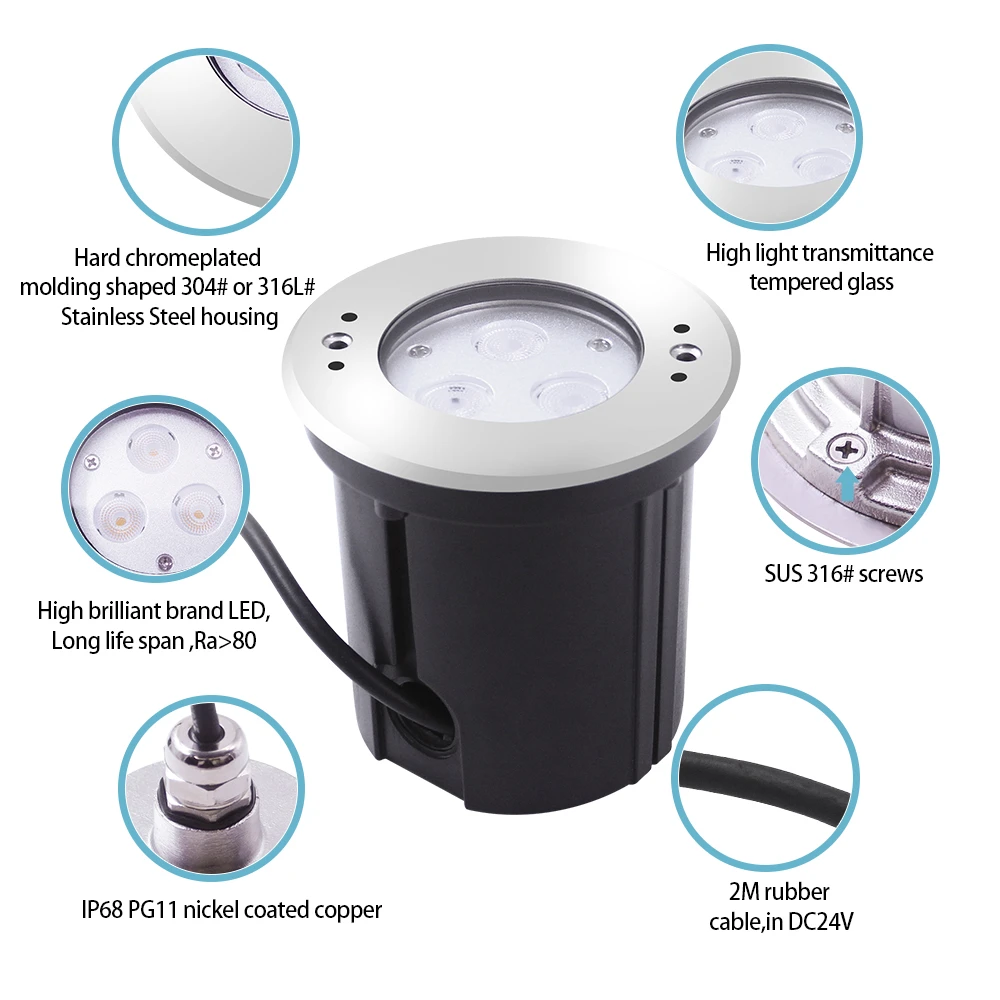

Fully constructed with molding shaped 304# or 316L* stainless steel for exceptional corrosion resistance in water.
Features IP68 waterproof rating and PG-11 copper and nickel coated cable glands for long-term submersible reliability.
Equipped with specialized asymmetrical lens options to provide optimal light distribution for pool walls and floors.
Engineered with an 8mm thick step tempered glass and reliable molding shaped silicone seals for safe underwater operation.
Color options including single color and RGB LEDs providing efficient output from 3W to 7W.
Model Specification Table
|
Item No. |
Light source |
Lens beam angle(°) |
Consumption(watt) |
Input Voltage(V) |
Ik rate |
|
94631(AS) |
3x1W LED |
8°/15°/25°/30°/45°/60° |
3.3W |
DC12V/DC24V |
08 |
|
94632(AS) |
3x2W LED |
8°/15°/25°/30°/45°/60° |
7W |
DC12V/DC24V |
08 |
|
94633(AS) |
3x1W RGB |
8°/15°/25°/30°/45°/60° |
3.1W |
DC12V/DC24V |
08 |
|
94634(AS) |
3x2W RGB |
8°/15°/25°/30°/45°/60° |
6.5W |
DC12V/DC24V |
08 |
Material Specifications Table
|
Item |
Description |
|
Front cover&Housing |
Molding shaped 304# or 316L* stainless steel |
|
Glass |
Step tempered glass T=8mm |
|
Lens |
High quality optical lens, efficiency≥85% |
|
Cable gland |
IP-68 PG-11 copper and nickel coated |
|
MCPCB |
Excellent heat conductivity aluminum, coefficient of heat conductivity≥2.0w/mk |
|
Driver |
Constant current output. Single color LED=1-circuit output. RGB LED=3-circuit output. RGB 3in1 LED=3-circuit output. |
|
Application environment |
Temperature of water between -20℃ ~ 40℃ less than 1.0 meter depth. |
|
Power cable |
H05RN-F 2*0.75mm² L=2m(for Single color) / H05RN-F 4*0.75mm² L=2m(for RGB) |
