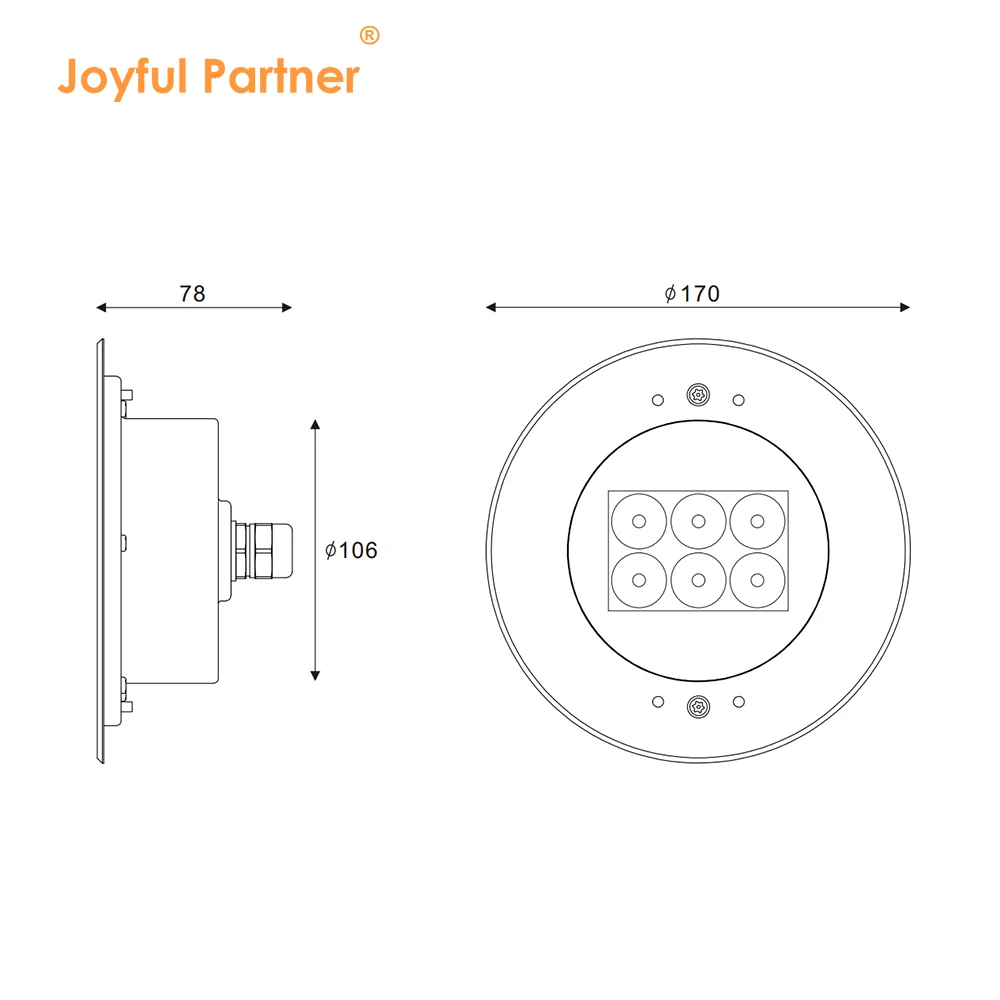

LED Recessed Underwater Swimming Pool Lights DC24V Factory OEM ODM 316 Stainless Steel DIA 170MM IP68 Recessed Underwater/Underground Light
Waterproof Rating: IP68
Material: Hard chrome plated Molding shaped stainless steel SUS 316L#
Model: JPD1406X Series
Certification: IP68, RoHS, CE
High-performance recessed underwater and underground light suitable for versatile aquatic or land-based architectural projects.
Manufactured with premium SUS 316L# hard-chrome plated stainless steel for maximum corrosion resistance and aesthetic longevity.
Equipped with an 8mm thick step tempered glass and IP68 waterproof rating for safe operation in water depths up to 2.0m.
Features a high-efficiency optical lens system (≥85%) with multiple beam angle options from 8° to 90° for precise beam control.
Reliable submersible performance ensured by PG-11 nickel-coated copper cable glands and molding shaped silicone seals.
Available in single color, RGB 3in1, and advanced RGBW 4in1 LED versions providing power outputs from 6W up to 18W.
Model Specification Table
|
Item No. |
Light source |
Lens beam angle(°) |
Consumption(watt) |
Input Voltage(V) |
Ik rate |
|
JPD14061 |
6X1W LED |
8°/15°/25°/30°/45°/60°/90° |
6.0 |
DC24V |
08 |
|
JPD14062 |
6X2W LED |
8°/15°/25°/30°/45°/60°/90° |
12.1 |
DC24V |
08 |
|
JPD14066 |
6X2W RGB3in1 LED |
8°/15°/25°/30°/45°/60°/90° |
12.0 |
DC24V |
08 |
|
JPD14069 |
6X3W RGBW4in1 LED |
25°/30°/45°/60°/90° |
18.0 |
DC24V |
08 |
Material Specifications Table
|
Item |
Description |
|
Housing & Front cover |
Hard chrome plated Molding shaped stainless steel SUS 316L# |
|
Glass |
Step tempered glass T=8mm |
|
Lens |
High quality optical lens, efficiency≥85% |
|

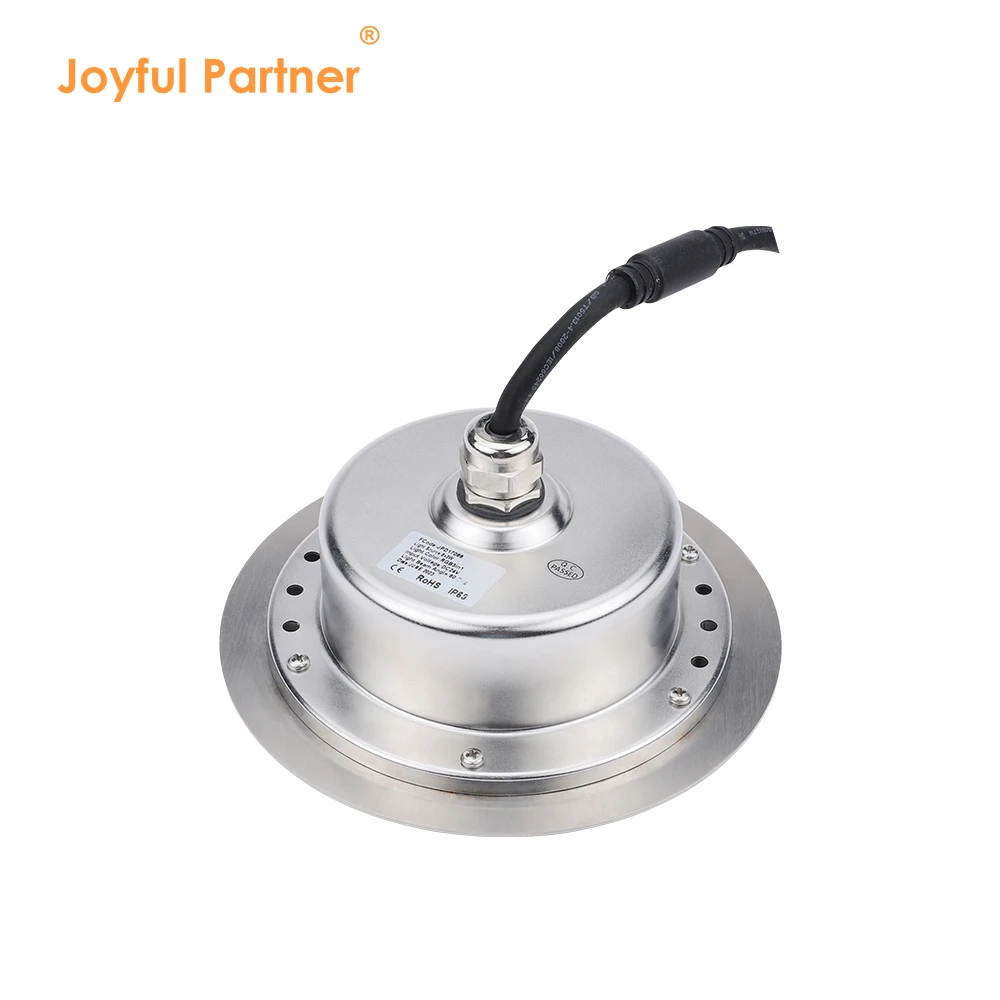

Cable gland |
IP-68 PG-11 nickel coated copper |
|
PCB |
Excellent heat conductivity aluminum, coefficient of heat conductivity≥2.0w/mk |
|
Driver |
Constant current output. Single color LED=1-circuit output. RGB 3in1 LED=3-circuits output. |
|
Power cable |
H05RN-F 2*0.75mm² L=2m(for single color) / H05RN-F 4*0.75mm² L=2m(for RGB) / H05RN-F 5*0.75mm² L=2m(for RGBW) |
|
Application environment |
Temperature of water between -20℃ ~ 40℃ less than 2M meter depth. |
|

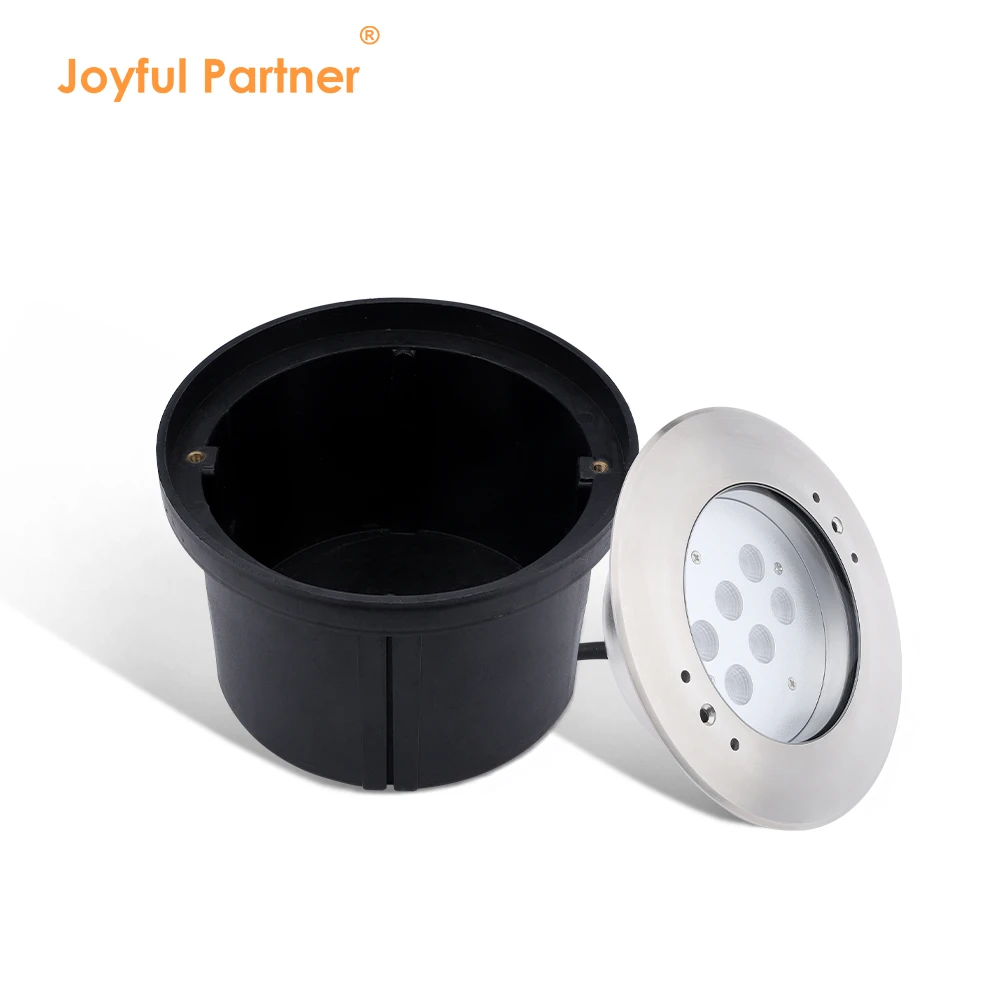

Mounting sleeve |
Plastic |
