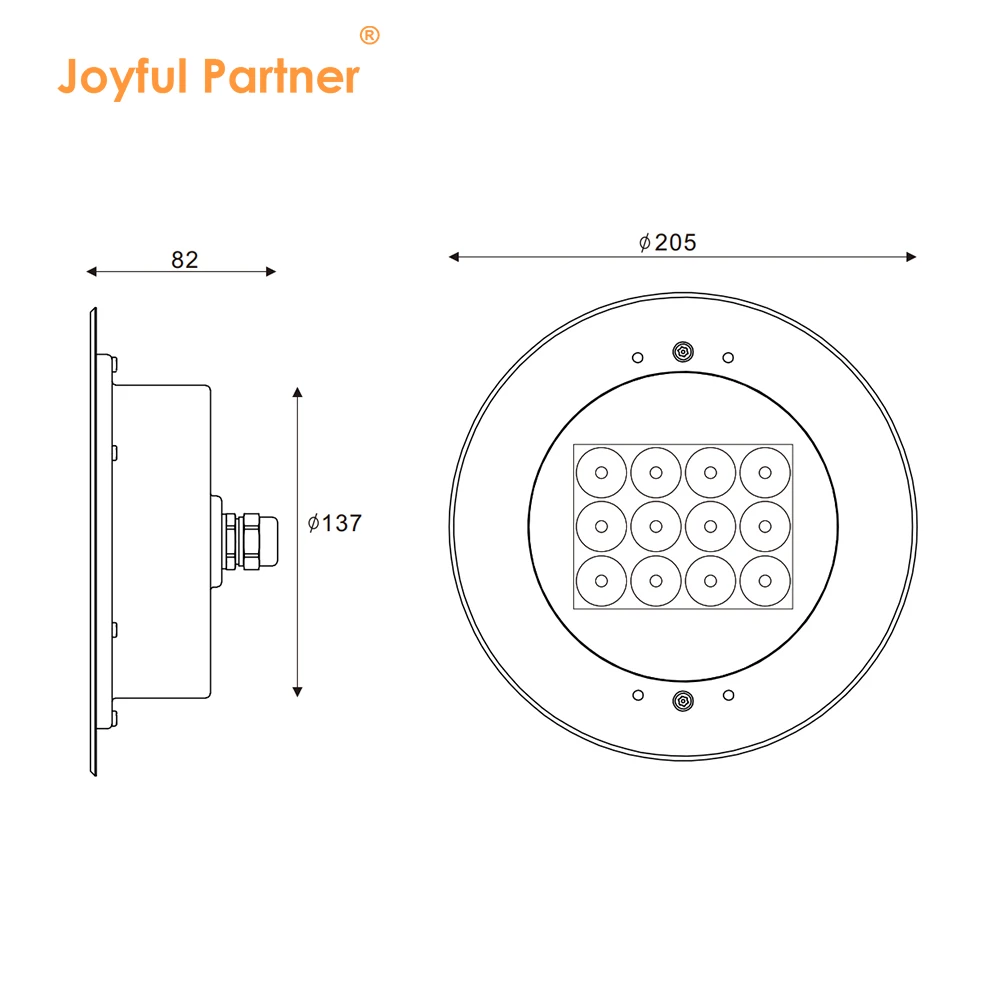

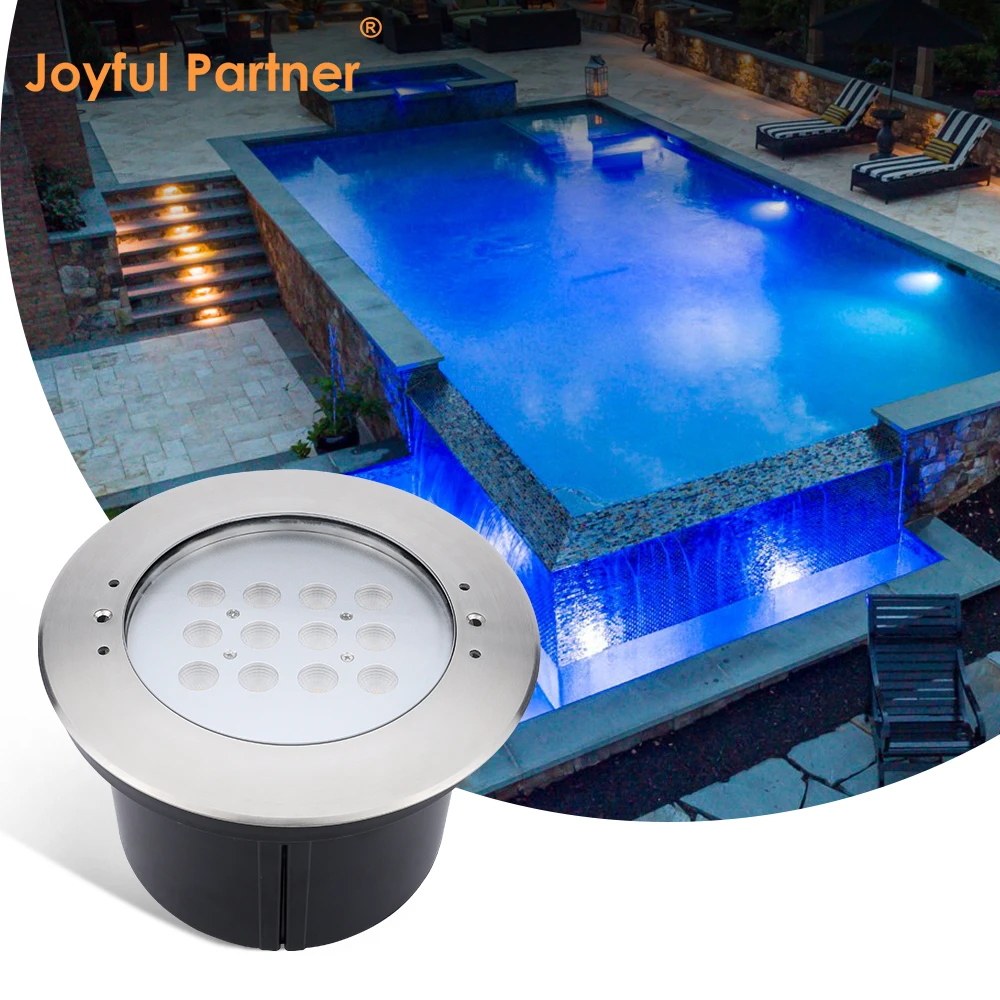

JPD18012X（Ø 205*H120 mm）
Waterproof Rating: IP68
Material: Hard chromeplated Molding shaped stainless steel SUS 316L#
Model: JPD18012X Series
Certification: IP68, RoHS, CE, Suitable for applications with water or without water
The JPD18012X is a recessed luminaire built for two environments: a concrete pool wall or a buried landscape bed. Twelve LEDs share one 170MM stainless face that sits almost flush with the finish, so a run of fixtures reads as a single line of light instead of a row of separate sources.
A high quality lens rated at 85 percent efficiency shapes the output, while the asymmetrical distribution keeps light on the pool floor and walls rather than in the eyes of someone standing at the edge. Beam angles from 8 to 90 degrees cover narrow step accents and wide basin washes. White versions run one circuit, RGB 3in1 and RGBW 4in1 run three.
The front cover is moulded SUS 316L stainless steel with hard chrome plating, sealed against 8MM stepped tempered glass. An aluminium PCB above 2.0 W/mK carries heat away from the LEDs, a PG 11 nickel coated gland locks the two meter H05RN-F cable, and the assembly is IP68 rated for water from minus twenty to forty Celsius at depths under two meters, with IK06 impact protection.
Model Specification Table
|
Item No. |
Light source |
Lens beam angle(°) |
Consumption(watt) |
Input Voltage(V) |
Ik rate |
|
JPD180121 |
12X1W LED |
8°/15°/25°/30°/45°/60°/90° |
12.0 |
DC24V |
08 |
|
JPD180122 |
12X2W LED |
8°/15°/25°/30°/45°/60°/90° |
24.1 |
DC24V |
08 |
|
JPD180126 |
12x2W RGB3in1 LED |
8°/15°/25°/30°/45°/60°/90° |
24.0 |
DC12V/DC24V |
08 |
|
JPD180129 |
12x3W RGBW4in1 LED |
25°/30°/45°/60°/90° |
36.0 |
DC24V |
08 |

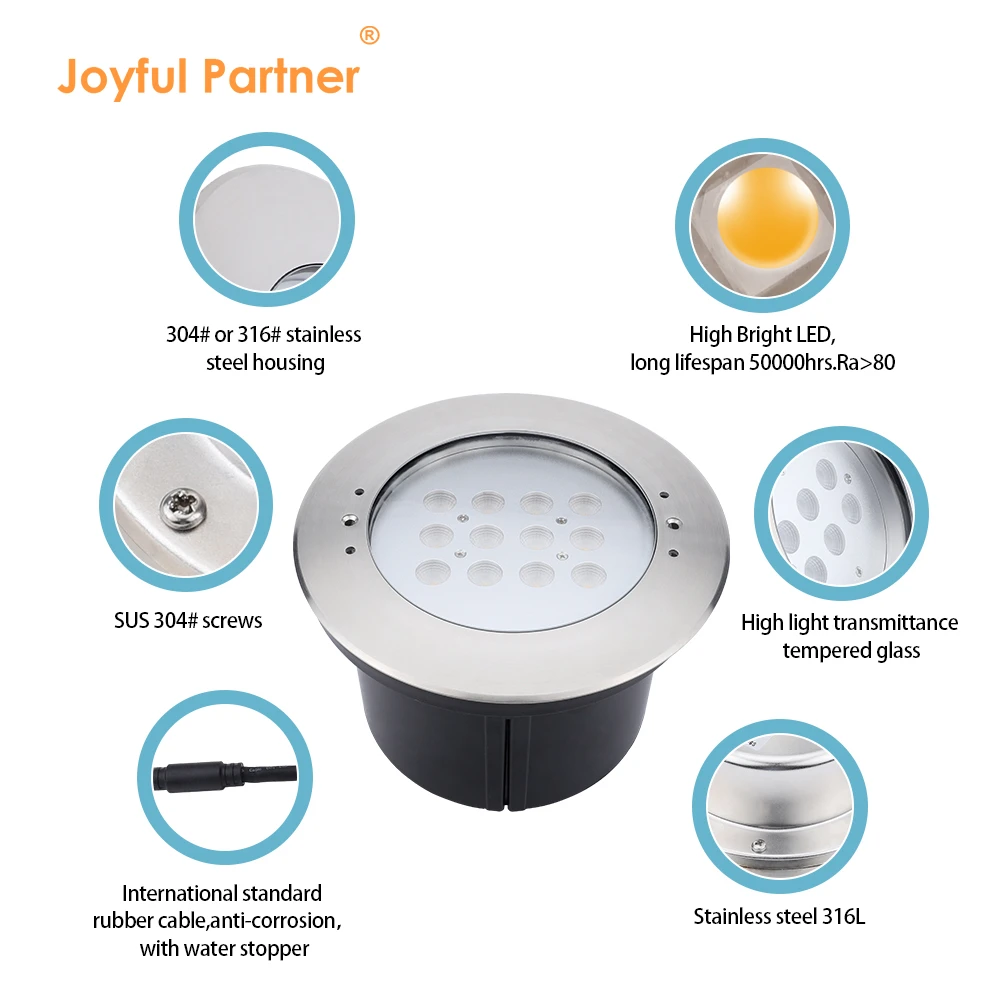

Material Specifications Table
|
Item |
Description |
|
Housing & Front cover |
Hard chromeplated Molding shaped stainless steel SUS 316L# |
|
Glass |
Step tempered glass T=8mm |
|
Lens |
High quality optical lens, efficiency≥85% |
|
Cable gland |
IP-68 PG-11 nickel coated copper |
|
PCB |
Excellent heat conductivity aluminum, coefficient of heat conductivity≥2.0w/mk |
|
Driver |
Constant current output. Single color LED=1-circuit output. RGB 3in1 LED=3-circuits output. |
|
Power cable |
H05RN-F 2*0.75mm² L=2m(for single color) / H05RN-F 4*0.75mm² L=2m(for RGB) / H05RN-F 5*0.75mm² L=2m(for RGBW) |
|
Application environment |
Temperature of water between -20℃ ~ 40℃ less than 2M meter depth. |
|
Mounting sleeve |
Plastic |

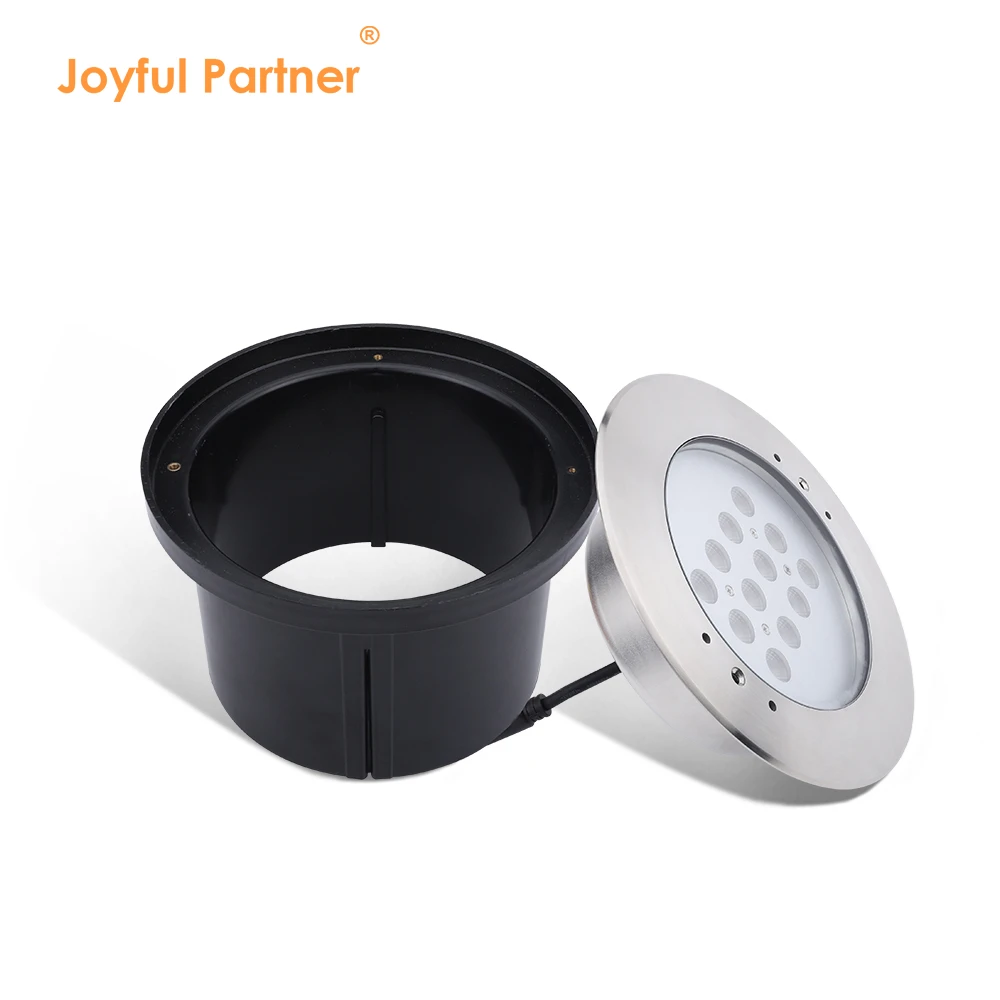

Dual Use Recessed Design: One fixture for water and ground. Twelve LEDs sit behind a stepped tempered glass cover with an optical lens rated at 85 percent efficiency, spreading an even pool of light instead of a single hot spot. The plastic back box lets the lamp recess into concrete pool walls or buried landscape beds with the same clean, almost flush face.

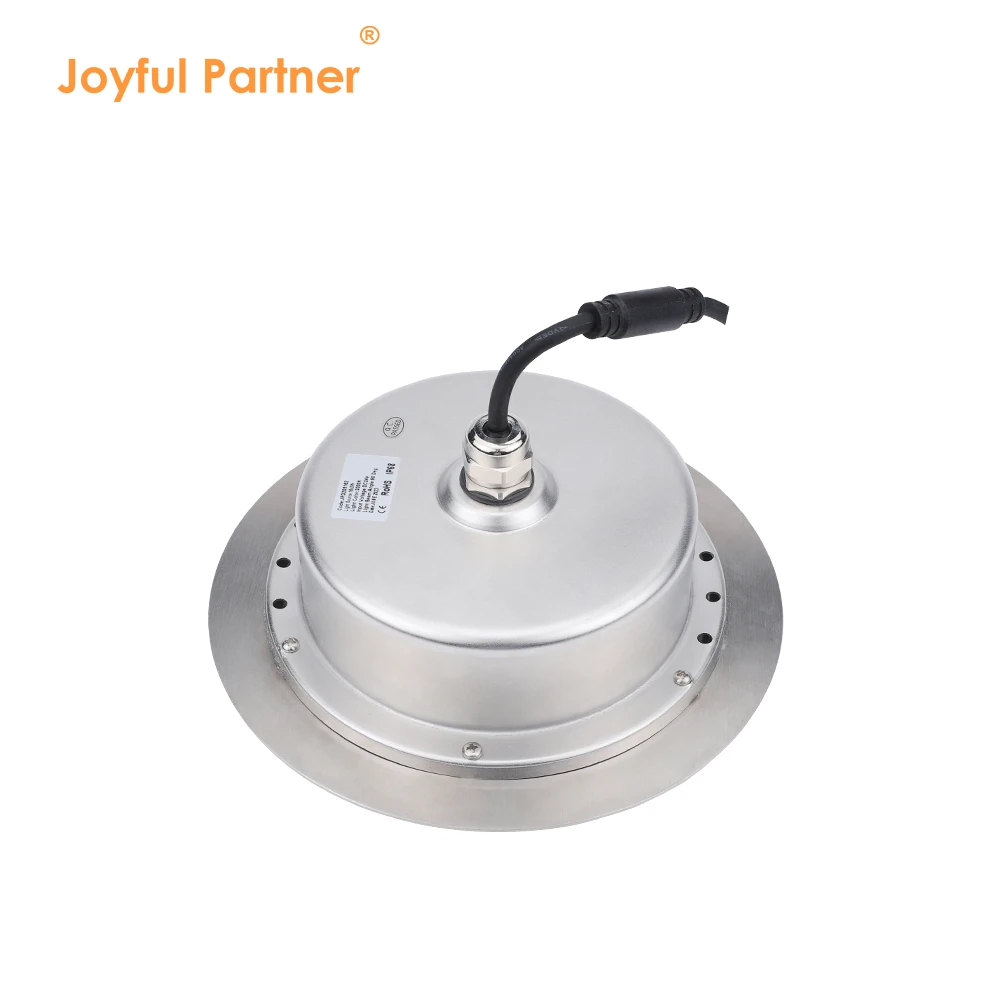

Build And Optics: The front cover is moulded from SUS 316L stainless steel with hard chrome plating, sealed to IP68 for continuous immersion in water from minus twenty to forty Celsius at depths under two meters. An aluminium PCB above 2.0 W/mK pulls heat from the LED array, a constant current driver runs one circuit for white or three for RGB 3in1, and a PG 11 nickel coated copper gland locks the two meter H05RN-F cable.
Model Range And Supply: Four models cover different loads. JPD180121 delivers 12W and JPD180122 delivers 24W in DC 24V white, JPD180126 offers 24W RGB 3in1 in DC 12V or DC 24V, and JPD180129 reaches 36W RGBW 4in1 in DC 24V. Beam angles from 8 to 90 degrees suit narrow accents or wide washes across pools, fountains, water features, garden beds and deck edges, with OEM branding and custom cable length available.
