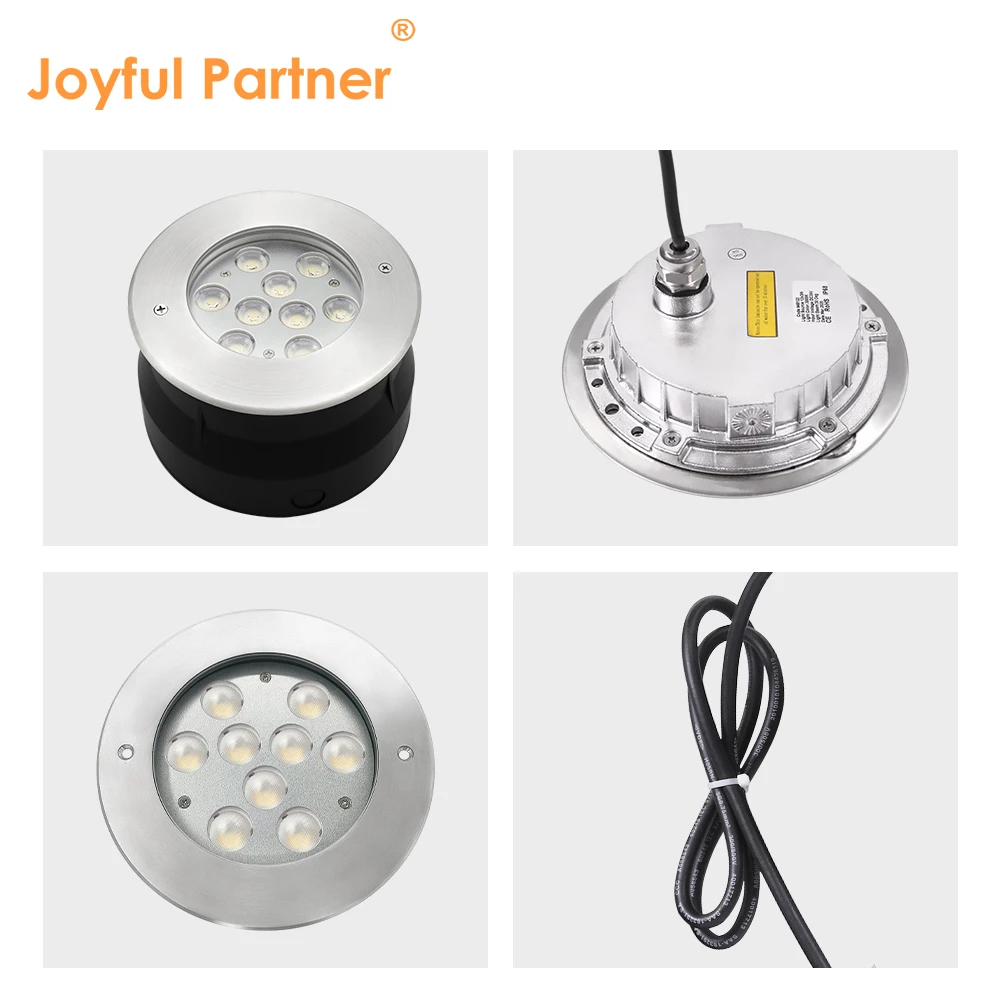

LED Underwater Light 9W 18W RGB Full Color Stainless Steel DC12V 24V For Swimming Pool Stainless steel wall recessed LED pool light/LED swimming pool light

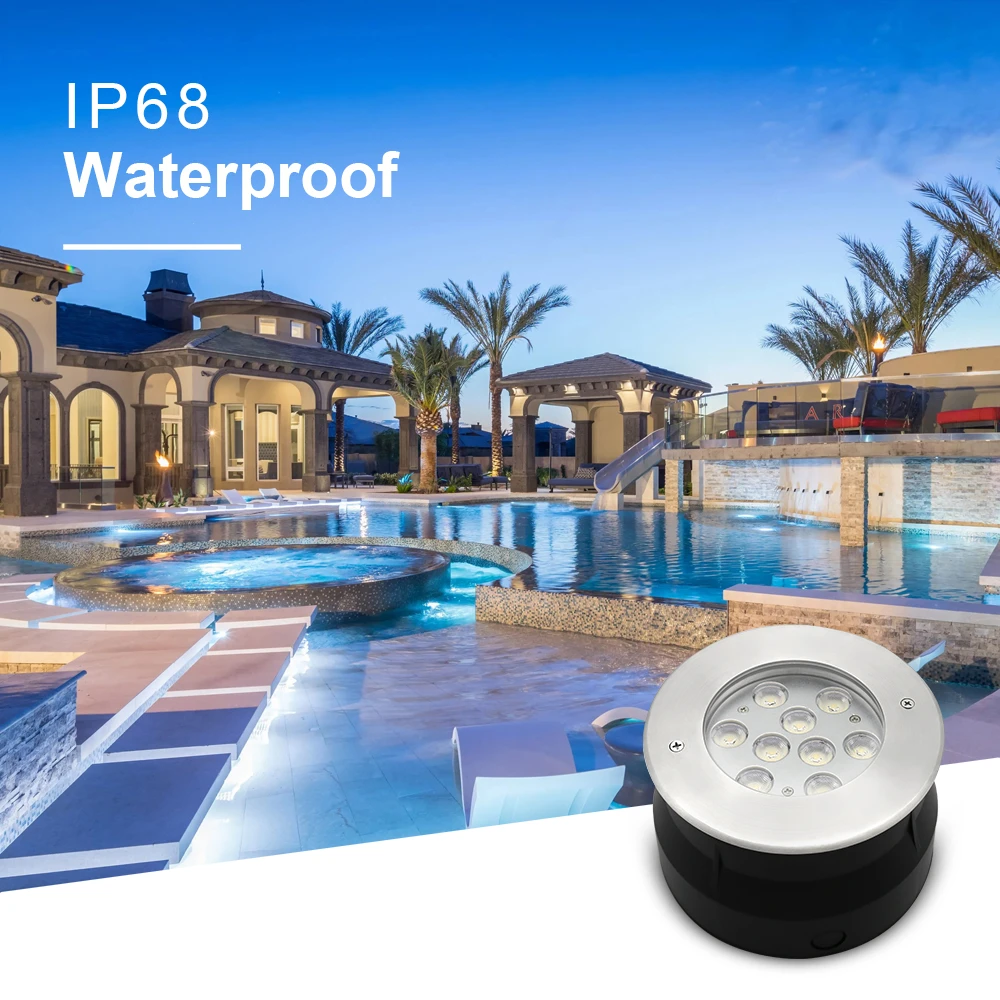

Waterproof Rating: IP68
Material: Molding shaped 304# or 316L* stainless steel housing & accessories
Model: 9476X / 9479X / 9474X Series
Certification: IP68, RoHS, CE
Professional high-power recessed LED pool light designed for commercial and high-end residential underwater projects.
Complete stainless steel construction using SUS304 or 316# for the housing and all accessories to ensure maximum longevity.
Engineered with an 8mm thick tempered glass and IP68 submersible protection for reliable operation up to 1.0m depth.
Features high-efficiency optical lenses (≥85%) with multiple beam angle options and specialized asymmetrical lens configurations.
Equipped with PG-11 copper and nickel coated cable glands and molding shaped silicone seals for superior waterproof sealing.
Wide range of lighting options from 6.5W to 25.2W, including single color, RGB 3in1, and advanced RGBW 4in1 LED technology.
Model Specification Table
|
Item No. |
Light source |
Lens beam angle(°) |
Consumption(watt) |
Input Voltage(V) |
Ik rate |
|
94761(AS) |
6x1W |
15°/30°/45° |
6.5W |
DC24V |
08 |
|
94762(AS) |
6x2W |
15°/30°/45° |
14W |
DC24V |
08 |
|
94766(AS) |
6x3W RGB3in1 |
15°/30°/45° |
17.8W |
DC24V |
08 |
|
94791 |
9x1W |
15°/25°/45°/60° |
9.6W |
DC12V/DC24V |
08 |
|
94792 |
9x2W |
15°/25°/45°/60° |
19.8W |
DC12V/DC24V |
08 |
|
94793 |
9x1W RGB |
15°/25°/45°/60° |
9.2W |
DC12V/DC24V |
08 |
|
94794 |
9x2W RGB |
15°/25°/45°/60° |
17.5W |
DC12V/DC24V |
08 |
|
94796 |
9x3W RGB3in1 |
25°/45°/60° |
25.2W |
DC12V/DC24V |
08 |
|
94749(AS) |
4x5W RGBW4in1 (W=3000K 4000K 6000K) |
15°/25°/30°/45°/60° |
20.4W |
DC24V |
08 |
|
94747(AS) |
4x5W LED |
15°/25°/30°/45°/60° |
24.8W |
DC24V |
08 |

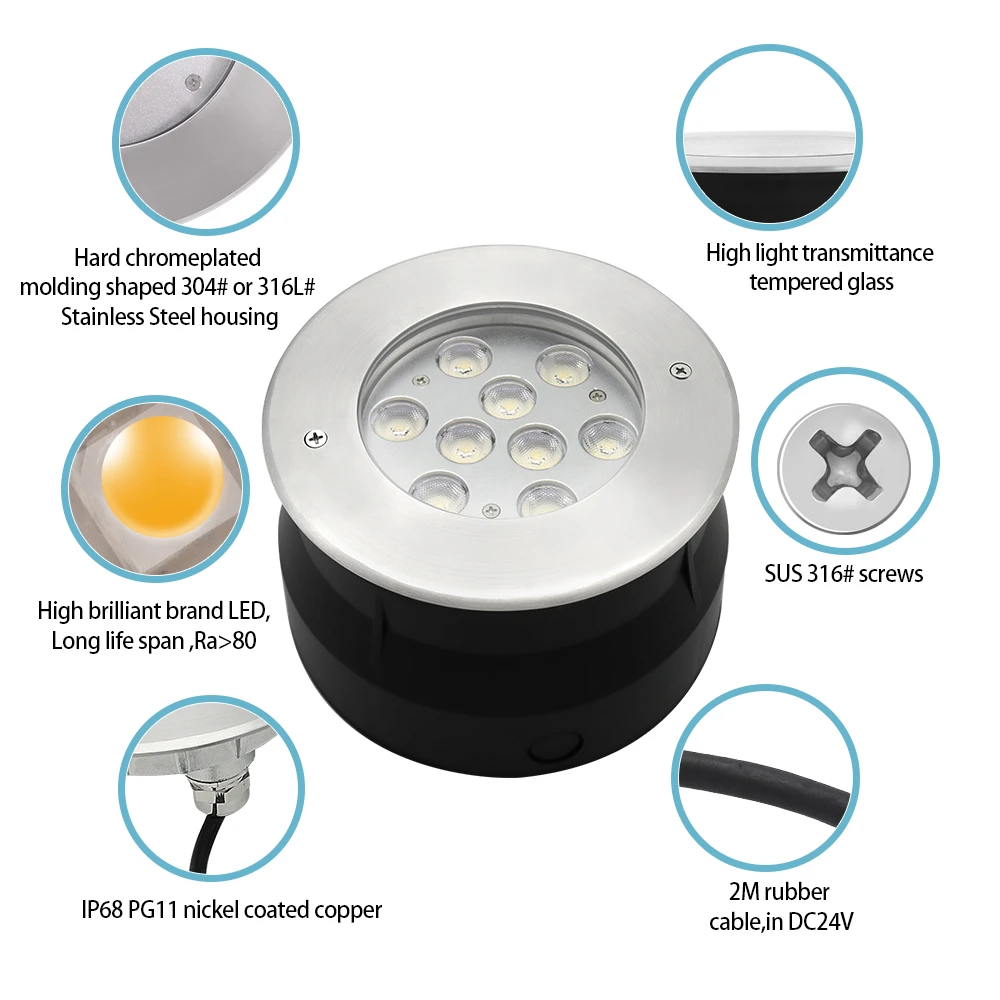

Material Specifications Table
|
Item |
Description |
|
Front cover&Housing |
Molding shaped 304# or 316L* stainless steel |
|
Glass |
Tempered glass T=8mm |
|
Lens |
Optical lens, efficiency≥85% |
|
Cable gland |
IP-68 PG-11 copper and nickel coated |
|
MCPCB |
Excellent heat conductivity aluminum, coefficient of heat conductivity≥2.0w/mk |
|
Driver |
Constant current output. Single color LED=1-circuit output. RGB LED=3-circuit output. RGB 3in1 LED=3-circuit output. |
|
Application environment |
Temperature of water between -20℃ ~ 40℃ less than 1.0 meter depth. |
|
Power cable |
H05RN-F 2x0.75mm² L=2m(for Single color) / H05RN-F 4x0.75mm² L=2m(for RGB) |
|
Mounting sleeve |
Plastic |
