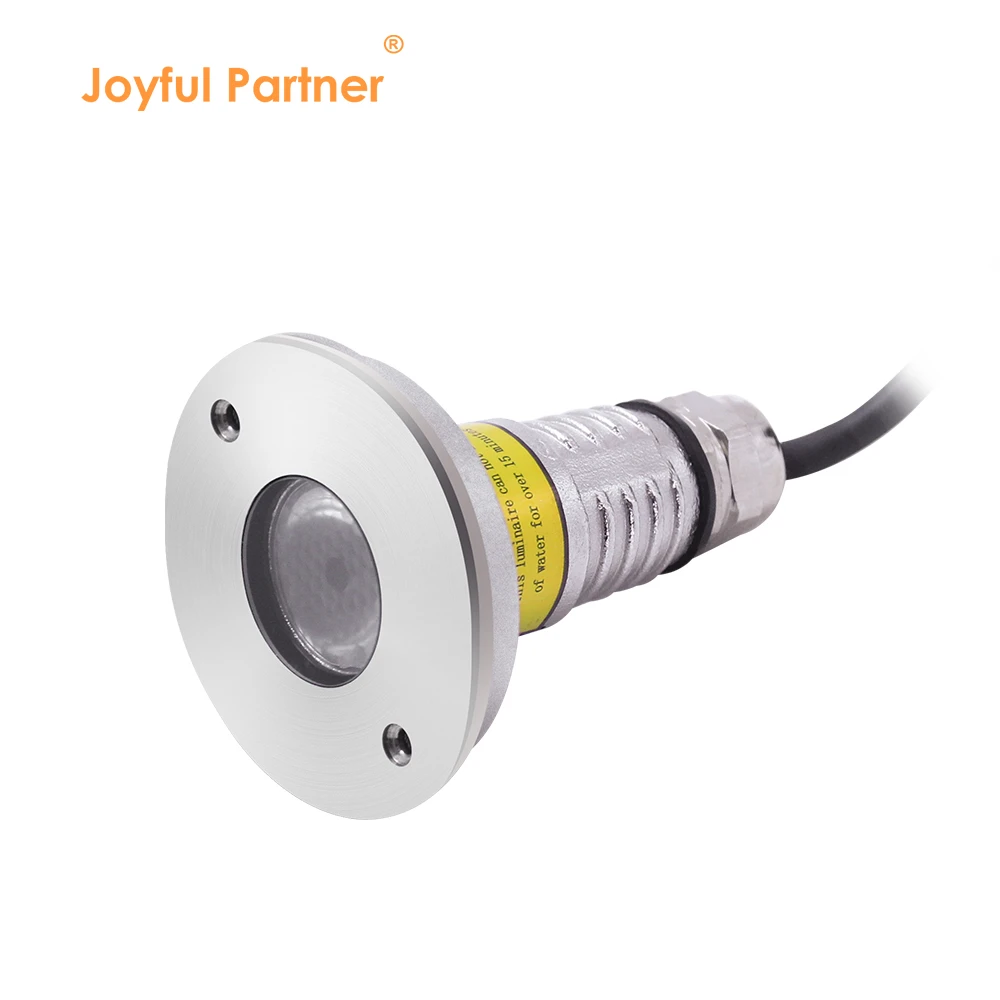

Outdoor Led RGB Underwater Lamp Low Voltage 3W 1W 2W LED IP68 Stainless Steel Front Cover Small Size Recessed LED Pool Light/Underwater Inground light

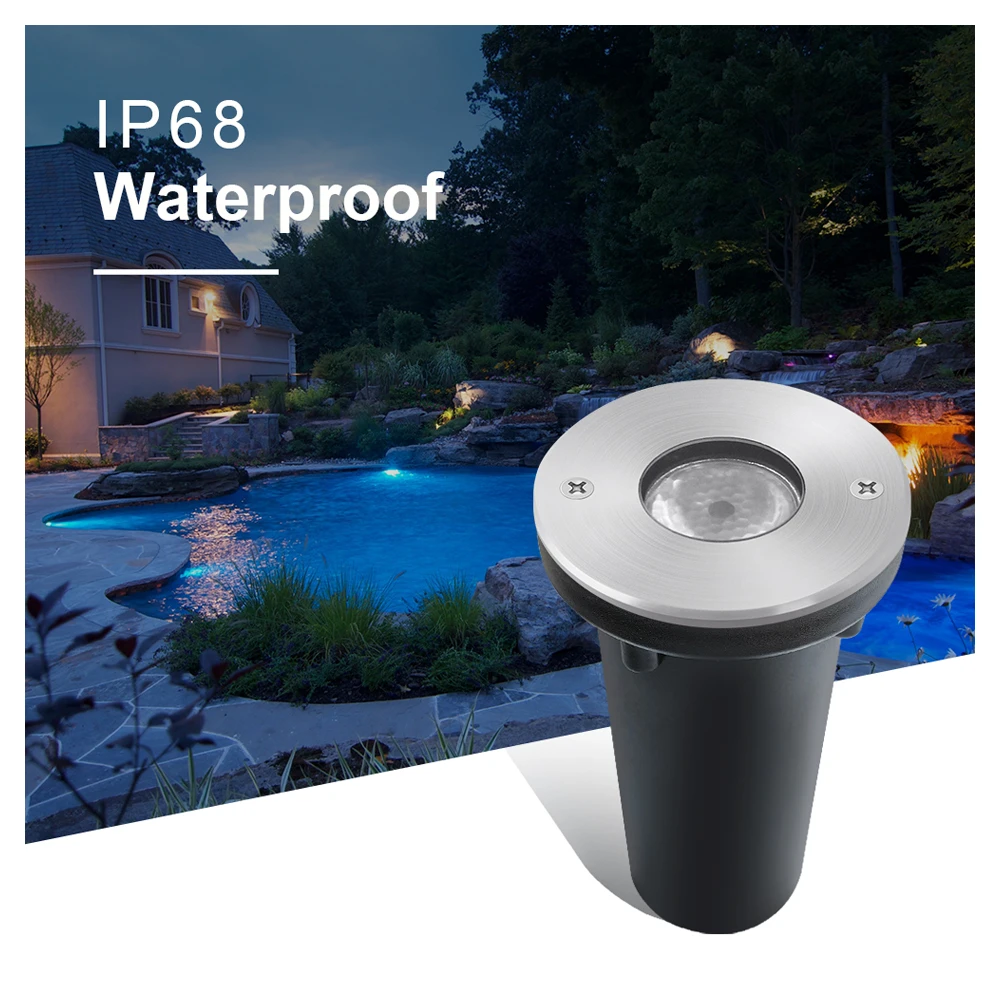

Waterproof Rating: IP68
Material: Molding shaped 304# or 316L* stainless steel
Model: 9431X Series
Certification: IP68, RoHS, CE
Professional small size recessed LED pool light designed for precise underwater illumination in swimming pools and fountains.
Fully constructed with high-grade molding shaped 304# or 316L* stainless steel for superior corrosion resistance in submerged conditions.
Features IP68 waterproof rating and PG-11 copper and nickel coated cable glands to ensure reliable underwater operation.
Equipped with specialized asymmetrical lens options to provide targeted light distribution for architectural pool features.
Engineered with a 7mm thick step tempered glass and reliable molding shaped silicone seals for safe underwater operation up to 1.0m depth.
Lighting solutions including high-power single color and RGB 3in1 LEDs for creative and dynamic pool lighting effects.
Model Specification Table
|
Item No. |
Light source |
Lens beam angle(°) |
Consumption(watt) |
Input Voltage(V) |
Ik rate |
|
94311(AS) |
1x1W |
8°/15°/25°/30°/45°/60° |
1.1W |
DC12V/DC24V |
07 |
|
94312(AS) |
1x2W |
8°/15°/25°/30°/45°/60° |
2.4W |
DC12V/DC24V |
07 |
|
94316(AS) |
1x3W RGB3in1 |
30°/45°/60° |
3.2W |
DC12V/DC24V |
07 |
Material Specifications Table
|
Item |
Description |
|
Housing&Front cover |
Molding shaped 304# or 316L* stainless steel |
|
Glass |
Step tempered glass T=7mm |
|
Lens |
High quality optical lens, efficiency≥85% |
|
Cable gland |
IP-68 PG-11 copper and nickel coated |
|
PCB |
Excellent heat conductivity aluminum, coefficient of heat conductivity≥2.0w/mk |
|
Driver |
Constant current output. Single color LED=1-circuit output. RGB 3in1 LED=3-circuits output. |
|
Application environment |
Temperature of water between -20℃ ~ 40℃ less than 1.0 meter depth. |
|

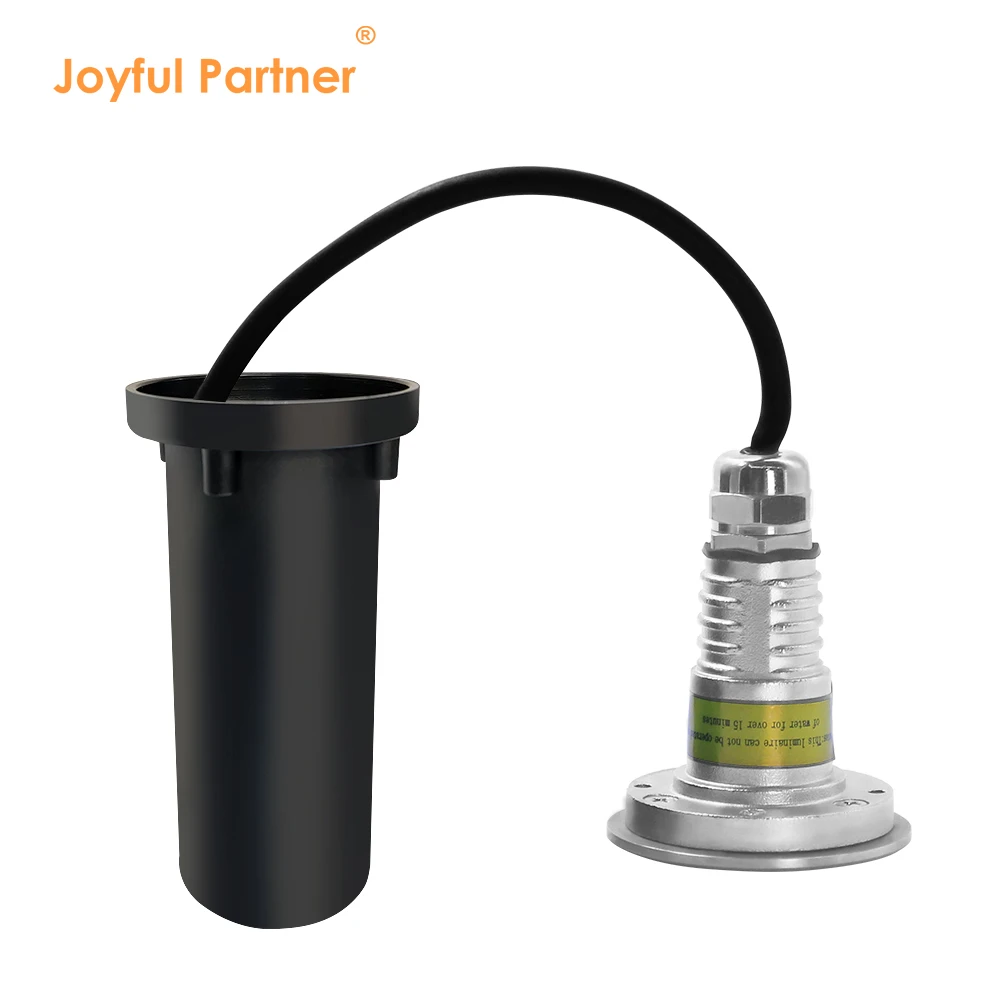

Mounting sleeve |
Plastic |
|
Power cable |
H05RN-F 2*0.75mm² L=2m(for single color) / H05RN-F 4*0.75mm² L=2m(for RGB) |
